Description
Included in this kit
This bundle includes a Hertz Dieci Series DCX-6903 6x9" Two-Way Coaxial Speakers - Pair, and a Hertz Dieci Series DCX-1303 5.25" Two-Way Coaxial Speakers - Pair.
1x Hertz Dieci Series DCX-6903 6x9" Two-Way Coaxial Speakers - Pair (DCX-6903)
An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.
Features -
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• 60 mm paper tweeter with ferrite magnet.
• Supertweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
Specifications -
• Power Handling - Peak W: 180
• Power Handling - Continuous W: 90
• Impedance Ω: 4
• Frequency response Hz: 45 ÷ 21k
• Sensitivity dB SPL: 93
• Voice coil Ø mm (in.): 25 (1.0
• Woofer size mm (in.): (6.0 x 9.0)
• Tweeter size mm (in.): 60 (2.5)

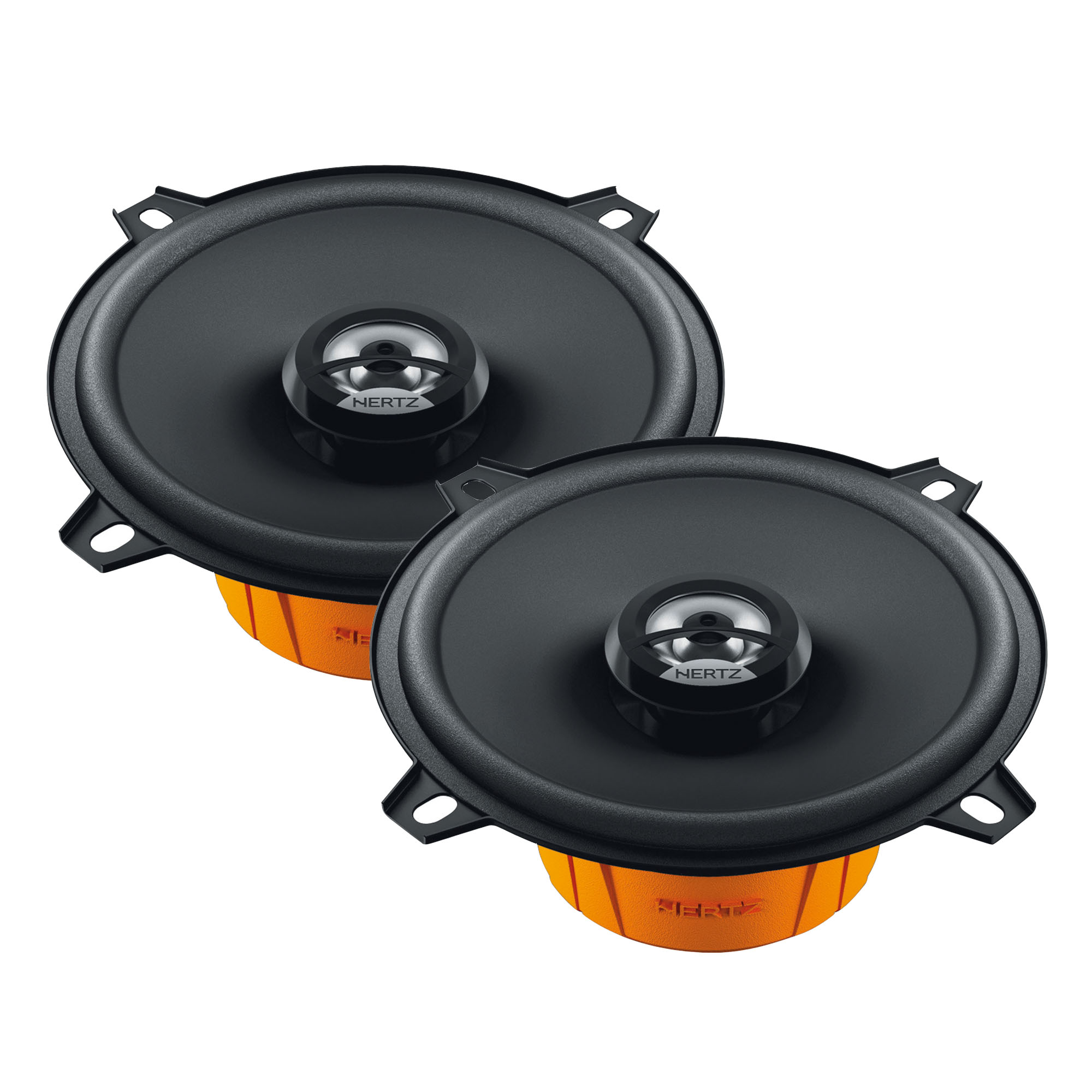

1x Hertz Dieci Series DCX-1303 5.25" Two-Way Coaxial Speakers - Pair (DCX-1303)
To meet all installation needs, without giving up on Hertz quality and performance, The Dieci DCX 130.3 car audio coaxials were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
Features -
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
Specifications -
• Power Handling - Peak W: 80
• Power Handling - Continuous W: 40
• Impedance Ω: 4
• Frequency response Hz: 65 ÷ 21k
• Sensitivity dB SPL: 93
• Voice coil Ø mm (in.): 25 (1.0)
• Woofer size mm (in.): 130 (5.0)
• Tweeter size mm (in.): 15 (0.6)
