Description
Included in this kit
This bundle includes a Hertz Marine CAPRI HBB Hidden Marine Source with Hi-Res Audio, NMEA 2000 compatible & multi-zone control, and a Hertz HMC-NMEA2K Optional Volume Controller Compatible with CAPRI H100 and CAPRI HBB source units..
1x Hertz Marine CAPRI HBB Hidden Marine Source with Hi-Res Audio, NMEA 2000 compatible & multi-zone control (CAPRI-HBB)
The CAPRI HBB is the black box version of the renowned Hertz CAPRI marine source, delivering the same high-resolution audio performance and advanced features without an integrated display. Designed for seamless control via remote units, Bluetooth® app, or NMEA 2000®, it ensures full management of four independent zones with dedicated subwoofer outputs. Engineered to withstand harsh marine environments, the CAPRI HBB offers superior connectivity, including Bluetooth® 5.1, USB, digital inputs/outputs, and DAB+ readiness, for an audiophile-grade marine experience.
Specification
PEAK POWER @ 4 Ω: CLASS-D: 4 x 70 W
FRONT PANEL IP RATING: IP66
MULTI-ZONE: 4
LINE OUT (RCA): 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
SUBWOOFER OUT (RCA): 4x (LPF: ALL, 60, 80, 100 Hz)
AUX INPUT (RCA): 2x L+R
S/PDIF DIGITAL IN: Toslink (24 bit/96 kHz)
A2B® DIGITAL BUS: UTP cable (24 bit/96 kHz)
S/PDIF DIGITAL OUT: Coaxial (24 bit/96 kHz)
EQUALIZER: CUSTOM 8 BANDS for each zone
EQ. PRESET: 8
CAMERA IN: Yes
BATTERY VOLTAGE GAUGE: Yes
Sources
TUNER: AM/FM (RDS) (EU/US) Weather band
USB: Yes (2A)
IPOD/IPHONE: Yes
DAB+: Ready
XM READY: Yes
BLUETOOTH: 5.1, Audio streaming with ID3 Tag Display, LDAC – AAC – APTX HD
REMOTE CONTROL: HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
Size & Mounting
Unit Size mm (in.): W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole size mm (in.): W 122 (4.8) x H 52 (2.05)
Mounting Depth mm (in.): 99 (3.89)
Mounting Method: Panel mount (4 screws)
1x Hertz HMC-NMEA2K Optional Volume Controller Compatible with CAPRI H100 and CAPRI HBB source units. (HMC-NMEA2K)

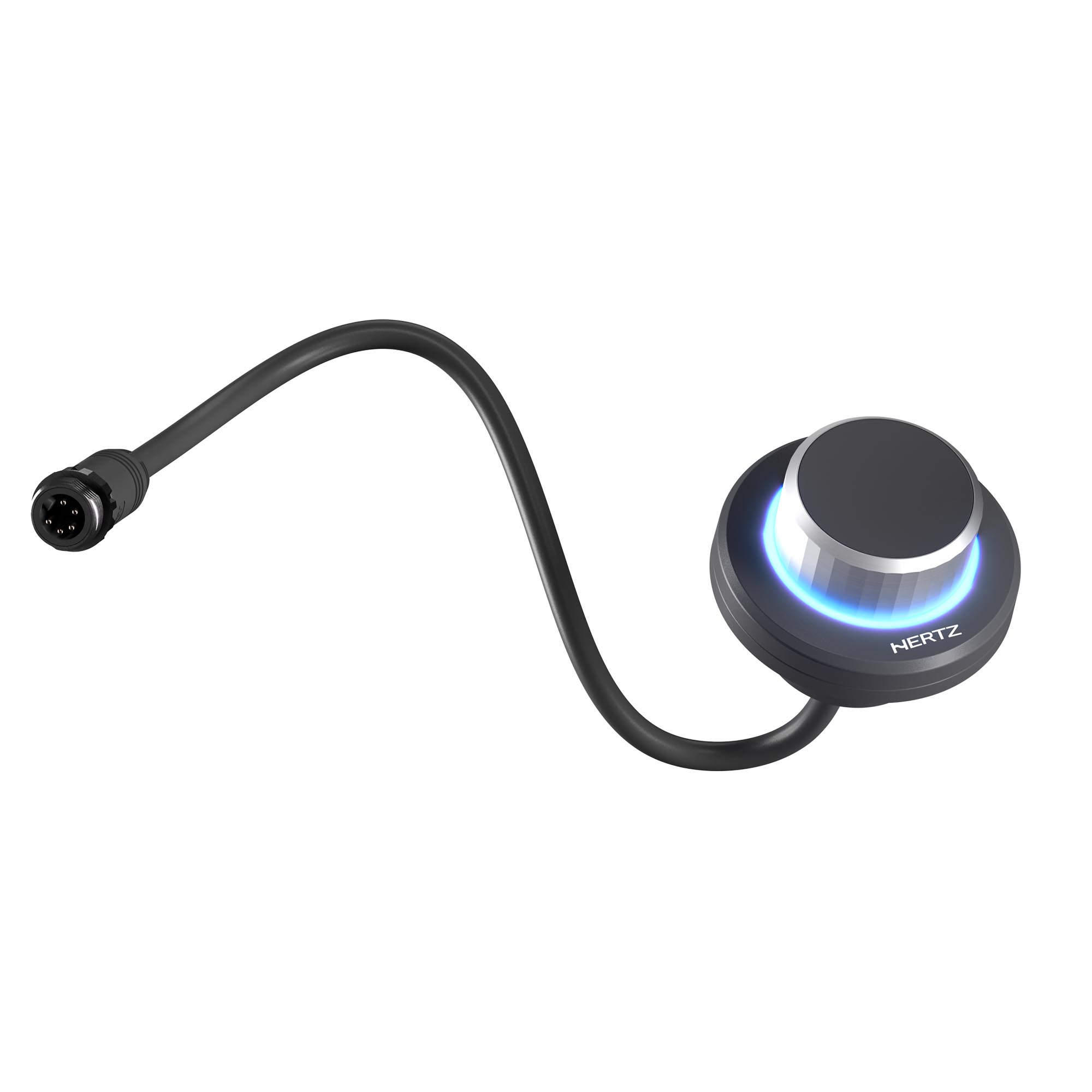

Hertz Marine HMC NMEA2K NMEA 2000® Volume Controller
The Hertz Marine HMC NMEA2K is an optional volume controller designed for seamless integration into your vessel’s NMEA 2000® network. Built specifically to complement the Hertz Marine CAPRI H100 and CAPRI HBB source units, it enables precise zone-based volume adjustment for enhanced onboard audio control.
Ideal for installation at the helm, cockpit, or cabin, the HMC NMEA2K combines plug-and-play connectivity with a compact, marine-rated design built to withstand demanding conditions.
Key Features
- NMEA 2000® network integration
- Compatible with CAPRI H100 and CAPRI HBB source units
- Zone-based volume adjustment
- Intuitive rotary knob control
- IP67 waterproof rating
- Plug-and-play connectivity
Installation & Mounting
Compact dimensions and a shallow mounting profile make the HMC NMEA2K suitable for a variety of onboard installation points including helm stations, cabins, and cockpits.
| Mounting Hole Diameter | Ø 38 mm (1.5") |
| Base Diameter | 59.5 mm (2.34") |
| Mounting Diameter | 48 mm (1.89") |
| Cut-Out Diameter | 38 mm (1.5") |
| Mounting Depth | 18.6 mm (0.73") |
| Switch Depth | 29.5 mm (1.16") |
| Switch Width | 37.2 mm (1.48") |
| Wire Length | 300 mm (11.81") |
| Base Depth | 12.5 mm (0.49") |
