Description
Included in this kit
This bundle includes a Hertz DP 1.500 D-Class Mono Bass Amplifier 500 WRMS x 1 at 2Ω, a Hertz Mille Pro Shallow MPS 250 S2 Shallow 10 in. (250mm) 2Ω SVC Subwoofer incl. grille, and a Hertz HRC 02 Remote Sub Level Control For Deici Power Amps.

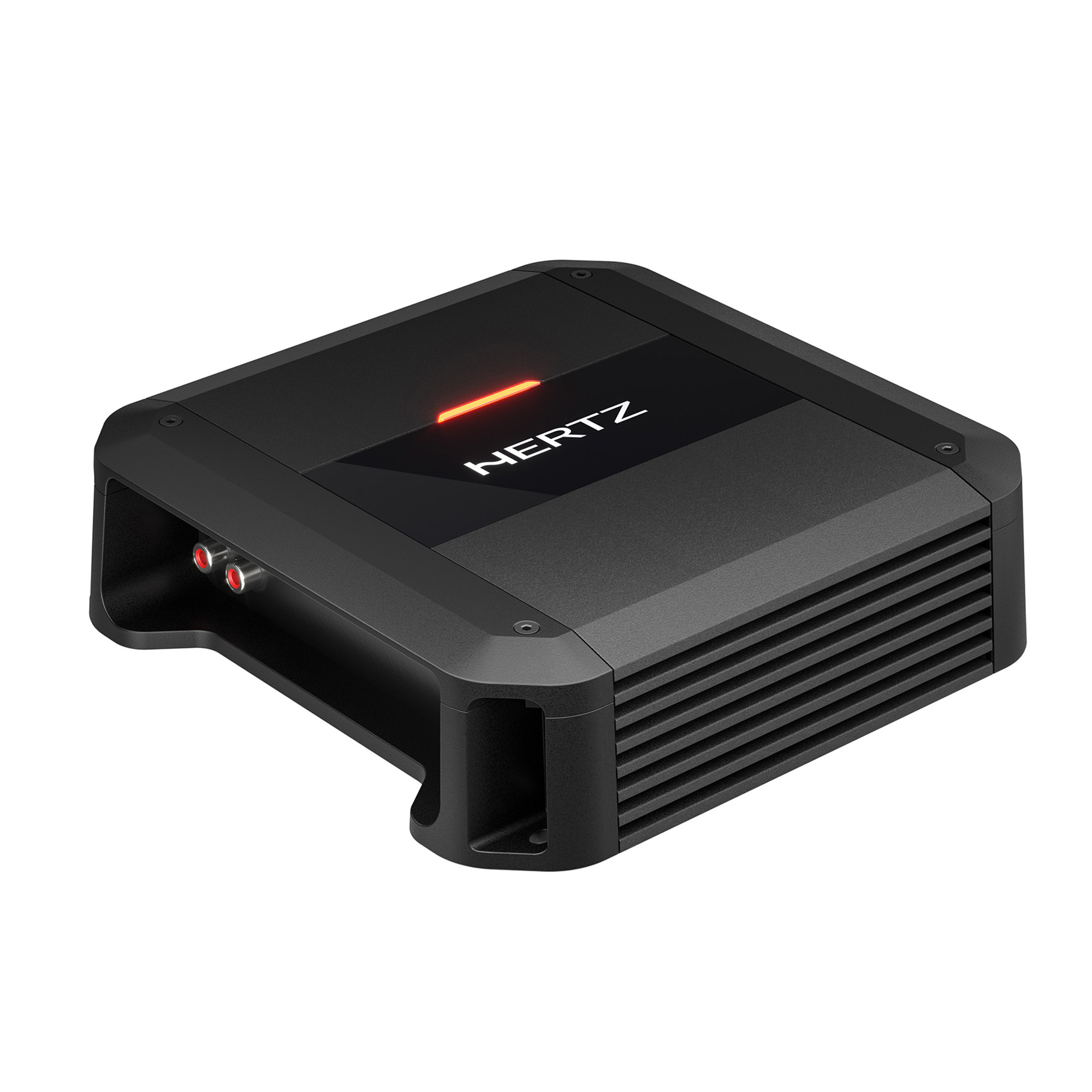

1x Hertz DP 1.500 D-Class Mono Bass Amplifier 500 WRMS x 1 at 2Ω (DP-1.500)
Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.
The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 9 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Specifications -
• Channels: 1
POWER SUPPLY -
• Nominal power supply voltage (fuse): 11 ÷ 15 VDC (1 x 30 A)
• Operating power supply voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1 A
• Standby current draw: 50 uA
• Consumption, MIN load impedance (Max Musical Power): 21 A
• Remote IN: 4 ÷ 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
• Efficiency: 86%
AMPLIFIER STAGE -
• Distortion - THD @ 100 Hz, 70% Rated Power: 0.2%
• Damping factor: @ 1 kHz, 1W 180
• Bandwidth @ -3 dB: 10Hz ÷ 500Hz
• S/N ratio (A-weighted @ 1 V Input): 99 dBA
• Minimum load impedance: @ 1 Ch: 2 Ω
• Adjustable Crossovers: yes
1x Hertz Mille Pro Shallow MPS 250 S2 Shallow 10 in. (250mm) 2Ω SVC Subwoofer incl. grille (MPS-250-S2)
Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.
MPS 300 is optimized to work in ultra-compact sealed boxesstarting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.
Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Provided with MPS 250 there is a full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo.
Technical Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Depth mm (in.): 88 (3.46)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 156 x 60 x 36 (6.14 x 2.36 x 1.42)
• Weight of one component kg (lb.): 6,64 (14.64)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)
1x Hertz HRC 02 Remote Sub Level Control For Deici Power Amps (HRC-02)
The stylish Hertz HRC 02 remote control is ready for surface mounting with tape, surface mounting with screws and flush mounting, thanks to the supplied accessories.
