Description
Included in this kit
This bundle includes a Hertz DP 1.500 D-Class Mono Bass Amplifier 500 WRMS x 1 at 2Ω, a Hertz MPBX-300-S2 - 12" Sealed Subwoofer Enclosure 2ohm 1000 Watts, and a Hertz HRC 02 Remote Sub Level Control For Deici Power Amps.
1x Hertz DP 1.500 D-Class Mono Bass Amplifier 500 WRMS x 1 at 2Ω (DP-1.500)
Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.
The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 9 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Specifications -
• Channels: 1
POWER SUPPLY -
• Nominal power supply voltage (fuse): 11 ÷ 15 VDC (1 x 30 A)
• Operating power supply voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1 A
• Standby current draw: 50 uA
• Consumption, MIN load impedance (Max Musical Power): 21 A
• Remote IN: 4 ÷ 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
• Efficiency: 86%
AMPLIFIER STAGE -
• Distortion - THD @ 100 Hz, 70% Rated Power: 0.2%
• Damping factor: @ 1 kHz, 1W 180
• Bandwidth @ -3 dB: 10Hz ÷ 500Hz
• S/N ratio (A-weighted @ 1 V Input): 99 dBA
• Minimum load impedance: @ 1 Ch: 2 Ω
• Adjustable Crossovers: yes

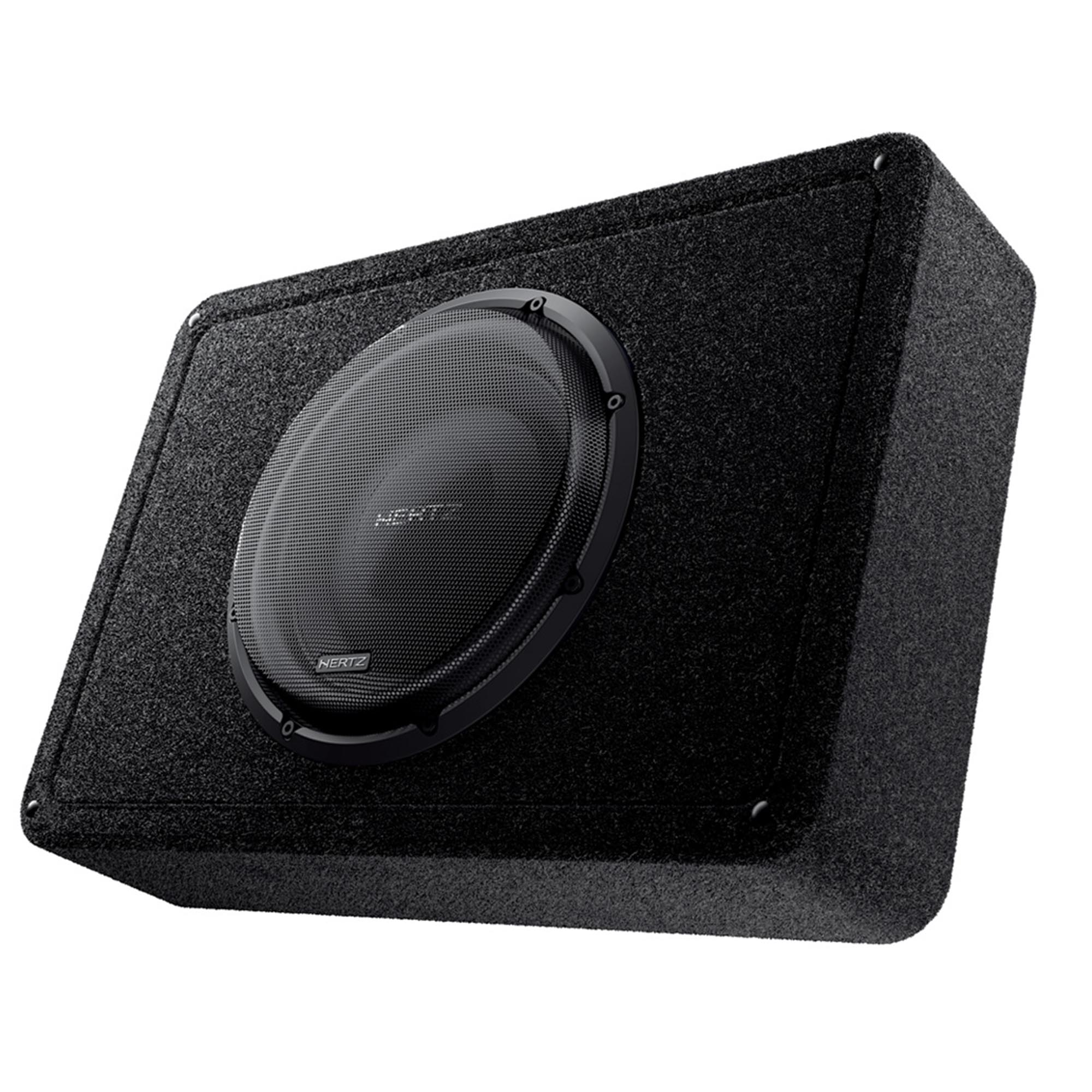

1x Hertz MPBX-300-S2 - 12" Sealed Subwoofer Enclosure 2ohm 1000 Watts (MPBX-300-S2)
MPBX 300 S2 ultra-shallow sealed enclosure is specifically optimized to deliver all the MPS 300 S2 subwoofer performances. The enclosure structure features incomparable robustness thanks to 15 mm (0.59 in.) wood thickness. Internal sound-absorbing material virtually increases the box's volume and reduces acoustic resonances. Panel-to-panel internal bracing with solid corners minimizes resonances and round corners ease the placement. 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing installation to obtain more punch and definition. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.
Technical Specs
Size mm (in.): 300 (12)
Power Handling - Continuous W: 500
Power Handling - Peak W: 1000
Impedance Ohm: 2
Voice Coil Ø: 38 (1.5)
Frequency Response Hz: 25 - 400
Magnet size D x d x h mm (in.): 134 x 55 x 36 (6.28 x 2.17 x 1.42)
Weight of one component kg (lb.): 10,8 (23.8)
Magnet: High density flux ferrite
Cone: Polypropylene
Xmech mm (in.): 20
Depth mm (in.): 118 (4.65)
Voice Coil Type: Single
1x Hertz HRC 02 Remote Sub Level Control For Deici Power Amps (HRC-02)
The stylish Hertz HRC 02 remote control is ready for surface mounting with tape, surface mounting with screws and flush mounting, thanks to the supplied accessories.
