Description
Included in this kit
This bundle includes a Hertz CP 4.800 Cento 4-Channel Power Amplifier, 190w x 4 @ 2 ohms, a Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters, and a Hertz Mille Pro Series MPX-1653 6.5" Pro Audio Two-Way Coaxial Speakers (Pair).

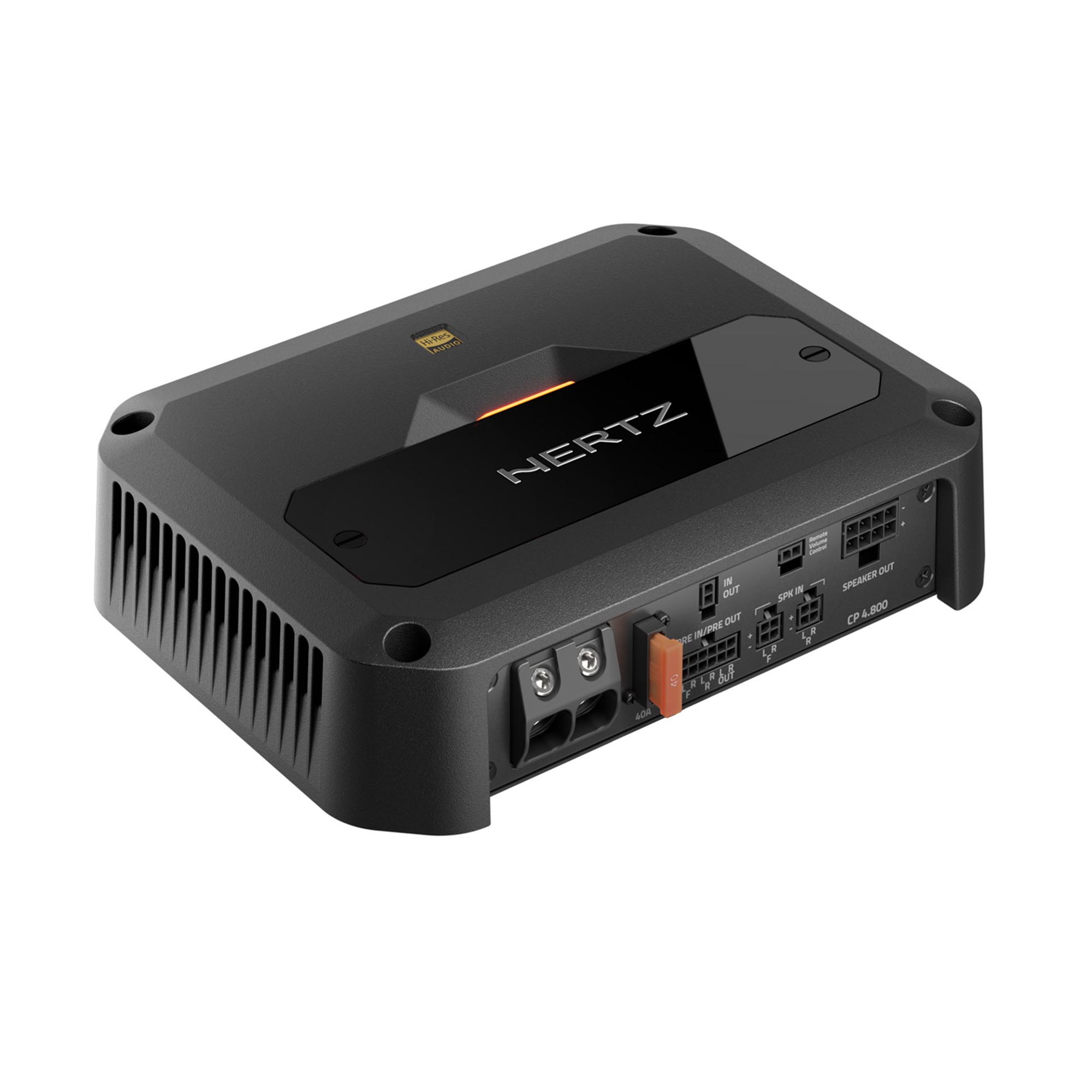

1x Hertz CP 4.800 Cento 4-Channel Power Amplifier, 190w x 4 @ 2 ohms (CP-4.800)
Raise your sound quality bar with the Hertz CENTO POWER CP 4.800, featuring Hi-Res Audio certification for a frequency response from 10 Hz to 41 kHz, delivering sound quality that captures every nuance of your music. This model combines a high power-to-size ratio with an efficiency greater than 85%, encapsulated in a durable aluminum diecast case for top-tier performance and a stylish appearance. This four-channel amplifier combines a high power-to-size ratio with a durable aluminum diecast case, providing top-tier performance and a stylish look. Its full Plug & Play connections ensure easy installation, while the advanced crossover filters and bass boost options allow for tailored sound customization. It is ideal for audiophiles seeking a blend of functionality and sleek design in their car audio system.
General Specs
Channels: 4 - 3 - 2
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (1 x 40 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 1.15 A
Standby current draw: 4.2 uA
Consumption, MIN load impedance (Max Musical Power): 32 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 85%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,02 %
Damping factor @ 1 kHz, 1W: 100
Bandwidth @ -3 dB: 10 Hz ÷ 47k Hz
S/N ratio (A-weighted @ 1 V Input): 101 dBA
Minimum load impedance
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Adjustable Crossovers: yes
OUTPUT POWER
Output power (RMS) @ 1% THD:
4Ch @ 4Ω: 110 W x 4
4Ch @ 2Ω: 190 W x 4
3Ch @ 4Ω / 4Ω: 100 W x 2 + 400 W x 1
3Ch @ 2Ω / 4Ω: 190 W x 2 + 380 W x 1
2Ch @ 4Ω: 380 W x 2 (4Ω)
Total Power: 760 W
INPUTS / FILTERS
Inputs: Pre-In / Speaker-In
Pre Out: Full Range (Front)
Pre-In sensitivity: 0.32 ÷ 8 VRMS
Speaker-In sensitivity: 1.6 ÷ 40 VRMS
Front Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
Front Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
Rear Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
Rear Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
Bass Boost 50Hz: 0 ÷ 9 dB
Sub Remote Volume Control: -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
1x Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters (MPK-1653)
The MPK 165.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 165.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.
Features -
• High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
• Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
• 1mm pure copper wire low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded
• Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
Specifications -
• Power Handling - Peak W: 220
• Power Handling - Continuous W: 110
• Impedance Ω: 4
• Frequency response Hz: 40 ÷ 22,5k
• Sensitivity dB SPL: 92
• Voice coil Ø mm (in.): 25 (1)
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 29 (1.14)
1x Hertz Mille Pro Series MPX-1653 6.5" Pro Audio Two-Way Coaxial Speakers (Pair) (MPX-1653)
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Features -
• Concentric coaxial tweeter built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
• 20 mm voice coil Tetolon fiber soft dome tweeter, featuring “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
• Tweeter support working as a rear chamber, sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
• 36 mm pure copper woofer voice coil wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
• Pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
Specifications -
• Power Handling - Peak W: 200
• Power Handling - Continuous W: 100
• Impedance Ω: 4
• Frequency response Hz: 45 ÷ 21,5k
• Sensitivity dB SPL: 92
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 25 (1)
• Woofer Voice Coil Ø mm (in.): 36 (1.42)
• Tweeter voice coil Ø mm (in.): 20 (0.8)
