Description
Included in this kit
This bundle includes a Hertz CP-1.700 Monoblock Car Audio Amplifier, a Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille, and a Hertz HRC 02 Remote Sub Level Control For Deici Power Amps.
1x Hertz CP-1.700 Monoblock Car Audio Amplifier (CP-1.700)
Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.
Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this monophonic ADC (Advanced Class-D) amplifier provides high efficiency over 89%, while being fully bridgeable. Ready to Play Connections: Designed for easy installation with durable long-term Molex connections. Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
General Specs
Channels: 1
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 25 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 1.10 A
Standby current draw: 4.5 uA
Consumption, MIN load impedance (Max Musical Power): 33 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,01 %
Damping factor @ 1 kHz, 1W: 350
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input): 113 dBA
Minimum load impedance @ 1 Ch: 2 Ω
Adjustable Crossovers: yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω: 400 W x 1
1Ch @ 2Ω: 700 W x 1
Total Power: 700 W
1x Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille (MPS-250-S4)
Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.
MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.
Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Provided with MPS 250 there is a full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo
Technical Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 4
• Depth mm (in.): 82,6 (3.25)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 134 x 55 x 36 (6.28 x 2.17 x 1.42)
• Weight of one component kg (lb.): 5,11 (11.27)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)

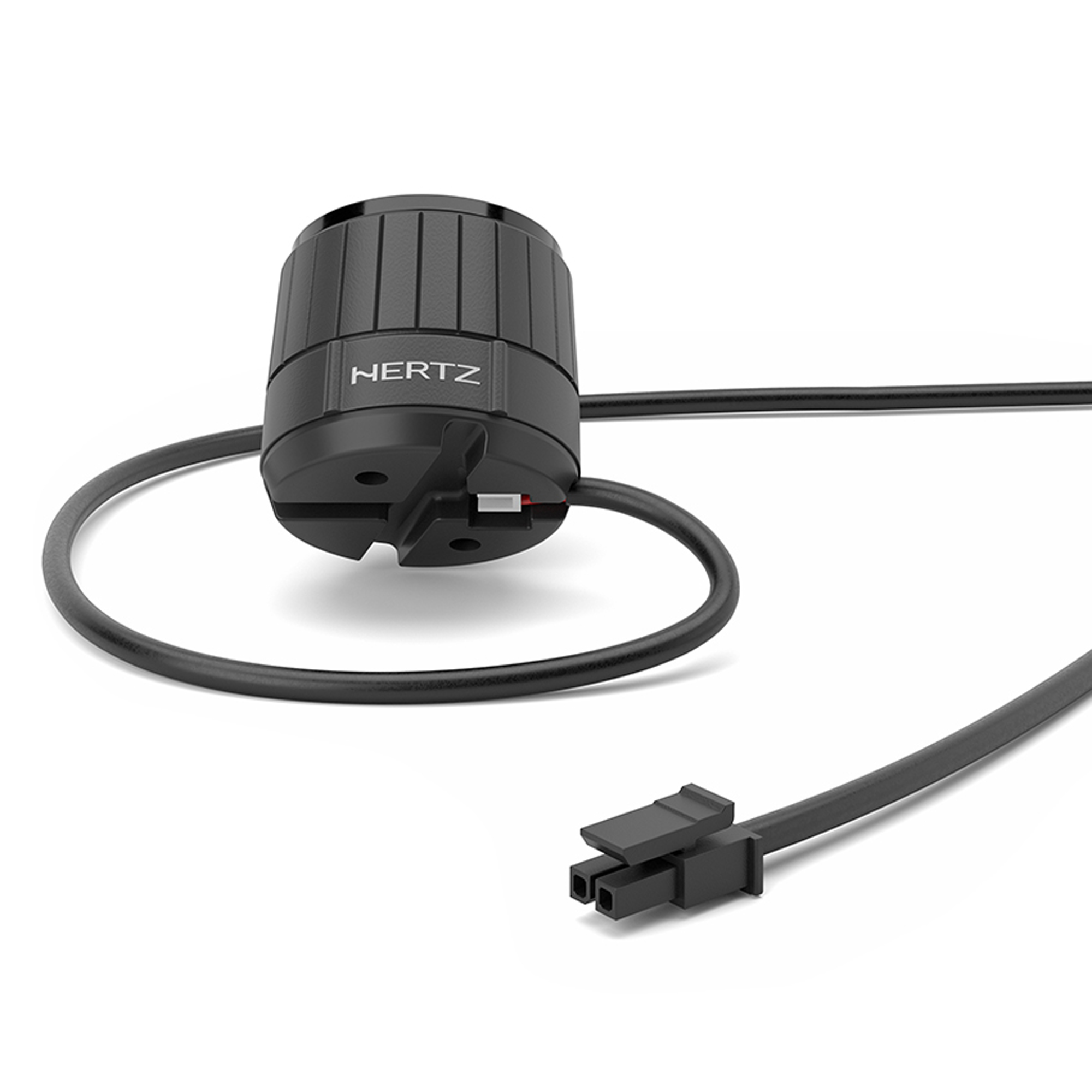

1x Hertz HRC 02 Remote Sub Level Control For Deici Power Amps (HRC-02)
The stylish Hertz HRC 02 remote control is ready for surface mounting with tape, surface mounting with screws and flush mounting, thanks to the supplied accessories.
