Description
Included in this kit
This bundle includes a Hertz Mille Legend Series ML-Power-5 D-Class 5 Cannel Amplifier 100 WRMS x 4 + 550 WRMS X 1 at 2-Ohm, a Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters, a Hertz Mille Pro Series MPX-1653 6.5" Pro Audio Two-Way Coaxial Speakers (Pair), and a Hertz Mille Pro Shallow MPS 250 S2 Shallow 10 in. (250mm) 2Ω SVC Subwoofer incl. grille.

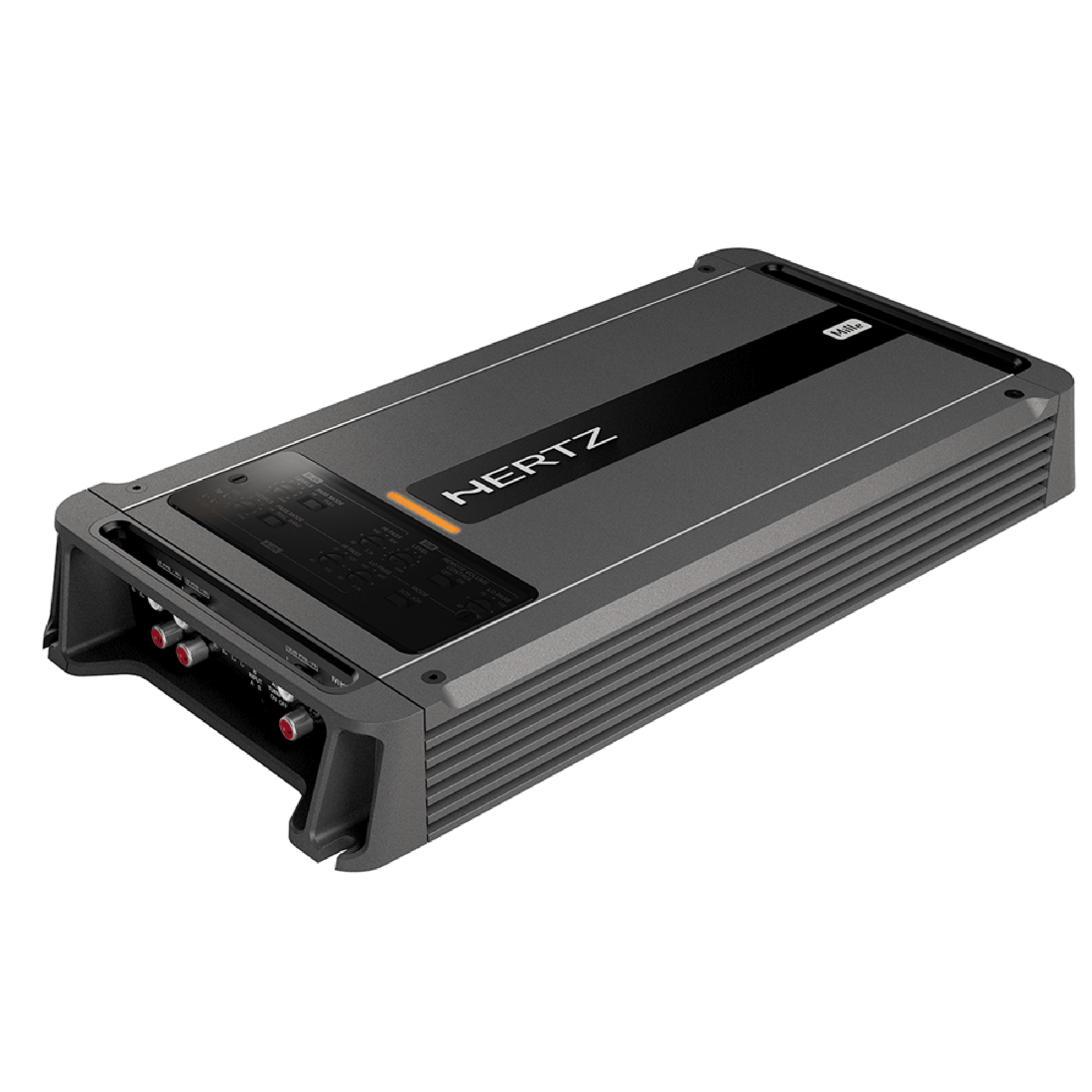

1x Hertz Mille Legend Series ML-Power-5 D-Class 5 Cannel Amplifier 100 WRMS x 4 + 550 WRMS X 1 at 2-Ohm (ML-Power-5)
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
Features -
• ADC (ADVANCED D-CLASS TECHNOLOGY) ensures hi-end acoustic response with unmatched power efficiency.
• Thermally optimized double extruded heat sink featuring die-cast aluminium ergonomic terminals.
• 3. 100 W x 4 + 550 W x 1 (2Ω) RMS power boasting hi-end quality.
Power Supply -
• Power supply voltage: 11÷15 VDC
• Idling current: 3 A
• Idling current when off: 0.04 mA
• Consumption @ 1Ω, 14.4 VDC (Max Musical Power): 50 A
Amplifier Stage -
• Distorsion - THD (100 Hz @ 4Ω): 0.08 %
• Bandwidth (-3 dB): 5 ÷ 50 Hz
• S/N Ratio (A weighted @ 1 V): 100 dB
• Damping factor (100 Hz @ 4Ω): 80
• Pre-In sensitivity: 0.2 ÷ 5 V RMS
• Pre-In impedance: 15 kΩ
• Speaker-In sensitivity: 0.8 ÷ 20 V RMS
• Speaker-In impedance: 470 Ω
1x Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters (MPK-1653)
The MPK 165.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 165.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.
Features -
• High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
• Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
• 1mm pure copper wire low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded
• Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
Specifications -
• Power Handling - Peak W: 220
• Power Handling - Continuous W: 110
• Impedance Ω: 4
• Frequency response Hz: 40 ÷ 22,5k
• Sensitivity dB SPL: 92
• Voice coil Ø mm (in.): 25 (1)
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 29 (1.14)
1x Hertz Mille Pro Series MPX-1653 6.5" Pro Audio Two-Way Coaxial Speakers (Pair) (MPX-1653)
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Features -
• Concentric coaxial tweeter built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
• 20 mm voice coil Tetolon fiber soft dome tweeter, featuring “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
• Tweeter support working as a rear chamber, sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
• 36 mm pure copper woofer voice coil wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
• Pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
Specifications -
• Power Handling - Peak W: 200
• Power Handling - Continuous W: 100
• Impedance Ω: 4
• Frequency response Hz: 45 ÷ 21,5k
• Sensitivity dB SPL: 92
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 25 (1)
• Woofer Voice Coil Ø mm (in.): 36 (1.42)
• Tweeter voice coil Ø mm (in.): 20 (0.8)
1x Hertz Mille Pro Shallow MPS 250 S2 Shallow 10 in. (250mm) 2Ω SVC Subwoofer incl. grille (MPS-250-S2)
Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.
MPS 300 is optimized to work in ultra-compact sealed boxesstarting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.
Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Provided with MPS 250 there is a full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo.
Technical Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Depth mm (in.): 88 (3.46)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 156 x 60 x 36 (6.14 x 2.36 x 1.42)
• Weight of one component kg (lb.): 6,64 (14.64)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)
