Description
Included in this kit
This bundle includes 2x Hertz UNO Series X-165 6.5" Two-Way Coaxial Speakers (Pair), and a Hertz DBA 201F 8" (200mm) Super-Flat Active Under-Seat Sub Box.
2x Hertz UNO Series X-165 6.5" Two-Way Coaxial Speakers (Pair) (X-165)
The 6.5” two way coaxials are available X 165 features a special designed tweeter faceplate optimized for exceptional off-axis performance to ensure a linear frequency response when installed in a factory replacement setup. The pressed-paper cone treated with water-repellent along with the foam surround provide a very high SPL and extended low frequency response, to obtain a rich sound even when driven by the OEM head unit. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The easy-to-install DIN size basket, protected by an abrasion-resistant dust paint, makes the factory speakers replacement a snap.
Features -
• Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies and compactness.
• Tweeter faceplate optimized for exceptional off-axis performance.
• High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
• Foam surround combining high sensitivity and deep bass response.
• Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
• High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
• Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
Specifications -
• Power Handling - Peak W: 220
• Power Handling - Continuous W: 55
• Impedance Ω: 4
• Frequency response Hz: 60 ÷ 21k
• Sensitivity dB SPL: 93.5
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 24 (0.9)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter voice coil Ø mm (in.): 14 (0.55)

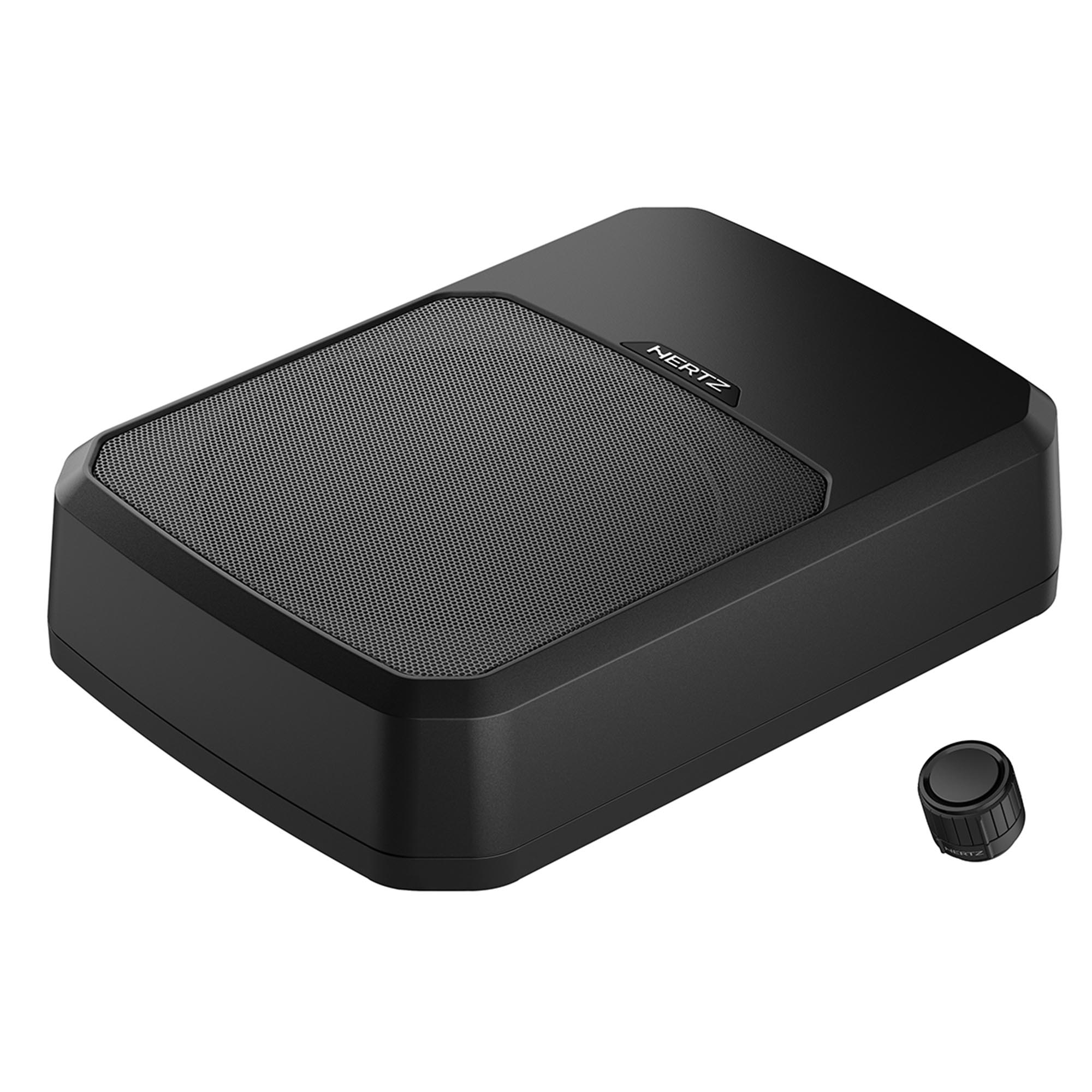

1x Hertz DBA 201F 8" (200mm) Super-Flat Active Under-Seat Sub Box (DBA-201F)
High performance in a super flat design
The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car.
Technical Specs
Size mm (in.): 200 (8)
Power Handling - Continuous W: 220
Power Handling - Peak W: 440
Impedance Ohm: 0.4
Design: Super Flat Sealed
Voice Coil Ø: 38.6 (1.52) mm (in.)
Frequency Response Hz: 32 ÷ 400
Magnet size D x d x h mm (in.): 110 x 45 x 17 (4.33 x 1.78 x 0.67)
Weight of one component kg (lb.): 4.3 (9.48)
Magnet: High Density Flux Ferrite
Cone: Pressed paper
Voice Coil Type: Copper
Power Supply
Operating voltage VDC (Fuse): 6.5 ÷ 18 (15A)
Start - Stop voltage VDC: 6
Idling current A (Power OFF): 260 m (1 m)
Consumption @ 14,4 VDC Max musical power A: 8.5
Remote IN Turn on VDC (Current): 4 (1 mA)
PRE input signal Turn ON VRMS: 10 mV
SPK input DC Turn ON VDC: 2
Amplifier Stage
Distortion - THD @ 100 Hz %: 0.15
Bandwidth Hz: 15 - 150
S/N ratio dBA: 100
Output power (RMS) @ 14,4 VDC, 1% THD W: 220
Signals Inputs / Filter
PRE input signal VRMS (impedance): 0.2 ÷ 5 (10kΩ)
SPK input signal VRMS (impedance): 1.2 ÷ 30 (6Ω)
LO-PASS Filter @ 24 dB Oct adjustable Hz: 50 ÷ 150
Subsonic Filter @ 24 dB Oct Fixed Hz: 15
Phase switch: 0 / 180°
Bass Boost @45 Hz dB: 0 ÷ 6
Sub remote volume control dB: 0 ÷ -15 (HRC 01 included)
