Description
Included in this kit
This bundle includes a Hertz DPower-1 D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm, and a Hertz CS 200 S4 8 in. (200mm) 4Ω SVC Subwoofer.

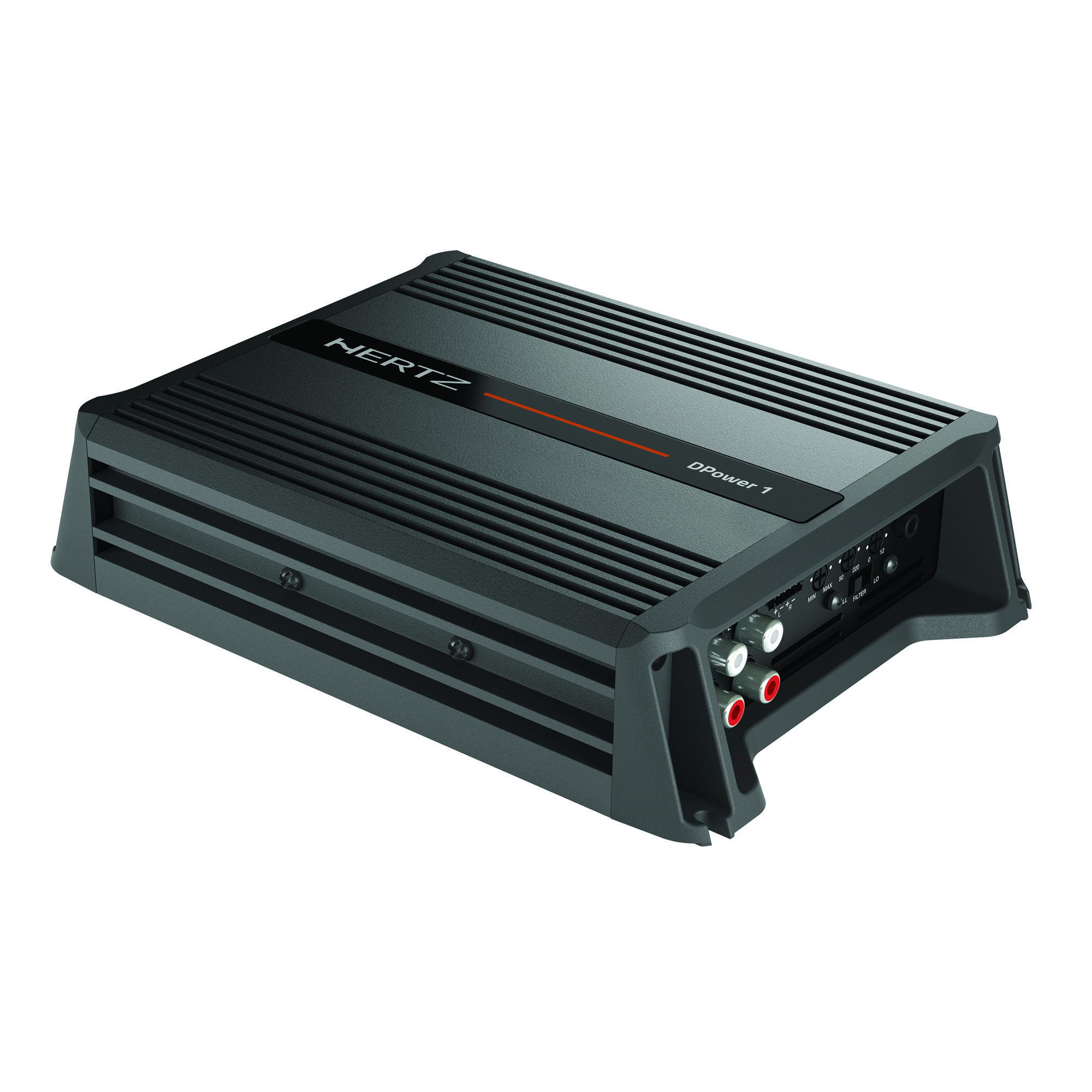

1x Hertz DPower-1 D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (DPower-1)
Excellent for OEM systems upgrade, the Hertz DPower1 mono car audio amplifiers is an ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch. The double SPEAKER & RCA INPUTS allows the DPower1 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems DPower1 is equipped with a smart automated turn on and off circuit according to the factory radio.
Features -
• Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
• The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration.
• DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
• The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or aftermarket.
Specifications -
• Distortion - THD (100 Hz @ 4Ω): 0.1 %
• Bandwidth (-3 dB): 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4Ω): 100
• Load impedance (MIN): 2Ω

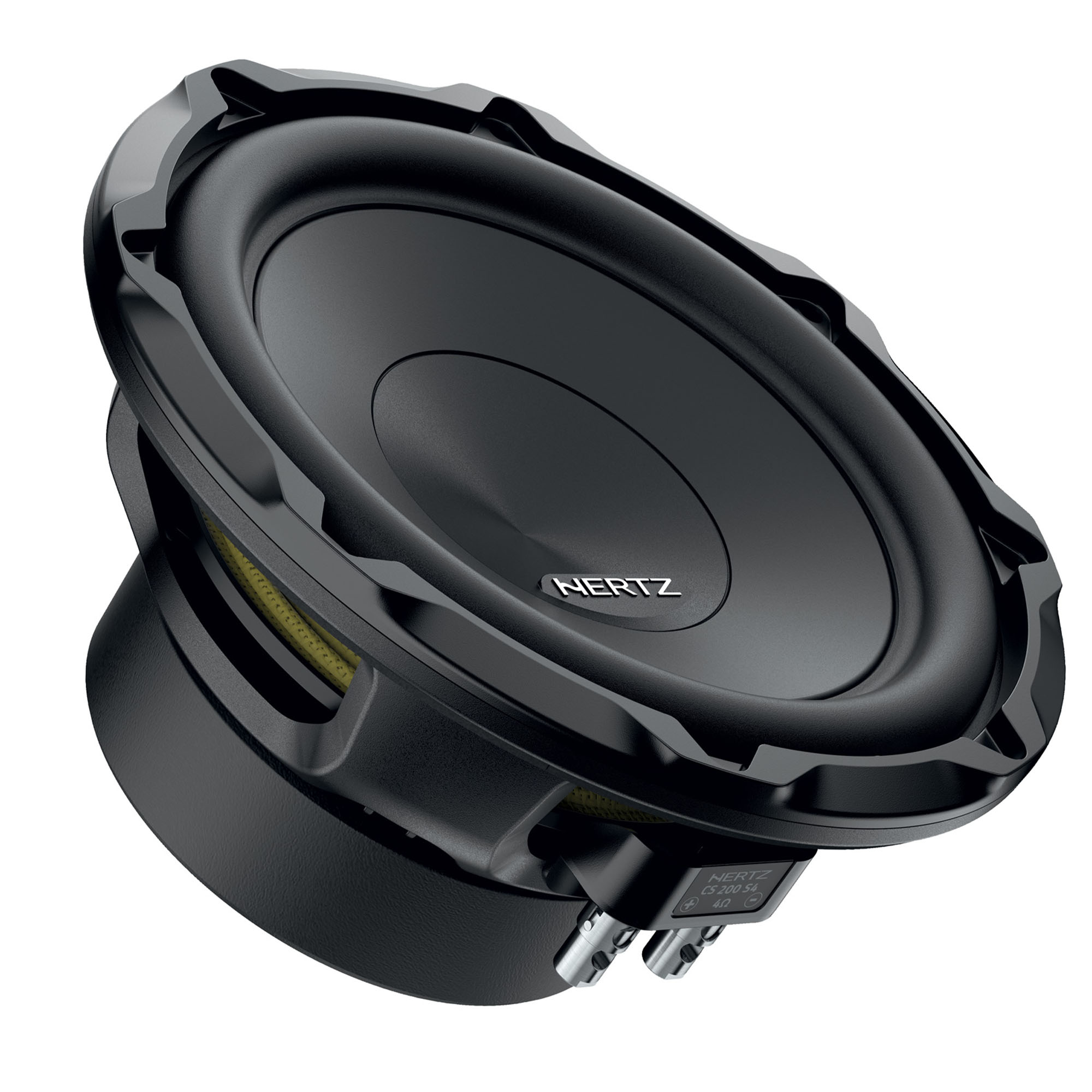

1x Hertz CS 200 S4 8 in. (200mm) 4Ω SVC Subwoofer (CS-200-S4)
Hertz CS 200 S4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R&D team, always at the forefront in the search for innovative solutions, with unfailing effort succeeded in obtaining powerful bass frequencies from compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 9,6 l (0.33 CF). The reduced depth, the compact magnetic group, and the lack of rear decompression hole allow the box to be shaped around the subwoofer, obtaining a depth almost the same as the driver itself, for maximum freedom of installation on any type of car. The special cooling system for the six-layer voice coil keeps the operating temperature within the optimal range, even in case of extended listening sessions at high sound pressure.
Specifications -
• Size mm (in.): 200 (8)
• Power Handling - Continuous W: 150
• Power Handling - Peak W: 300
• Impedance Ohm: 4
• Voice Coil Type: single
• No Filter Component: SUBWOOFER
• Voice Coil Ø: 35 (1.38)
• Magnet size: D x d x h mm (in.): 120 x 50 x 28 (4.72 x 1.97 x 1.1)
• Weight of one component kg (lb.): 2,87 (1.30)
• Magnet: High density flux ferrite
• Cone: Polyproyilene
• Xmech mm (in.): 11,5 (0.45)
