Description
Included in this kit
This bundle includes a Hertz Dieci Series DSK-1653 Component Speaker Kit 6.5" 2-Way: DV 165.3 + DT 24.3 + DX 300 + Grilles, a Hertz Dieci Series DCX-1653 6.5" Two-Way Coaxial Speakers - Pair, and a Hertz DBA 201 8" (200mm) Active Sub Box-Dual Passive Radiators.
1x Hertz Dieci Series DSK-1653 Component Speaker Kit 6.5" 2-Way: DV 165.3 + DT 24.3 + DX 300 + Grilles (DSK-1653)
Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
Features -
• 24 mm PEI dome-cone tweeter.
• High efficiency annular acoustic lens.
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• V-cone® for best off-axis response, clear mid-high frequency detail and powerful bass.
• TPU surround, for wide excursion and resonance damping.
• DIN size basket protected by abrasion-proof dust paint.
Specifications -
• Power Handling - Peak W: 160
• Power Handling - Continuous W: 80
• Impedance Ω: 4
• Frequency response Hz: 50 ÷ 23k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 24 (0.9)
1x Hertz Dieci Series DCX-1653 6.5" Two-Way Coaxial Speakers - Pair (DCX-1653)
To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
Features -
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
Specifications -
• Power Handling - Peak W: 120
• Power Handling - Continuous W: 60
• Impedance Ω: 4
• Frequency response Hz: 60 ÷ 21k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 15 (0.6)
• Woofer Voice Coil Ø mm (in.): 25 (1.0)

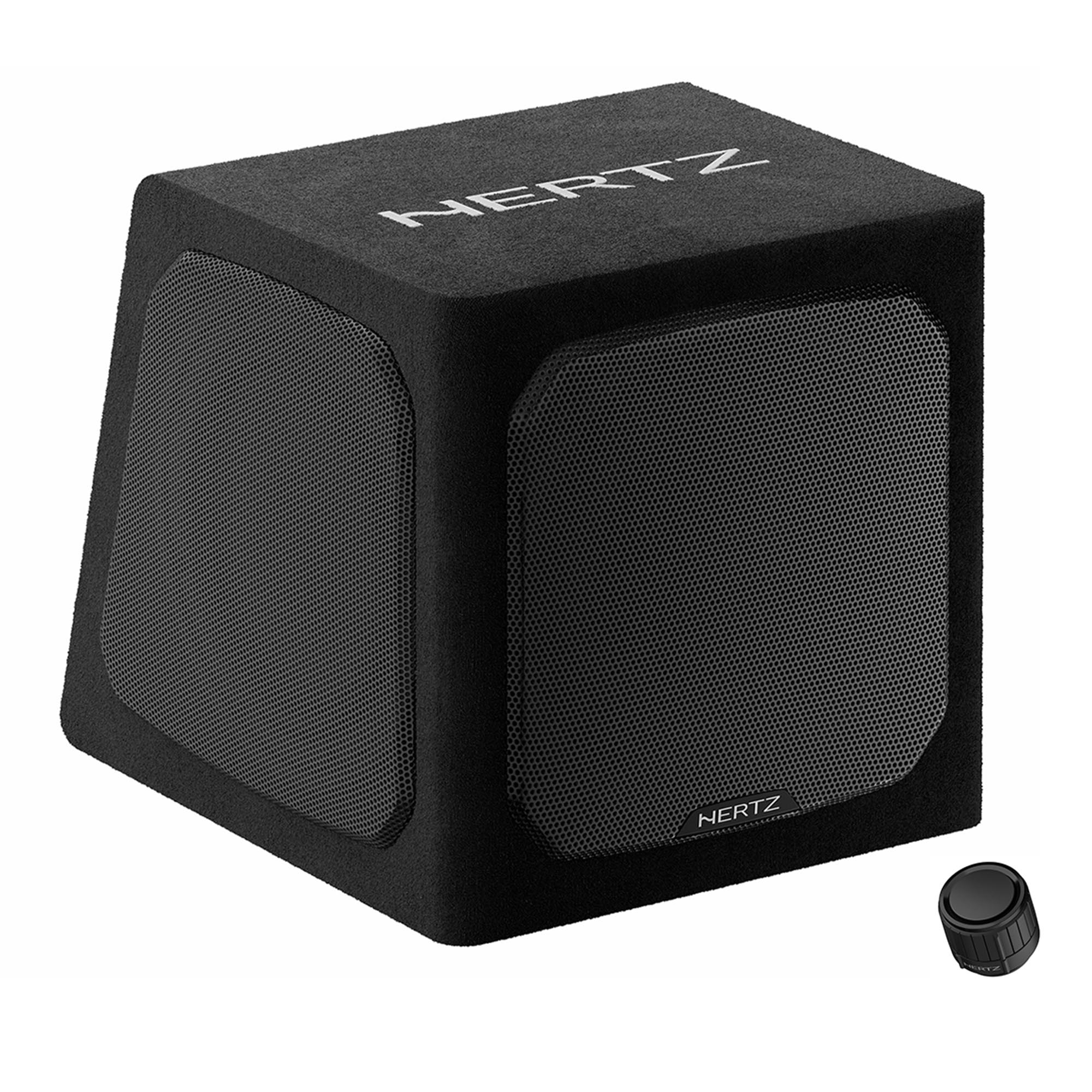

1x Hertz DBA 201 8" (200mm) Active Sub Box-Dual Passive Radiators (DBA-201)
High performance in a compact stylish design
The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car.
Technical Specs
Size mm (in.): 200 (8)
Power Handling - Continuous W: 220
Power Handling - Peak W: 440
Impedance Ohm: 0.4
Design: Active subwoofer box with double passive radiators
Voice Coil Ø: 38.6 (1.52) mm (in.)
Frequency Response Hz: 32 ÷ 400
Magnet size D x d x h mm (in.): 115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.): 6.7 (10.54)
Magnet: High Density Flux Ferrite
Power Supply
Operating voltage VDC (Fuse): 6.5 ÷ 18 (15A)
Start - Stop voltage VDC: 6
Idling current A (Power OFF): 260 m (1 m)
Consumption @ 14,4 VDC Max musical power A: 8.5
Remote IN Turn on VDC (Current): 4 (1 mA)
PRE input signal Turn ON VRMS: 10 mV
SPK input DC Turn ON VDC: 2
Amplifier Stage
Distortion - THD @ 100 Hz %: 0.15
Bandwidth Hz: 15 - 150
S/N ratio dBA: 100
Output power (RMS) @ 14,4 VDC, 1% THD W: 220
Signals Inputs / Filter
PRE input signal VRMS (impedance): 0.2 ÷ 5 (10kΩ)
SPK input signal VRMS (impedance): 1.2 ÷ 30 (6Ω)
LO-PASS Filter @ 24 dB Oct adjustable Hz: 50 ÷ 150
Subsonic Filter @ 24 dB Oct Fixed Hz: 15
Phase switch: 0 / 180°
Bass Boost @45 Hz dB: 0 ÷ 6
Sub remote volume control dB: 0 ÷ -15 (HRC 01 included)
