Description
Included in this kit
This bundle includes a Hertz DP 2.200 AB-Class Stereo Amplifier 110 WRMS x 2 at 2Ω, and a Hertz Dieci Series DSK-1653 Component Speaker Kit 6.5" 2-Way: DV 165.3 + DT 24.3 + DX 300 + Grilles.

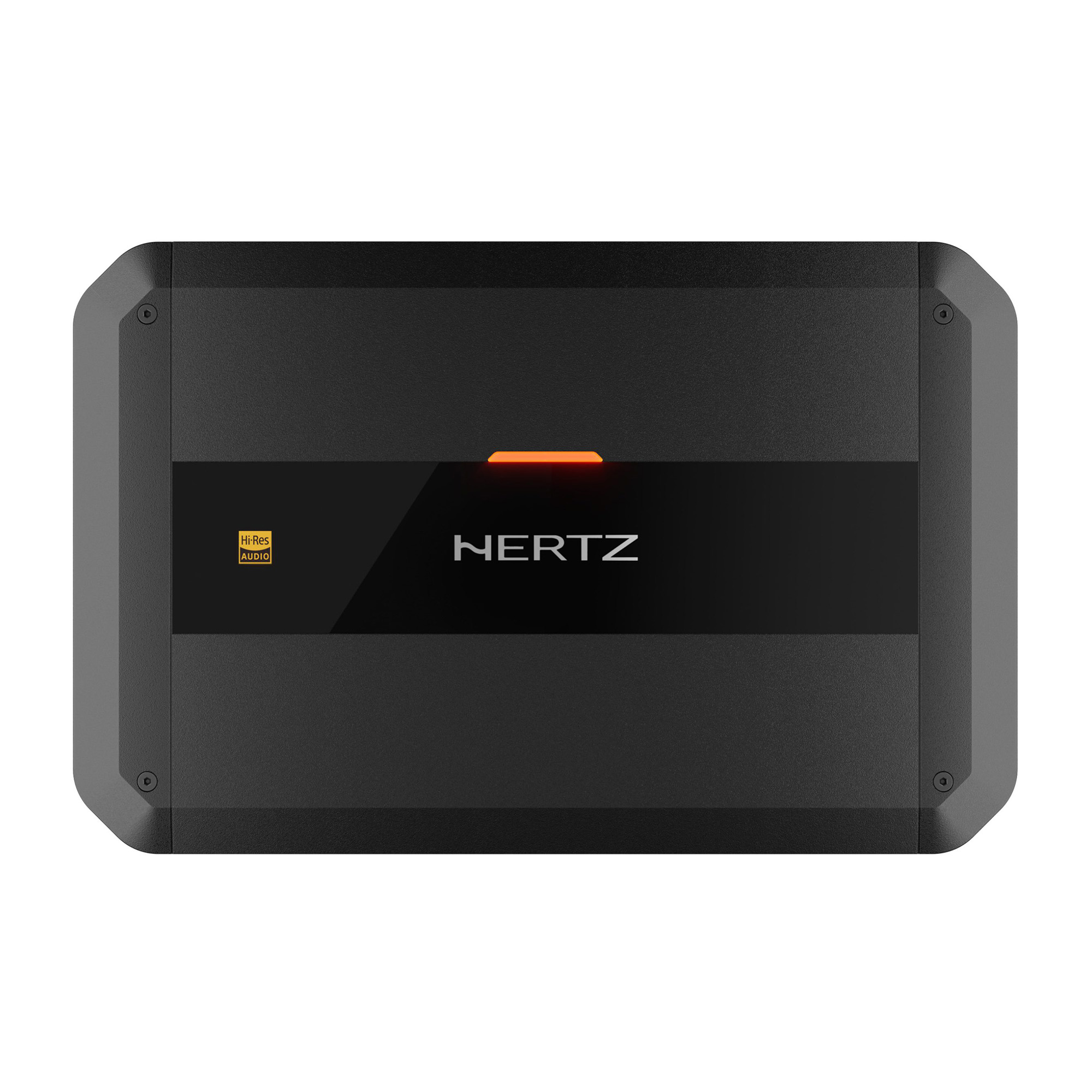

1x Hertz DP 2.200 AB-Class Stereo Amplifier 110 WRMS x 2 at 2Ω (DP-2.200)
Hertz DIECI POWER amplifier DP 2.200 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 50 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.
Despite its compact size, the DP 2.200 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.
The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 2.200, offering an operating supply voltage ranging from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Specifications -
• Channels: 2 - 1 POWER SUPPLY • Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 20 A)
• Operating power supply voltage: 6.5 ÷ 16.5 VDC
• Idling current: 0.65 A
• Standby current draw: 5 uA
• Consumption, MIN load impedance (Max Musical Power): 15 A
• Remote IN: 4 ÷ 15 VDC (1.5 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
• Efficiency: 60%
AMPLIFIER STAGE • Distortion - THD @ 100 Hz, 70% Rated Power: 0.01%
• Damping facto: @ 1 kHz, 1W 130
• Bandwidth @ -3 dB: 10Hz ÷ 50kHz
• S/N ratio (A-weighted @ 1 V Input): 100 dBA
• Minimum load impedance: @ 2 Ch: 2 Ω / @ 1 Ch: 4 Ω
• Adjustable Crossovers: yes
1x Hertz Dieci Series DSK-1653 Component Speaker Kit 6.5" 2-Way: DV 165.3 + DT 24.3 + DX 300 + Grilles (DSK-1653)
Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
Features -
• 24 mm PEI dome-cone tweeter.
• High efficiency annular acoustic lens.
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• V-cone® for best off-axis response, clear mid-high frequency detail and powerful bass.
• TPU surround, for wide excursion and resonance damping.
• DIN size basket protected by abrasion-proof dust paint.
Specifications -
• Power Handling - Peak W: 160
• Power Handling - Continuous W: 80
• Impedance Ω: 4
• Frequency response Hz: 50 ÷ 23k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 24 (0.9)
