Description
Included in this kit
This bundle includes a Hertz CP-5.1K Five Channel Car Audio Amplifier, a Hertz Cento Series CK-165 6.5" Two-Way Component Speaker Kit, a Hertz Cento Series CX165 6.5" Two-Way Coaxial Speakers - Pair, and a Hertz Cento Series CS-300-S4 12" (300mm) 350 Watt RMS 4-Ohm SVC Subwoofer.
1x Hertz CP-5.1K Five Channel Car Audio Amplifier (CP-5.1K)
Discover the essence of car audio excellence with the Hertz CENTO POWER CP 5.1K. This five-channel amplifier is certified for Hi-Res Audio, ensuring a frequency response from 10 Hz to 41 kHz, for the most authentic listening experience. Boasting an efficiency greater than 85% within its compact, aluminum diecast casing, the CP 5.1K is fully bridgeable and offers full Ready to Plug connectivity for effortless installation. With its adjustable input levels and comprehensive control set, this model is perfect for those who demand superior sound quality and aesthetic refinement in their vehicle’s audio system.
General Specs
Channels: 5 - 3
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 30 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 1.90 A
Standby current draw: 4 uA
Consumption, MIN load impedance (Max Musical Power): 48 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 83%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,01 % (F/R Ch) - 0,06 % (SUB Ch)
Damping factor @ 1 kHz, 1W: 160 (F/R Ch) - 180 (SUB Ch)
Bandwidth @ -3 dB: 10Hz ÷ 47kHz (F/R Ch) - 10Hz ÷ 500Hz (SUB Ch)
S/N ratio (A-weighted @ 1 V Input): 101 dBA (F/R Ch) - 116 dBA (SUB Ch)
Minimum load impedance
@ 5 Ch: 2 Ω
@ 3 Ch: 4 Ω + 4 Ω + 2 Ω
Adjustable Crossovers: yes INPUTS / FILTERS
Inputs: Pre-In / Speaker-In
Pre Out: Full Range (Front)
Pre-In sensitivity: 0.32 ÷ 8 VRMS
Speaker-In sensitivity: 1.6 ÷ 40 VRMS
Front Ch Hi-Pass: Full / 50-5000Hz 12dB/Oct.
Rear Ch Lo-Pass: Full / 50-5000Hz 12dB/Oct.
Sub Ch Lo-Pass: 50 ÷ 500 Hz @ 24 dB/Oct.
Bass Boost 50Hz: 0 ÷ 9 dB
Subsonic Hi-Pass: 25 Hz @ 24 dB/Oct.
Sub Remote Volume Control: -20 ÷ 6 dB (Active on Sub Ch) Output Power
Output power (RMS) @ 1% THD:
5Ch @ 4Ω: 80 W x 4 + 330 W x 1
5Ch @ 2Ω: 130 W x 4 + 510 W x 1
3Ch @ 2Ω / 4Ω: 260 W x 2 + 510 W x 1
2Ch @ 4Ω: 260 W x 2 + 320 W x 1
Total Power: 1030 W
1x Hertz Cento Series CK-165 6.5" Two-Way Component Speaker Kit (CK165)
Two-way systems Cento CK 165 features the new C 26 tweeter featuring a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity. Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customization of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity.
Features -
• Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
• Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
• 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed PaperMica) enhanced with Mica powder for an excellent balance between lightness and damping.
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
• Tweeter level adjustment through a three-position switch (0, +3 dB) for an optimal tone balance that can be customized by the user.
Specifications -
• Power Handling - Peak W: 285
• Power Handling - Continuous W: 95
• Impedance Ω: 4
• Frequency response Hz: 55 ÷ 22,5k
• Sensitivity dB SPL: 93
• Voice coil Ø mm (in.): Woofer 25 (1)
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 26 (1)
1x Hertz Cento Series CX165 6.5" Two-Way Coaxial Speakers - Pair (CX165)
Coaxial loudspeakers represent a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavorable to reproduction. For this reason, in order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX 165 features the new 24 mm (0.9 in.) Tetolon® dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. The dispersion has been optimized for off-axis listening. The SPP-M cone (Semi Pressed Paper-Mica) ensuring superior acoustic and damping characteristics.
Features -
• Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
• RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
• Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
• 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
• 130 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
Specifications -
• Power Handling - Peak W: 210
• Power Handling - Continuous W: 70
• Impedance Ω: 4
• Frequency response Hz: 55 ÷ 22k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 24 (0.9)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter voice coil Ø mm (in.): 13 (0.5)

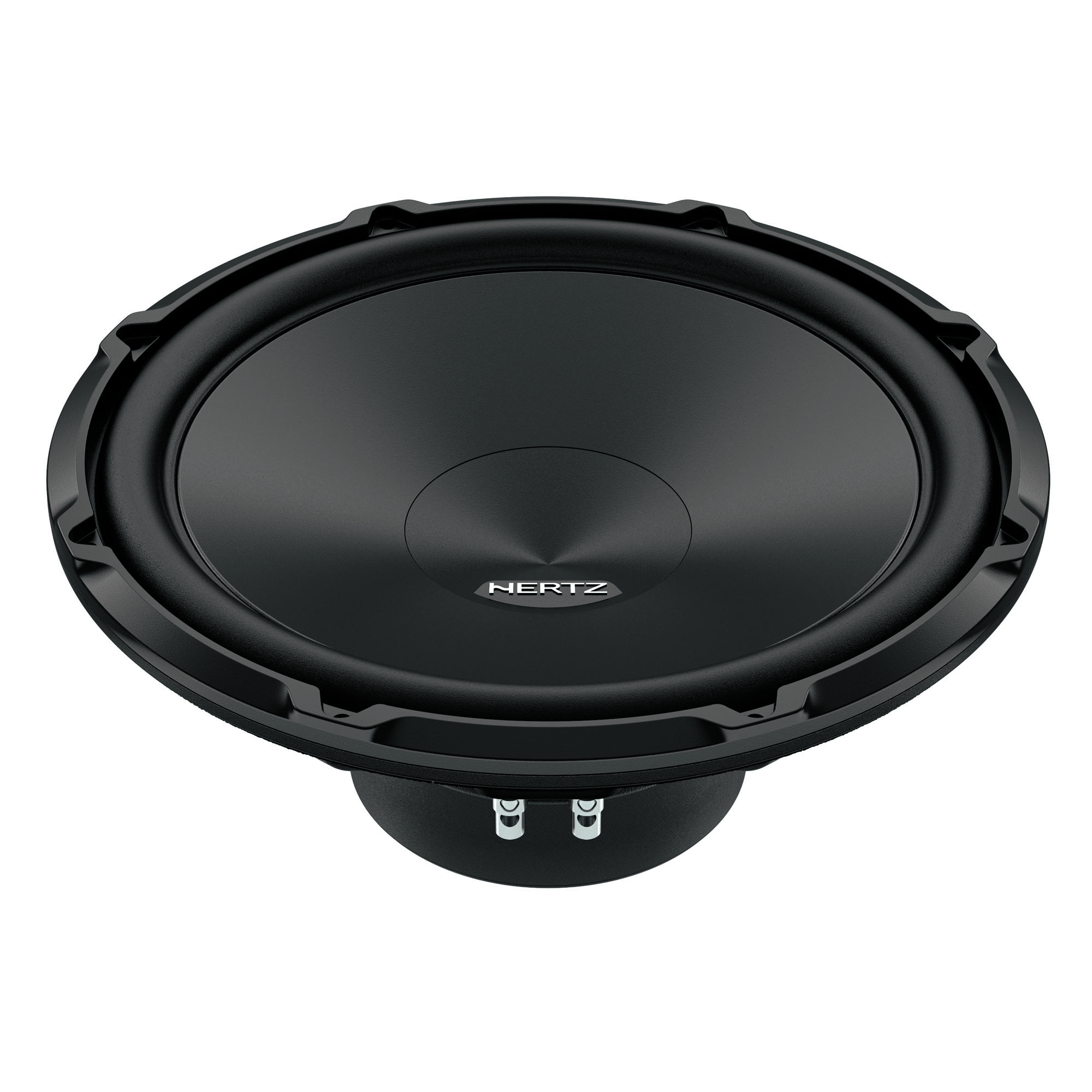

1x Hertz Cento Series CS-300-S4 12" (300mm) 350 Watt RMS 4-Ohm SVC Subwoofer (CS-300-S4)
The new CS 300 s4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 32 l. for the 30 cm (12 in.) CS 300 model. The 4Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.
Features -
• Electroacoustic design optimized for enclosures starting from 32 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 700
• Power Handling - Continuous W: 350
• Impedance Ω: 4
• Sensitivity dB SPL: 86,5
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
