Description
Included in this kit
This bundle includes a Hertz DPower-1 D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm, and a Hertz Dieci Series DS-253 10" (250mm) 250 Watt RMS 4-Ohm SVC Subwoofer.
1x Hertz DPower-1 D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (DPower-1)
Excellent for OEM systems upgrade, the Hertz DPower1 mono car audio amplifiers is an ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch. The double SPEAKER & RCA INPUTS allows the DPower1 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems DPower1 is equipped with a smart automated turn on and off circuit according to the factory radio.
Features -
• Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
• The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration.
• DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
• The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or aftermarket.
Specifications -
• Distortion - THD (100 Hz @ 4Ω): 0.1 %
• Bandwidth (-3 dB): 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4Ω): 100
• Load impedance (MIN): 2Ω

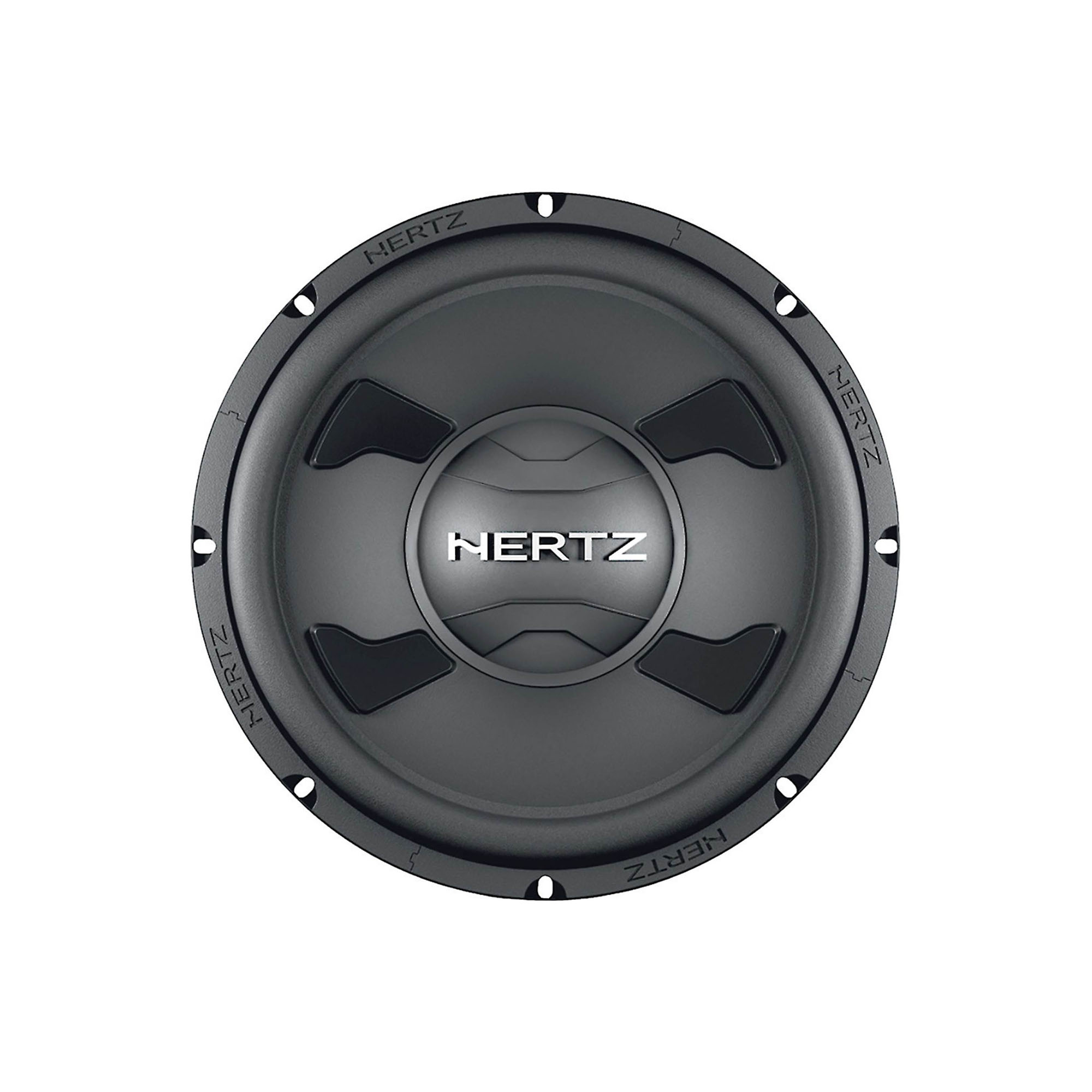

1x Hertz Dieci Series DS-253 10" (250mm) 250 Watt RMS 4-Ohm SVC Subwoofer (DS-253)
The DS 25.3 car audio subwoofers offer high efficiency and exceptional power handling. Equipped with a polypropylene membrane and butyl rubber surround, they provide high excursion with minimal distortion. An efficient cooling system ensures optimal heat dissipation, increasing their reliability. The Dieci subwoofers are designed for use in compact sealed or reflex enclosures; thanks to an exclusive, carefully thought-out design, they can be used.
Features -
• Polypropylene membrane stiffened with mineral powder.
• High excursion butyl rubber surround.
• Deep ribbing on the surface of the cone increase rigidity.
• Very high efficiency, with superior power handling.
• Designed to be used in small sealed or reflex (vented) enclosures.
• Pure copper voice coil, wound on aluminum former, for very good thermal and mechanical capacity.
• Venting system provides better thermal dissipation and consistent performance.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 600
• Power Handling - Continuous W: 150
• Impedance Ω: 4
• Frequency response Hz: 32 ÷ 400
• Sensitivity dB SPL: 89
• Voice coil Ø mm (in.): 38 (1.5)
• Magnet: High density flux ferrite
• Xmax mm: 9
• X-mech mm (in.): 16 (0.63)
