Description
Included in this kit
This bundle includes a Hertz Cento Pro Series CPK-165 6.5" Two-Way Component System, a Hertz Cento Pro Series CPX-165 6.5" Two-Way Coaxial Speakers, and a Hertz CBA-250 10 in. Active Sealed Subwoofer Enclosure - 250 WRMS incl. HRC AP level control.
1x Hertz Cento Pro Series CPK-165 6.5" Two-Way Component System (CPK-165)
The Hertzaudio Cento Pro CPK 165 PRO car audio system includes the CP 165 woofer and the CP 25 tweeter with Tetolon dome and 25 mm voice coil, features ensuring a very wide and linear frequency response. The CP 25 employs the “Center Tuning Duct” technology: the tunnel at the center of the powerful Neodymium magnetic circuit, ensures low-temperature air exchange between the dome and the rear loading chamber, perfectly tuning the acoustics. The resulting very low resonance frequency is also functional for the woofer crossover point, elevating the sound stage.
Features -
• Soft 29 mm Tetolon fiber dome, for a natural as well as detailed reproduction of music nuances.
• “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
• Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
• High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
• Tweeter level adjustable via a three-position switch (-2, 0, +2 dB) for optimized and customizable timbre balance.
Specifications -
• Power Handling - Peak W: 315
• Power Handling - Continuous W: 105
• Impedance Ω: 4
• Frequency response Hz: 45 ÷ 22,5k
• Sensitivity dB SPL: 92,5
• Voice coil Ø mm (in.): 25 (1)
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 29 (1.14)
1x Hertz Cento Pro Series CPX-165 6.5" Two-Way Coaxial Speakers (CPX-165)
The CPX 165 car audio coaxial provides the thrill of listening to the Hertz sound even when the vehicle does not allow the installation of a two-way kit. The Tetolon dome tweeter and Neodymium magnet is provided with off-axis dispersion features and exceptional frequency extension for a detailed, airy sound. Radial Venting System technology ensures unparalleled cooling of the coil thanks to the eight holes at the base of the engine that allow air exchange with the tweeter support. This acts as a rear camera, sized for low Fs, to ensure a natural mid range and allow a low frequency crossover point with the woofer. The pressed-paper cone and the butyl rubber suspension offer an extended low frequency response and an impressive punch. The Mille-inspired design basket features a dampened and protective rubber coated magnet. The grille, available as optional, is made up of a durable high resistance ABS frame and metallic mesh protection.
Features -
• Pressed paper woofer cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
• High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
• 3-spoke, compact and transparent basket acoustically combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
• Stylish grille with high resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Specifications -
• Power Handling - Peak W: 285
• Power Handling - Continuous W: 95
• Impedance Ω: 4
• Frequency response Hz: 45• ÷ 22k
• Sensitivity dB SPL: 92
• Woofer size mm (in.): 165 (6.5)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter voice coil Ø mm (in.): 20 (0.8)

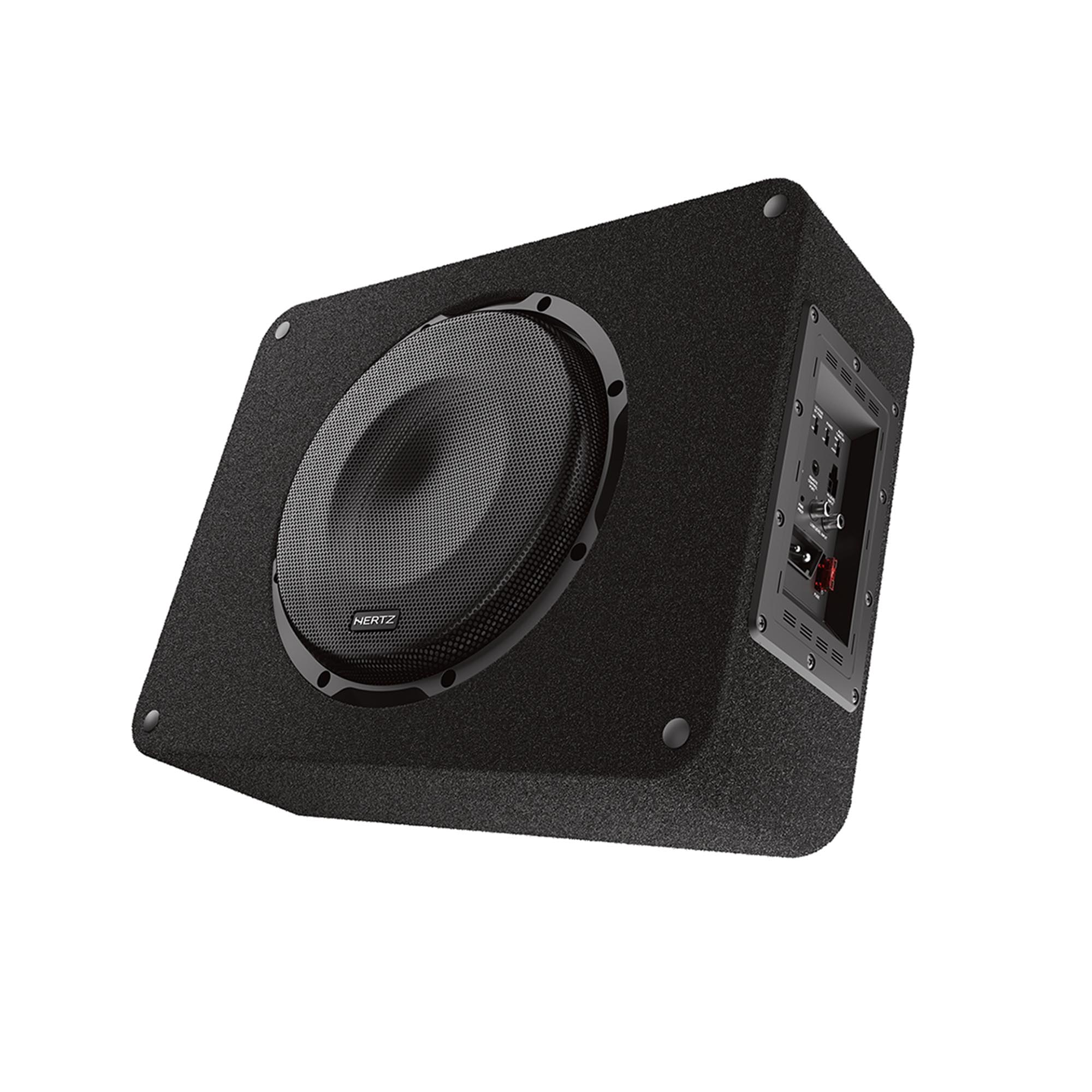

1x Hertz CBA-250 10 in. Active Sealed Subwoofer Enclosure - 250 WRMS incl. HRC AP level control (CBA-250)
Hertz CBA 250 active subwoofer box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The SSP (Sub Smart Plug) terminal block is provided with a single Plug & Play connector to be able to disconnect the box easily and safely. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reach the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 - 180°) completes the equipment. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources.
Technical Specs
Size mm (in.): 250 (10)
Power Handling - Continuous W: 250
Power Handling - Peak W: 500
Impedance Ohm: 0.4
Design: Active sealed subwoofer box
Voice Coil Ø: 60 (2.36)
Frequency Response Hz: 20 - 200
Magnet size D x d x h mm (in.): 140 x 70 x 30 ( 5.51 x 2.76 x 1.81)
Magnet: High density flux ferrite
Cone: Pressed Paper
Xmech mm (in.): 14.75
Voice Coil Type: Copper
