Description
Included in this kit
This bundle includes a Hertz CP 1.2K Mono Car Audio Amplifier - 1200 WRMS x 1 at 2-Ohm, and 2x Hertz Mille Pro Series MP-250-D23 10 in. (250mm) 600 Watt RMS 2-Ohm DVC Subwoofer.

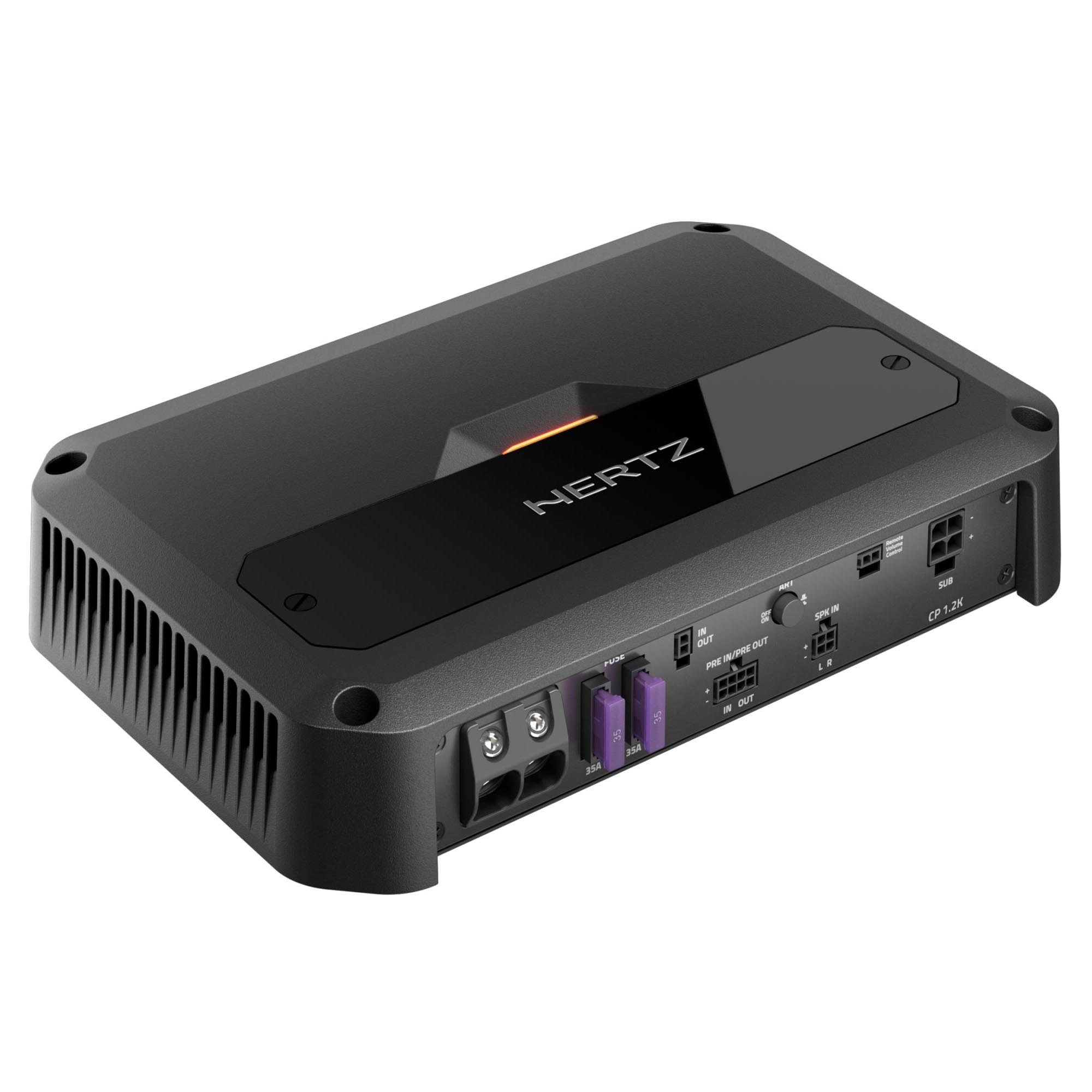

1x Hertz CP 1.2K Mono Car Audio Amplifier - 1200 WRMS x 1 at 2-Ohm (CP-1.2K)
Step into a world of refined bass with the Hertz CENTO POWER CP 1.2K This mono amplifier is engineered for high efficiency, reaching an efficiency greater than 89% within a compact, robust aluminum diecast casing. The CP 1.2K is designed to integrate seamlessly into both traditional and modern vehicle setups, thanks to its Universal Speaker Simulator and a wide operating voltage range suitable for electric vehicles. It features advanced noise rejection capabilities to ensure crystal-clear sound quality. With adjustable input levels, a low-pass crossover filter, a bass boost, and a subsonic filter, this amplifier allows for precise customization of your sound, making it an ideal choice for those seeking powerful, immersive bass without compromise.
General Specs
Channels: 1
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 35 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 0.85 A
Standby current draw: 4.5 uA
Consumption, MIN load impedance (Max Musical Power): 50 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,03 %
Damping factor @ 1 kHz, 1W: 140
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input): 102 dBA
Minimum load impedance
@ 1 Ch: 2 Ω
Adjustable Crossovers: yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω: 650 W x 1
1Ch @ 2Ω: 1200 W x 1
Total Power: 1200 W
INPUTS / FILTERS
Inputs: Pre-In / Speaker-In
Pre Out Hi-Pass: 50 ÷ 250Hz @ 12 dB/Oct.
Pre-In sensitivity: 0.32 ÷ 8 VRMS
Speaker-In sensitivity: 1.6 ÷ 40 VRMS
Sub Ch Lo-Pass: OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost: 50Hz 0 ÷ 9 dB
Subsonic Hi-Pass: OFF / 25 Hz @ 24 dB/Oct.
Sub Remote Volume Control: -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
2x Hertz Mille Pro Series MP-250-D23 10 in. (250mm) 600 Watt RMS 2-Ohm DVC Subwoofer (MP-250-D23)
Outstanding performance in a compact size, this is the target of Mille Pro car audio subwoofers. On the strength of its know-how acquired with Mille Legend, the R&D team has optimized the production process to offer the “Hertz Sound Experience” to a wider audience using part of the technologies and materials of the flagship line. The MP 250 D2.3 cone is made by pressing paper pulp with the injection of mineral powders, the same construction technique used for Legend. The V-cone® profile increases rigidity, allowing the cone to function like a piston. Surround materials consist of high-purity IIR-butyl rubber. Like the Legend ML2000.3 and ML2500.3, the Mille PRO subwoofers are built with Boundary Free Surround technology allowing for a greater emission surface with equal diameter, generating higher sound pressure. The compact 6-spoke aluminum alloy anti-resonant basket is the same as the top model ML 2500.3 and contributes to the subwoofer’s mechanical damping, being absolutely transparent to the sound.
Features -
• CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
• Terminal block accepting cables up to 8 AWG to provide ultra-low wiring resistance in low impedance configurations. A plastic cover prevents any accidental short-circuit.
• Possibility to secure the subwoofer to the box wall, taking full advantage of its minimal dimensions.
• High performance compact motor with a superior magnetic field transferred to the coil.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 1200
• Power Handling - Continuous W: 600
• Impedance Ω: 2+2
• Sensitivity dB SPL: 83,5
• Voice coil Ø mm (in.): 65 (2.56)
• Xmax mm: 17,00
