Description
Included in this kit
This bundle includes a Hertz CP-1.700 Monoblock Car Audio Amplifier, and a Hertz Mille Pro Series MP-300-D43 12 in. (300mm) 600 Watt RMS 4-Ohm DVC Subwoofer.
1x Hertz CP-1.700 Monoblock Car Audio Amplifier (CP-1.700)
Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.
Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this monophonic ADC (Advanced Class-D) amplifier provides high efficiency over 89%, while being fully bridgeable. Ready to Play Connections: Designed for easy installation with durable long-term Molex connections. Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
General Specs
Channels: 1
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 25 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 1.10 A
Standby current draw: 4.5 uA
Consumption, MIN load impedance (Max Musical Power): 33 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,01 %
Damping factor @ 1 kHz, 1W: 350
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input): 113 dBA
Minimum load impedance @ 1 Ch: 2 Ω
Adjustable Crossovers: yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω: 400 W x 1
1Ch @ 2Ω: 700 W x 1
Total Power: 700 W

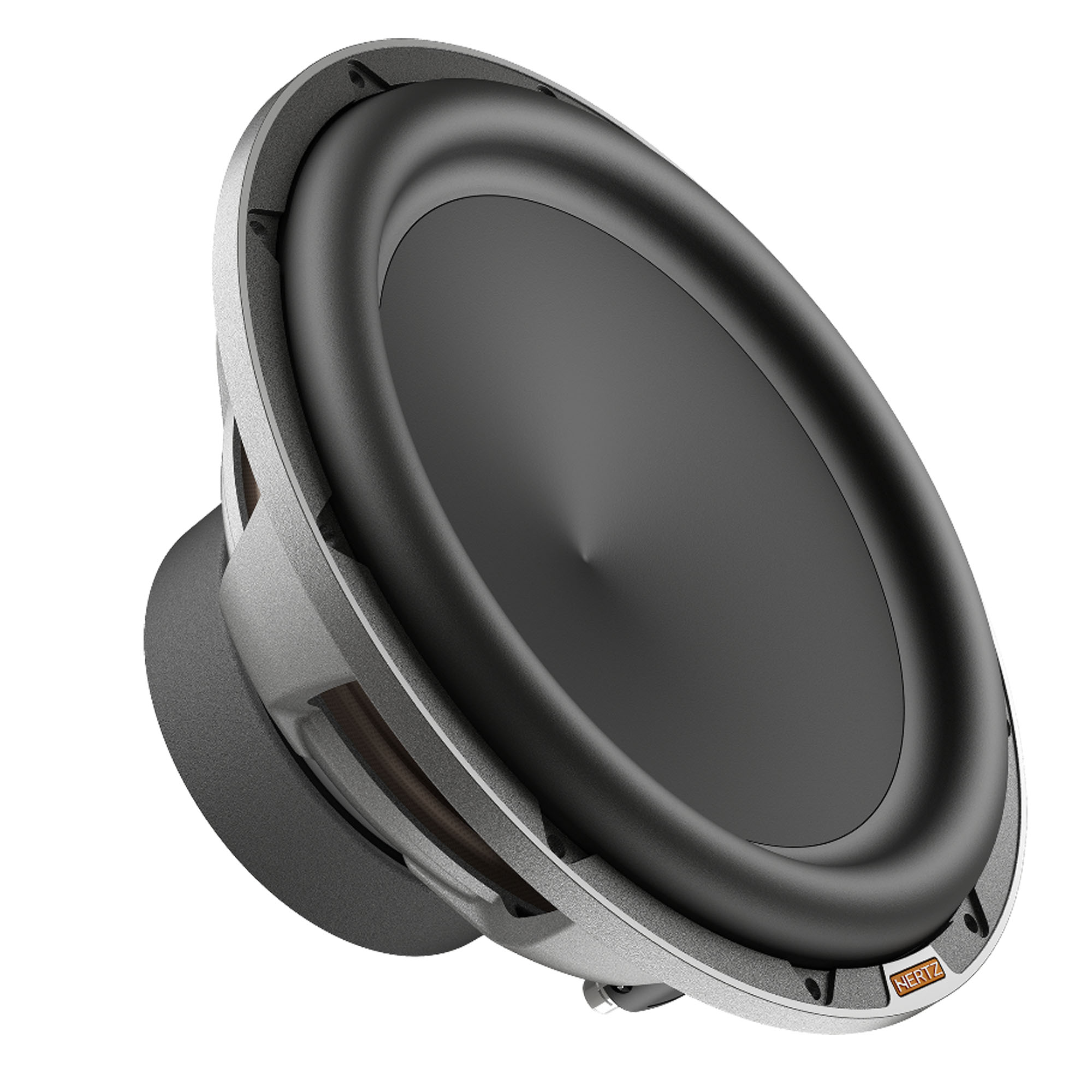

1x Hertz Mille Pro Series MP-300-D43 12 in. (300mm) 600 Watt RMS 4-Ohm DVC Subwoofer (MP-300-D43)
Outstanding performance in a compact size, this is the target of Mille Pro car audio subwoofers. On the strength of its know-how acquired with Mille Legend, the R&D team has optimized the production process to offer the “Hertz Sound Experience” to a wider audience using part of the technologies and materials of the flagship line. The MP 300 D4.3 cone is made by pressing paper pulp with the injection of mineral powders, the same construction technique used for Legend. The V-cone® profile increases rigidity, allowing the cone to function like a piston. Surround materials consist of high-purity IIR-butyl rubber. Like the Legend ML2000.3 and ML2500.3, the Mille PRO subwoofers are built with Boundary Free Surround technology allowing for a greater emission surface with equal diameter, generating higher sound pressure.
Features -
• Extremely acoustically transparent anti-resonant aluminium alloy basket with six-spokes standing structure and built-in venting holes underneath the spider.
• CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
• Terminal block accepting cables up to 8 AWG to provide ultra-low wiring resistance in low impedance configurations. A plastic cover prevents any accidental short-circuit.
• Possibility to secure the subwoofer to the box wall, taking full advantage of its minimal dimensions.
• High performance compact motor with a superior magnetic field transferred to the coil.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 1200
• Power Handling - Continuous W: 600
• Impedance Ω: 4+4
• Sensitivity dB SPL: 86
• Voice coil Ø mm (in.): 65 (2,5)
• Xmax mm: 17
• X-mech mm (in.): ±27 (1.06)
