Description
Included in this kit
This bundle includes a PAC HDK001X - Radio Replacement Kit compatible with Harley Davidson Motorcycles 1998-2013, and a JBL Celebrity150 Single-DIN AM/FM High Power Mechless Stereo with Front, Rear and Sub Output.
1x PAC HDK001X - Radio Replacement Kit compatible with Harley Davidson Motorcycles 1998-2013 (HDK001X)
PAC makes it possible for Harley-Davidson motorcycle enthusiasts to easily integrate an aftermarket radio into their ride with the HDK001K Radio Replacement Kit. The complete solution kit is designed for select 1998-2013 Harley’s (FL models with factory fairings) and includes a pre-programmed interface to retain the factory handle bar audio controls, pre-wired installation harness (requires no cutting of any factory wires), two options of frames for the aftermarket radio installation, and step-by-step instructions.
Product Features
Complete radio replacement solution
Retains handle-bar audio controls
Pre-programmed radio specific handle bar functions
Pre-wired installation harness which eliminates the need to cut any of the bikes wires.
Two options for dash kit installation, with and without hinged tinted/UV protective cover)
Step-by-step instruction manual
The HDK001X is the best and simplest way to update the factory radio of select Harley-Davidson motorcycles. The kit provides everything needed to quickly install an aftermarket radio while retaining all the controls integrated into the handle-bar. The kit enables two ways to trim the headunit, with a hinged tinted UV cover to protect the new radio from the elements or without the cover to fully expose the front of the head unit.
Like all PAC products, the HDK001 X simplifies the installation process by including a pre-wired harness ensuring out of the box compatibility that significantly reduces install time. The interface is pre-programmed to work with the bike's handlebar controls and the head unit (compatible with major brands such as Alpine, Kenwood,Pioneer, Sony, etc.) further accelerating the installation process.

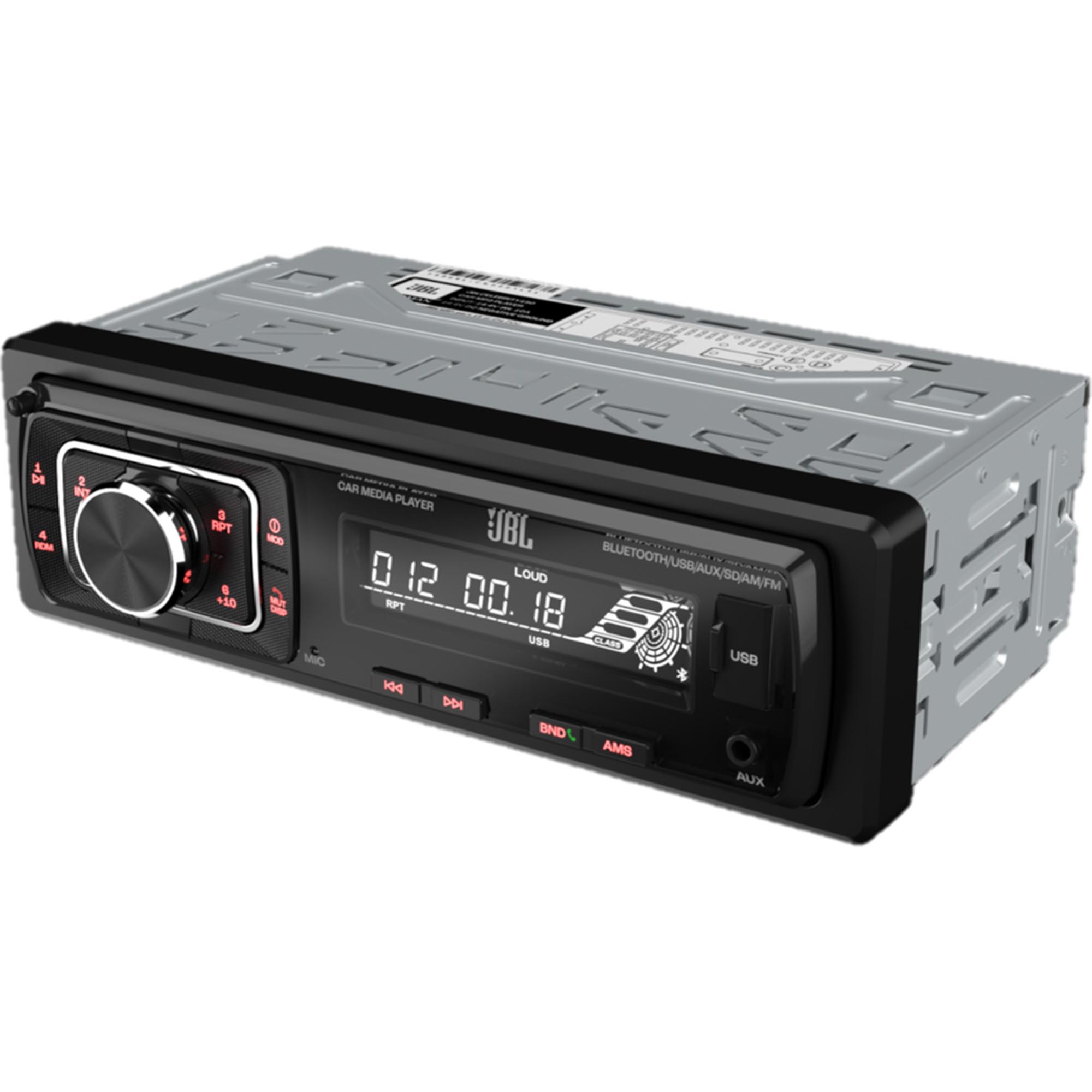

1x JBL Celebrity150 Single-DIN AM/FM High Power Mechless Stereo with Front, Rear and Sub Output (Celebrity150)
Offer convenient access to your music and entertainment any time in the car
JBL Celebrity 150 Headunit is Single-Din, Mechless Car Media player with Detachable face, perfect to fit JBL speaker products as a bundled audio system. Multiple playback options like Bluetooth, USB, AUX in, SD Card, AM and FM Radio allows you choose freely for your favorite listening source.
Features and Benefits
1 Din Mechless Car Media player with Detachable face
Removable faceplate for theft-deterrent purpose
Multiple Playback Sources: Bluetooth, USB, AUX in, SD Card, AM and FM Radio
Choose whatever sources you want to enjoy music
Wireless Bluetooth Streaming
Support audio streaming as well as hands-free calling
30 Preset stations (18 FM / 12 AM)
Enjoy listening to your faourite radio stations during driving
RCA Line Output (2 pairs; 4-volt)
High preamp voltage allow you to enjoy greater sound
4x50 Watts Maximum Power Output
Can be matched with JBL speakers & amplifiers as a bundled audio system
ISO Connector (wiring harness included)
Easy to install, allows you to replace factory stereo conveniently
Technical Specifications
General specification
Power supply: 12 V DC on-board network
Rated Output Power: 4 x 50 W peak
Fuse rating: 10 A
Frequency response: 20 Hz - 20 kHz
Bluetooth Operating range: up to 10 m
Bluetooth Supported profiles: HFP, HSP, A2DP, AVRCP
FM Radio Frequency coverage: 87.5 - 108 MHz
Installation dimensions (W x H x D): 178 x 50 x 87 mm
What’s in the Box
JBL Celebrity 150 Headunit
2x ISO Wiring harness
2x Removal tools
4x Face-fixing screws
1x Owner's Manual
1x Safety Sheet
