Description
Included in this kit
This bundle includes a JBL MA5055 High performance 5 channel marine amplifier, 2x JBL CLUB-62 - 6.5" Two-Way Marine Audio Coaxial Speakers, 75W – White/Gray Grills included, and a JBL CLUB-12 - 12" Marine Audio Subwoofer with RGB Lighting, 400W – White/Gray grills included.

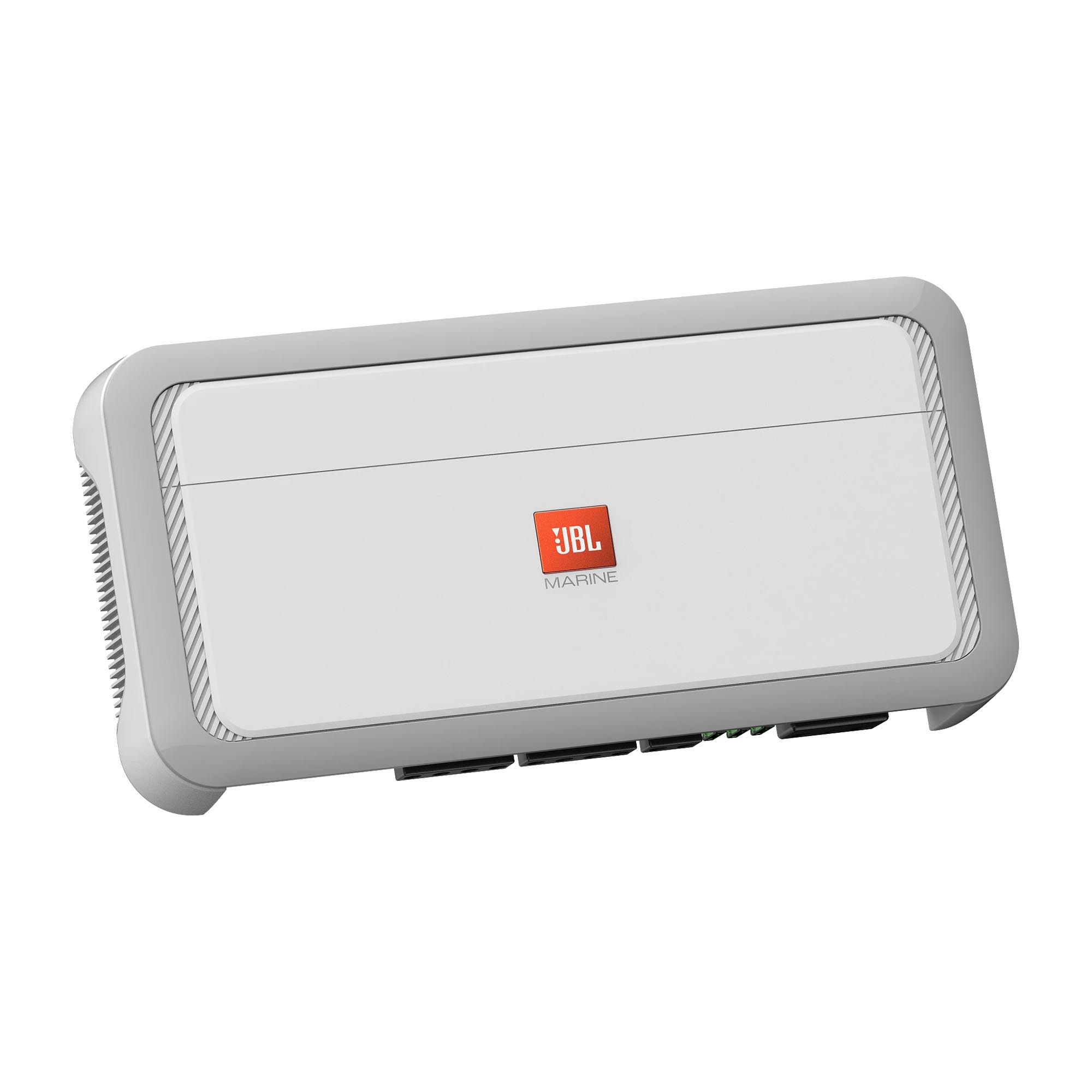

1x JBL MA5055 High performance 5 channel marine amplifier (MA5055)
The marine A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your boat, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine’s factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.
Technical Specifications
5 channel marine amplifier
50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
100 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
variable high- and low-pass filters (32- 320 Hz, 12 dB/octave) on front and rear channels
low-pass filter (32-320 Hz, 12 dB/ octave) on subwoofer channel
bass boost on subwoofer channel (0-12dB at 45Hz)
phase switch on subwoofer channel (0, 180 degrees)
preamp and speaker-level inputs
fuse rating: 30A x 3
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
WxHxD=360mm x 51.3mm x 180mm / 14-3/16” x 2-1/16” x7-1/8” What's in the Box:
One marine A5055 five channel amplifier
4 Bare wire-to-RCA adapters
Six 30A ATO fuses (3 installed, 3 spare)
Remote bass control module
16.5’ Remote control cable (RJ-25 plugs on both ends)
2 Self-tapping screws for remote (M3 x 15mm)
4 Mounting screws (M4 x 53mm)
Owner’s Manual
Two JBL stickers
1 logo badge

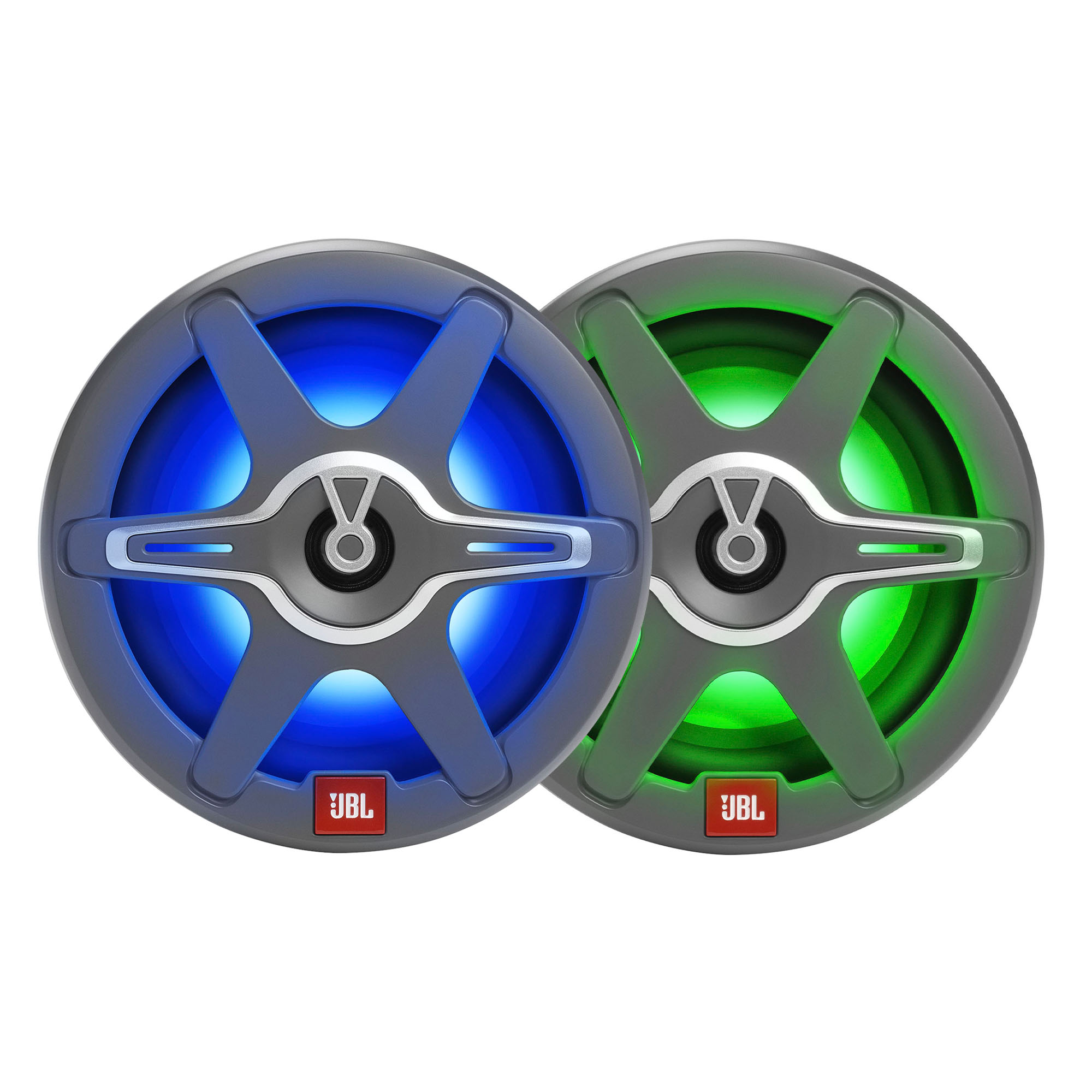

2x JBL CLUB-62 - 6.5" Two-Way Marine Audio Coaxial Speakers, 75W – White/Gray Grills included (CLUB-62)
JBL Club Marine Speakers are ready for your next outdoor adventure. These fully marinized speakers not only deliver JBL sound, they also provide RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structures, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropylene cone and balanced silk dome tweeter provide great bass, smooth hights and lots of output to ensure every note can be heard loud and clear. With two grille colors included in the box, you easily match your speaker with your boat.
Twist-Lock Speaker Grilles -
JBL Club Marine Speakers have two grille color options in the box (gloss white & satin grey), with a twist-lock design so you can easily match the grille color to your preference during installation. The innovative design hides the mounting fasteners so your installation results in a clean finish with high cosmetic appeal.
Outdoor Performance & Marine Rated -
JBL uses marine-grade materials & components to suit the demands of harsh outdoor environments, with an IPx5 marine rating from front of speaker, and accentuated performance at frequencies heard in open-air environments.
RGB Illuminated Speaker Cones -
Unique and eye-catching RGB illuminated speaker cones are capable of displaying seven colours out of the box, when hard-wired to your vessel lighting, or you can have even more color options when wired to an external lighting controller.
Specifications -
• Club Marine 6-1/2" Two-Way Speaker - JBLMARSPKCB62AM
• Power Handling: 75Wrms, 225W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 50Hz – 20kHz
• Nominal Impedance: 4ohm

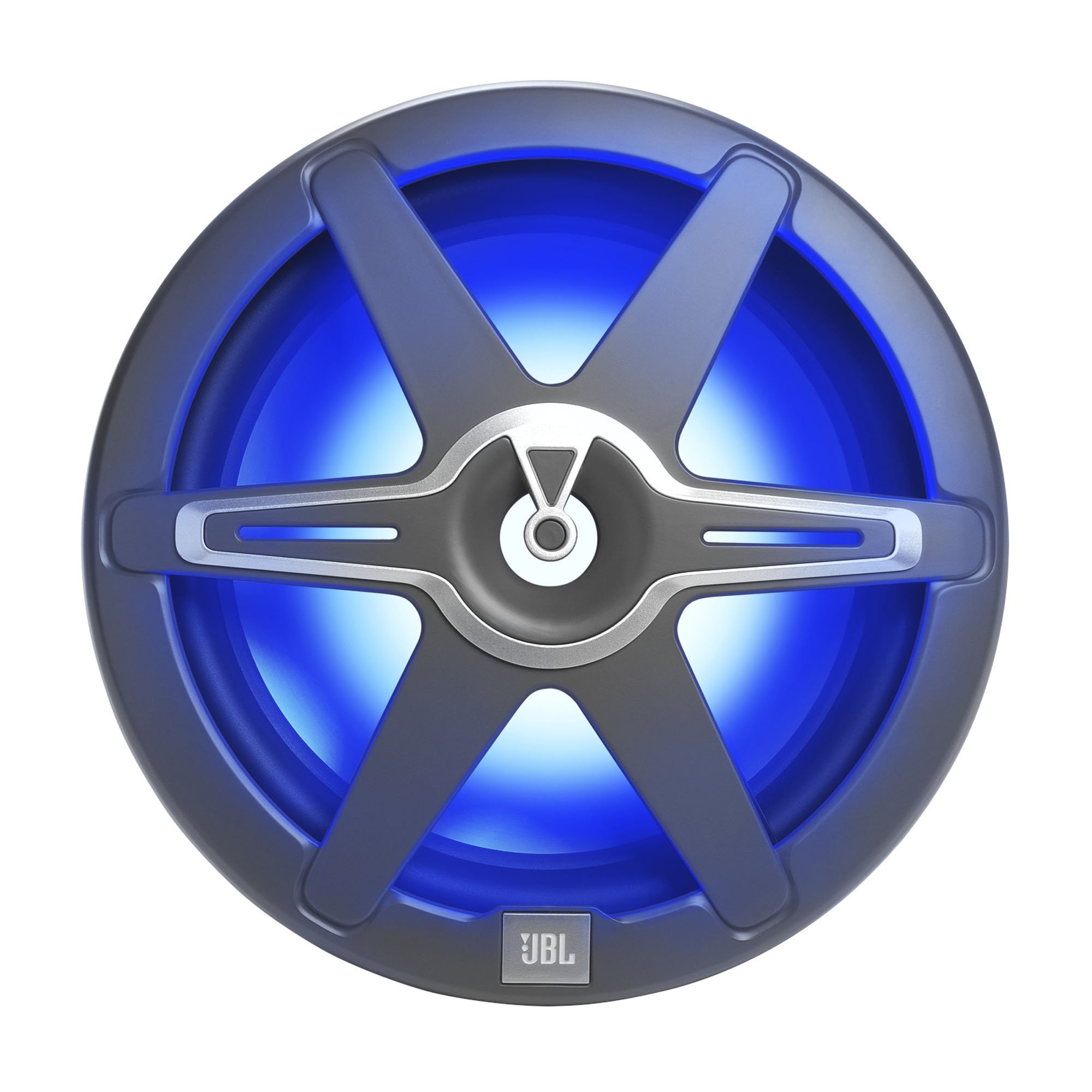

1x JBL CLUB-12 - 12" Marine Audio Subwoofer with RGB Lighting, 400W – White/Gray grills included (CLUB-12)
JBL Club Marine Speakers are ready for your next outdoor adventure. These fully marinized speakers not only deliver JBL sound, they also provide RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structures, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropylene cone and balanced silk dome tweeter provide great bass, smooth hights and lots of output to ensure every note can be heard loud and clear. With two grille colors included in the box, you easily match your speaker with your boat.
Twist-Lock Speaker Grilles -
JBL Club Marine Speakers have two grille color options in the box (gloss white & satin grey), with a twist-lock design so you can easily match the grille color to your preference during installation. The innovative design hides the mounting fasteners so your installation results in a clean finish with high cosmetic appeal.
Outdoor Performance & Marine Rated -
JBL uses marine-grade materials & components to suit the demands of harsh outdoor environments, with an IPx5 marine rating from front of speaker, and accentuated performance at frequencies heard in open-air environments.
RGB Illuminated Speaker Cones -
Unique and eye-catching RGB illuminated speaker cones are capable of displaying seven colours out of the box, when hard-wired to your vessel lighting, or you can have even more color options when wired to an external lighting controller.
Specifications -
• Club Marine 12" Subwoofer - JBLMARSUBCB122AM
• Power Handling: 400Wrms, 1200W peak
• Sensitivity (@ 2.83V): 89dB
• Frequency Response: 25Hz – 500Hz
• Nominal Impedance: 4ohm
