Description
Included in this kit
This bundle includes a JBL STADIUM600 High-performance mono Class D 600 amplifier, and a JBL STADIUM122SSI 12" High Performance Automotive Audio Subwoofer with Selectable Impedance.

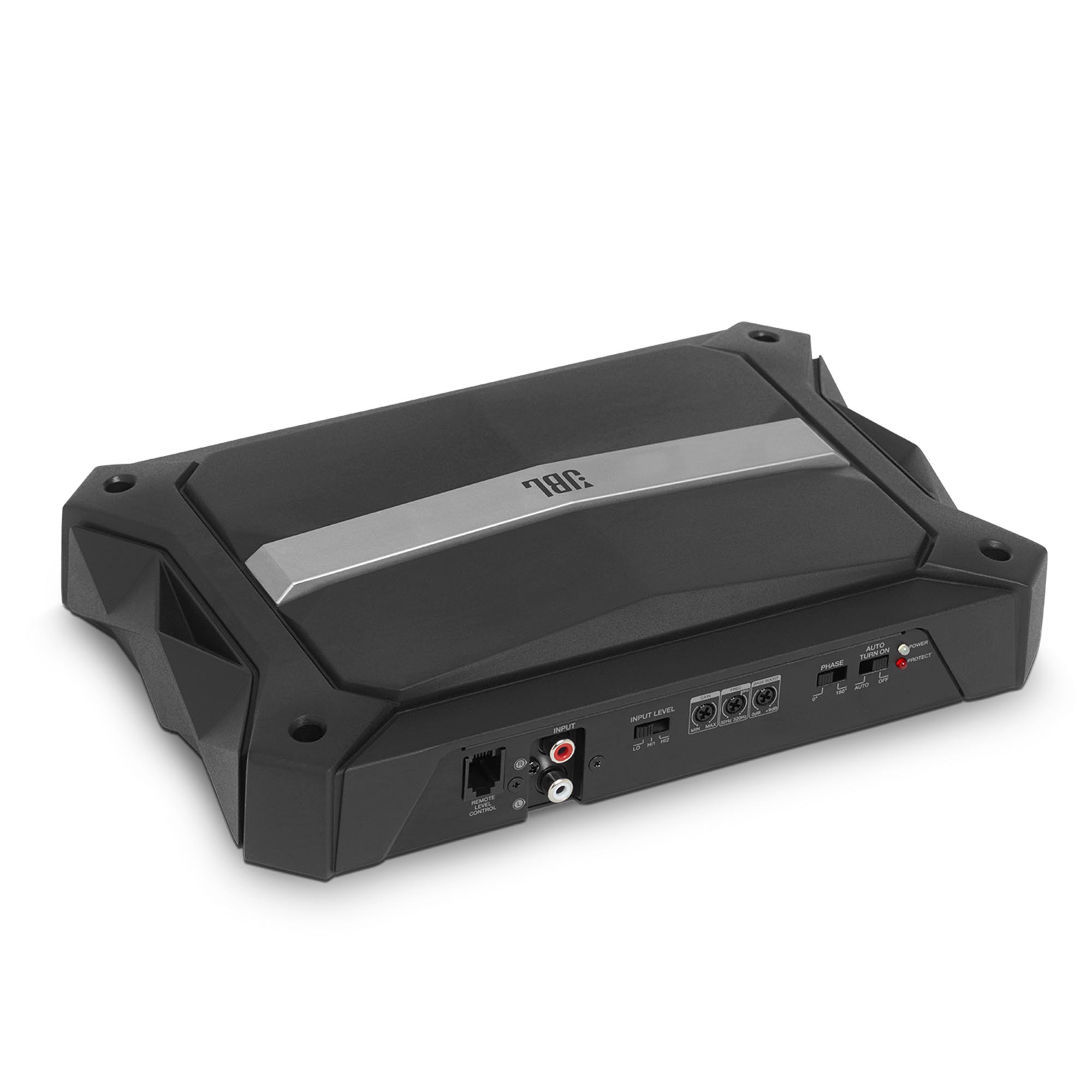

1x JBL STADIUM600 High-performance mono Class D 600 amplifier (STADIUM600AM)
Stadium mono amplifiers deliver the efficiency and power you expect from Class D amplifiers and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal enables optimized performance. The remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.
What’s in the Box
1x Amplifier
2x Differential Speaker-Level Adapter
2x Spare Fuses
4x Philip Screws
1x Remote Bass Control & Cable
1x E.A.R.L Terminal
3x Self-Tapping Screws
1x Owner’s Manual
Technical Specifications
Operating voltage 9-16 volts
RMS power @ 4 ohms 380W
RMS power @ 2 ohms 600W
Total peak power 1500W
Frequency response 10Hz – 320Hz @ -3dB
Crossover filter LPF 32Hz – 320Hz Variable 12dB/Oct
Bass EQ 70Hz Fix 0-9dB
THD + N at rated power ≤0.1%
High input maximum signal level 20V
High input maximum sensitivity 2V
Line input maximum signal level 2V
Line input maximum sensitivity 0.2V
Line-in signal-to-noise ratio (reference to 1 watt) ≥80dB
Quiescent current draw ≤1.7A
Fuse size 2 x 35A
Dimensions (H x W x D) 54.20 x 179.60 x 265.30mm
Weight 2.72kg
1x JBL STADIUM122SSI 12" High Performance Automotive Audio Subwoofer with Selectable Impedance (STADIUM122SSI)
JBL believes sound quality should never be compromised and the Stadium subwoofers make sure you don’t have to compromise flexibility, either. That’s because these high-performance subwoofers feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—providing multiple system configurations and flexibility. A special aero-cooling design keeps the voice coil cool even at high output levels. This feature coupled with oversized voice coils increases power handling and ensures long term reliability. More power, more reliability, more flexibility—and no compromises. When you’re ready to step up, Stadium is your subwoofer.
What's In The Box
1 Subwoofer
1 User Manual
1 Bag Of Screws
Technical Specifications:
12" (300mm) high-performance car audio subwoofer
Power Handling: 500W RMS, 1500W peak
Sensitivity (@ 2.83V): 92dB
Frequency Response: 25Hz – 175Hz
Voice Coil Diameter: 2 in. (50mm)
Impedance: 2 or 4 ohms
Cutout Diameter: 11-1/5" (285mm)
Mounting Depth: 7" (180mm)
