Description
Included in this kit
This bundle includes 4x M6-650X-L-GwSw-Single 6.5-inch (165 mm) Marine Coaxial Speaker, White Trim Ring, White Luxe Grille.

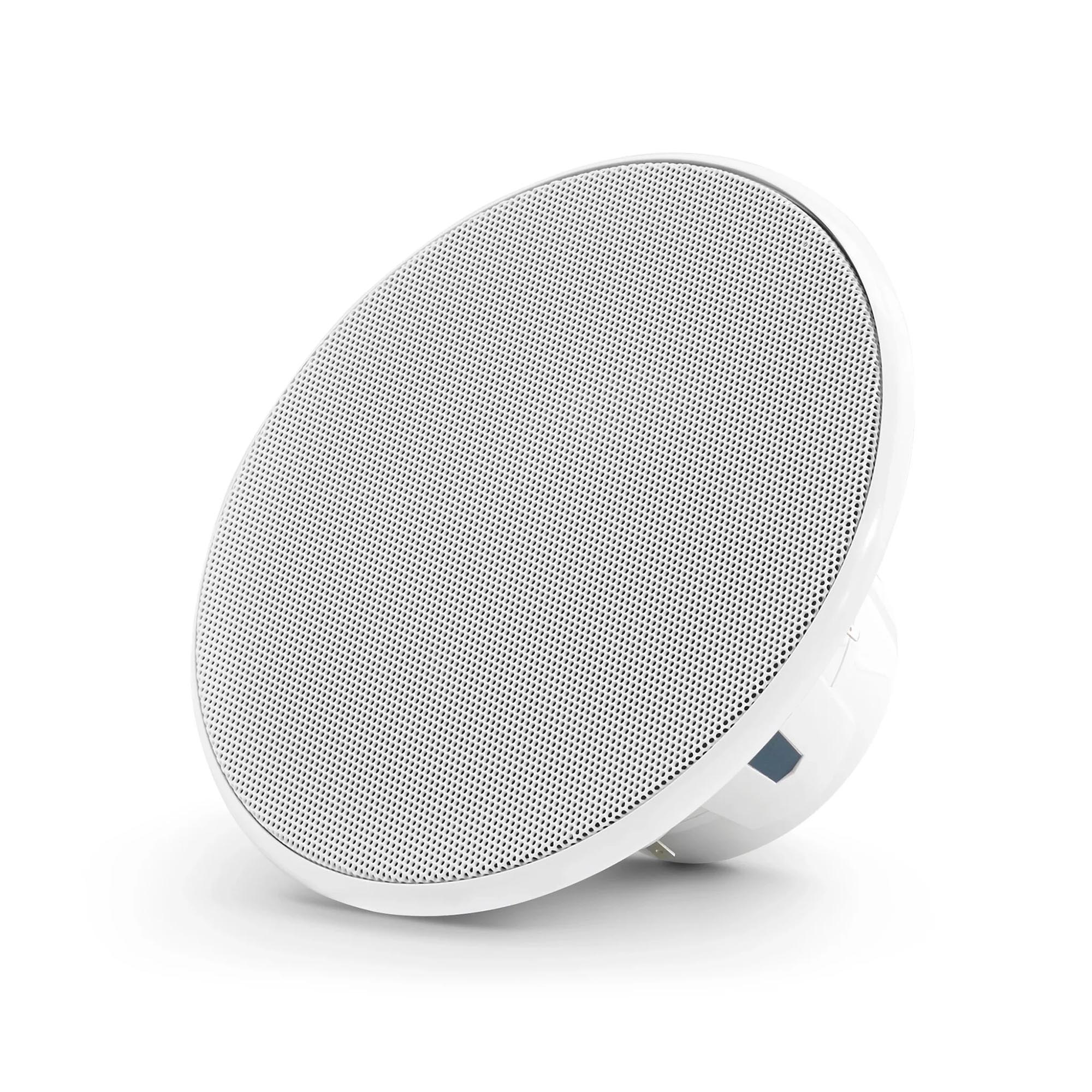

4x M6-650X-L-GwSw-Single 6.5-inch (165 mm) Marine Coaxial Speaker, White Trim Ring, White Luxe Grille (M6-650X-L-GwSw-Single)
M6 Luxe speakers are purpose-built to deliver top-flight audio performance and durability in luxury marine installations. Each model is outfitted with a low-profile mounting bezel with integrated tweeter bridge and a fine mesh grille for minimal protrusion into cabin space. The result is a discreet visual appearance able to blend in with the finest vessel surroundings.
A DMA-optimized, long excursion woofer design ensures excellent power handling and a 0.8-inch pure silk dome tweeter, specially treated to withstand harsh salt-water environments, produces clean, articulate high-frequency response, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-650X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
General Specifications
Continuous Power Handling (RMS): 75 W
Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 55 Hz - 25 KHz ± 3 dB
Coaxial Physical Specifications
Frame Outer Diameter: 8.34 in / 212 mm
Bolt Hole Circle Diameter: 7.39 in / 188 mm
Frontal Grille Protrusion*: 0.37 in / 9 mm
Mounting Hole Diameter: 6.75 in / 172 mm
Mounting Depth: 3.87 in. / 98 mm
*Frontal grille protrusion measured from mounting surface
