Description
Included in this kit
This bundle includes a JL Audio OEM M6-770ETXV3 Marine Tower Speakers Gloss white / Sport / Gunmetal, Gloss White, and a JL Audio M770ETX-CVR Neoprene tower speaker cover to protect 7.7-inch ETX Speakers System during storage & trailering.
1x JL Audio OEM M6-770ETXV3 Marine Tower Speakers Gloss white / Sport / Gunmetal, Gloss White (O-M6-77-ETXv3-Gw-S-GwGm)
JL Audio O-M6-77-ETXv3-Gw-S-GwGm

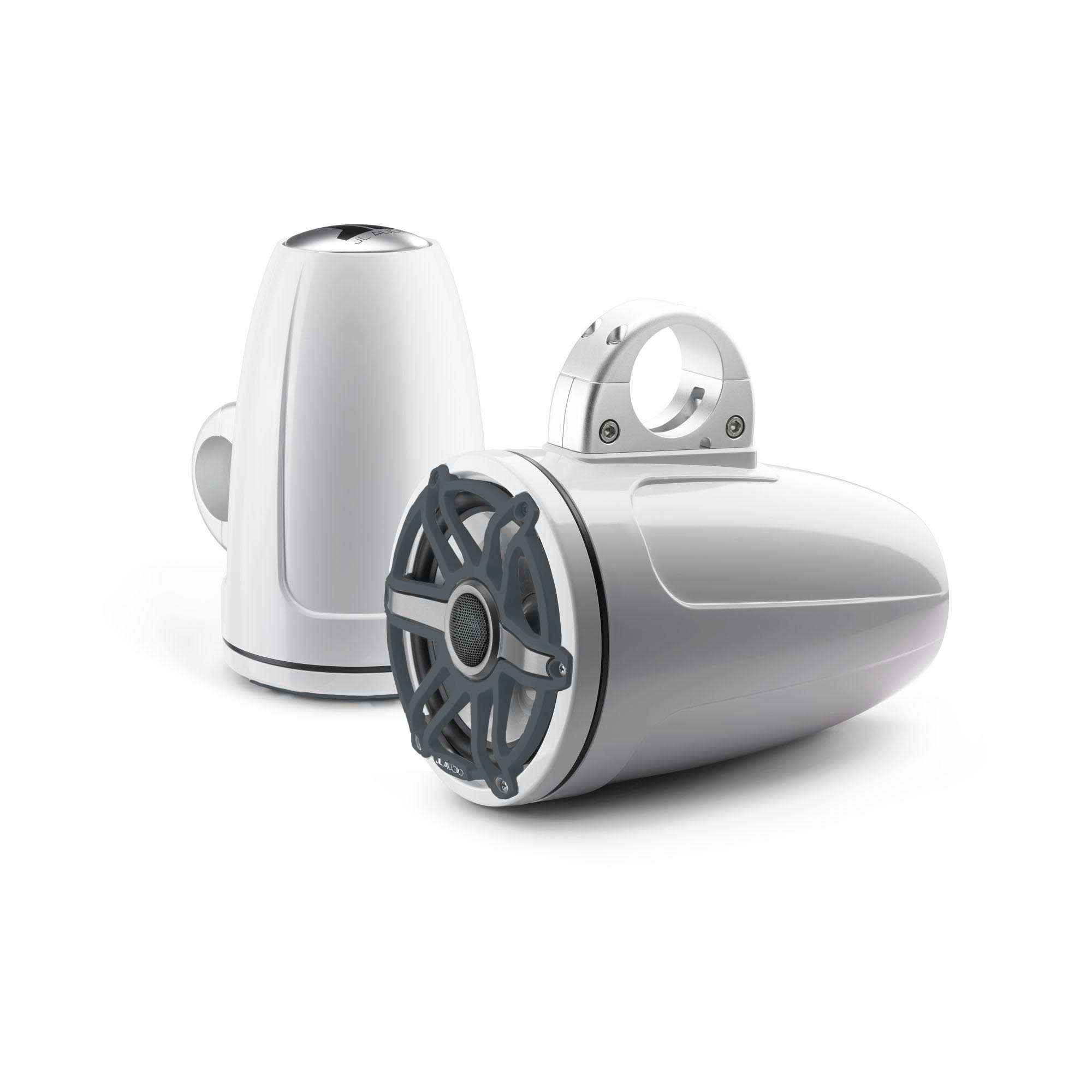

JL Audio OEM M6-770ETXV3 Marine Tower Speakers Gloss white / Sport / Gunmetal, Gloss White
Clamps sold separately - Click HERE to find the perfect size for your application.
M6 Loudspeakers fulfill JL Audio’s commitment to raise the bar with each product generation. The JL Audio engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Coaxial Speaker Technology
Every M6 coaxial loudspeaker starts with a long-excursion woofer designed with JL Audio’s proprietary motor, suspension and cone modeling systems to yield superior frequency response, smooth mid-range dispersion and linear performance at all listening levels. JL Audio’s acoustics laboratory in Miramar, Florida performs extensive testing on multiple generations of prototypes to refine every design and extract maximum performance.
Matching Silk-Dome Tweeters
Since the different size woofers in the M6 coaxials have different upper frequency response limits, each size pairs with its own specially designed, matching silk dome tweeter (0.8, 1.0, or 1.25-inch diameter). Each of these tweeters is precisely tuned via a rear cavity that optimizes its mid-range extension to seamlessly transition with its matching woofer. The result is smooth, evenly dispersed sound throughout the critical crossover region, making the overall sonic presentation clean and clear.
Advanced Built-In Crossover Networks
Crossover networks are a critical part of the M6 coaxial speakers’ acoustic design and are considerably more sophisticated than those used in most marine coaxial speakers. The M6-650X employs a 1st order low-pass and 2nd order high-pass filter, while the M6-770X and M6-880X apply a 2nd order low-pass and 3rd order high-pass filter. Each crossover network also employs an electronic tweeter protection circuitto minimize the possibility of tweeter failure.
The multiple components required inthese crossovers are laid out on a ring-shaped circuit board that is built into each speaker’s terminal assembly, ensuring that the crossover is secure and protected from the elements.
General Specifications
| Mounting Application | Tower |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 - 200 W / Ch. |
| System Efficiency | 91 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
Physical Specifications
| Enclosure Diameter (A) | 7.70 in / 196 mm |
| Enclosure Depth (B) | 12.62 in / 321 mm |
| Height including Mounting Clamp Receiver* (C) | 8.74 in / 222 mm |
| Mounting Clamp Receiver / Enclosure Offset (D) | 1.04 in / 26 mm |
Wiring Harness Info
| 16 AWG Red/Stripe | Speaker Positive (+) |
| 16 AWG Black/Stripe | Speaker Negative (-) |
Pipe Clamps
Most Commonly Used Clamps - These are sold separately and not included in this product on it's own.
Want to view all the ETXv3 mounting adapters?Click HERE to find the perfect mount for your application.
Need help determining the correct Pipe-Mounting Clamp for your installation?
Download the Pipe-Mounting Clamp Ruler.
Fixed Clamps
Swivel Clamps
Boat Specific Clamps & Specialty
1x JL Audio M770ETX-CVR Neoprene tower speaker cover to protect 7.7-inch ETX Speakers System during storage & trailering (M770ETX-CVR)
Neoprene covers to protect ETX enclosed speaker systems during storage and trailering
Having undergone over 1000 hours of salt/fog and UV testing, these durable protective cases are designed to provide stylish but serious protection for M and MX-Series ETX Enclosed Speaker Systems (v2 or v3).
Constructed from 3mm Neoprene, each cover is laminated with dark gray spandex and classically finished with a woven “JL Audio / How we play” trim label. This marine-ready material is UV-resistant and features tiny laser-cut holes at the bottom that are just big enough to let water drain out, and purposely small enough to never let insects in. A single, high-quality #5 zipper with locking slider on the front facilitates quick and easy covering or removal. This case is the perfect solution to problematic dust, grime and other environmental agents that can be harmful to your speaker while your boat is docked or trailered.
Owners of ETXv2/v3 Enclosed Speaker Systems, these are for you. Protect your investments.
Designed to work with any mounting clamp/application.
Sold in pairs.
