Description
Included in this kit
This bundle includes a JL Audio RBC-1:Remote Bass Control, a JL Audio CP210-W0v3:Dual 10W0v3 BassWedge Ported 2 Ohm, and a JL Audio JD500/1 Monoblock Class D Subwoofer Amplifier 500 W.
1x JL Audio RBC-1:Remote Bass Control (RBC-1)
JL Audio RBC-1: Remote Bass Control
Remote Bass Control for Select JL Audio Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JX-Series: JX250/1, JX500/1, JX1000/1D
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.
1x JL Audio CP210-W0v3:Dual 10W0v3 BassWedge Ported 2 Ohm (CP210-W0V3)

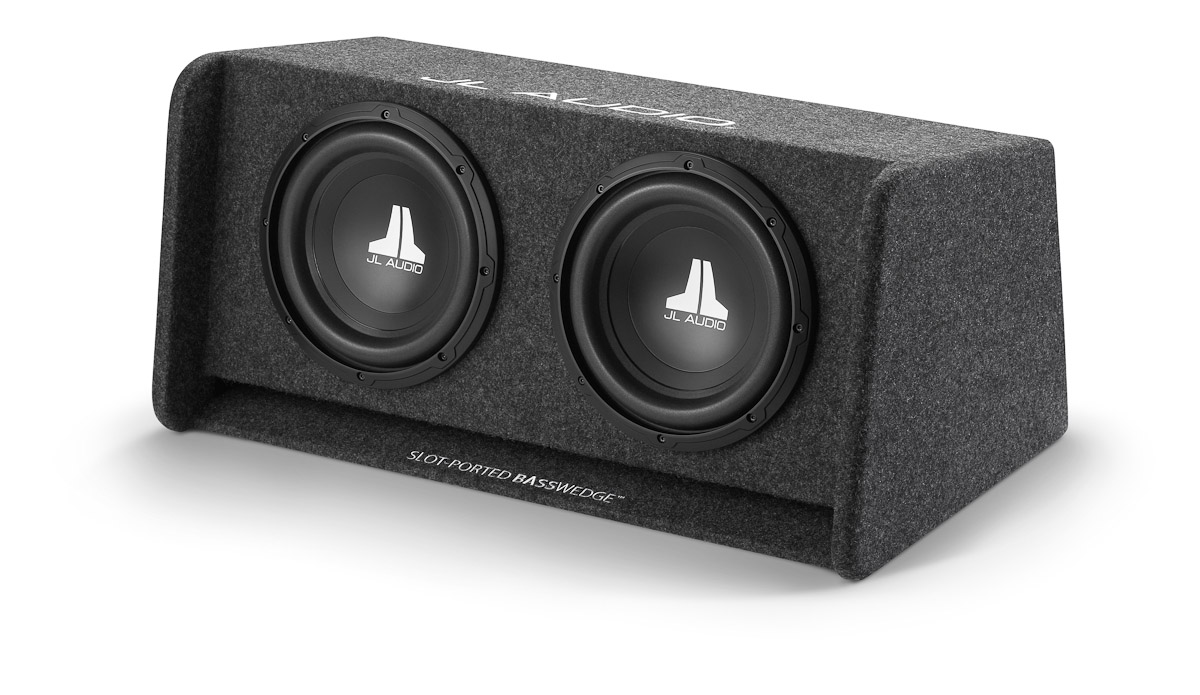

JL Audio CP210-W0v3
Enclosed Subwoofer System with Dual 10W0v3-4 Subwoofer Drivers, Dark Gray Carpet (600 W, 2 Ω) - Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal. Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
General Specifications
| Continuous Power Handling (RMS) | 600 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Slot-Ported |
| Finish | Gray carpet |
| Grille Included | No |
Physical Specifications
| External Width (W) | 29.61 in / 752 mm |
| External Height (H) | 13.77 in / 350 mm |
| External Depth (D1) | 17.38 in / 441 mm |
| Net Weight | 50.7 lb / 23 kg |
1x JL Audio JD500/1 Monoblock Class D Subwoofer Amplifier 500 W (JD500/1)
JL Audio JD500/1 Monoblock Class D Subwoofer Amplifier 500 W
JD Amplifiers redefine a high-value package in terms of performance and efficiency. JL Audio’s NexD™ switching technology and clipping indicators (for ease in setting Input Sensitivity), add tremendous bang for your buck. Their dual-range, differential-balanced inputs minimize noise, while maximizing compatibility with a wide range of signal levels. Monoblock models also include variable bass boost and Remote Level Control capability when used with an optional RBC-1 Remote Bass Control.
They fit nearly anywhere!JD1000/1: 11.40 x 7.50 x 2.10 in. (290 x 190 x 53 mm). High-mass heat sink improves thermal capacity leading to reduced incidence of shut-down events.
NexD™ Switching Amplifier Technology: Our high-speed switching technology delivers outstanding fidelity with very low noise and distortion. Exceptional efficiency results in reduced current draw and heat, permitting reliable high power output within a very small chassis. Specifically optimized for subwoofer applications (7 Hz - 500 Hz bandwidth).
Complete Signal Processing Package: 12dB/octave low-pass filter, non-defeatable, with fully variable filter frequency selection from 50-500 Hz. Adjustable 0 to +12 dB Bass Boost EQ @ 45 Hz. Remote level control with optional controller (RBC-1). Preamp outputs (buffered, pass-through type)
Dual-Range, Differential-Balanced Inputs and Automatic Turn-On CapabilitiesBenefits: NO NOISE! Outstanding noise rejection prevents alternator whine and other noises. Accepts line-level or speaker level signals (up to 8V RMS), including those from factory systems, without a line-output converter (LOC): just splice wires to a pair of RCA ends or RCA cables. Automatic turn-on option via Signal-Sensing or DC-Offset sensing
Integrated LED Clipping Indicator for Easy Setup: Simplifies input-sensitivity setting by providing accurate visual feedback of output clipping level.1) Disconnect one speaker output wire, 2) Play full-scale (0 dBfs) sine-wave through audio system, with head unit at 3/4 volume and tone controls set flat, 3) Adjust input sensitivity until light turns on, then back off slightly. Separate, top-mounted LEDs report overall status and condition
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 250 W RMS x 1 |
| @ 3 Ω | 350 W RMS x 1 |
| @ 2 Ω | 500 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| Frequency Response | 10 Hz - 150 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >90 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >62 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Input Voltage Range @ High-Level Inputs | 2 V - 10 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 200 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | No |
| Filter Defeat Function | No |
| Infrasonic Filter | none |
| Bass Boost EQ | 0 to +12 dB @ 45 Hz |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Unbuffered |
Physical Specifications
| Height (H) | 2.10 in / 53 mm |
| Width (W) | 9.50 in / 242 mm |
| Depth (D) | 7.50 in / 190 mm |
