Description
Included in this kit
This bundle includes a JVC KS-DR2004D 4-Channel 200 Watt Compact Digital Amplifier for Compact Car, Marine, UTV and Motorcycles, a JVC CS-DR1700C 360W Peak (55W RMS) 6.75 2-Way Factory Upgrade Component Speakers - Pair, and a JVC CS-DR1721 6-3/4" 2-Way Coaxial Speakers / 300W Max Power.
1x JVC KS-DR2004D 4-Channel 200 Watt Compact Digital Amplifier for Compact Car, Marine, UTV and Motorcycles (KS-DR2004D)
IPX6: Protection against Powerful Water Jets / Water projected in powerful jets, up to 12.5mm (0.49 inch) against the amplifier from any direction shall have no harmful effects.
IPX7: Protection against Immersion, up to 1 m (3 feet, 3 inch) depth / Restricts harmful amounts of water entry when the amplifier is immersed in water under defined conditions of pressure and time, up to 1 m (3 feet, 3 inches) of submersion.
IP6X: Effective against Dust-tight / Dust entry is restricted to avoid damage to the amplifier.
A Drain Tunnel Structure is employed for creating a gap between the amplifier and the installation surface. This prevents saltwater and sand from accumulating on the bottom, increasing corrosion protection.
Thicker terminal connection points and increased wire size enables maximum current flow and higher output for better low frequency response and cleaner output.
High Quality PMLCAP’s (Polymer Multi-Layer Capacitors) are utilized to lower distortion levels, improving the overall listening experience at higher volumes, while maintaining the integrity of the sound.
Magnetic Shielding for the output coils reduce radiated noise, delivering smooth and accurate sound.
Specifications
Audio unit
Max Power Output: 600W
Rated Power Output: Stereo (4Ω) 50W x 4 (20Hz–20kHz, ≤1.0% THD), Stereo (2Ω) 75W x 4 (1kHz, ≤1.0% THD), Bridged (4Ω) 150W x 2 (1kHz, ≤1.0% THD)
Speaker Impedance: 4Ω (2Ω to 8Ω allowable), (Bridged connection: 4Ω to 8Ω allowable)
Frequency response (+0, –3dB): 10Hz–35kHz
Input Sensitivity (RCA): 0.2V-5.0V
Signal to noise ratio: 89dB
Low pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)
High pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)
General
Operating voltage: 12V DC car battery
Current consumption: 26A
Operational temperature range: –10°C – 60°C
Dimensions (W × H × D): 7-13/16" x 1-15/16" x 4-1/8"
Weight: 1.6kg (3.5lbs)
Waterproof & Dustproof: IP66, IP67

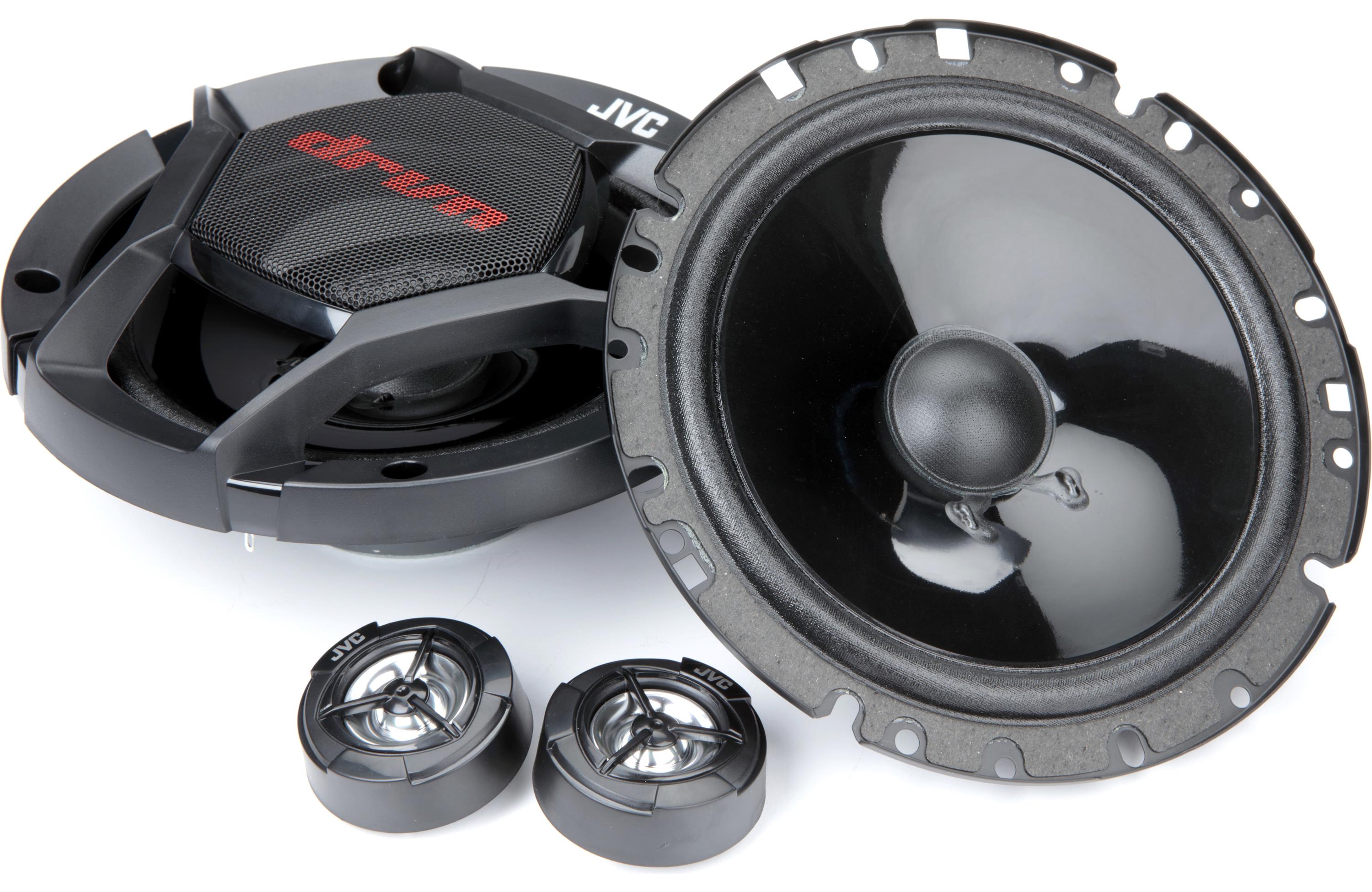

1x JVC CS-DR1700C 360W Peak (55W RMS) 6.75 2-Way Factory Upgrade Component Speakers - Pair (CS-DR1700C)
General Features: 6.75" DR Series 2-Way Coaxial Speakers Perfect Factory Upgrade Speakers Power Handling: Peak: 720 watts per pair / 360 watts each RMS: 110 watts per pair / 55 watts each Carbon Mica Woofer Cone Hybrid Rubberized Cloth Surround Poly-Ether Imide Balanced Tweeter CEA-2031 compliant speakers Ferrite Woofer Magnet 4 ohms impedance Frequency Response: 66-23,800Hz In-line capacitor crossover for tweeters.

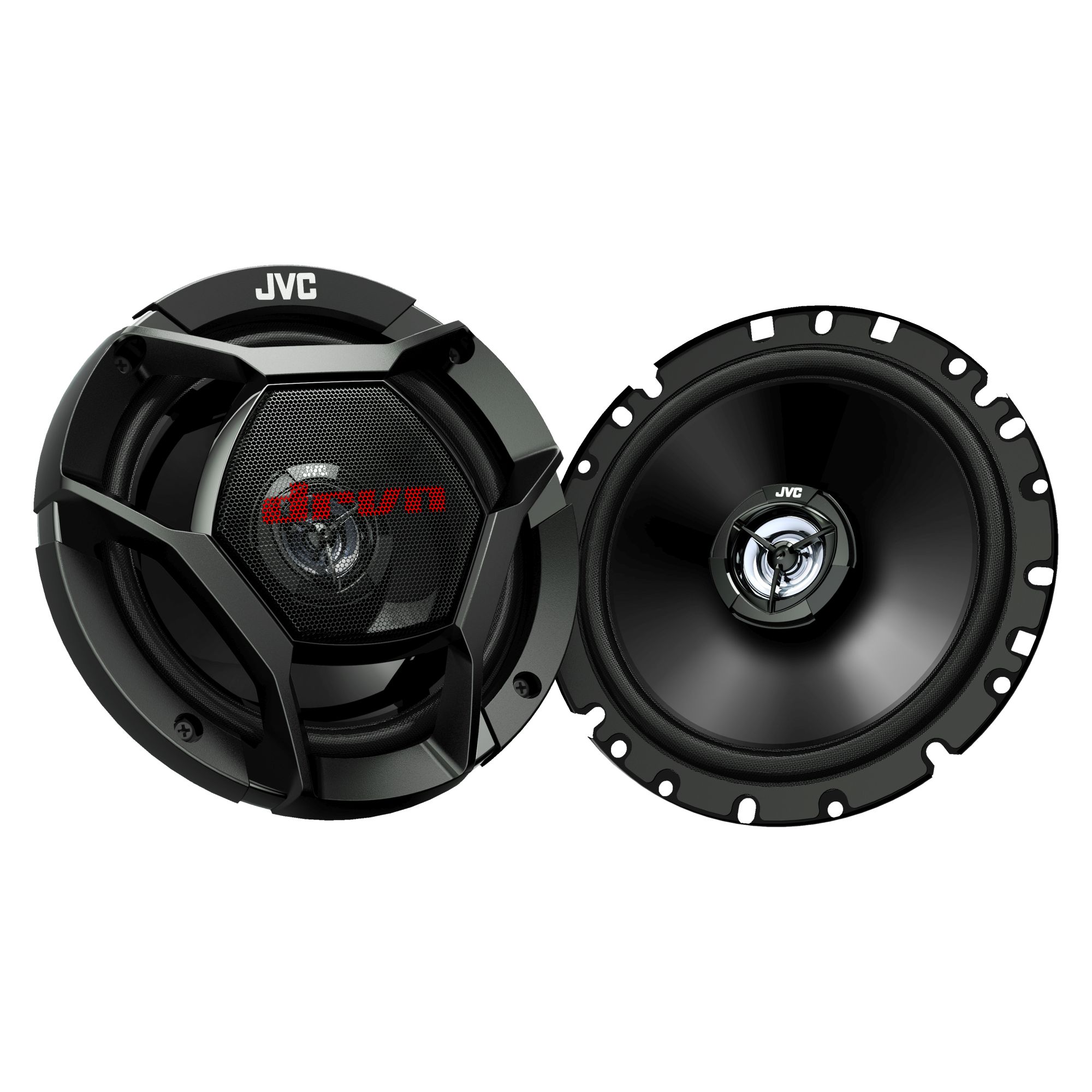

1x JVC CS-DR1721 6-3/4" 2-Way Coaxial Speakers / 300W Max Power (CS-DR1721)
JVC CS-DR1721 6-3/4" 2-Way Coaxial Speakers / 300W Max Power
Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction. Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals. Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
