Description
Included in this kit
This bundle includes a JVC KS-DR2004D 4-Channel 200 Watt Compact Digital Amplifier for Compact Car, Marine, UTV and Motorcycles, a JVC CS-DR601C 300W Peak (60W RMS) 6.5 2-Way Factory Upgrade Component Speakers - Pair, and a JVC CS-DR162 6.5 Inch Coaxial Speakers (pair).
1x JVC KS-DR2004D 4-Channel 200 Watt Compact Digital Amplifier for Compact Car, Marine, UTV and Motorcycles (KS-DR2004D)
IPX6: Protection against Powerful Water Jets / Water projected in powerful jets, up to 12.5mm (0.49 inch) against the amplifier from any direction shall have no harmful effects.
IPX7: Protection against Immersion, up to 1 m (3 feet, 3 inch) depth / Restricts harmful amounts of water entry when the amplifier is immersed in water under defined conditions of pressure and time, up to 1 m (3 feet, 3 inches) of submersion.
IP6X: Effective against Dust-tight / Dust entry is restricted to avoid damage to the amplifier.
A Drain Tunnel Structure is employed for creating a gap between the amplifier and the installation surface. This prevents saltwater and sand from accumulating on the bottom, increasing corrosion protection.
Thicker terminal connection points and increased wire size enables maximum current flow and higher output for better low frequency response and cleaner output.
High Quality PMLCAP’s (Polymer Multi-Layer Capacitors) are utilized to lower distortion levels, improving the overall listening experience at higher volumes, while maintaining the integrity of the sound.
Magnetic Shielding for the output coils reduce radiated noise, delivering smooth and accurate sound.
Specifications
Audio unit
Max Power Output: 600W
Rated Power Output: Stereo (4Ω) 50W x 4 (20Hz–20kHz, ≤1.0% THD), Stereo (2Ω) 75W x 4 (1kHz, ≤1.0% THD), Bridged (4Ω) 150W x 2 (1kHz, ≤1.0% THD)
Speaker Impedance: 4Ω (2Ω to 8Ω allowable), (Bridged connection: 4Ω to 8Ω allowable)
Frequency response (+0, –3dB): 10Hz–35kHz
Input Sensitivity (RCA): 0.2V-5.0V
Signal to noise ratio: 89dB
Low pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)
High pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)
General
Operating voltage: 12V DC car battery
Current consumption: 26A
Operational temperature range: –10°C – 60°C
Dimensions (W × H × D): 7-13/16" x 1-15/16" x 4-1/8"
Weight: 1.6kg (3.5lbs)
Waterproof & Dustproof: IP66, IP67

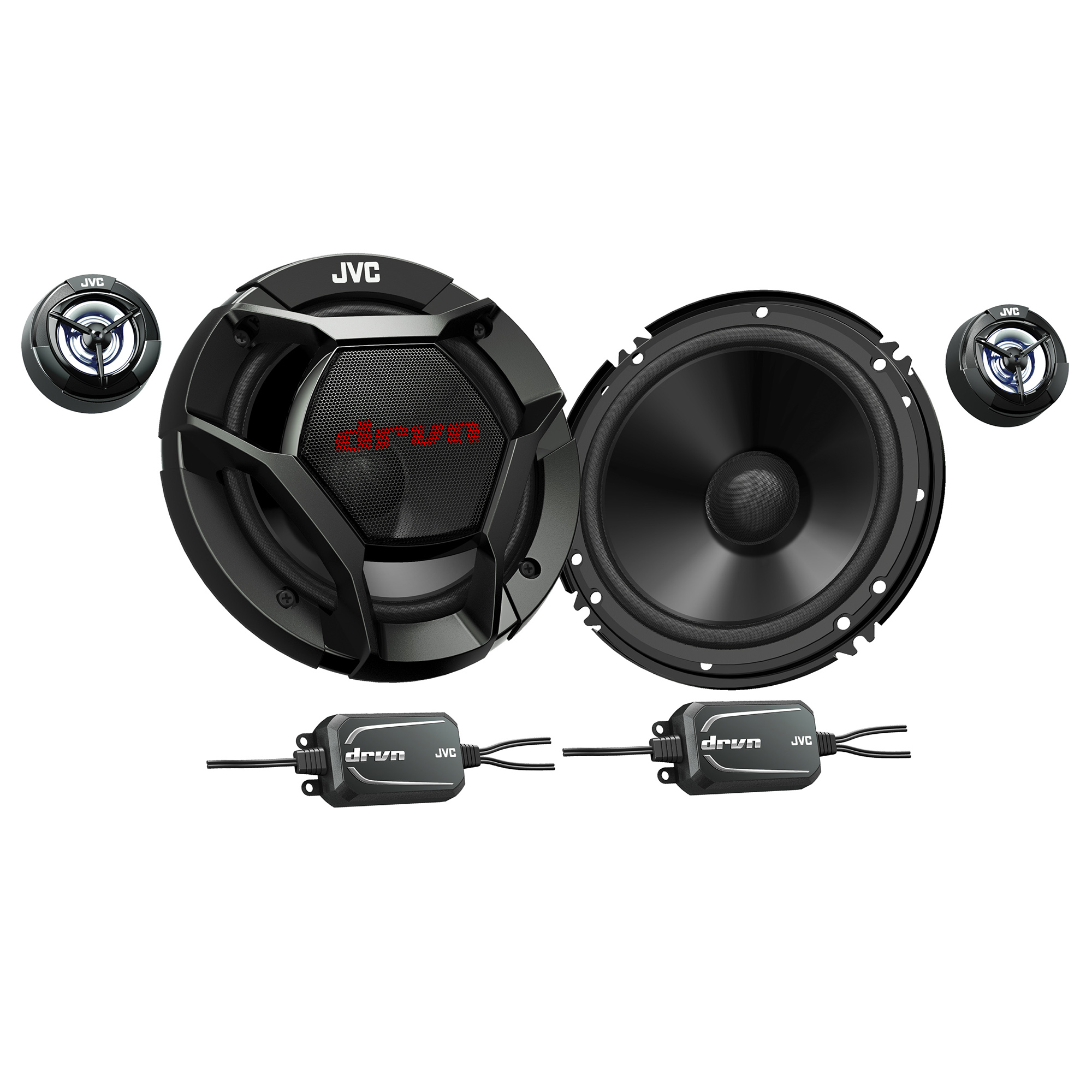

1x JVC CS-DR601C 300W Peak (60W RMS) 6.5 2-Way Factory Upgrade Component Speakers - Pair (CS-DR601C)
Balanced Neodymium Tweeter
It provides detailed high range and smooth mid range.
Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.
Wide Opening Grill
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
Woofer -
• Size: 16 cm (6-1/2'')
• Diaphragm: Carbon Mica Cone
• Surround: Hybrid Surround (Rubber & Cloth)
• Magnet: Ferrite
Tweeter -
• Size: 2.5 cm (1'')
• Type: Separate Type, Unit : Balanced
• Diaphragm: Poly-Ether Imide
• Magnet: Neodymium
General -
• Frequency Response: 76 - 24,000Hz
• Power Handling Capacity (RMS): 60W
• Power Handling Capacity (Peak Power): 360W
• Impedance: 4 ohms
• Sound Pressure Level: 88dB
Weight -
• Weight (w.Grille): 0.81kg (1.8lbs)
• Weight (w/o Grille): 0.74kg (1.7lbs)
• Magnet Mass: 285g (10oz)
• Mounting Depth: 56.5 mm (2-1/4")
1x JVC CS-DR162 6.5 Inch Coaxial Speakers (pair) (CS-DR162)
JVC CS- DR162 6.5 Inch Coaxial Speakers (pair)
