Description
Included in this kit
This bundle includes a JVC KW-M690BW 6.8" WSVGA 1DIN Short DMR, Wireless CP/AA, USB MIRRORING , 1Cam, a JVC CS-DR601C 300W Peak (60W RMS) 6.5 2-Way Factory Upgrade Component Speakers - Pair, and a JVC CS-DR6931 500W Peak (70W RMS) 6x9 3-Way Factory Upgrade Coaxial Speakers - Pair.

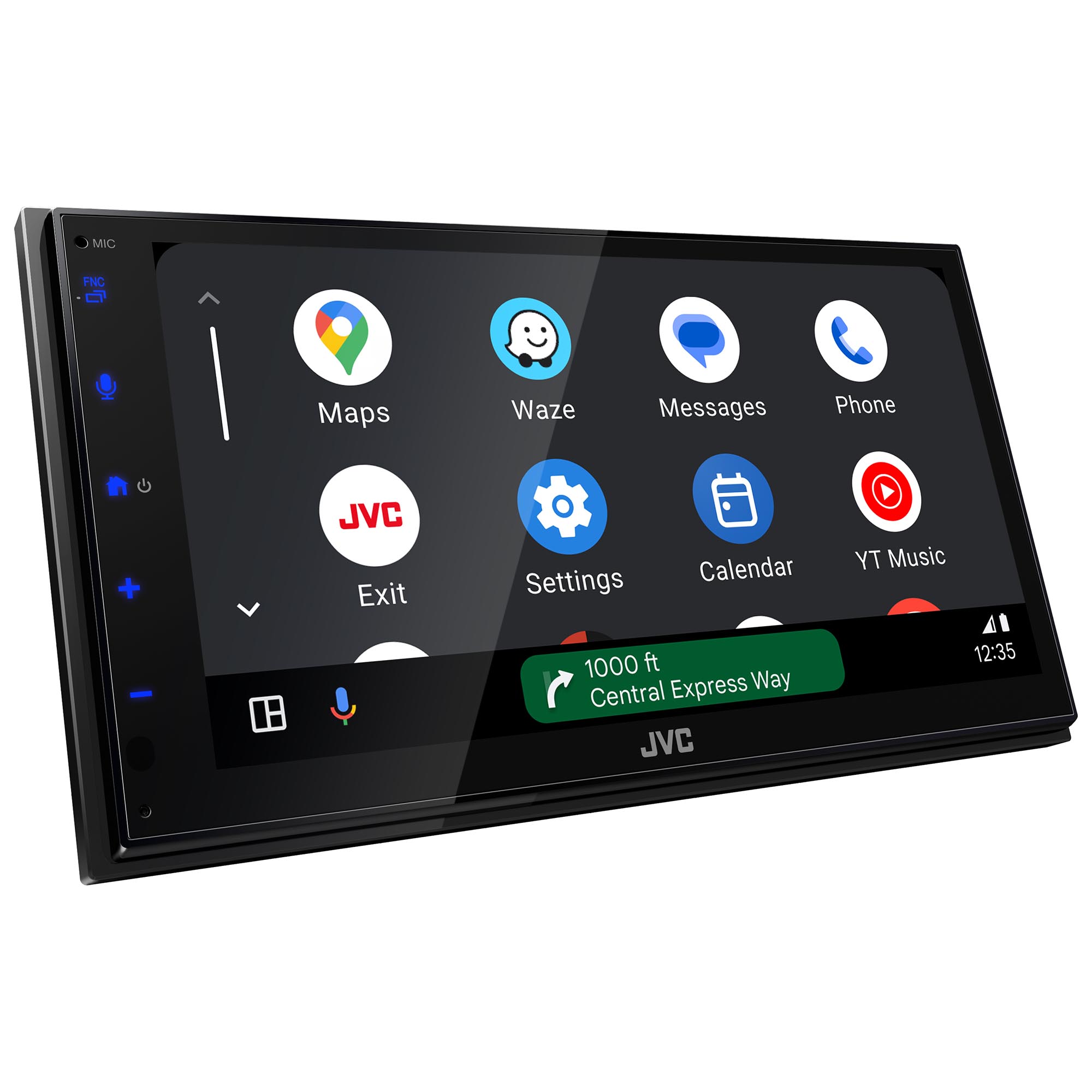

1x JVC KW-M690BW 6.8" WSVGA 1DIN Short DMR, Wireless CP/AA, USB MIRRORING , 1Cam (KW-M690BW)
Monitor
Screen Size: 6.8"W SVGA
Touch Panel: Capacitive
Customizable GUI: Yes
Key Illumination Color: Blue
Dimmer: Yes
Multilingual Display: Yes
Media Playback
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
MKV Compatible: USB
Bluetooth Control
Built-in Bluetooth: Yes (Hands-Free MIC Built-in)
Hands Free Call: Yes (HFP1.7 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Auto Pairing for iPhone/Android: Yes
Wi-Fi Control
Built-in Wi-Fi: Yes
Android Control
Android Auto: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via Wi-Fi) *Need mirroring App
Android Music Playback: Yes (via Bluetooth®)
iPod/iPhone Control
CarPlay: Yes (via Wi-Fi or USB)
Mirroring for iPhone: Yes (via WiFi) *Need mirroring App
iPhone Music Playback: Yes (via USB or Bluetooth®)
USB
USB Port: x 1 (High Speed)
Position: Rear
USB Power Supply: Yes (2.1A High Current Charging)
Radio Tuner
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 36(FM:24ch, AM:12ch)
Auto Memory Entry: Yes
FM
Frequency Range: 87.9 - 107.9MHz
AM
Frequency Range: 530-1,700kHz
Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (7Preset + 3user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
Speaker Size Control: Yes
Inputs and Outputs
Video Out: x 1 (V:RCA)
Rear view camera Input: Yes
Line Output Terminals: 2Preouts + Sub WF (Mono)
Pre-output Level/Impedance: 2.5V / 10k ohms
Subwoofer Output with Level/Frequency Control: Yes (Normal / Reverse)
General
Back Up Memory: Y
Short Chassis: Y
Wireless Remote Control: Optional (RM-RK259 required)
Steering Remote Control Ready: Y
1x JVC CS-DR601C 300W Peak (60W RMS) 6.5 2-Way Factory Upgrade Component Speakers - Pair (CS-DR601C)
Balanced Neodymium Tweeter
It provides detailed high range and smooth mid range.
Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.
Wide Opening Grill
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
Woofer -
• Size: 16 cm (6-1/2'')
• Diaphragm: Carbon Mica Cone
• Surround: Hybrid Surround (Rubber & Cloth)
• Magnet: Ferrite
Tweeter -
• Size: 2.5 cm (1'')
• Type: Separate Type, Unit : Balanced
• Diaphragm: Poly-Ether Imide
• Magnet: Neodymium
General -
• Frequency Response: 76 - 24,000Hz
• Power Handling Capacity (RMS): 60W
• Power Handling Capacity (Peak Power): 360W
• Impedance: 4 ohms
• Sound Pressure Level: 88dB
Weight -
• Weight (w.Grille): 0.81kg (1.8lbs)
• Weight (w/o Grille): 0.74kg (1.7lbs)
• Magnet Mass: 285g (10oz)
• Mounting Depth: 56.5 mm (2-1/4")
1x JVC CS-DR6931 500W Peak (70W RMS) 6x9 3-Way Factory Upgrade Coaxial Speakers - Pair (CS-DR6931)
JVC CS-DR6931 500W Peak (70W RMS) 6x9” 3-Way Factory Upgrade Coaxial Speakers - Pair
General Features:
6x9" DR Series 3-Way Coaxial Speakers
Perfect Factory Upgrade Speakers
Power Handling:
Peak: 1000 watts per pair / 500 watts each
RMS: 140 watts per pair / 70 watts each
Carbon Mica Woofer Cone
Hybrid Rubberized Cloth Surround
Poly-Ether Imide Balanced Tweeter
CEA-2031 compliant speakers
Ferrite Woofer Magnet
4 ohms impedance
Frequency Response: 58-21,000 Hz
