Description
Included in this kit

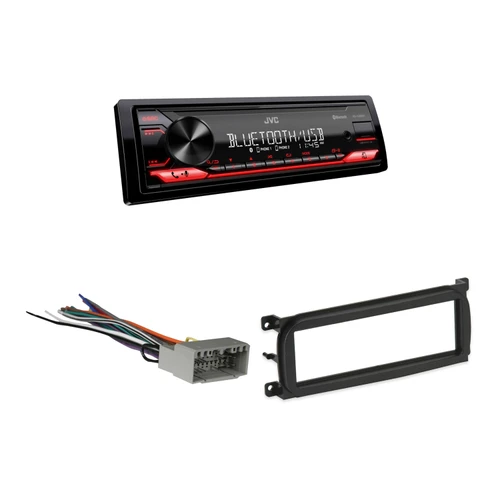

This bundle includes a Metra 99-6503 Dash Multi-Kit Compatible With 98-10 Chrysler, Dodge, Jeep, a Metra 70-6502 Wiring Harness Compatible with Chrysler 2002-2009, and a JVC KD-X280BT Digital Media Receiver featuring Bluetooth / USB / 13-Band EQ / JVC Remote App Compatibility.
1x Metra 99-6503 Dash Multi-Kit Compatible With 98-10 Chrysler, Dodge, Jeep (99-6503)
This stereo installation kit has been engineered to help you install a 2” tall (Single-DIN) aftermarket radio into the original vehicle dashboard, making radio replacement simple. The dash kit is designed to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Features
Stereo installation kit designed to fit any standard 2” tall aftermarket radio
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
A tech support number is available for installation help 7 days a week
1-year warranty
Compatible Vehicles
Chrysler
1999-2004 Chrysler 300M
1998-2004 Chrysler Concorde
1999-2001 Chrysler LHS
2001-2005 Chrysler PT Cruiser
2001-2006 Chrysler Sebring
2001-2007 Chrysler Town & Country
Dodge
2001-2007 Dodge Caravan
2001-2004 Dodge Dakota
2001-2003 Dodge Durango
2001-2007 Dodge Grand Caravan
1998-2004 Dodge Intrepid
2000-2005 Dodge Neon
2002-2005 Dodge Ram 1500
2003-2005 Dodge Ram 2500
2003-2005 Dodge Ram 3500
2001-2006 Dodge Stratus
2003-2010 Dodge Viper
Jeep
1999-2004 Jeep Grand Cherokee
2002-2007 Jeep Liberty
2003-2006 Jeep Wrangler
Plymouth
2000-2001 Plymouth Neon
1x Metra 70-6502 Wiring Harness Compatible with Chrysler 2002-2009 (70-6502)
Description
Plugs into Car Harness at radio
Power – 4 Speakers
Applications
CHRYSLER 300M 2002 2004
CHRYSLER Concorde 2002 2004
CHRYSLER Pacifica 2004 2008
CHRYSLER PT Cruiser 2002 2005
CHRYSLER Sebring Convertible 2002 2006
CHRYSLER Sebring Sedan 2002 2005
CHRYSLER Town & Country 2002 2007
CHRYSLER Voyager 2002 2003
DODGE Caravan 2002 2007
DODGE Dakota 2002 2004
DODGE Durango 2002 2003
DODGE Intrepid 2002 2004
DODGE Neon 2002 2006
DODGE Ram Pickup 1500 2005 2005
DODGE Ram Pickup 1500 2002 2004
DODGE Ram Pickup 2500/ 3500 2003 2005
DODGE Stratus Sedan 2002 2006
DODGE Viper 2003 2009
JEEP Grand Cherokee 2002 2004
JEEP Liberty 2002 2007
JEEP Wrangler 2003 2006
1x JVC KD-X280BT Digital Media Receiver featuring Bluetooth / USB / 13-Band EQ / JVC Remote App Compatibility (KD-X280BT)
JVC KD-X280BT
Digital Media Receiver featuring Bluetooth / USB / 13-Band EQ / JVC Remote App Compatibility
Description
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement is a virtual surround technology using 2 speakers. Simply select the vehicle size, and the receiver automatically adjusts the sound effectively.
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement is a virtual surround technology using 2 speakers. Simply select the vehicle size, and the receiver automatically adjusts the sound effectively.
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
Features
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.Bluetooth Hands-Free Profile 1.7
HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.Music Sync. Effect
Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.Spanish Text Display Compatible
On-screen display menu now available in SpanishHigh Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Simply select the vehicle size, and the receiver automatically adjusts the sound effectively.Sound Response
This function boosts the low frequencies which can be lost during compression to MP3 or AAC.Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.Remote Control App
Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.Wired Remote Control (Optional)
IPX7 Waterproof wired remote control (RM-RK62M) is optionally available.Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).Display
- Display Type
- VA LCD Display
- LCD Color
- White
- Key Color
- Red
- Music Sync. Effect
- Yes
- Spanish Text Display Compatible
- Yes
- Auto Dimmer
- Yes
- Brightness Control
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Ver 4.2, Wired-Mic included)
- Hands Free Call
- Yes (HFP 1.7.1)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes (AVRCP 1.6.1)
- Supported Audio Formats
- SBC
- 5 BT-Audio Connection [JVC Streaming DJ]
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Low Battery Information
- Yes
Android Control
- Android Music Playback
- Yes (via Bluetooth(R))
USB
- Position
- Front
- USB Power Supply
- Yes (1.5A)
- Drive Change Mode for Mass Storage Class
- Yes
Inputs and Outputs
- AUX Input
- 1 (Front)
- Line Output Terminals (Pair)
- 1 Pair (Rear/Subwoofer Selectable)
- Pre-Output Level
- 2.5V
- Subwoofer Output with Level/Frequency Control
- Yes (Level -50 to +10)
- Subwoofer Output Level
- 2.5V
Tuner
- Radio Data Broadcast System (RBDS)
- Yes
- Preset Stations
- 18FM + 6AM
- Strong Station Memory (for FM)
- Yes
- Tuner Preset Memory (for power disconnection)
- Yes
- FM
- Frequency Range (Frequency Step)
- 87.9 - 107.9MHz (200kHz)
- AM
- Frequency Range (Frequency Step)
- 530 - 1,700kHz (10kHz)
Audio
- Maximum Power Output
- 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- Subwoofer Direct Connection (Mono Lch)
- Yes
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (11-Preset)
- Bass Boost
- Yes
- Loudness Control
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- K2 Technology
- Yes
- Time Alignment
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
General
- Short Chassis
- Yes
- Back Up Memory
- Yes
- Detachable Face Panel
- Yes
- Steering Remote Control Ready
- Yes
- Remote Control Application
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-3/16" x 2-1/16" x 3-15/16" (182 x 53 x 100mm)
- Weight
- 1.3 lbs. (0.6kg)
- Unit weight in individual package
- 2.0 lbs. (0.9kg)
Extra Information
Brand:
JVC
Weight:
4.30 LBS
UPC:
199730571673
Bundle:
Yes
Feature 1:
This bundle includes a Metra 99-6503 Dash Multi-Kit, a Metra 70-6502 Wiring Harness, and a JVC KD-X280BT Digital Media Receiver with Bluetooth and USB.
Feature 2:
The Metra 99-6503 Dash Kit ensures a seamless fit for 2” aftermarket radios in Chrysler, Dodge, and Jeep models from 1998-2010.
Feature 3:
Metra 70-6502 Wiring Harness provides an easy connection to car harnesses for Chrysler vehicles from 2002-2009.
Feature 4:
JVC KD-X280BT Receiver offers Bluetooth connectivity, allowing music streaming and hands-free calls with dual phone connection.
Feature 5:
Enhance your audio experience with JVC's 13-Band EQ, K2 Technology for sound quality, and Space Enhancement for virtual surround.
Condition:
NEW
Weight:
4.3000 lbs
Shipping:
Free 2-Day Shipping!
