Description
Included in this kit

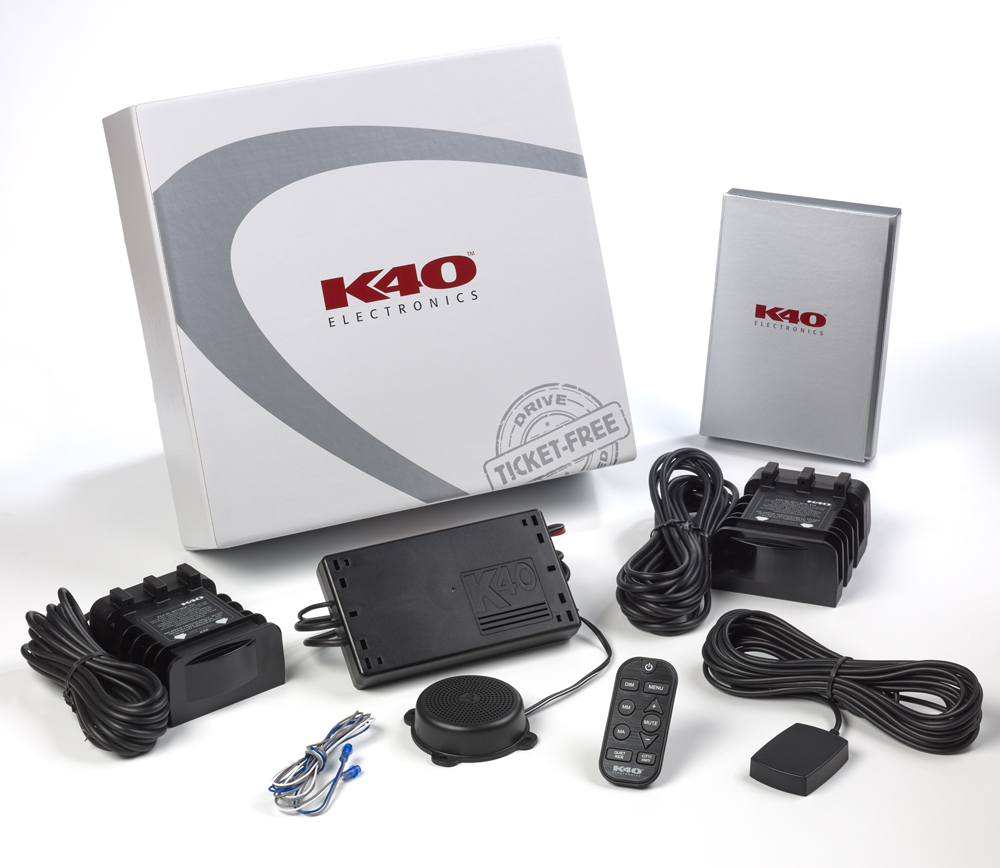

This bundle includes a K40 RL360di Front/Rear Remote Radar with GPS, a K40 Dual LDO Dual Defuser Optix with Interface, and a Creative coozy.
K40 RL360di Radar Detector - Custom installed fully integrated 360º radar protection
The customizable RL360di is the world's first radar detection system with both front and rear radar receivers, providing directional awareness to police radar threats.
The RL360di can be customized to every vehicle, and up to four Laser Defuser g5s can be added for protection from police laser threats.
The RL360di gives the driver increased detection range with front-focused and rear-focused radar receivers. This dual receiver configuration allows for front and rear directional awareness to police radar threats through voice alerts and two LEDs (the left is for front radar signals, and the right is for rear).
Discreet & Custom Installation
Installed by master technicians, the RL360di retains the appearance of the vehicle's interior by using only two alert LEDs in the instrument cluster and an easy-to-conceal remote (see photo above). The remote controls everything from the brightness of the alert LEDs to the system's mute settings and GPS features.
First integration-ready custom-installed dual radar detector
The K40 RL360di is the industry’s first custom-installed dual receiver police radar detection system that can integrate with the ADS Maestro RR interface and select Kenwood/JVC radios* to provide a visual and touch on-screen experience.
• Integration features include
• Detailed on-screen alert information
· Threat location
· Radar band and signal strength indicators
· Real-time vehicle speed display
• Touch screen control of system features and functions
• Steering wheel control of system options (on compatible vehicles)
K40 Laser Defuser - Complete laser jammer defense against police laser speeding tickets
K40 introduced the world’s first laser jammer countermeasure to police laser guns in 1994, Since then, K40 Electronics has evolved the high-performance Laser Defuser line with industry-leading innovations, capable of combating police laser guns including variable pulse rate guns.
Radar System Compatibility – All K40 Laser Defusers integrate with any K40 remote radar system, thereby utilizing a single warning display (instrument-mounted LED(s) for both police radar and police laser alerts.
How does police laser (LIDAR) work?
If a police laser (LIDAR) gun is used to target your vehicle with pulsed bursts of infrared light traveling at 186,000 miles per second, it takes just 0.3 seconds to get a speed lock on your vehicle. A police laser gun beam operates like a flashlight beam – the closer it gets to the target, the smaller it becomes. At the typical targeting distance of 1000 feet, the police laser beam hitting your vehicle is 30 inches in diameter. At 500 feet, the police laser beam is reduced to only 15 inches in diameter!
How does the K40 laser Defuser work?
The K40 Laser Defuser combats the pinpoint accurate firepower of police laser guns with advanced countermeasure technology. Our high-performance and reliable laser jammers receive the police laser gun’s infrared light beam, analyze it, and then send back a jamming signal. This active defense happens in milliseconds to give you time to safely reduce speed to avoid a speeding ticket.
Laser jammers can only jam a police laser gun signal they detect. How many laser Defusers you need will depend on several factors to be determined by you and your installing K40 Dealer, like:
- The available mounting locations on your vehicle – do you drive with a front license plate, do you have a chrome grill, how far apart are your headlights?
- Your driving habits – are you an accidental speeder or a real driving enthusiast?
- Where you drive – do you drive primarily in an urban environment, the country, or are you a high mileage interstate traveler?
- The size of your vehicle – do you drive a compact sport vehicle or a large pick-up truck or SUV?
Depending on the answers to these questions and more, you may need two to five Laser Defusers installed on your vehicle for ticket-free guaranteed combat readiness.
RL360di In-Depth
Operating Frequencies
• 10.500 - 10.550 GHz (X-Band)• 24.050 - 25.250 GHz (K-Band)
• 33.400 - 36.000 GHz (Ka-Band)
Power Requirements
• 11.0 - 16.0 Volts DC negative ground• 170 mA typical standby
• Remote Control: CR2032 Cell Battery
• Temperature Range: -40° - +165° Fahrenheit
Additional System Features
| Handheld Remote Control | Visor clip or dash mounting options |
| Voice Type | Female or Male |
| Alert Type | Voice or Tones |
| Distinct Tones for all Bands | X, K, Superwide Ka, and Laser alerts (when optional Laser Defuser g5 is incorporated) |
| Fully Independent Customization | Each radar receiver can be independently customized for band awareness and alerts |
| Start-Up Sequence | Audible and visual sequence at start-up |
| Abbreviated Test | Optional abbreviated start up sequence |
| Display Type | Single/Dual blue LEDs or warning pods custom-integrated into driver's cockpit view |
| Signal Strength Indicators | Audible Geiger strength indications |
Factory Default Settings:
- Voice - On
- Voice - Female
- Wake-Up - Long
- Auto Mute - Off
- POP - Off
- MPH
- Speed Monitor - Off
- Front Radar - On
- Front X-Band - On
- Front K-Band - On
- Front Ka-Band - On
- Rear Radar - On (RL360di system)
- Rear X-Band - On (RL360di system)
- Rear K-Band - On (RL360di system)
- Rear Ka-Band - On (RL360di system)
- Laser - Constant Transmit (with optional Laser Defuser g5)
- Remote Control: 3.07 in L x 1.4 in W x.47 in H
- Front Radar Receiver: 4.10 in L x 3.20 in W x 2.00 in H w/attached 15' cable
- Rear Radar Receiver:: 4.10 in L x 3.20 in W x 2.00 in H w/attached 20' cable
- GPS Module: 2.00 in L x 2.00 in W x .50 in H w/attached 20' cable
- Interior Host Module: 5.749 in L x 3.249 in W x 0.90 in H w/ attached audio quality speaker
Dual LDO In-Depth
Features
Each Laser Defuser Optix transponder contains a powerful Nanostack™ technology pulsed laser diode for high optical laser jamming output power and outstanding reliability.
- Ultra-Compact Footprint for Discreet Placement
The laser Defuser Optix has a compact footprint which allows for a custom and discreet installation into grilles and other tight spaces. - Updatable to Ensure Optimum Performance
The interface controller features a USB port so its system software can be updated as new police LIDAR technology emerges. - Maximum Coverage Protection
The in-vehicle sync interface can fire up to five transponders simultaneously for superior detection and maximum laser jamming output to combat the latest VPR LIDAR guns.
Three User-Selectable Transmit Modes
- Constant Transmit: For as long as it’s receiving a police laser gun signal, the Laser Defuser Optix transponder will continuously transmit back to the gun.
- Pulse Transmit: Upon receiving a police laser gun signal, the Laser Defuser Optix transponder will transmit back to the gun for up to five seconds. The system will then shut off for 30 seconds. This allows for the reduction of speed while also eliminating the suspicion of “jamming” where the use of laser jammers is prohibited.
- Receive Only: For notification only. No signal will be transmitted.
| Laser Defuser Optix – Specifications |
|
