Description
Included in this kit
K40-100-RC Wireless Control Portable Dash Mount Radar Detector with DUAL LDO Dual Laser Defuser Optix Transponders - This bundle includes a K40-100-RC LNA Radar/ Laser Detection with GPS Tech, OLED Display & Wireless Control, a K40 Defuser to Platinum Series Portable Add-On Kit, a K40 Dual LDO Dual Defuser Optix with Interface, a pry kit, and a Creative Coozy.

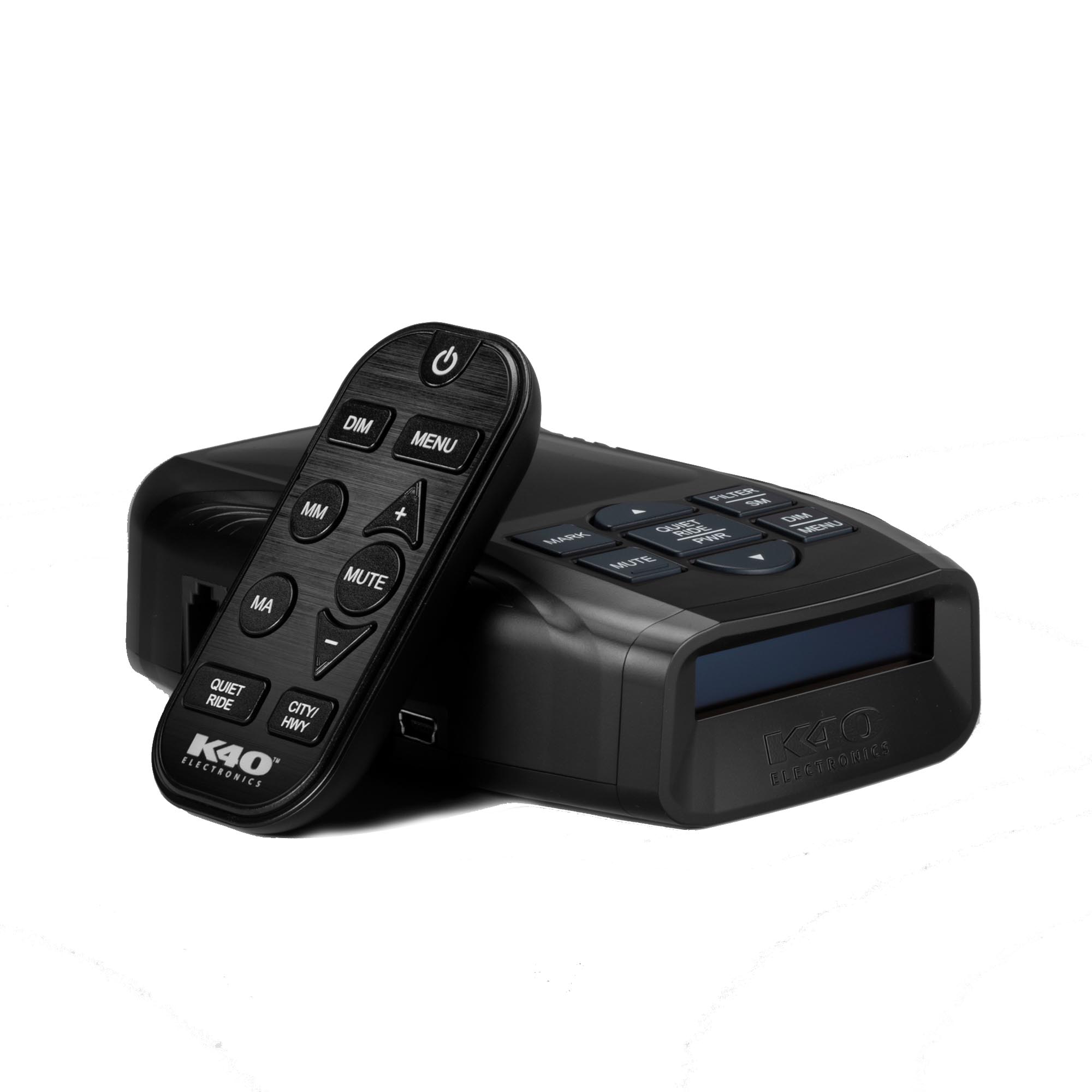

K40-100-RC LNA Radar/ Laser Detection with GPS Tech, OLED Display & Wireless Control
Specifications
Operating Frequencies
10.500 – 10.550 GHz (X-Band)
23.950 – 24.285 GHz (K-Band)
33.400 – 36.000 GHz (Ka-Band)
830 – 945 nanometers (Laser)
K-Band Selectivity:
Scans specific K-Band frequency ranges
K Narrow: 24.080-24.200 GHz
K Wide (DEFAULT SETTING): 24.026-24.285 GHz
K Extended: 23.950-24.285 GHz
Ka-Band Selectivity:
Scans 100 MHz above/below the most important frequencies
Ka Narrow: 33.7-33.9 GHz / 34.6-34.8 GHz / 35.4-35.6 GHz
Ka Wide (DEFAULT SETTING): 33.4-36.00 GHz
Power Requirements
10.05 – 16.0 Volts DC negative ground
185 mA typical standby
Dimensions: 4.50 in. L x 3.50 in. W x 1.45 in. H
Weight: 6.2 oz.
K40 Defuser to Platinum Series Portable Add-On Kit
Operating Wavelength – 905 nanometers
Power Requirements – 11.5 – 16.0 Volts DC negative ground
Diode Type – Pulsed Nanostack™ technology laser with epitaxially stacked emitters
Transponder Dimensions – 2.2″ L x .54″ H x 1.1″ D
Sync Interface Dimensions – 3.5″ L x 1.0″ H x 1.9″ D
Operating Temperature – -40° to +165° Fahrenheit
Laser Class – Class 1 laser product (eye safe), compliant with Laser Product Performance Standards: US FDA 21 CFR, Part 1, Sub J, 1040.10 &11
Dual LDO Dual Defuser Optix with Interface
Ultra-Compact Footprint for Discreet Placement Sized similar to a slim automotive key fob or USB flash drive, the Laser Defuser Optix compact footprint allows easy and discreet installation into grilles and other tight spaces. Updateable to Ensure Optimum Performance The in-vehicle sync interface controller features a USB port so its system software can be updated as new police laser gun technology emerges. Maximum Coverage Protection The in-vehicle sync interface can fire up to five Laser Defuser Optix transponders simultaneously for superior detection and maximum jamming output.
