Description
Included in this kit

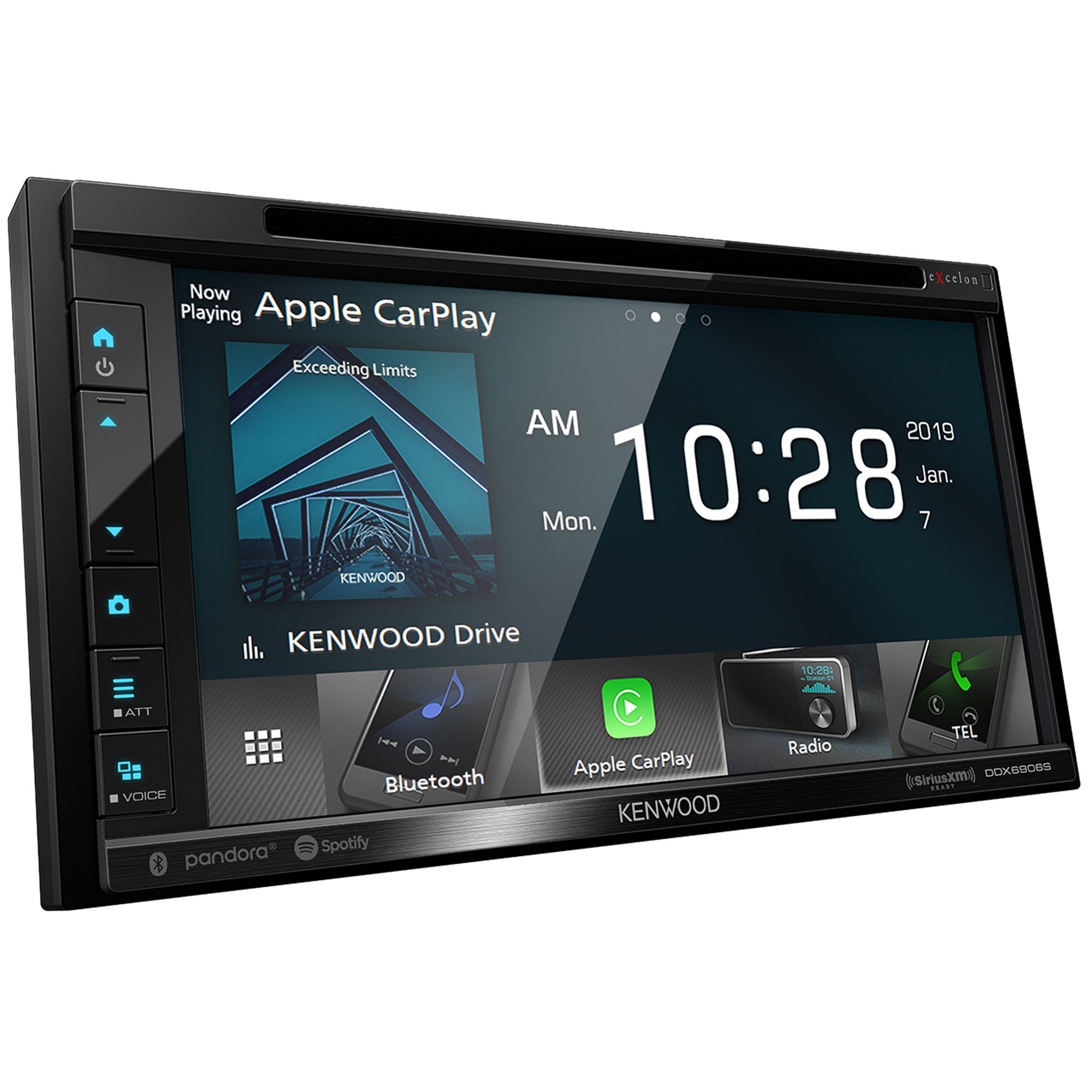

Kenwood DDX6906S MultiMedia Receiver Compatible With Apple CarPlay & Android Auto:
• 6.8" WVGA Clear Resistive Touch Panel
• High-Resolution Audio Ready
• High-Quality Music Parts
• Apple CarPlay & Android Auto Ready
• Parking Guide Lines
• Dual Camera Input
• 3 Preouts 5V
MONITOR SECTION
• Picture size: 6.75 inches(diagonal) wide
• W x H: 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
• Display system: TN LCD panel
• Drive system: TFT active matrix system
• Number of pixels: 1,152,000, 800H x 480V x RGB
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped arrangement
• Back lighting: LED
Key Features
• Wide-angle mirror view image
• 1/4-inch colour CMOS sensor
• 380,000 pixels
• NTSC Video Signal Out (RCA)
• Waterproof unit (iP67)
• Flexible mount base
Camera Unit
• Camera Type: 1/4-inch colour CMOS sensor
• Effective number of pixels roughly: 380000
• High sensitivity Pixels: Yes
• Output video: wide angle mirror image
• Waterproof chassis: Yes
• Mounting system: Flexible mount base
• Installation positions: Rear
• High voltage protection: Yes
• Wide angle lens: Yes
• Focal length: f: 1.12mm, F value 2.2
• Horizontal Angle view: +/- 129°
• Vertical Angle View: +/- 104°
• Illumination range: approx. 0.9 to 100000 lux
• Iris System: Electronic
• White balance: Automatically
• Scanning System: Interlace
• Synchronizing System: Internal
• Video output level: 1Vpp, 75Ω
• Video signal format: NTSC (Mirror view)
• Connection cable (DC+video): 0.7 m
General Specifications
• Operating voltage: 14.4V (9 ~ 16V Allowable)
• Maximum Current Consumption: 0.06A
• Dimensions (WxHxD): 23.4 x 23.4 x 23.9mm
• Weight: 21 gr.
• Instruction Manuals: ENG/FRE/GER/DUT/ITA/SPA/POR
