Description
Included in this kit
This bundle includes a Kenwood KFC-X695 eXcelon 6x9" 2-Way Speakers, Pair, 300W Max Power, a Kenwood X803-5 eXcelon Class D 5 Channel HPF/LPF Amplifier, a Kenwood KFC-P710PS 6-1/2" mid-woofer and 1" Swivel Tweeter - Component Speaker System 280W Max Power, and a Kenwood KFC-XW1042 10" Subwoofer, Oversized Cone 600W Max Power.
1x Kenwood KFC-X695 eXcelon 6x9" 2-Way Speakers, Pair, 300W Max Power (KFC-X695)
Kenwood KFC-X695 eXcelon 6x9" 2-way Speaker System , 300W Max Power Peak Power: 300W RMS Power: 130W Woofer Type: Injection P.P. Cone Mounting Depth: Shallow for versatile installation Bracket: 6x9" Multi-Use Bracket for compatibility Enhanced Rigidity • The woofer cone is designed with an optimized material composition, increasing diaphragm rigidity to deliver accurate sound reproduction. 1-3/16" Tweeter • The large 1-3/16" tweeter expands the sound field and reduces interference, enhancing vocal clarity and delivering a rich front-stage sound. Woofer Multi-Bracket • The included 6x9" multi-bracket allows for easier installation across a wide range of vehicles. General Features • Peak Power: 300W • RMS Power: 130W • Impedance: 3Ω • Sensitivity: 84 dB/ W at 1m • Frequency Response: 46Hz - 21kHz Woofer • Diaphragm: Injection PP cone Tweeter • Size: 1-3/16" (30mm) • Diaphragm: Soft Dome Dimensions (without grill) • Tweeter Height: 3/4" (19.5mm) • Mounting Depth: 2-3/4" (70mm) Experience high-quality sound with the KFC-X695 6x9" 2-Way Speakers, designed for clear vocals, accurate sound reproduction, and easy installation in a variety of vehicles.

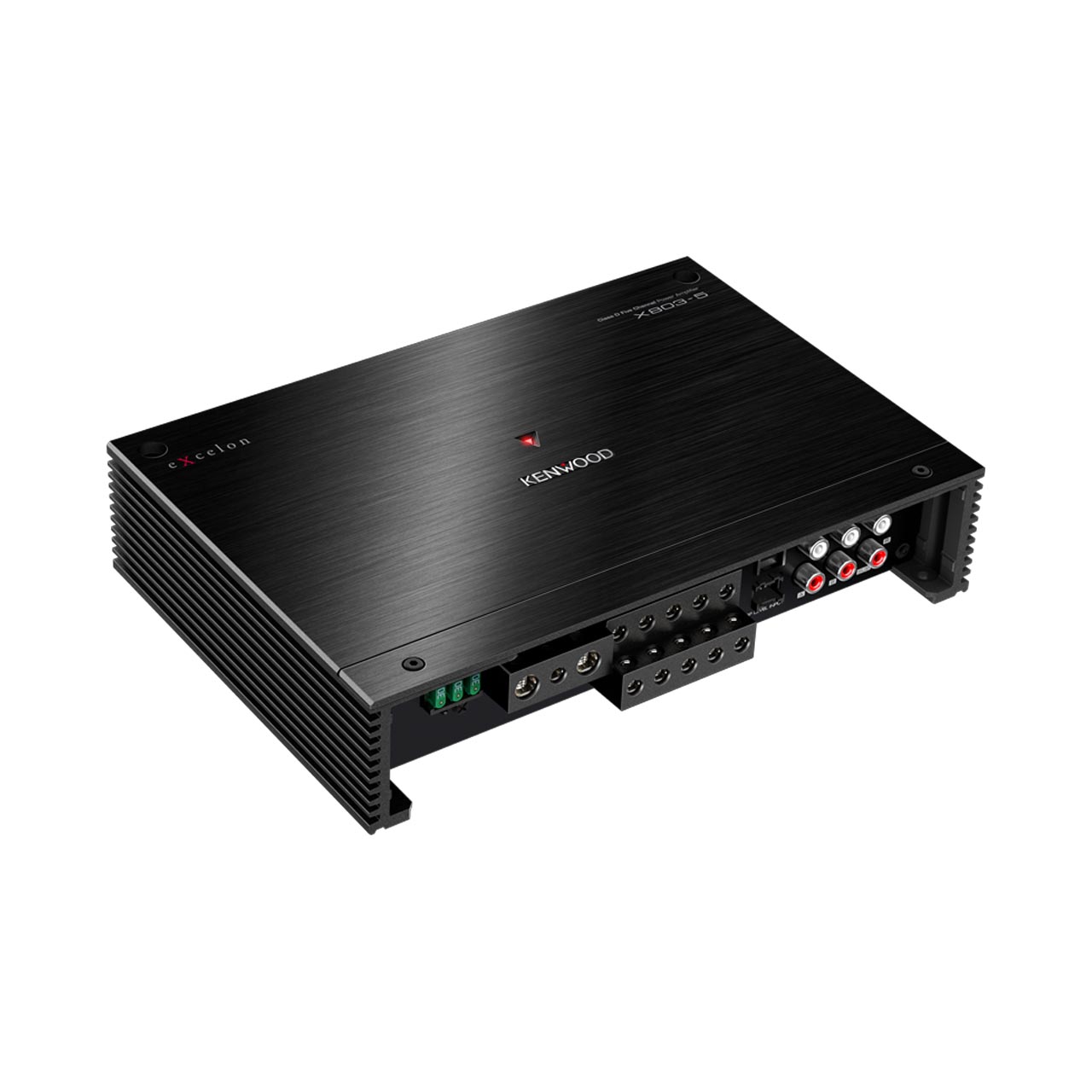

1x Kenwood X803-5 eXcelon Class D 5 Channel HPF/LPF Amplifier (X803-5)
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
Gauge-style terminals lock wire
into position with set screw for secure installation.
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Specifications:
• MAX POWER: 1600W
• RMS POWER OUTPUT (4Ω): 50W x 4 + 300W
• RMS POWER OUTPUT (2Ω): 75W x 4 + 500W
• RMS POWER OUTPUT Bridged: 150W x 2 (Bridged) + 300W
• Features: Speaker Level Input, Signal Sensing Turn-On, Variable High Pass Filter, Variable Low Pass Filter, Bass Boost, Wired Remote Included
• Dimensions: (W)9-3/4" x (H)2-1/16” x (D)6-5/8”
• Weight: 4.6lbs (2.1kg)

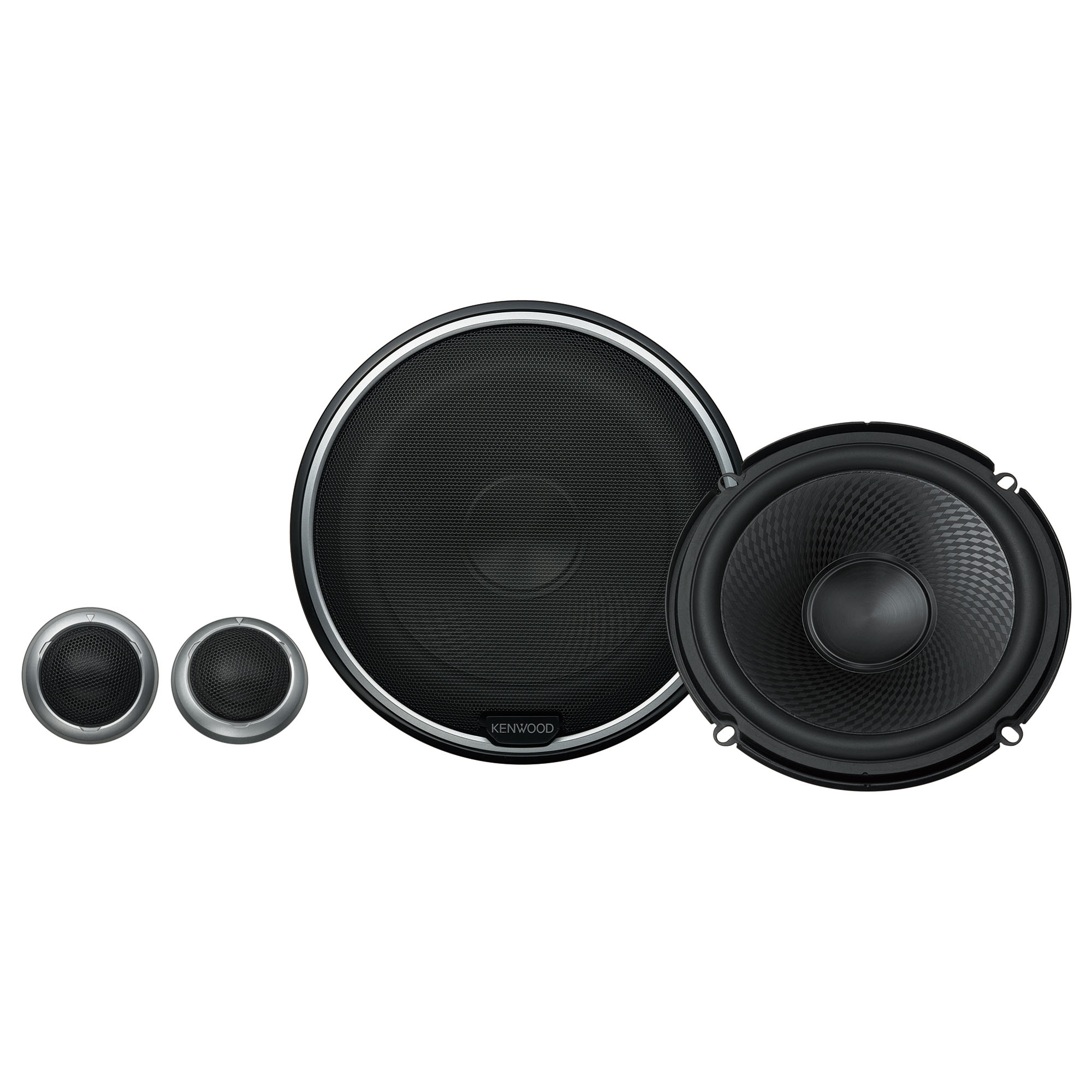

1x Kenwood KFC-P710PS 6-1/2" mid-woofer and 1" Swivel Tweeter - Component Speaker System 280W Max Power (KFC-P710PS)
Kenwood's KFC-P710PS 6-1/2" component system provides a rich, dynamic sound reinforced by a solid low end. This polypropylene woofer cone sports a Diamond Array pattern that increases surface strength for reduced distortion and improved bass response. A rubber surround provides reliable playback in spite of the prolonged exposure to the elements that life in your car doors brings.
Features -
• Sensitivity: 86 dB / W / m
• Frequency Response: 63 Hz - 24k Hz
• Cutout Diameter: 4-15/16inch
• Mounting Depth: 2-3/16inch
• Gross Weight: 2.30lbs
• Weight of Magnet (Woofer): 0.72lbs
Tweeter -
• Width: 37.5mm 1-1/2in
• Height: 37.5mm 1-1/2in
• Depth: 19.1mm 3/4in
Accessory -
• Grille: *2
• Grille Holder: *2
• In-Line Network: *2
• Tw Bracket
• Free Mount: *2
• Flush Mount: *2
• GM Bracket: *2
• Screw Set
• φ4*25: *8
• φ4*6: *8
• φ3*16: *4
• Speed Nut
• φ4: *8
• φ3: *4
• Wing Nut M5: *2
• Butyl Rubber: *1

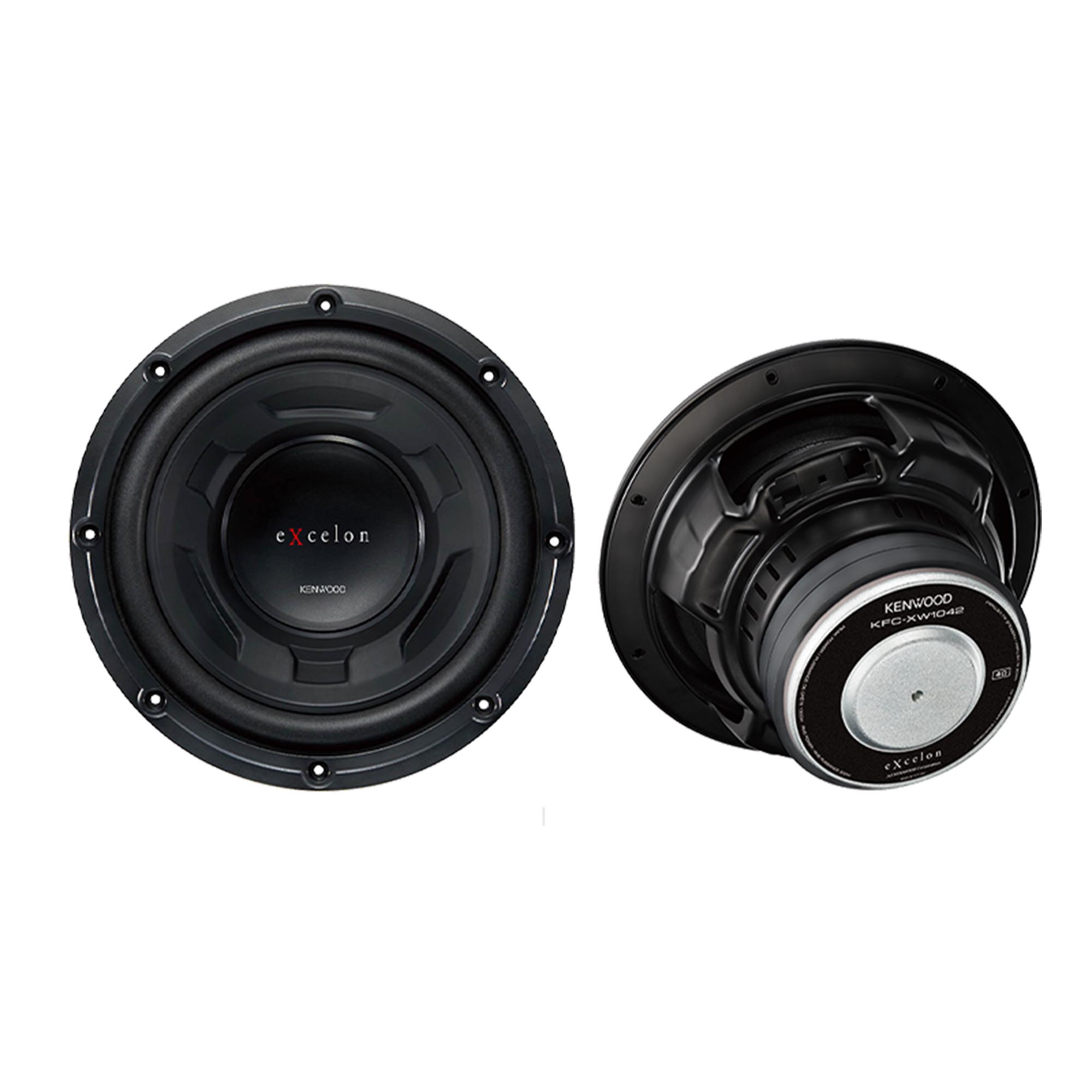

1x Kenwood KFC-XW1042 10" Subwoofer, Oversized Cone 600W Max Power (KFC-XW1042)
The Ultimate in Deep Bass
Deep Bass is achieved by focusing the speakers output to a lower frequency range than most conventional subwoofers. A large 61.4 oz. magnet helps produce these powerful low frequencies.
Durable Design
Heat dissipation and power handling
A newly incorporated 6- layer copper voice coil with aluminum former, improves heat resistance. The air convection generated from the vibration of the diaphragm is effectively used to cool the voice coil, contributing to the speakers power handling and ability to dissipate heat.
General Features
ELECTRICAL
Peak Input Power (W): 1300W
RMS Power (W): 300W
Impedance (Ω): 4
Sensitivity (dB at 1m): 82
Frequency Response (Hz): 44-300
MOUNTED SPEAKER
Size: 10” (250mm)
Diaphragm: PP Cone
Surround: Foam
Basket: Steel
Magnet: Ferrite
DIMENSION
Width: 10-13/16" (275mm)
Height: 10-13/16" (275mm)
Cut-out Diameter: 9-1/16" (230mm)
Mounting Depth: 5-1/4" (133mm)
WEIGHT
Net Weight: 10.14lbs (4.6kg)
Weight of Magnet: 61.4oz (1740g)
