Description
Included in this kit
Kicker 47TRTP122 12-Inch Thin Down Firing Subwoofer And Passive Radiator Enclosure, Kicker KX800 amplifier and wire kit - This bundle includes a Kicker 47TRTP122 12-Inch (30cm) Thin Down Firing Subwoofer And Passive Radiator Enclosure, 2-Ohm, a Kicker KXA8001 KXA800.1 800w Mono Class D Sub Amplifier, a wiring kit, a pry kit, and a Kicker coozy.
Kicker 47TRTP122 12-Inch (30cm) Thin Down Firing Subwoofer And Passive Radiator Enclosure, 2-Ohm
Specifications -
TYPE: thin-profile
WOOFER SIZE (in, cm): 12, 30
IMPEDANCE (Ohms): 2
POWER WATTS (Peak/RMS): 1000/500
SENSITIVITY (dB 1w/1m): 98
BOX TOP DEPTH (in, cm): 14-5/8, 37
BOX BOTTOM DEPTH (in, cm): 14-5/8, 37
BOX HEIGHT (in, cm): 6-1/8, 15.6
BOX WIDTH (in, cm): 27-1/2, 70

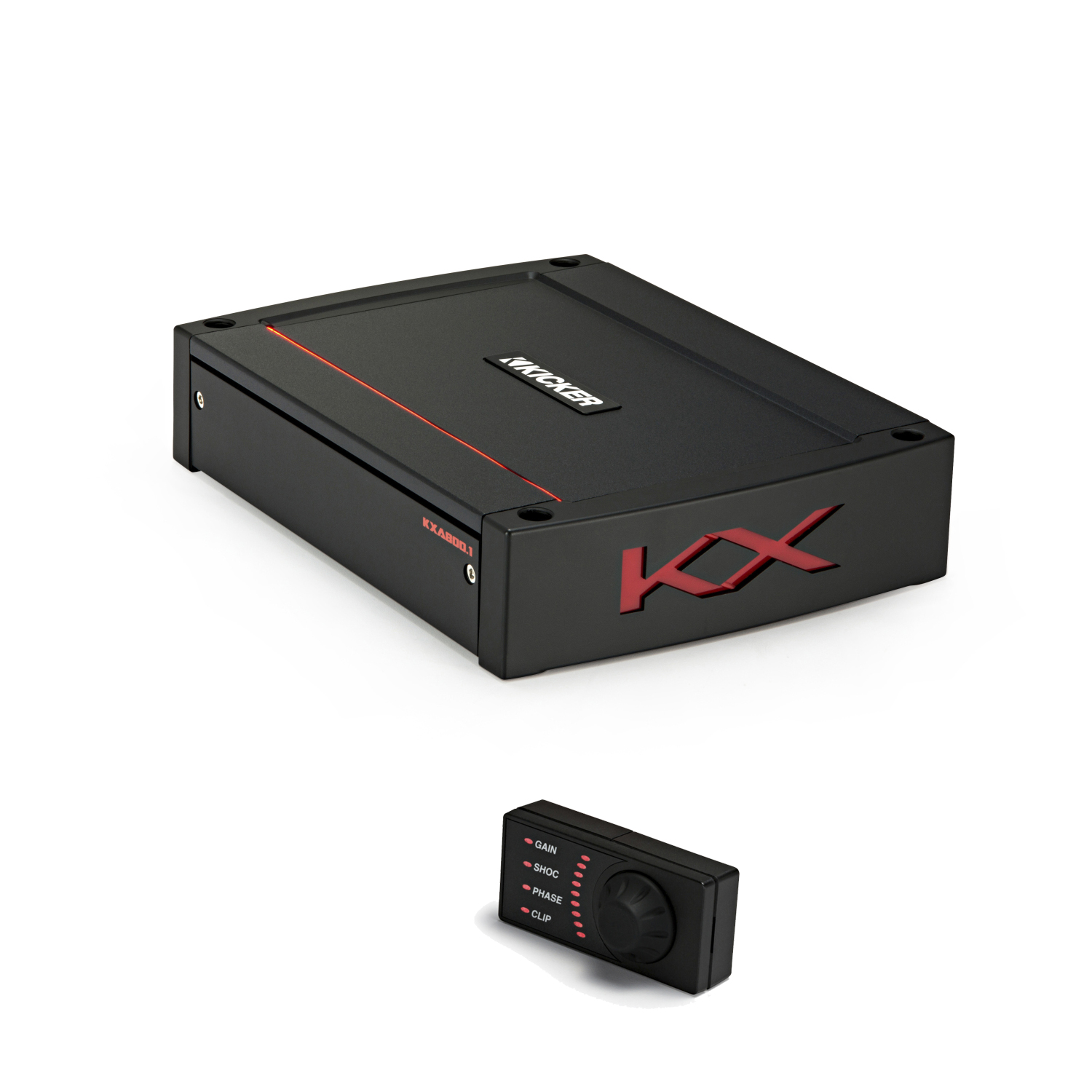

Kicker KXA8001 KXA800.1 800w Mono Class D Sub Amplifier
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω mono, ≤ 1% THD+N : 400 x 1
@ 14.4V, 2Ω mono, ≤ 1% THD+N : 800 x 1
Length [in, cm]
9-9⁄16, 24.4
Height [in, cm]
2-⅛, 5.5
Width [in, cm]
8-5⁄16 , 21
Frequency Response ± 1dB
10Hz–160Hz
Signal-to-Noise Ratio
95dB
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
Variable Lo-pass 40Hz–160Hz, 24dB/octave
Subsonic Filter
Variable 10–80Hz, 24dB/octave
KickEQ+™ Parametric Bass Boost
(Remote Control Adjustable)
Boost - Variable 0-18db
Center Frequency - 20Hz-80Hz
Bandwidth 1-5
Remote Bass
Yes
CEA Power
400 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (W
atts) CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
