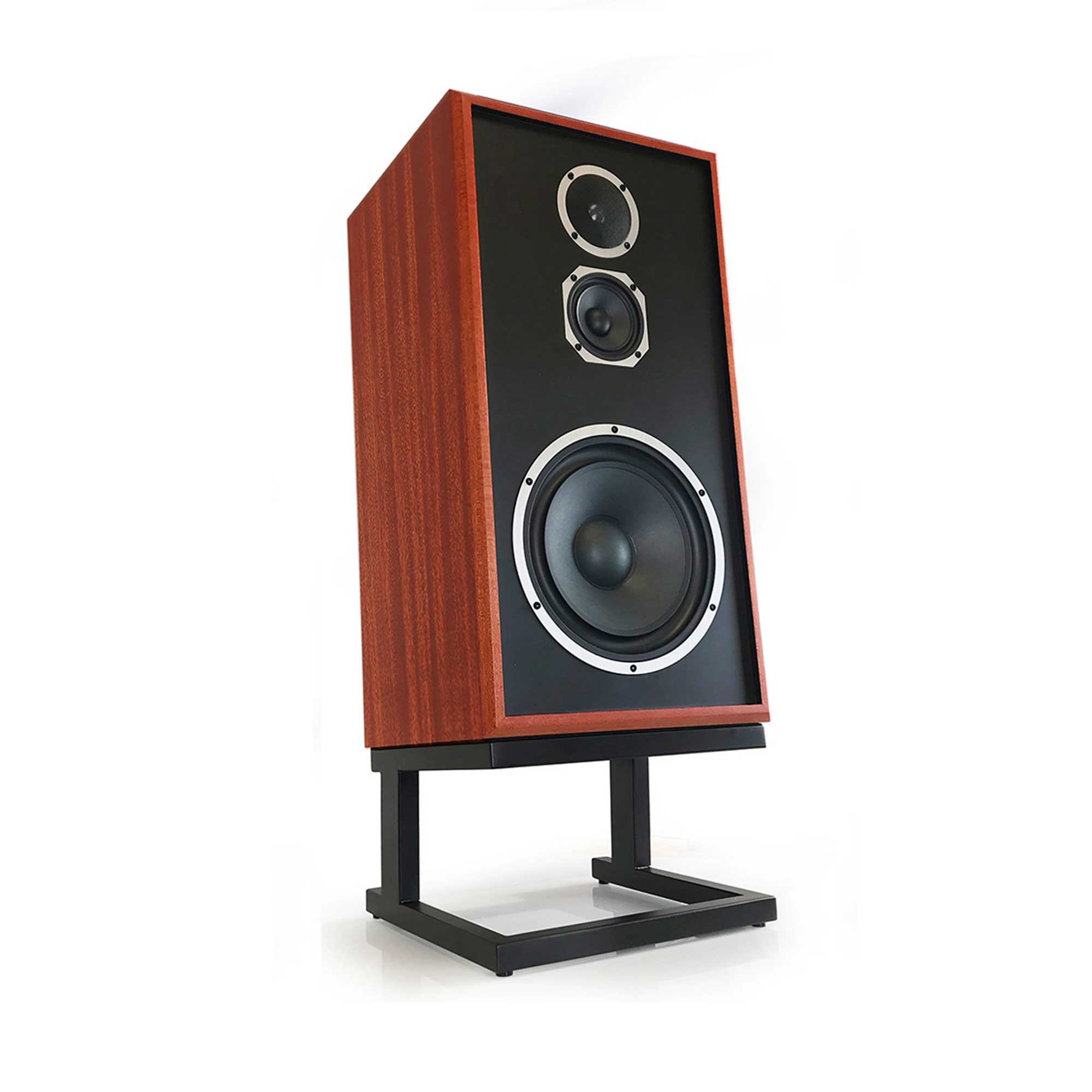

KLH Model Five 3-way Acoustic-Suspension design Speaker with 10" woofer, 4" mid-range, 1" Aluminum tweeter - African Mahogany (Pair)

$2,499.98
SKU:
KLHBDL220419-01
UPC:
841992187443
Condition:
New
Availability:
In stock and ready to ship!
Shipping:
This item qualifies for free 2-Day Shipping!
KLH Model Five 3-way Acoustic-Suspension design Speaker with 10" woofer, 4" mid-range, 1" Aluminum tweeter - African Mahogany (Pair) -0 This bundle includes 2 KLH Model Five 3-way Acoustic-Suspension design speakers with 10" woofer, 4" mid-range, 1" Aluminum tweeter and Stands, and a Creative Audio coaster set.

KLH Model Five 3-way Acoustic-Suspension design, 10" woofer, 4" mid-range, 1" Aluminum tweeter. Stands included.
The legendary KLH Model Five was first introduced in 1968 and served as the heart and soul of KLH’s success throughout the late 1960’s and 1970’s.

Features:
• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today

Specifications
Frequency Response: 42Hz – 20,000Hz +/- 3dB
Low Frequency Extension: -10dB @ 32Hz
In-Room Sensitivity: 90.5dB @2.83V / 1M
Free-field Sensitivity: 87.5dB @ 2.83V / 1M
Power Handling: 200 Watts / 800 Watts Peak
Recommended Amplification: 20 Watts to 200 Watts
In-Room Maximum SPL: 112.3dB
Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
Horizontal Dispersion: 140° Degrees
Features: Three-Position Acoustic Balance Control
Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic), HF: 2,850Hz (2nd Order Electro-Acoustic)
High Frequency Driver: 1" Aluminum Dome with Soft, Rubber Suspension
Mid Frequency Driver: 4" Pulp-Paper Cone with Reverse, Roll Rubber Suspension
Low Frequency Driver: 10" Pulp-Paper Cone with Reverse, Roll Rubber Suspension, 2" Diameter, Flat-Wire Voice Coil
Enclosure Material: Structurally Reinforced ¾" Medium, Density Fiberboard
Inputs: Five-Way Gold-Plated Binding Posts
Height: 34.25" (87.0cm) w/ Included Riser Base, 26.0" (66cm) w/o Riser Base
Width: 13.75" (35.0cm)
Depth: 13.0" (33.0cm) w/ Included Riser Base, 11.5" (29.2cm) w/o Riser Base
Weight: 44Ibs. (20.0kg) w/o Riser Base, 52Ibs. (23.6kg) w/ Included Riser Base
Included Accessories: 5° Slant Riser Base
UPC:
841992187443
Bundle:
Yes
Feature 1:
Bundle includes: 2 KLH Model Five 3-way Acoustic-Suspension design, 10" woofer, 4" mid-range, 1" Aluminum tweeter. Stands included.
Feature 2:
Dedicated midrange driver to reproduce the critical mid-frequency band
Feature 3:
Non-Resonant Die-Cast Aluminum Midrange & Woofer Frames
Feature 4:
Machined Aluminum 1” tweeter faceplate
Feature 5:
KLH cabinetry featuring a structurally reinforced ¾” MDF Enclosure
Condition:
NEW
Weight:
110.0000 lbs
ASIN:
B09YTD9Y86
