Description
Included in this kit

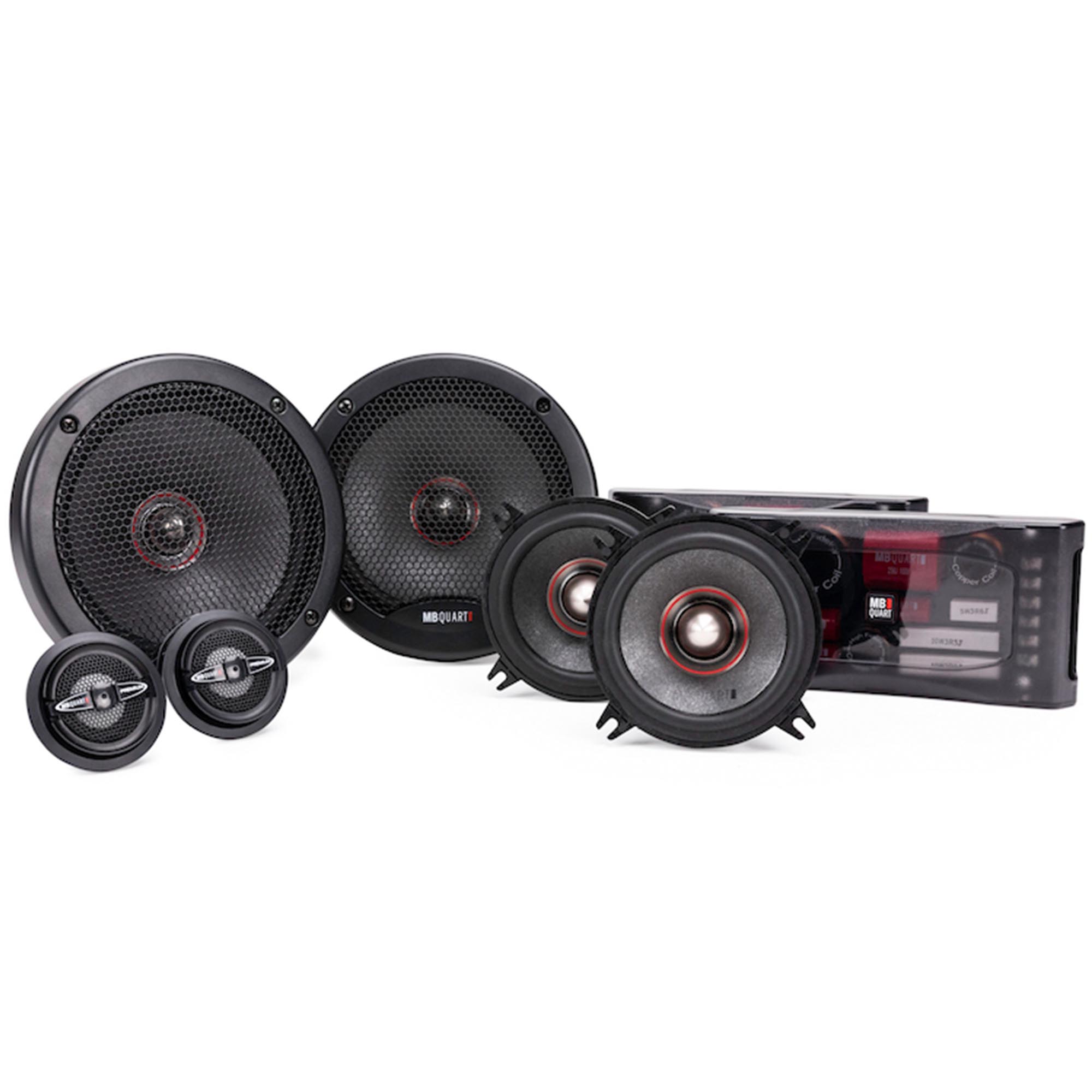

2-Pairs of MB Quart Premium PS1-316 3-Way Component Systems - This bundle includes 2 pairs of the MB Quart PS1-316 Premium 3-Way Component Systems and a Creative coozy.
Description
Premium 3-Way component speakers with 1" Magnesium WideSphere™ Technology Tweeters and 6.5" mid-bass, 4" mid-range with pop aerated paper cone with a Mica blend and external audiophile crossover networks
Three Way Component System
The new 3-way component system is the highest end design you can choose from MB Quart. Six drivers create a huge sound stage in yourr vehilce by seperating the tweeters, mid-range and mid-bass drivers into their seperate frequencies all controlled by our top-of-the-line, metiulously engineered crossover network system
Magnesium Dome Tweeters
1” magnesium dome tweeter for exceptional musical reproduction of high frequencies
WideSphere™ Technology
Tunable waveguide tweeter housing with removable phase lens and an off-axis dispersion pattern from WideSphere work in tadem to create a larger sound stage that can be aimed with the waveguide adjustment
Curvilinear Cone
Lightweight aerated pop paper cone a with Mica blend for strength and superior bass frequency reproduction
Low Resonant Frame
Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker
Specifications:
RMS POWER HANDLING (WATTS)
100 / 200 Each & System
PEAK POWER HANDLING (WATTS)
200 / 400 Each & System
SPEAKER IMPEDANCE (OHMS)
4
FREQUENCY RESPONSE
20Hz - 22kHz
SENSITIVITY
85.5dB
CROSSOVER SLOPE
12dB / Octave
MOUNTING DIAMETER/CUT OUT (IN)
Woofer: 5.5, Midrange: 3.5
OUTSIDE DIAMETER (IN)
Woofer: 6.8, Midrange: 4.0
MOUNTING DEPTH/CHASSIS DEPTH (IN)
Woofer: 2.5, Midrange: 2
