Description
Included in this kit
This bundle includes a MTX AWBTC Universal Bluetooth Receiver and Remote Control, a MTX PS800.4 800-Watt RMS Full Range Class-D IP-67 Rated, Compact, 4-Channel, Bridgeable, Powersports Amplifier, and 2x MTX PS8H-BP 8” 4Ω 150-Watt RMS IP67 Rated Customizable Compression Horn Speaker Pod Pair with RGB Lighting.
1x MTX AWBTC Universal Bluetooth Receiver and Remote Control (AWBTC)
CONTROL THE RIDE, WITHOUT THE HEAD UNIT
The AWBTC is an all-weather Bluetooth receiver and remote control that gives you wireless command over your sound system — no bulky head unit required. With rugged IP65 protection, dual RCA outputs, and multiple mounting options, it's built for ultimate flexibility on any vehicle, from boats to bikes to side-by-sides.
Next-Level Bluetooth Control
The AWBTC turns your Bluetooth-enabled smartphone or tablet into the command center of your audio system. Stream music wirelessly and control playback with easy-to-use backlit buttons and a tactile rotary volume knob. It automatically reconnects to your paired device, so you can hop in and hit play without missing a beat.
Built for the Elements
Built for life outdoors, the AWBTC is IP65-rated for water and dust resistance. This controller is engineered to survive and thrive in extreme conditions. Its oversized buttons and durable construction make it ideal for off-road adventures and marine applications.
Easy Installation, Maximum Versatility
The AWBTC is built to adapt. It comes with surface, flush, and clamp mounting options, making it easy to install in a variety of setups. Its compact size fits neatly on handlebars, dashes, or panels without getting in the way. With two sets of 4V RCA preouts, it sends a clean, powerful signal to your system and keeps the music flowing without the need for a head unit.
Features
Ideal for use in boats, UTVs, ATVs, and cars/trucks
Replaces head unit and works with most aftermarket audio systems
Three mounting options: surface, flush, or clamp (fits 7/8", 1", 1-1/4" handlebars)
IP65-rated weather-resistant design
Rotary volume knob with integrated Bluetooth control
Four front panel buttons for playback and track control
Compatible with most Bluetooth-enabled smartphones and tablets
Automatic Bluetooth pairing and reconnection
Includes power, ground, and RCA output connections
SPECIFICATIONS
Warranty Period: 36 months from date of purchase
Dimensions
Diameter: 2.375” (59mm)
Depth: 1.438” (36mm)
1x MTX PS800.4 800-Watt RMS Full Range Class-D IP-67 Rated, Compact, 4-Channel, Bridgeable, Powersports Amplifier (PS800.4)
The PS800.4 Powersports Amplifier delivers clean, powerful sound across your entire system. With 4 channels of full-range Class-D power in a compact, weatherproof design, it’s built to drive your speakers hard and keep the music going wherever you ride.
Compact Powerhouse
At just under 10 inches wide, the PS800.4 fits easily into tight installations while still delivering 200 watts RMS per channel at 2Ω. Its efficient Class-D circuit design means you get big sound without putting unnecessary strain on your electrical system.
Built for the Outdoors
IP67-rated against dust and water, the PS800.4 is engineered to handle the harshest environments. From desert trails to muddy backroads, stainless steel hardware and a sealed chassis keep it performing no matter where you ride.
Features
Reliable and Efficient Full Range Class-D Circuit Design
IP67 Rated Against Water and Dust
Small Size Footprint for Easy Installation
Surface Mount Component Technology
Power and Protection LED Light Status Indicators
Short, Thermal, and Under / Over Voltage Protection
DC Offset Auto Turn On
10V High-Level Audio Input Compatibility
SPECIFICATIONS
Description: Full Range
Topology: Class D
2Ω RMS Power Output: 200W x 4 Channels
4Ω RMS Power Output: 100W x 4 Channels
4Ω RMS Bridged Power Output : 400W x 2 Channels
THD: < 0.8%
Signal to Noise Ratio: > 98dB
Frequency Response: 20Hz - 20kHz
Crossover: 50Hz - 500Hz
Maximum Input Signal: 10V
Warranty Period: 24 months from date of purchase

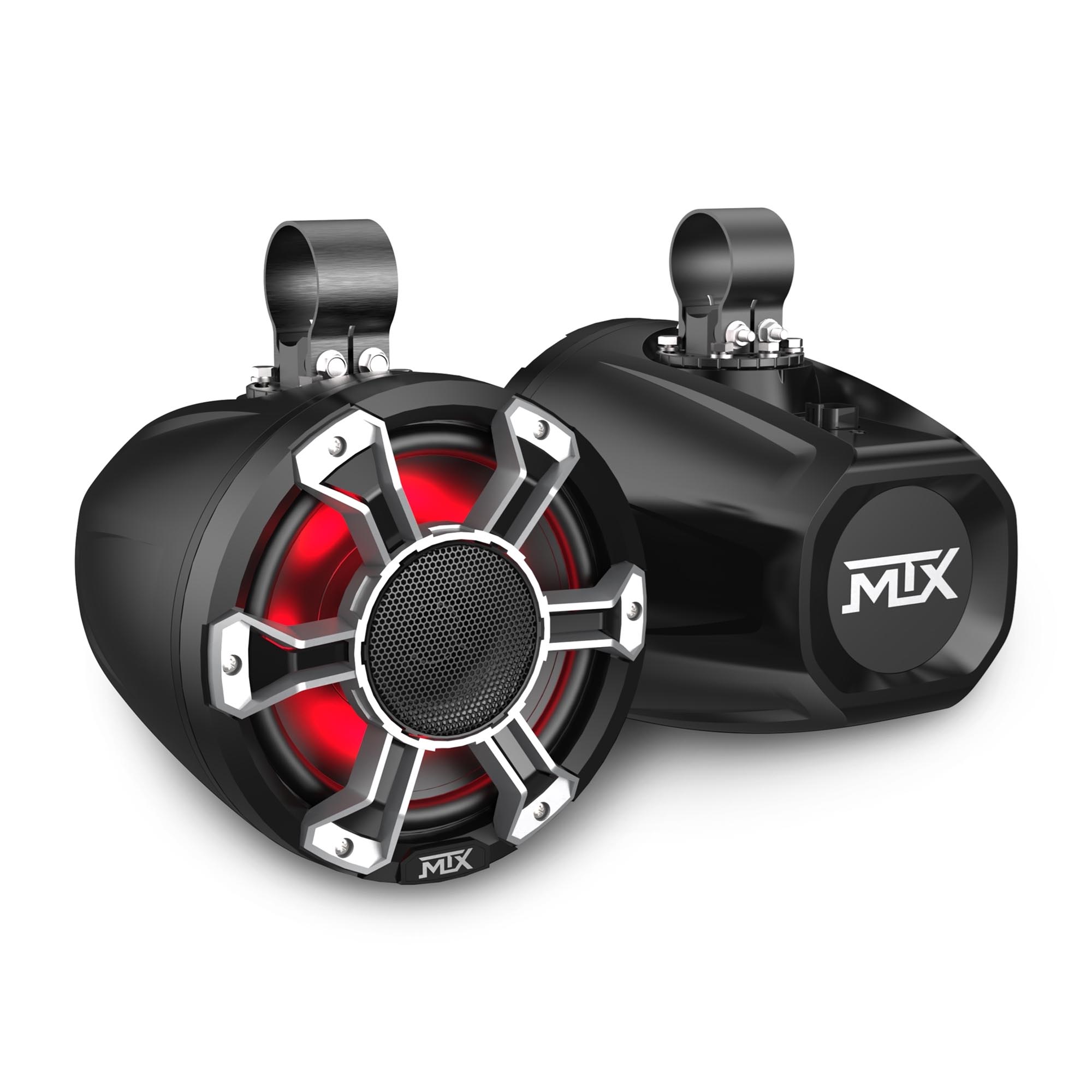

2x MTX PS8H-BP 8” 4Ω 150-Watt RMS IP67 Rated Customizable Compression Horn Speaker Pod Pair with RGB Lighting (PS8H-BP)
All-Weather Compression Horn Speaker Pods The PS8H-BP brings massive output and clarity to your ride in a rugged bar-mount enclosure. With IP67 rated protection, impact-resistant construction, and a 360° rotating clamp system, these speakers are built for maximum adjustability and durability. Integrated RGB LED lighting and paintable overlays let you match your style while the compression horn driver ensures your music projects loud and clear in any environment.
Make It Your Own The PS8H-BP pods feature integrated RGB LED lights that can be wired in a variety of color combinations. For more advanced options, connect them to the optional MTX MUDLEDC controller to unlock full-spectrum color, patterns, and effects. The grille overlay and mounting ring are also paintable, giving you the ability to personalize the look to perfectly match your vehicle’s style.
360° Adjustable Mounting Our 360° rotating clamp assembly with integrated indexing points allows you to aim your sound exactly where you want it. The included brackets fit 1.75”, 1.85”, and 2” bars, giving you flexibility across a wide range of cage setups. Once installed, the clamp locks the speaker securely in place, even during extreme rides, while the speaker assembly can be rotated in 5-degree increments for the perfect angle.
IP67 Rated and Trail-Tested From wet trails to dusty dunes, the PS8H-BP is designed for all-weather reliability. These speakers are IP67 rated and have undergone over 500 hours of ASTM G154 UV and ISO 16750-4 Salt Spray testing. The mounting system has also been shock tested to 16G, proving that these pods are as durable as they are powerful.
SPECIFICATIONS
Type: 8" Compression Horn
Sensitivity (2.83V/1m): 92.7dB
Power Handling (RMS): 150 Watts
Power Handling (Peak): 300 Watts
Impedance: 4Ω
Frequency Response: 50Hz - 20kHz
Fits Bars: 1.75", 1.85", 2"
Warranty Period: 24 months from date of purchase
