Description
Included in this kit
This bundle includes a Rockford Fosgate T1000X5AD 5 Channel Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm, 2x Rockford Fosgate T1650 6.5” Full Range Coaxial- 75 Watts Rms, 150 Watts Peak, Grilles Included, a Rockford Fosgate T1S-1X10 10" Sealed Loaded Enclosure, 500 Watts Rms, - 1-Ohm Final, H 12.5” X W 26.8” X Dtop 4.3” X Dbot 6.3”, a Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse, and 2x Rockford Fosgate RFIT-16 16 Ft Premium Dual Twist Signal Cable With 6 Cut Connectors.

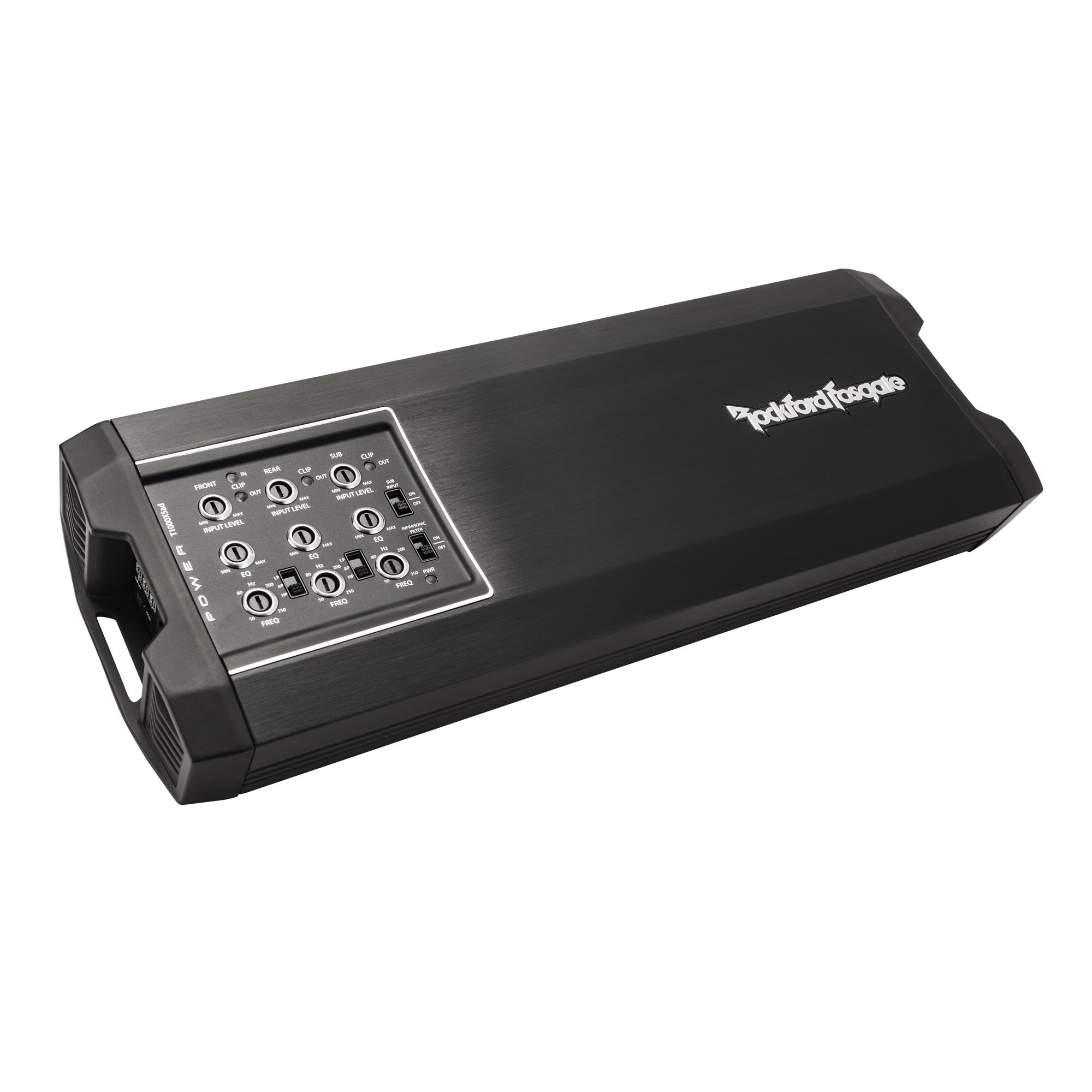

1x Rockford Fosgate T1000X5AD 5 Channel Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm - (T1000X5AD)
T1000X5ad Power 1,000 Watt Class-ad 5-Channel Amplifier. The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.
Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.
Features -
• Class-BD
• Rockford Fosgate proprietary Class AD technology
• Differential inputs with high level auto turn-on feature
• 4/2 Ohm muti-impedance Constant Power
• Remote-Out feature when using high level inputs
• 2013 PLC2 remote ready
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Top mounted controls
• Dual fan cooled
• Real time thermal sensing with Rollback technology
• Dual extruded heat sinks
• All other normal Rockford protection schemes
• CEA-2006 and CE compliant
• Discrete surface mount technology
2x Rockford Fosgate T1650 6.5” Full Range Coaxial- 75 Watts Rms, 150 Watts Peak, Grilles Included - (T1650)
T1650 Power 6.5" 2-Way Euro Fit Full Range Speaker. The Power T1650 is a T1 full-range speaker system with a coaxially mounted tweeter and a true 6.5" midrange optimized for a wide variety of U.S., European, and import vehicles. Get Power series sound quality in a drop-in speaker. These 6.5” 2-way full-range speakers inherent all the coolest features from - their big brother - the T1 component systems. Features include a bridge-mounted tweeter and are optimized for a wide variety of U.S., European, and import vehicles. Be prepared, these are more than OEM replacement speakers, their sound quality has been perfected for true Rockford Fosgate fanatics!
Features -
• Injection molded carbon fiber filled polypropylene cone
• Linear high excursion matched motor magnetics and suspension design • 1" treated aluminum dome tweeter • VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Santoprene rubber surround
• High temp aluminum voice coil
• Fatigue and tear resistant poly cotton spider
• FlexFit 2 mounting
• Stamp-cast aluminum frame
• Integrated concealed 12dB/Octave crossover components
• Grilles and mounting hardware included
• 1 Year Warranty
Specifications -
• Midrange Mounting Depth: 2.52" (64mm)
• Crossover: Built-in tweeter crossover
• High-Pass (HP): 12dB/octave Butterworth
• Mounting Hardware: Yes
• Midrange Size (Nominal Diameter): 6.5"
• Tweeter Size (Nominal Diameter): 1.0" (25.4mm)
• Frequency Response (Hz): 44Hz - 20kHz
1x Rockford Fosgate T1S-1X10 10" Sealed Loaded Enclosure, 500 Watts Rms, - 1-Ohm Final, H 12.5” X W 26.8” X Dtop 4.3” X Dbot 6.3” - (T1S-1X10)
T1S-1X10 Power Single 10” T1 Slim Sealed Loaded Enclosure. The Power T1S-1X10 is a loaded enclosure featuring a 10" Power T1 slim subwoofer and a whopping 500 watt power handling capacity. This enclosure is sealed for fanatics who prefer a deep, solid "thump" in their bass response. Need a slim subwoofer system to fit behind your truck seat, but has high power handling? Rockford Fosgate has the solution to your problem with the Power T1 slim 10” sealed loaded enclosure. It may look small, but it plays loud thanks to its whopping 500 Watt RMS power handing capacity, and since it’s prewired to 1-Ohm, you can really push it with some serious power. Features space saving, slim-line wedge design, premium carpet with stitched Rockford Fosgate logo, and quick-release input terminals.
Features -
• Sealed truck box style enclosure
• Constructed with 5/8" MDF
• Black carpet finish with black stitching
• 12 AWG spring loaded input terminals
• Grill included
• 1 Year Warranty
Specifications -
• Woofer Size: 10"
• Nominal Impedance (ea): 1-Ohm
• Power Handling (Watts RMS): 500 Watts RMS
• 1000 Watts Max
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Frequency Response: 20 Hz - 200 Hz
• Woofer Quantity: 1

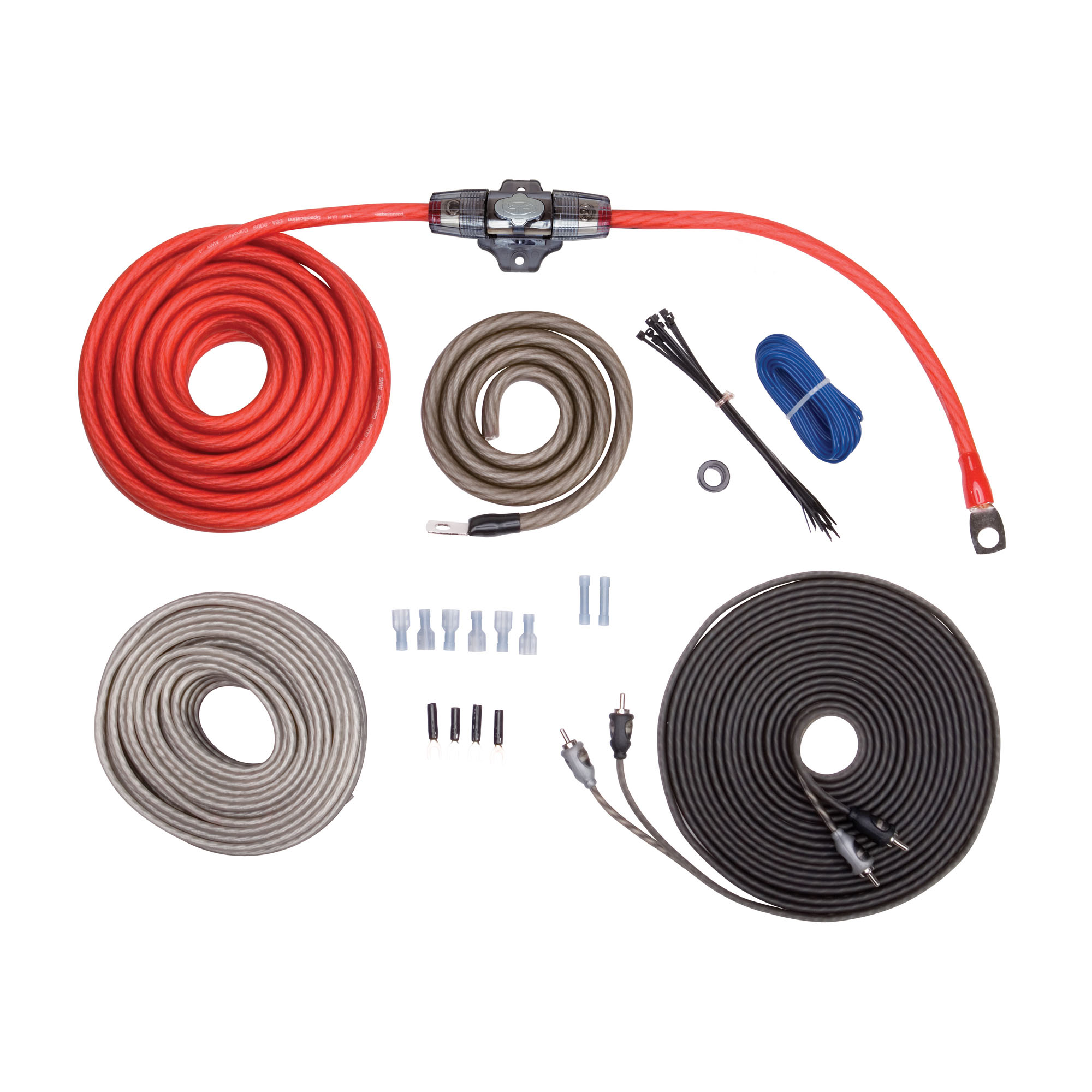

1x Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse - (RFK4X)
4 gauge complete power, ground and signal installation kit for a 2-channel amplifier. Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.
Features:
FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
100% Pure Crystal-Oxygen Free Copper (PC-OFC)
Includes appropriate wire termination hardware
4 AWG (21.1mm²) 1,862 strands
16 AWG (1.31mm²) 65 strands
1 Year Warranty
Specifications:
Battery PWR/GND Gauge: 4 AWG
Amplifier PWR/GND Gauge: 4 AWG
Fuse Type: MAXI
Dual Amp Installation Kit: No
Speaker Wire Gauge: 16 AWG
Fuse Size: 100 Amp

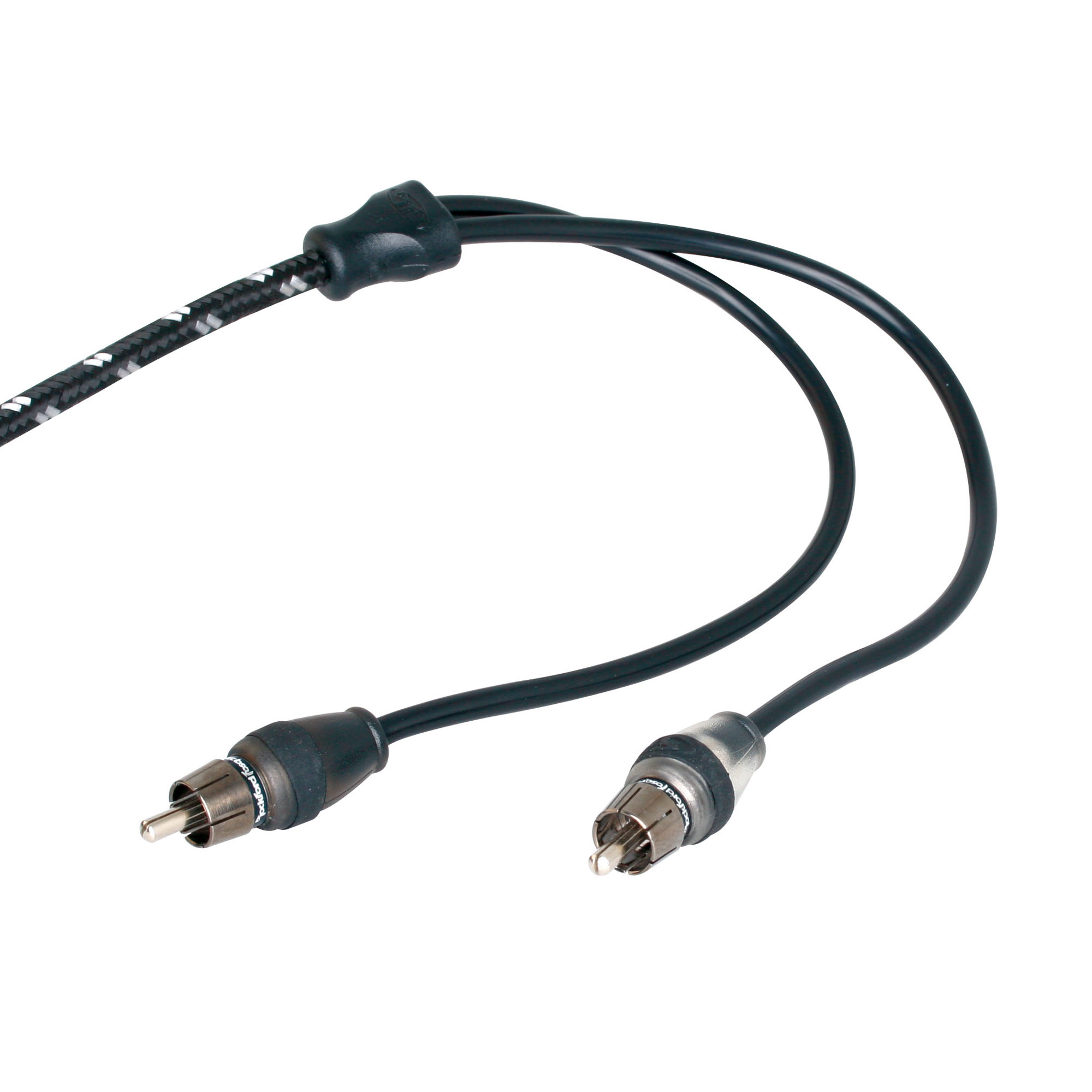

2x Rockford Fosgate RFIT-16 16 Ft Premium Dual Twist Signal Cable With 6 Cut Connectors - (RFIT-16)
16 feet (4.8 meters) dual twist RCA cable with woven outer shield. Dual twist design for excellent noise rejection, 6-cut connector and split center pin for a secure connection, woven outer shield for durability.
Features:
6-cut connector and split center pin for secure connection
Outstanding sound transfer
OFC (Oxygen Free Copper) for corrosion resistance
Platinum plated ends for corrosion resistance
RFI and EMI noise rejection
Woven outer shield for durability
1 Year Warranty
