Description
Included in this kit
This bundle includes a Rockford Fosgate T3S1-19 19" Subwoofer - SVC (1-Ohm), 3000 Watts Rms, 6000 Watts Peak, and a Rockford Fosgate T2500-1BDCP Mono Amplifier - 1500x1 @ 4-Ohm, 2500x1 @ 2-Ohm , 2500x1 @ 1-Ohm.

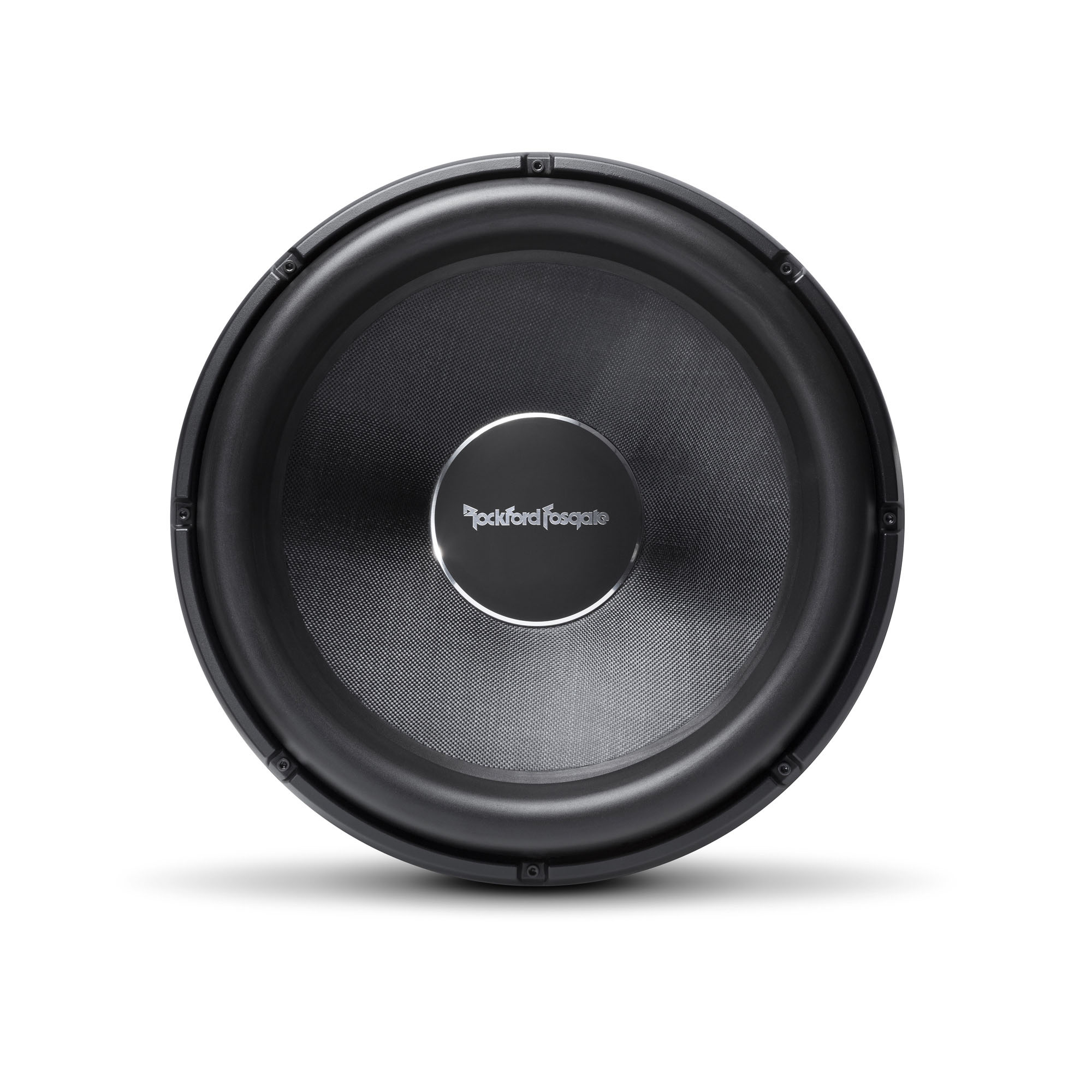

1x Rockford Fosgate T3S1-19 19" Subwoofer - SVC (1-Ohm), 3000 Watts Rms, 6000 Watts Peak - (T3S1-19)
T3S1-19 Power 19" T3 Single 1-Ohm Superwoofer. The Power T3S1-19 superwoofer has a whopping 19-inches of effective radiating cone area for deep bass and features a single 1-Ohm voice coil for easy wiring. This is the largest, most powerful loudspeaker Rockford Fosgate has ever built! The Power T3S1-19 can rightfully be classified as a superwoofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride. The Power T3 19" subwoofer incorporates technologies never before seen in car audio, like the Injection Molded Foam Surround, making the foam strong and durable like a rubberized material. The Edge Wound voice coil allows the windings to be very close with no air gaps so it stays cool for high power handling capacity. We also engineered a very efficient "Push/Pull" voice coil design with a huge Neodymium magnet for a very efficient motor assembly.
Features -
• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• Aluminum dustcap
• Injection molded foam surround with VAST™
• Proprietary surround mechanical clamping ring
• Dual Nomex progressive spiders with integrated lead wires
• Aluminum diecast frame with integrated heat sink fins and venting
• Custom push spring insulated 4 AWG terminals
• Single layer edge wound aluminum 5" voice coil
• Since voice coil design with dual (push/pull) windings
• Integrated die cast aluminum trim ring
• Dual gap multi-pole Neodymium push/pull motor structure
• 1 Year Warranty
Specifications -
• Qms: 1.93
• Qts: 0.32
• Qes: 0.38
• Vas (Liters): 104.9
• Sd (cm2): 1472
• SPL (dB @ 1w/1m): 91
• Xmax (mm): 34
1x Rockford Fosgate T2500-1BDCP Mono Amplifier - 1500x1 @ 4-Ohm, 2500x1 @ 2-Ohm , 2500x1 @ 1-Ohm - (T2500-1BDCP)
T2500-1bdCP Power 2500 Watt Class-bd Constant Power Amplifier. The Power T2500-1bdCP is a 2,500 Watt mono amplifier featuring Constant Power. The T2500-1bdCP is so flexible and powerful you can use a pair in bdSYNC mode to create one massive amplifier that can deliver a whopping 5 Kilowatts. The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary "Constant Power" configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse!
Features -
• 24dB/octave crossover
• 1/0 AWG power/ground connectors
• Audiophile grade speaker connections
• Infrasonic filter
• MOSFET power supply
• MOSFET output stage
• RCA pass-thru outputs
• PowerSync - allows 2 amplifiers to be "strapped" together
• MasterSync - allows 1 amplifier to control an array of amplifiers
• 0°/180° Phase Switch
• Blue L.E.D. Simulated VU Signal/Power Meters
• 2-Year Warranty
Specifications -
• Power Wire Gauge: 1/0 AWG
• Power Input Connector: Block
• Speaker Wire Gauge: 8 AWG to 16 AWG
• Speaker Output Connector: Block
• Cooling: Convection
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 300 A
• Average Current Draw (13.8V Music): 175 A
• Max. Current Draw (13.8V Sinewave): 350 A
• Suggested Alternator: 200 A
