Description
Included in this kit
This bundle includes a Rockford Fosgate RZR20PRO-RSS Rear Subwoofer Solution Compatible With Select 2020-2024 RZR Models, and a Rockford Fosgate RZR19PXP-STG6 Pmx-3, 1500w, M2 Tweeter System, Color Optix Front Speakers, Color Optix M2 Series Sub & Color Optix 8" Rear Speakers Kit Compatible With Select RZR XP Pro Models.
1x Rockford Fosgate RZR20PRO-RSS Rear Subwoofer Solution Compatible With Select 2020-2024 RZR Models - (RZR20PRO-RSS)
Rockford Fosgate RZR20PRO-RSS
Rear Subwoofer Solution Compatible With Select 2020-2024 RZR Models
STEALTHY BASS PERFORMANCE
Introducing our newest bass solution for your Polaris RZR side-by-side! This rear subwoofer is designed to integrate seamlessly with your existing Rockford Fosgate RZR audio kit, delivering a powerful performance upgrade. Featuring our Element Ready™ design, it offers a simple and stealthy installation.
This 400-watt subwoofer kit is purpose-built for 2020-2024 Pro-XP, 2022-2024 Turbo-R, and 2022-2024 Pro-R Polaris 4-seat RZR models. It adds a secondary 10” subwoofer to existing aftermarket Stage 4, 5, or 6 audio systems with/without Ride Command®.
The subwoofer kit features an oval ported enclosure for maximum bass output. We’ve also added a port cap, providing a 100% waterproof design for those deep mud or water adventures. The integral harness allows for plug-and-play design and requires no cutting or drilling by using OEM mounting points.
Please refer to the Compatibility Chart for fitment before purchasing. Requires Rockford Fosgate aftermarket system. Not compatible with Polaris OEM systems powered by Rockford Fosgate.
Key Features
This 400-watt subwoofer kit is purpose-built for 2020-2024 Pro-XP, 2022-2024 Turbo-R, and 2022-2024 Pro-R Polaris 4-seat RZR models. It adds a secondary 10” subwoofer to existing aftermarket Stage 4, 5, or 6 audio systems with/without Ride Command®.
The subwoofer kit features an oval ported enclosure for maximum bass output. We’ve also added a port cap, providing a 100% waterproof design for those deep mud or water adventures. The integral harness allows for plug-and-play design and requires no cutting or drilling by using OEM mounting points.
Please refer to the Compatibility Chart for fitment before purchasing. Requires Rockford Fosgate aftermarket system. Not compatible with Polaris OEM systems powered by Rockford Fosgate.
Key Features
- Adds second subwoofer to the system with stealth under-seat mounting
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Sub enclosure integrates with no loss of passenger space
- Plug-n-Play wiring harnesses for select RZR models
- Newly designed port cap for sealed and deep-water applications
- M2D4-10IB-G2: M2 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black (Gen-2)
- Durable HDPE (High Density Poly Ethylene) material
- New Oval ported subwoofer enclosure for maximum low bass performance
- Roto-mold design for lightweight and durable seamless construction
- DSP recognition with auto-loading Jeep Wrangler specific tune
- Direct bolt into vehicle using OEM mounting holes
- 2-Year Warranty
- Color Optix™ enabled
- No drilling or cutting required
- (1 ea) RZR20PRO-RSS Enclosure
- (1 ea) M2D4-10IB-G2 Subwoofer
- Accessory Pack (1130-79716-01):
- (1) 1110-79287-01 Port Tube Gasket
- (4) 1125-61575-01 M6 x 12mm T40 Screw
- (1) 1415-76136-01 1st Mounting Bracket
- (1) 1415-76492-01 2nd Mounting Bracket
- (1) 1415-79300-01 Port Tube Cap
- Speaker Qty: 1
- Total Power: 400 Watts
- Amplifier Type: External
- Subwoofer: M2D4-10IB-G2
- Size: 10"
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 32 Hz - 250 Hz
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS: 400 Watts RMS, 1600 Watts PEAK
- Voice Coil Diameter: 2" (51 mm)
- Magnet Weight (oz): 55.04 oz. (1.56 Kg)
- Fs (Hz): 43
- Re (Ohms): 6.6
- Le (mH): 1.76
- Sd (cm2): 363
- Qms: 5.67
- Qes: 1.07
- Qts: 0.85
- Vas: 31.5
- SPL (dB @ 1w/1m): 87
- Xmax (mm): 13
- Speaker Connector: Deutsch™ and 1/8" Spade
- Cutout Diameter: 8.98" (228 mm)
- Mounting Depth: 4.70" (119.35 mm)
- Woofer Displacement: 0.047 cu. ft. (1.33 Liters)
- Mounting Hardware: Yes
- Grille/Trim Ring Included: Yes
YESModel IS compatible with kit |
NOModel NOT compatible with kit |
NOT AVAILABLEModel not produced this year |
|---|
YES2020-2024 RZR Pro XP(4-SEAT) |
YES2022-2024 RZR Turbo R(4-SEAT) |
YES2022-2024 RZR Pro R(4-SEAT) |
NO2025+ RZR Pro S(4-SEAT) |
 MODELS |
FRONT SUB |
ADD-ON REAR SUB |
FINAL AMP IMPEDANCE |
WIRING |
|---|---|---|---|---|
| RZR19PXP-STG4 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing STG4 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19PXP-STG5 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing STG5 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19PXP-STG6 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing STG6 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG4 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG4 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG5 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG5 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG6 | M2D4-10B (2Ω) | M2D4-10IB-G2 (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG6 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| 4-SEAT MODELS |
2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro XP 4 | YES | — | — | — | — | — |
| RZR Pro XP 4 Orange Madness LE | YES RC,RF3 | — | — | — | — | — |
| RZR Pro XP 4 Sport | — | YES | YES | YES | YES | NO |
| RZR Pro XP 4 Sport Rockford Fosgate® LE RF1 | — | YES | — | — | — | — |
| RZR Pro XP 4 Premium RC,RF | YES | YES RF3 | YES RC*,RF2* | YES RF2 | YES RF2 | NO |
| RZR Pro XP 4 Ultimate RC,DY | YES RF3 | YES RF | YES RF2 | YES RF2 | YES RF2 | NO RF2 |
| RZR Pro XP 4 Ultimate Rockford Fosgate [LE] Limited Edition RC, DY, RF4 | — | YES | YES | — | — | — |
| 4-SEAT MODELS |
2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Turbo R 4 Sport | — | — | YES | YES | YES | — |
| RZR Turbo R 4 Premium RC*, RF2* | — | — | YES | YES | YES | — |
| RZR Turbo R 4 Ultimate DY | — | — | YES | YES RC,RF2 | YES RC,RF2 | — |
| 4-SEAT MODELS |
2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro R 4 Sport | — | — | YES | — | — | NO |
| RZR Pro R 4 Premium RC, RF | — | — | YES | YES | YES | — |
| RZR Pro R 4 Ultimate RC, DY | — | — | YES RF | YES RF2 | YES RF2 | NO RF4 |
| RZR Pro R 4 Ultimate Launch Edition DSC | — | — | YES | — | — | — |
| RZR Pro R 4 Troy Lee Designs Edition RC, DY, RF4 | — | — | — | YES | — | — |
| 4-SEAT MODELS |
2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro S 4 Sport | — | — | — | — | — | NO |
| RZR Pro S 4 Premium RC | — | — | — | — | — | NO |
| RZR Pro S 4 Ultimate RC | — | — | — | — | — | NO RF4 |
[ ] Brackets indicate nomenclature used on earlier models and inherited on later models.
* Optional package available from factory
CV Clutch Vent impedes installation of rear add-on subwoofer
DY DYNAMIX suspension factory equipped
RB Rear Brace impedes installation of rear add-on subwoofer
RC Ride Command comes factory equipped
RF1 Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
RF2 Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
RF3 Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed.
1x Rockford Fosgate RZR19PXP-STG6 Pmx-3, 1500w, M2 Tweeter System, Color Optix Front Speakers, Color Optix M2 Series Sub & Color Optix 8" Rear Speakers Kit Compatible With Select RZR XP Pro Models - (RZR19PXP-STG6)

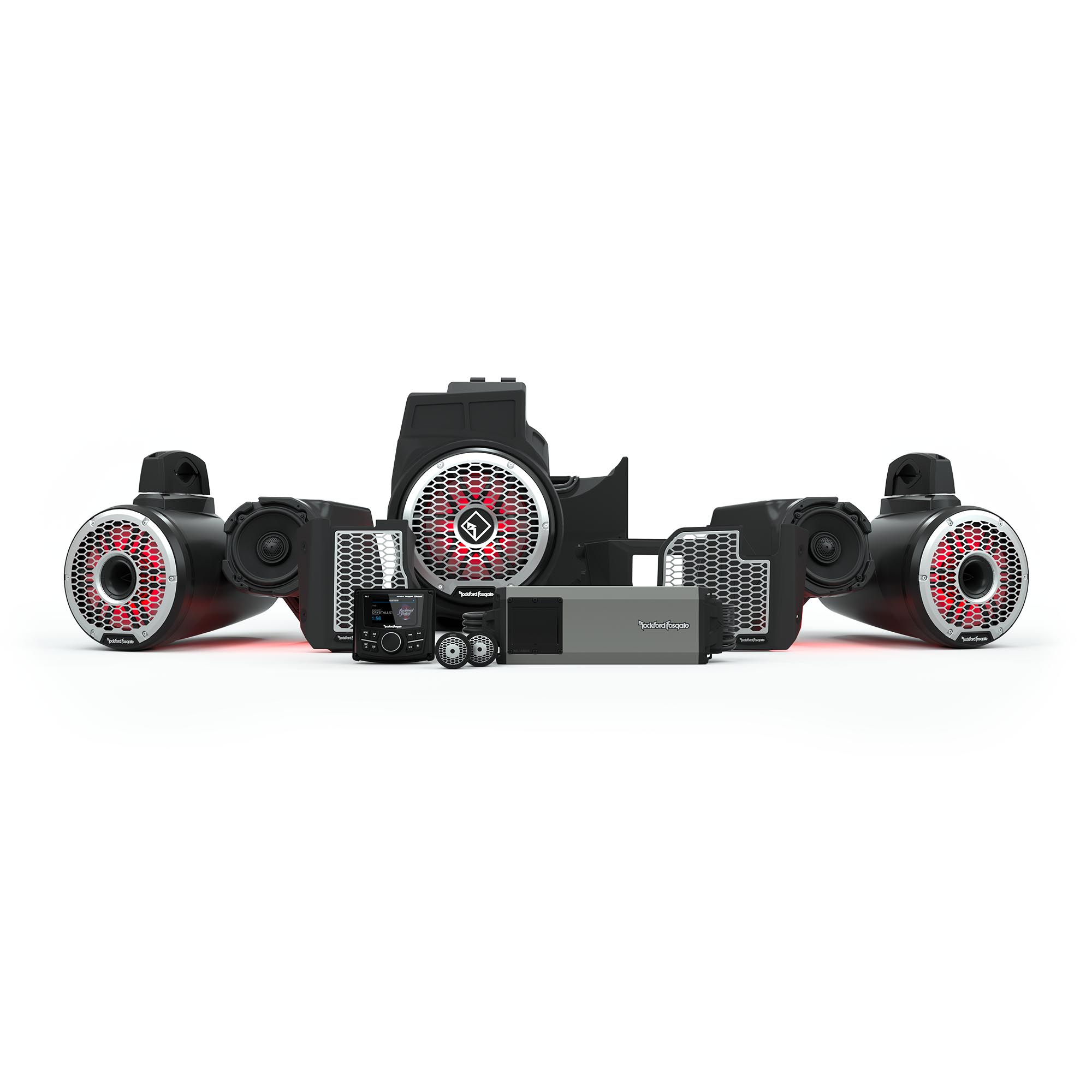

Rockford Fosgate RZR19PXP-STG6
Pmx-3, 1500w, M2 Tweeter System, Color Optix Front Speakers, Color Optix M2 Series Sub & Color Optix 8" Rear Speakers Kit Compatible With Select RZR XP Pro Models
The Pro XP Stage 6 is a 1,500 watt audio system that takes entertainment to a new level with higher performance, louder output, and greater clarity. This complete waterproof solution provides the ability to take your UTV into any environment. The subwoofer enclosure – vented to provide maximum bass performance – offers the ability to seal the vent when submerging the vehicle. The plug-and-play design requires minimal cutting or drilling by using OEM mounting points and features an easy to set-up “Rockford Fosgate” preset to optimize performance. The Color Optix™ control allows RGB color adjustment of speakers and rear moto-cans in addition to a Rockford Fosgate illuminated logo for a finishing touch to the passenger dash.
The easiest SXS kits to install and set up, Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.
Key Features
The easiest SXS kits to install and set up, Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.
Key Features
- Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
- Plug-and-Play Design: Minimal drilling or cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
- Color Optix: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
- Preset: Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.
- RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
- PMX-3: Compact AM/FM/WB Digital Media Receiver 2.7" LCD w/ Backup Cam & SiriusXM® Ready
- RZR19PXP-DK: Dash Kit for PMX-1, PMX-2 or PMX-3 on Select RZR® Pro XP Models
- M2-TS: 1" Front Tweeter system for select RZR® Pro XP models
- RZR19PXP-FSE: 5.25" front ported Color Optix™ loaded speaker enclosures for select PRO XP models
- RZR19PXP-M2FWE: M2 10" Element Ready™ loaded subwoofer enclosure for select PRO XP models
- M2WL-8HB: M2 8” Color Optix™ 2-Way Horn Loaded Wake Tower Speakers - Black
- M5-1500X5: 1500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- RZR19PXP-K4: 4 AWG amp installation kit for select RZR® Pro XP models
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface
| MODEL | 2020 | 2021 | 2022 |
|---|---|---|---|
| RZR Pro XP | YES | N/A | N/A |
| RZR Pro XP Orange Madness LE RC,RF2 | YES | N/A | N/A |
| RZR Pro XP Sport | N/A | YES | YES |
| RZR Pro XP Sport Rockford Fosgate LE RF1 | N/A | YES | N/A |
| RZR Pro XP Premium | YES | YESRC,RF | YESRC*,RF2* |
| RZR Pro XP Ultimate RC,DY | YESRF2 | YESRF | YESRF2 |
| RZR Pro XP Ultimate Rockford Fosgate [LE] Limited Edition RC,DY,RF4 | N/A | YES | YES |
| RZR Turbo R Sport | N/A | N/A | N/A |
| RZR Turbo R Premium RC*,RF2* | N/A | N/A | N/A |
| RZR Turbo R Ultimate DY | N/A | N/A | N/A |
| RZR Pro R Sport | N/A | N/A | N/A |
| RZR Pro R Premium RC,RF | N/A | N/A | N/A |
| RZR Pro R Ultimate RC,DY,RF | N/A | N/A | N/A |
| RZR Pro R Ultimate Launch Edition | N/A | N/A | N/A |
| MODEL | 2020 | 2021 | 2022 |
|---|---|---|---|
| RZR Pro XP 4 | YES | N/A | N/A |
| RZR Pro XP 4 Orange Madness LE | YESRC,RF3 | N/A | N/A |
| RZR Pro XP 4 Sport | N/A | YES | YES |
| RZR Pro XP 4 Sport Rockford Fosgate® LE RF1 | N/A | YES | N/A |
| RZR Pro XP 4 Premium | YES | YESRC,RF | YESRC*,RF2* |
| RZR Pro XP 4 Ultimate RC,DY | YESRF3 | YESRF | YESRF2 |
| RZR Pro XP 4 Ultimate Rockford Fosgate [LE] Limited Edition RC, DY, RF4 | N/A | YES | YES |
| RZR Turbo R 4 Sport | N/A | N/A | N/A |
| RZR Turbo R 4 Premium RC*, RF2* | N/A | N/A | N/A |
| RZR Turbo R 4 Ultimate DY | N/A | N/A | N/A |
| RZR Pro R 4 Sport | N/A | N/A | N/A |
| RZR Pro R 4 Premium RC, RF | N/A | N/A | N/A |
| RZR Pro R 4 Ultimate RC, DY, RF | N/A | N/A | N/A |
| RZR Pro R 4 Ultimate Launch Edition | N/A | N/A | N/A |
Extra Information
Brand:
Rockford Fosgate
Weight:
105.00 LBS
UPC:
199730011377
Bundle:
Yes
Feature 1:
This bundle includes a Rockford Fosgate RZR20PRO-RSS Rear Subwoofer Solution compatible with select 2020-2024 RZR models.
Feature 2:
Enhances audio performance with a stealthy bass solution for your Polaris RZR side-by-side.
Feature 3:
Element Ready™ design ensures durability in harsh outdoor environments.
Feature 4:
Secondary 10" subwoofer adds powerful bass to existing Stage 4, 5, or 6 audio systems.
Feature 5:
Plug-and-Play installation with no cutting or drilling required for seamless integration.
Condition:
NEW
Weight:
105.0000 lbs
Shipping:
Free 2-Day Shipping!
RMS Wattage Per Speaker:
400
