Description
Included in this kit
This bundle includes a Rockford Fosgate Infotainment Unit for 2014+ Harley-Davidson Models with CarPlay, and a Rockford Fosgate HD14CVO-STAGE3 Six Speakers & Amplifier Kit Compatible With Select 2014+ Road Glide Cvo And Street Glide Cvo Motorcycles.
1x Rockford Fosgate Infotainment Unit for 2014+ Harley-Davidson Models with CarPlay (PMX-HD14)
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across to multiple radios simultaneously.
Full Color Display: Equipped with a 7” TFT display, this ultra-crisp infotainment center not only looks amazing, but features full touchscreen functionality that even works with riding gloves.
Complete Control: Control however you want it. This source unit keeps all factory handlebar controls as well as CB and wireless headset connectivity, without additional parts, and with built in Apple Car Play®, controlling your playlists and apps has never been easier.
Optimized Tunes: Designed specifically for your current Rockford Fosgate motorcycle audio system, we have optimized speaker specific location tunes, so no matter your current audio system you will get class leading sound.
Street Party Mode™: Bring the party to the streets. Street Party Mode allows up to 8 radios to pair and stream the same song from one broadcasting PMX-HD14.
Features
• 2014+ Harley-Davidson® direct replacement digital media receiver• 7" full color, glove friendly, capacitive multi-touch screen
• Plug and Play Installation with OEM electrical connectors
• No need to flash your bike
• Works with wireless headsets and OEM CB (WHIM & CB modules required)
• Retains factory thumb control functionality with no additional parts
• Glove friendly touch controls
• Bluetooth® connectivity with A2DP wireless audio streaming
• Apple CarPlay® built in
• Street Party Mode™ can broadcast audio up to 100 feet to 8 additional PMX-HD14
• SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
• Built in DSP with Subwoofer control
• Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
• Digital AM/FM/WB tuner with presets
• USB Input with 1.5A
• AUX Input
• 14 band graphic EQ
Performance
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across multiple radios simultaneously.The PMX-HD14 includes these accessory trim bezels:
• (1) Batwing Trim Bezel (Street Glide)
• (1) Sharknose Trim Bezel (Road Glide)
Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Specifications
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
4.0 VRMS Rear
Receiving: 8 radios max
(1) Street Glide trim bezel
(8) Trim Panel Screws
(1) Mini Phillips screwdriver for trim bezel
(4) Radio Chassis Mount screws
(8) Rubber sleeves for radio chassis screws
Fitment
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electra Glide® Revival | FLH | — | — | — | — | — | — | — | ✔ | — | ✔ |
| Electra Glide® Standard NR | FLHT | — | — | — | — | — | XNR | XNR | XNR | XNR | — |
| Road Glide® | FLTRX | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® ST | FLTRXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Road Glide® Special | FLTRXS | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® Special 120th Anniversary | FLTRXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| Street Glide® | FLHX | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Street Glide® ST | FLHXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Street Glide® 115th Anniversary | FLHXANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special | FLHXS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| lement"> Street Glide® Special 115th Anniversary | FLHXSANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special 120th Anniversary | FLHXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Road King® | FLHRSE | X | — | — | — | — | — | — | — | — | — |
| CVO Softail Deluxe | FLSTNSE | X | X | — | — | — | — | — | — | — | — |
| Electra Glide Highway King | FLHFB | — | — | — | — | — | — | — | — | — | X |
| Road King® | FLHR | — | X | X | X | X | X | X | X | X | — |
| Road King® Classic | FLHRC | X | X | X | X | X | X | — | — | — | — |
| Road King® Special | FLHRXS | — | — | — | X | X | X | X | X | X | X |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Road Glide® LimitedPTT | FLTRK | — | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| Road Glide® UltraPTT | FLTRU | — | — | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic®PTT | FLHTCU | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic® Twin-CooledPTT | FLHTCU | ✔ | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® LowPTT | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low Twin-CooledPTT | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Ultra LimitedPTT | FLHTK | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ultra Limited 115th AnniversaryPTT | FLHTKANV | — | — | — | — | ✔ | — | — | — | — | — |
| Ultra Limited 120th AnniversaryPTT | FLHTKANV | — | — | — | — | — | — | — | — | — | ✔ |
| Ultra Limited LowPTT | FLHTKL | — | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Ultra Limited Shrine EditionPTT | FLHTK | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Ultra Limited | FLHTKSE | X | X | X | X | X | X | X | X | — | — |
| CVO Limited 115th Anniversary | FLHTKSEANV | — | — | — | — | X | — | — | — | — | — |
| CVO Pro Street Breakout | FXSE | — | — | X | X | — | — | — | — | — | — |
| CVO Road Glide® | FLTRXSE | — | — | — | — | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
| CVO Road Glide® Limited | FLTRKSE | — | — | — | — | — | — | — | — | ✔RF1 | — |
| lement"> CVO Road Glide® Limited 120th Anniversary | FLTRKSEANV | — | — | — | — | — | — | — | — | — | ✔RF1 |
| CVO Road Glide® Ultra | FLTRUSE | — | X | X | — | — | — | — | — | — | — |
| CVO Softail Breakout | FXSBSE | X | — | — | — | — | — | — | — | — | — |
| CVO Street Glide® | FLHXSE | — | X | X | X | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Freewheeler®NR | FLRT | — | X | X | X | X | X | X | X | X | X |
| Road Glide 3 | FLTRT | — | — | — | — | — | — | — | — | — | ✔ |
| Tri Glide® Ultra Classic®PTT | FLHTCUTG | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Tri Glide® Ultra 115th AnniversaryPTT | FLHTCUTGANV | — | — | — | — | ✔ | — | — | — | — | — |
| Tri Glide® Ultra 120th AnniversaryPTT | FLHTCUTGANV | — | — | — | — | — | — | — | — | — | ✔ |
| CVO Tri Glide® | FLHTCUTGSE | — | — | — | — | — | — | X | X | ✔RF1 | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Boom! Audio un-amplified systems are compatible.
2
Boom! Audio Stage I & Stage II systems with external amplifier(s) are not compatible.
NR
No Radio equipped from factory. Make compatible with (2) Harley-Davidson #69200247 Fairing Speaker Harnesses, PMX-HD14 source unit, and TMS65 speakers.
PTT
PTT Button required on Ultra and Trike to use wired headsets. Make compatible with (1) Harley-Davidson #71500130C Right Switchpack Assembly.
RF1
RF Stage I: Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
RF1G2
RF Stage I Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2G2
RF Stage II Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
— Boom!™ is a Trademark of Harley-Davidson USA, Inc.
— Harley-Davidson®, H-D®, Road King®, Road Glide®, Street Glide®, Ultra Classic®, Tri Glide®, Freewheeler®, and Tour-Pak® are Registered Trademark of Harley-Davidson USA, Inc.
— SiriusXM® is a Registered Trademark of Sirius XM Radio Inc.

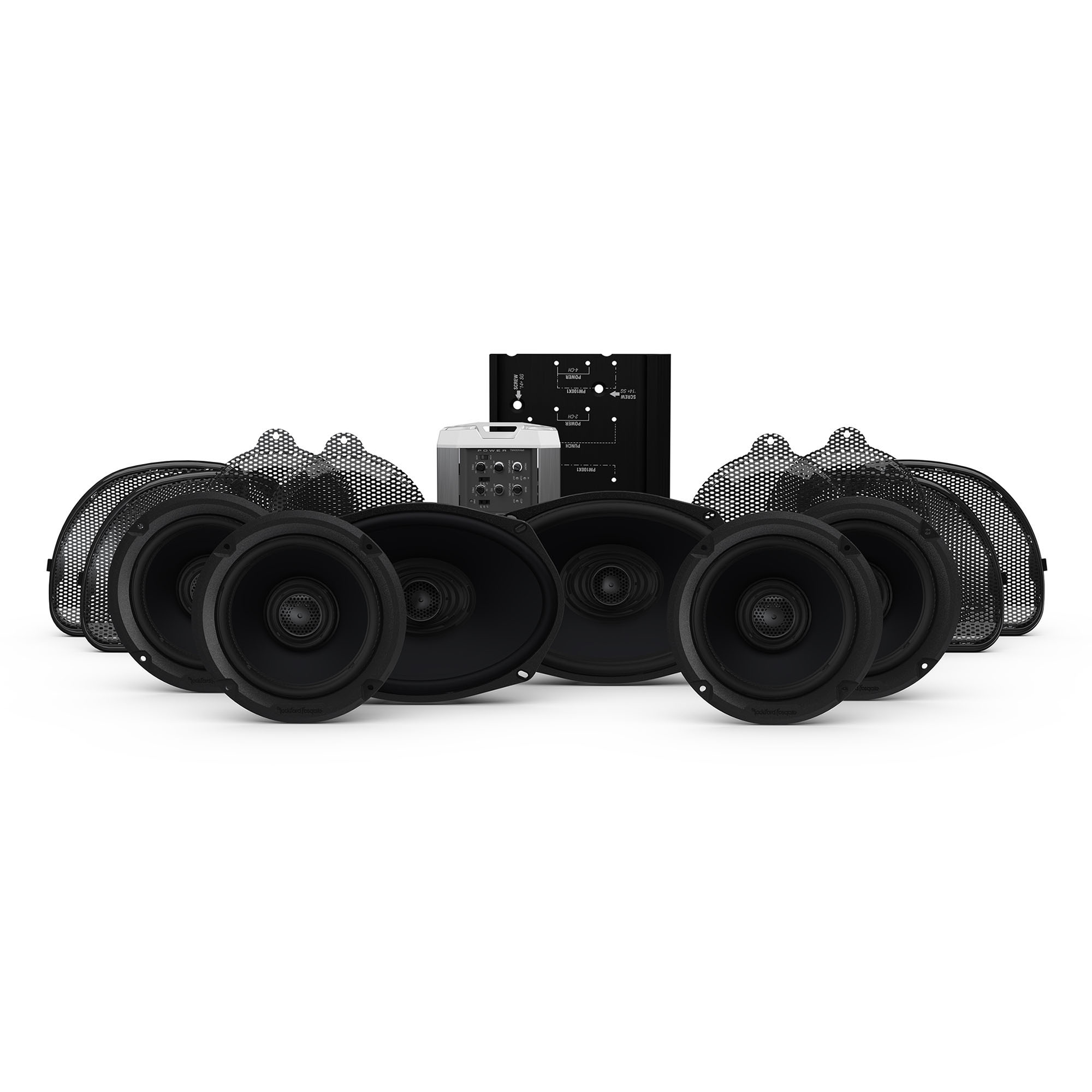

1x Rockford Fosgate HD14CVO-STAGE3 Six Speakers & Amplifier Kit Compatible With Select 2014+ Road Glide Cvo And Street Glide Cvo Motorcycles (HD14CVO-STAGE3)
Rockford Fosgate 6 Speaker & Amp Kit Compatible With 2014+ Harley-Davidson® Road Glide® CVO & Street Glide® CVO
Add a high-performance 6-speaker, 400-watt audio system to your motorcycle, purpose built for select 2014+ Harley-Davidson® CVO Road Glide® and CVO Street Glide® models. System includes a two 6.5” speakers for the upper fairing, two 6.5” speakers for the lowers, two 5x7” speakers for the saddlebags, a 400 watt 4-channel amplifier, and complete installation kit. You will need to have a local Rockford dealer flash your factory radio to use this kit.
This 6-speaker, 400 watt high performance audio system is designed for select 2014+ Harley-Davidson® motorcycles (see compatibility chart.) The included 6.5” upper/lower fairing speakers and 5x7” saddlebag lid speakers are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH. The 400-watt amplifier features 2-channels for the upper/lower fairing speakers and 2 channels for the rear baglid speakers. The amplifier installation kit includes an external heat-sink, mounting brackets, speaker and power wiring with all necessary hardware. The included T-harness integrates into the electrical system for front/rear fading capability (requires Rockford Fosgate flash) and features a loop-thru for an optional DSR1 digital signal processor (sold separately.) Supplied with factory amplifier bypass plugs.
- No drilling or cutting required
- Kits bolt to factory attachment points
- Direct connect wiring harnesses for Harley-Davidson® models
- T-harness integration supports front/rear fader control (requires "Rockford Fosgate 2014+ All Bikes" flash)
- Includes lower fairing speakers (must be non-water cooled)
- TM400X4ad Power Marine 400 Watt Class-ad 4-Channel Amplifier
- TMS65 Power 6.5" Full Range Fairing/Tour Pak Speaker 2014+ Harley-Davidson®
- TMS57 Power 5"x7" Full Range Factory Baglid Speaker for 2014+ Harley-Davidson®
- RFK-HD14 2014+ Harley-Davidson® Road Glide® & Street Glide® Amplifier Wiring Kit
- NOTE: Your factory radio will need to be flashed.
- 2-Year Warranty
Fitment
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2018–2019 | Harley-Davidson® | FLHXSE | CVO Street Glide® (6-speaker)1, 2 | Bat Wing |
1 Requires factory Harley-Davidson® radio to be flashed. Read more here.
2 Saddlebag kit compatible only with ABS plastic lids. Not compatible with Fiberglass lids.
Specifications
(4) 2015+ Road Glide Grilles
(4) 2014+ Street Glide Grilles
(4) 2014+ TourPak Grilles
(2) 5x7” Speakers
(2) 5x7” Rebadge Logos
(1) TM400X4ad Amplifier
(1) RFK-HD14 Amp Mounting Kit
(5) Factory Amp Bypass Plugs
(1) DSR1 Loop-Thru Harness
(2) Amp Output Y-Adaptors
(1) Wiring Harness Kit
(1) Hardware Pack
