Rockford P3 6.5 & 6x9 4-Speaker Kit with 400W Amp & Install Kit

Shop All: Rockford Fosgate

No reviews yet Write a Review
SKU:
RFBDL260814-07
Condition:
New
Shipping: Free 2-Day Shipping!
$1,727.98
Rockford P3 6.5 & 6x9 4-Speaker Kit with 400W Amp & Install Kit
$1,727.98

Description

Included in this kit

This bundle includes a Rockford Fosgate P3V2-65 - 6.5" 3-way speaker kit with 3-way external crossover, 75 watts RMS, 150 watts peak, a Rockford Fosgate P3V2-69C3 - 6x9" 3-way coaxial speaker kit with 2-way external crossover, 75 watts RMS, 150 watts peak, a Rockford Fosgate T400X4AD 4 Channel Amplifier - 100x4 @ 4-Ohm, 100x4 @ 2-Ohm, 200x2 @ 4-Ohm Bridged, and a Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse.

1x Rockford Fosgate P3V2-65 - 6.5" 3-way speaker kit with 3-way external crossover, 75 watts RMS, 150 watts peak (P3V2-65)


Kit Includes:
• (2) 3/4" Tweeters
• (2) 2.5" Midrange • (2) 6.5" Speakers
• (6) Crossovers
• (2) OEM Adaptors
• Installation Hardware

Speaker Type: Component System
Midrange Size (Nominal Diameter): 6.5" + 2.5"
Tweeter Size (Nominal Diameter): 3/4" (19mm)
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 49Hz - 25kHz
Voice Coil Diameter (in/mm): 1.25" (32.5 mm)
Crossover: TWEETER: HP 9kHz @ 12dB/octave (external), Attenuation: 0dB or -3dB (external); MIDRANGE: BP 600Hz - 6kHz @ 6dB/octave (external), WOOFER: LP 1.2kHz @ 6dB/octave (external)
Sensitivity (dB @ 1W/1M): 87 dB
Sensitivity (2.83V/1M): 90 dB
Fs (Hz): 65 Hz
Power Handling (Watts RMS): 75 Watts RMS 150 Watts RMS
Woofer Cutout Diameter: 5.42" (137.6 mm)
Woofer Mounting Depth (Standard Flange): 2.5" (63.5 mm)
Midrange Rear-Loading Depth (Twist-Lock Adaptor): 1.47" (37.3 mm)
Woofer Mounting Depth (No Motor Cover): 2.26" (57.3 mm)
Midrange Front-Loading Depth (Twist-Lock Adaptor): 1.60" (40.6 mm)
Woofer Front Side Clearance: 0.43" (11 mm)
Removable Motor Cover: Yes
Grille/Trim Ring Included: No

Included in the Box
(2) 3/4” 4Ω Tweeter
(2) 2.5” 4Ω Speakers
(2) 6.5” 4Ω Speakers
(2) Twist-Lock Adaptors
(1) 2.5” Speaker Cutout Template
(1) 6.5” Speaker Cutout Template
(2) Flush-Mount Tweeter Cups
(2) Surface-Mounting Tweeter Cups
(1) Tweeter Removal Tool
(2) Passive Crossovers (Tweeter)
(2) Passive Crossovers (Midrange)
(2) Passive Crossovers (Woofer)
(10) 18” Crossover Wiring Extensions
(12) Self-Tapping Phillips #4x16mm (Tweeter)
(4) Self-Tapping Phillips #8x20mm (Crossover)
(8) Self-Tapping Phillips #8x32mm (Speaker)
(4) Self-Tapping Phillips #8x32mm (Speaker)
(6) Zip Ties 4.8 mm x 350 mm
(4) 18 AWG Red/Black Speaker Wire, 205 mm
(6) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(6) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(12) 18 AWG Crimp Butt Conn.

Mounting Hardware: Yes

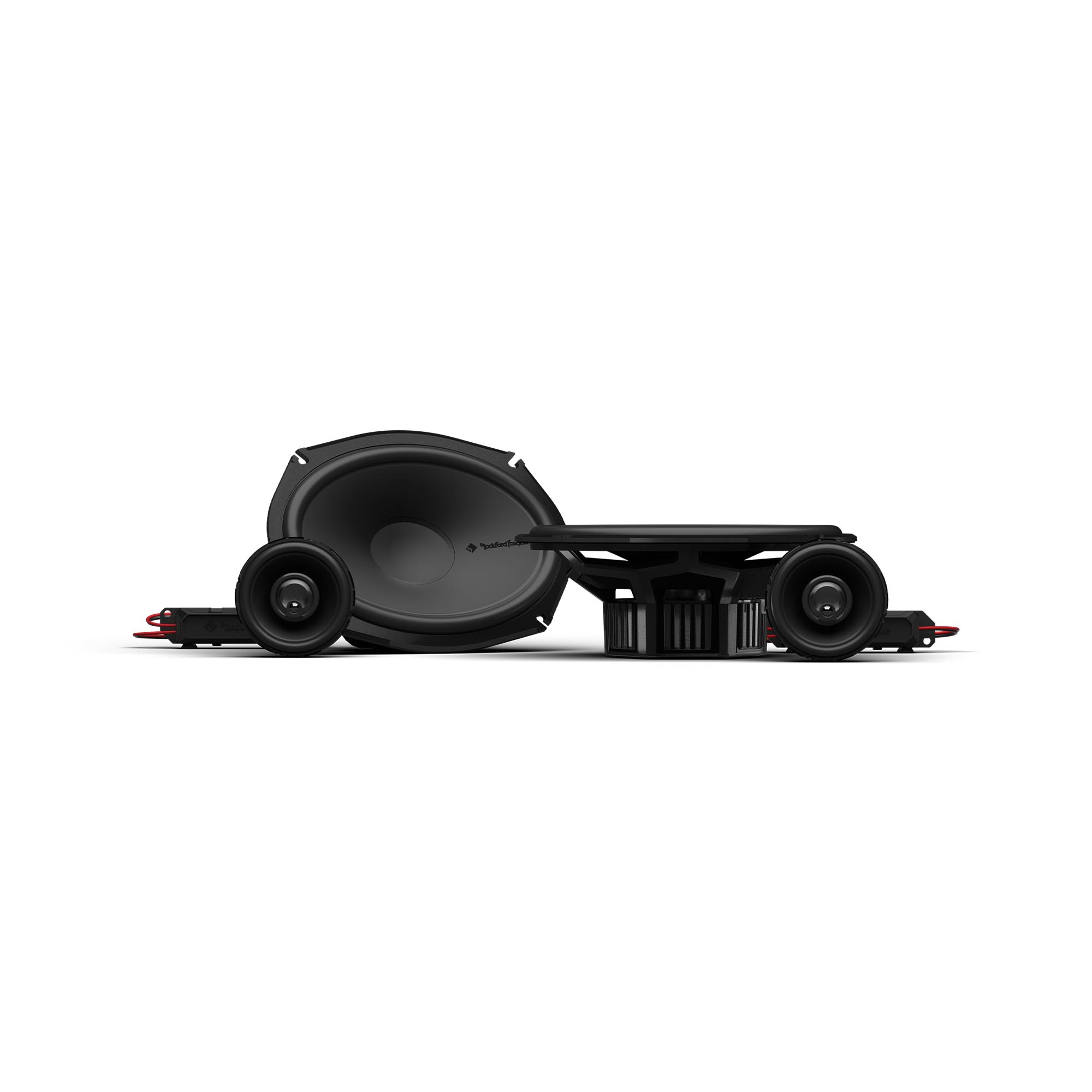

1x Rockford Fosgate P3V2-69C3 - 6x9" 3-way coaxial speaker kit with 2-way external crossover, 75 watts RMS, 150 watts peak (P3V2-69C3)


The P3 speakers are 3-way component systems for vehicles equipped with a separate tweeter, midrange, and woofer.

Kit Includes:
• (2) 6"x9" Speakers
• (2) 3.5" Coax Speakers
• (6) Crossovers
• (2) OEM Adaptors
• Installation Hardware

Speaker Type: Component System
Midrange Size (Nominal Diameter): 6"x9" + 3.5"
Tweeter Size (Nominal Diameter): 3/4" (19mm)
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 49Hz - 25kHz
Voice Coil Diameter (in/mm): 1.25" (32.5 mm)

Crossover
TWEETER: HP 9kHz @ 6dB/octave (internal)
MIDRANGE BASS BLOCKER: HP 1,200Hz @ 6 dB/Octave (33µF)
WOOFER: LP 1.2kHz @ 6dB/octave (external)

Sensitivity (dB @ 1W/1M): 89 dB
Sensitivity (2.83V/1M): 92 dB
Fs (Hz): 65 Hz
Power Handling (Watts RMS): 75 Watts RMS / 150 Watts Peak
Woofer Cutout Diameter: 8.41" x 5.71" (213.5 mm x 145 mm)
Woofer Mounting Depth (Standard Flange): 3.13" (79.4 mm)
Woofer Mounting Depth (No Motor Cover): 2.76" (70 mm)
Rear-Loading Depth (Twist-Lock Adaptor): 1.48" (37.7 mm)
Front-Loading Depth (Twist-Lock Adaptor): 1.70" (43.3 mm)
Woofer Front Side Clearance: 0.42" (10.6 mm)
Removable Motor Cover: Yes
Grille/Trim Ring Included: No

Included in the Box
(2) 6”x9” 4Ω Speakers
(2) 3.5” 4Ω Coaxial Speakers
(1) 3.5” Speaker Cutout Template
(1) 6x9” Speaker Cutout Template
(2) 3.5” 2-Tab Twist-Lock Adaptors
(2) 3.5” 3-Tab Twist-Lock Adaptors
(2) 3.5” 2-Tab Wide Twist-Lock Adaptors
(2) 3.5” 3-Tab Wide Twist-Lock Adaptors
(2) 33µF Non-Polarized Cap (Bass-Blockers)
(2) Passive Crossover Network (Woofer)
(4) Self-Tapping Phillips #4x16mm (Tweeter)
(4) 18” Crossover Wiring Extensions
(14) Self-Tapping Phillips #8x32mm (Speaker)
(2) Zip Ties 4.8 mm x 350 mm
(4) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(10) 18 AWG Crimp Butt Conn.

Mounting Hardware: Yes

1x Rockford Fosgate T400X4AD 4 Channel Amplifier - 100x4 @ 4-Ohm, 100x4 @ 2-Ohm, 200x2 @ 4-Ohm Bridged (T400X4AD)


Rockford Fosgate Power 400 Watt Class-ad 4-Channel Amplifier

The Power T400X4ad is an ultra-compact, high efficiency 400 Watt 4-channel amplifier. Features multi-impedance Constant Power, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

The Power T400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.

  • Rockford Fosgate proprietary Class AD technology
  • 4/2 Ohm muti-impedance Constant Power
  • Differential inputs with high level auto turn-on feature
  • 8 AWG power/ground connector w/ upgraded RCA connectors
  • Remote-Out feature when using high level inputs
  • 2/4 channel input switch
  • 4 Ohm bridged capable
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing
  • Dual extruded heat sinks
  • Discrete surface mount technology
  • 2-Year Warranty

General Specifications

CEA-2006 Compliant
CEA-2006 Guidelines CEA-2006 Power Rating
100W x 4 @ 4Ω
≤1.0% THD+N
Cta-2006 Compliant
Number of Channels
4
Total Power
(Sum of Rated Power)
400 Watts
Rated Power
(RMS Continuous Power)
100 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
128 Watts x 4 @ 4-Ohm
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
Bridgeable
Yes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response
20Hz-20kHz +/-1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class AD
Efficiency (average)
>75%
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Front High/Low Level Input: 4-Pin harness
Rear High/Low Level Input: 4-Pin harness
Signal Output
—
Tone Controls
Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Crossover Controls
High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
—
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
16 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Cooling
Dual Fan Cooled
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
60 A
Average Current Draw (13.8V Music)
28 A
Max. Current Draw (13.8V Sinewave)
55 A
Suggested Alternator
75 A
Dimensional Diagram
Dimensions (H x W x D)
1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight
3.4 Lbs. (1.54 Kg.)


1x Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse (RFK4X)


Rockford Fosgate 4 AWG Complete Installation Kit

4 gauge complete power, ground and signal installation kit for a 2-channel amplifier.

Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.

  • FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
  • 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
  • Includes appropriate wire termination hardware
  • 4 AWG (21.1mm²) 1,862 strands
  • 16 AWG (1.31mm²) 65 strands
  • 1 Year Warranty

Specifications

Battery PWR/GND Gauge
4 AWG
Amplifier PWR/GND Gauge
4 AWG
Fuse Type
MAXI
Dual Amp Installation Kit
No
Speaker Wire Gauge
16 AWG
Fuse Size
100 Amp


Extra Information

Brand:
Rockford Fosgate
Weight:
29.00 LBS
RMS Wattage Per Speaker:
100
UPC:
199730565832
Bundle:
Yes
Feature 1:
This bundle includes a 6.5" 3-way speaker kit, 6x9" 3-way coaxial speaker kit, 4-channel amplifier, and complete amp kit for a powerful audio setup.
Feature 2:
Experience superior sound with the 6.5" and 6x9" speaker kits, delivering 75 watts RMS and 150 watts peak power for crystal-clear audio.
Feature 3:
The Rockford Fosgate T400X4AD amplifier offers 100x4 @ 4-Ohm and 200x2 @ 4-Ohm bridged power, ensuring dynamic and powerful sound.
Feature 4:
The complete amp kit includes 4 AWG power and ground wires, 16 AWG speaker wire, and RCA cables for easy installation and optimal performance.
Feature 5:
Enjoy high efficiency and flexibility with the Class-AD amplifier technology, featuring Constant Power and dual fan cooling for reliability.
Condition:
NEW
Weight:
29.0000 lbs
Shipping:
Free 2-Day Shipping!
