Description
Included in this kit
This bundle includes a Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility, and a Rockford Fosgate MX-CAM-X317 Camera Plug and Play Harness and Mounting Kit for MX-CAM Compatible With Select CanAm X3.

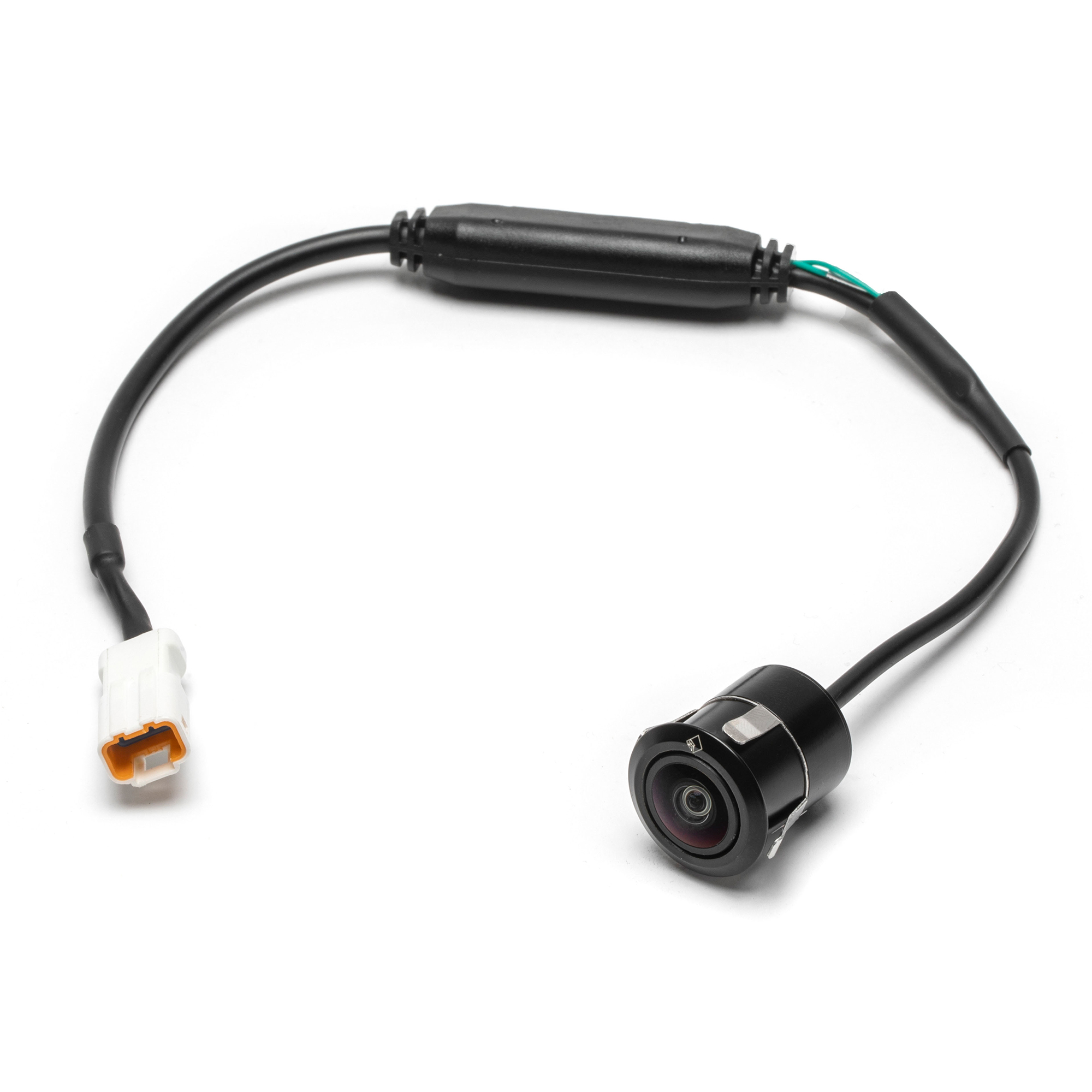

1x Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility (MX-CAM)
**Camera requires corresponding vehicle specific mounting kit. Details available under Accessories tab.**
The MX-CAM is a universal camera, purpose-built for motorsports applications, making it a perfect add-on for Stage-5 and Stage-6 Color Optix kits. The high-resolution color camera provides a crystal-clear picture for backing-up or rock-crawling. When paired with a vehicle specific installation kit, the T-harness allows for easy, error proof connections along with mounting brackets for a direct fit on select Polaris® and Can-Am® models. Harness plugs directly into PMX-3 and PMX-8 source units with an included trigger wire adaptor.
It is equipped with several Element Ready technologies that resist UV rays, water, dust, and corrosion. Its durable design also makes it resistant to vibration and thermal shock where true outdoor resilience is a must. Designed to fit select Polaris® and Can-Am® models with corresponding mounting kits with a simple plug-and-play interface for easy, error proof connection. Designed for use with PMX-3 and PMX-8 source units, and compatible with any source unit featuring a composite video input.
• Designed for use with MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
• HD Video Resolution for crystal clear image
• Element Ready to withstand the harsh outdoor environment
• Image display switchable from mirror to normal to accommodate rear or front installation
• 2-Year Warranty
• Image Sensor: 1/4" CMOS
• Resolution: 680 x 488
• Lens: 120(H), 89(V)
• Video Output: 1.0Vpp Composite, 75-Ohms
• Minimum Illumination: 0.1 Lux
• Mirror Image: OFF = cut mirror option wire; ON = connect mirror option wire
• Cutout Diameter: 19mm (0.75")
• Operating Temp: -30 to +70 Celcius
• DC Power: 12V, 70mA
• Operating Voltage: DC 12V (8V-15V)
• In The Box: (1) Eyeball camera with 11" pigtail

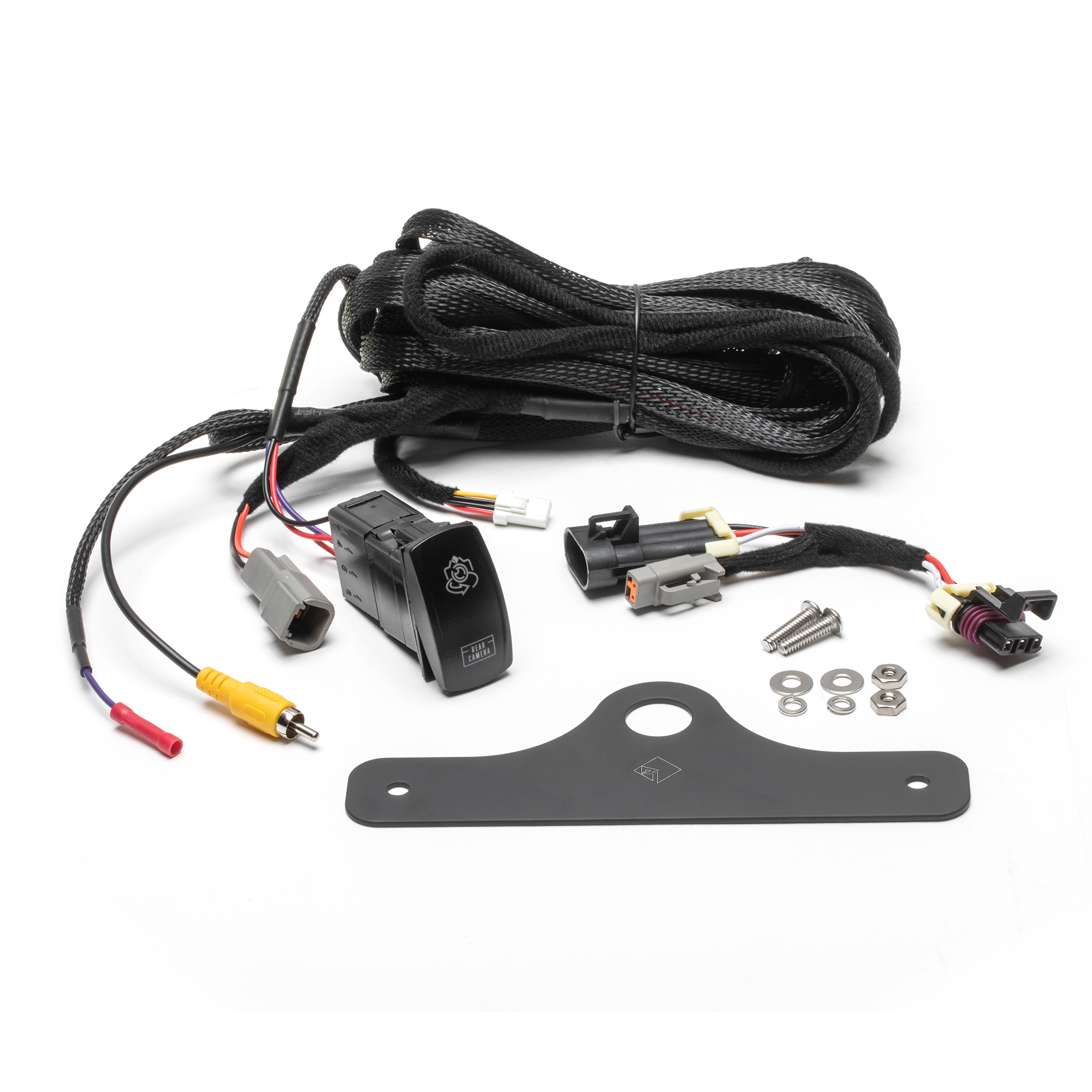

1x Rockford Fosgate MX-CAM-X317 Camera Plug and Play Harness and Mounting Kit for MX-CAM Compatible With Select CanAm X3 (MX-CAM-X317)
**This Kit requires matching MX-CAM motorsports backup camera.**
Compatible Source Units and Stage kits: X317-STG5, X317-STG6, PMX-3, PMX-8DH
The MX-CAM-X317 is a vehicle specific installation kit for the MX-CAM, purpose-built for select Can-Am MAVERICK X3 models. An included bracket allows for factory fitment on 2017 and newer models. The included T-harness allows for easy, error proof electrical connections. The harness plugs directly into PMX-3 and PMX-8 source units with an integrated trigger wire, and the included red/blue backlit rocker snaps into an open slot in the X317-DK providing instant camera view.
The MX-CAM-X317 harness provides everything needed to install the MX-CAM on select Can-Am MAVERICK X3 models. The included bracket secures to factory attachment points and allows the camera to snap-in to place. A vehicle specific T-harness plugs directly in the taillight to supply power for the camera. Composite video is accessible through an industry standard male RCA for connection to any source unit with a video line input. PMX-3 and PMX-8 compatibility is ensured with an additional remote trigger, turning the camera on/off when shifting the UTV into reverse. The panel mount rocker switch features a blue backlit “rear camera” logo for easy identification and a red backlit camera icon to indicate the on/off status.
In The Box
(1) Can-Am X3 License plate bracket mount (steel)
(2) Screws/2 nuts (hardware for Camera plate)
(1) Main harness with carling switch
(1) Can-Am X3 Tail-light T-Harness adapter
