Rockford Punch Pro 6.5in Midrange, Horn Tweeter and Crossover Kit

Included in this kit

---

This bundle includes 2x Rockford PPROV2-65 Punch Pro 6.5” 4-Ohm Midrange Speaker, 2x Rockford PPROV2-HT Punch Pro 1” 4-Ohm Neodymium Horn Tweeter, and 2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”).

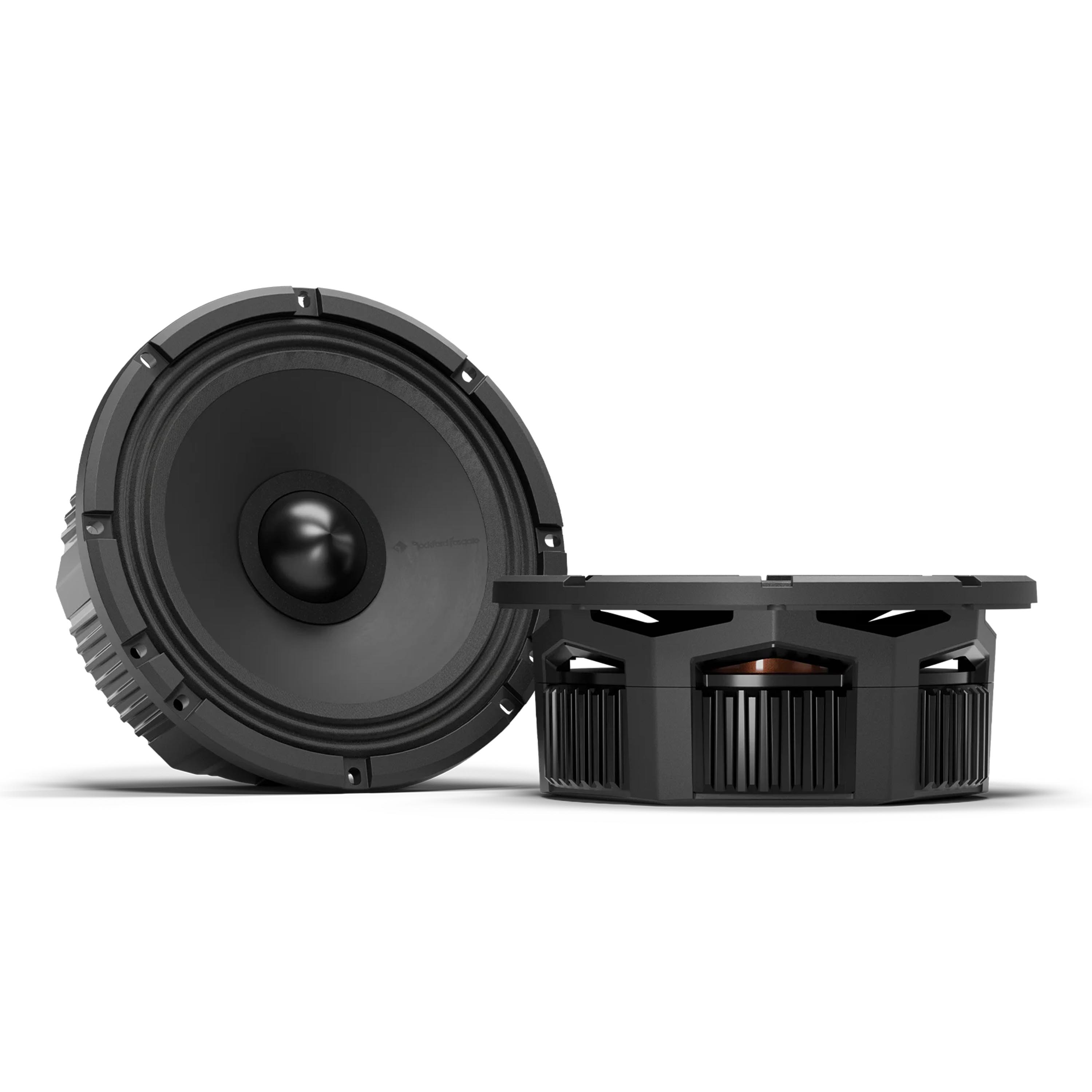

2x Rockford PPROV2-65 Punch Pro 6.5” 4-Ohm Midrange Speaker (PPROV2-65)

The Punch Pro V2 PPROV2-65 is a 4-Ohm midrange speaker purpose-built for high SPL (Sound Pressure Level) systems, featuring a curvilinear pressed pulp cone with a multi-roll treated cloth surround for responsive output, along with a pure copper voice coil wrapped around a Kapton former for excellent power handling. Sold in pairs (2 each).

Designed for extreme SPL performance and maximum output
Anodized CNC machined aluminum phase plug for sound dispersion and cooling
Durable multi-roll treated cloth surround for high-output performance
Lightweight curvilinear pressed pulp cone with felt ring for responsive output
1.5" dual-layer pure copper voice coil boosts linearity and power handling
Kapton® voice coil former delivers high strength and thermal stability
Corrugated poly cotton spider for linear, stable control
Symmetrical ultra-flexible tinsel leads woven into spider for balanced control
Co-molded tin plated brass terminals for corrosion resistant, quick connections
Grilles sold separately

Specifications:
Speaker Type: Midrange
Speaker Size (Nominal Diameter): 6.5" (165.1 mm)
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 64Hz - 7.3kHz
Fs (Hz): 85 Hz
Qts: 0.42
Vas (cu.ft./liters): 0.20 ft3 (5.7 liters)
XMax (in.mm): 0.04” (1.0 mm)
XMax10 (in.mm): 0.10" (2.5 mm)
Sensitivity (dB @ 1W/1M): 92.5 dB
Sensitivity (dB @ 2.83V/1M): 95.5 dB
Voice Coil Diameter (in/mm): 1.5" (38 mm)
Power Handling (Watts RMS): 75 Watts RMS, 150 Watts Peak
Mounting Depth (With Motor Cover): 2.33" (59.1 mm)
Mounting Depth (No Motor Cover): 1.2" (54.15 mm)
Mounting Flange: 6.5" (165.25 mm)
Cutout Diameter: 5.67" (144 mm)
Front Clearance: 0.32" (8.2 mm)
Grille/Trim Ring Included: No
Removable Motor Cover: Yes
Mounting Hardware: Yes

Included in the Box
(2) 4Ω 6.5" Speakers
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template

Shipping Weight: 11.4 Lbs. (5.17 Kg.)

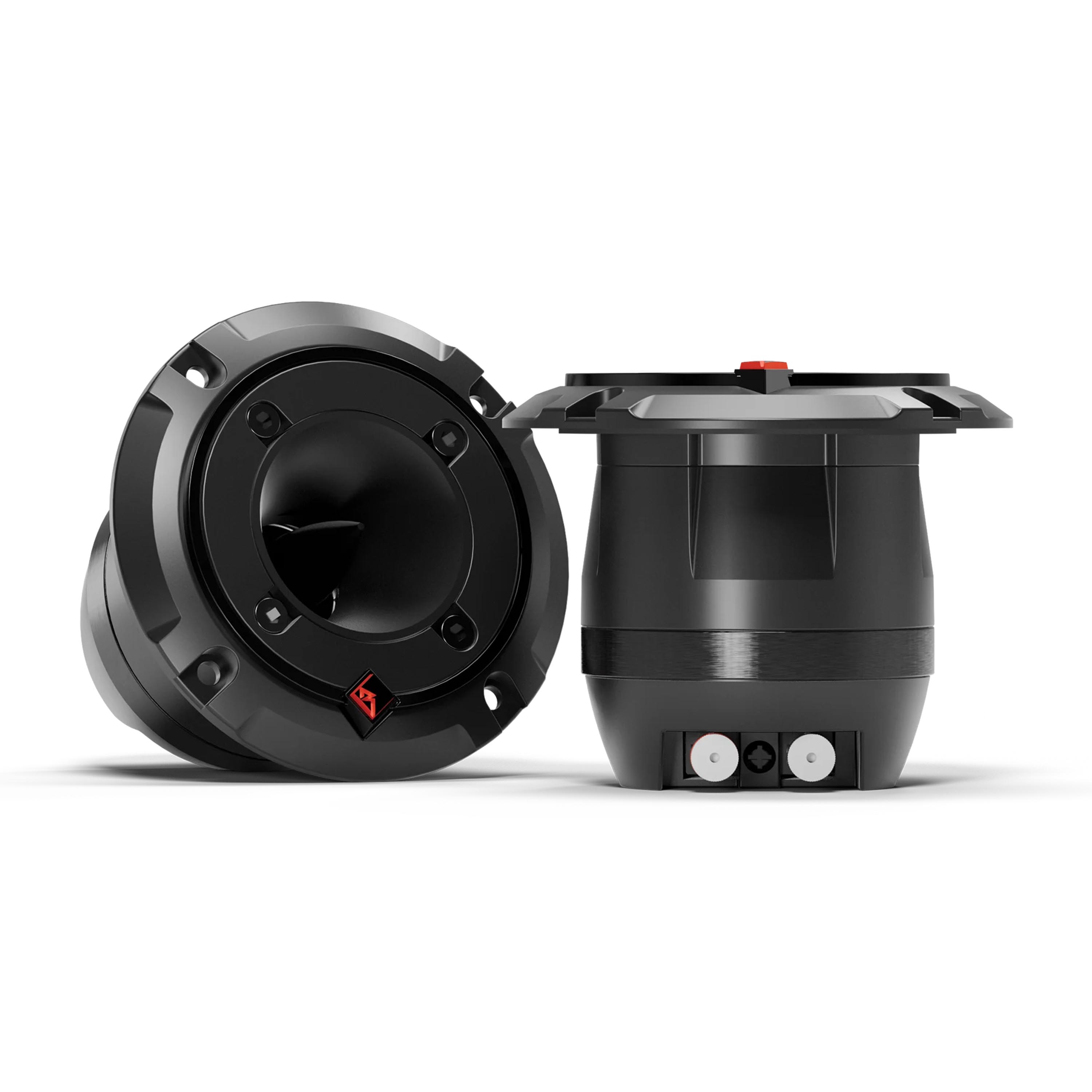

2x Rockford PPROV2-HT Punch Pro 1” 4-Ohm Neodymium Horn Tweeter (PPROV2-HT)

The Punch Pro V2 PPROV2-65 is a 4-Ohm midrange speaker purpose-built for high SPL (Sound Pressure Level) systems, featuring a curvilinear pressed pulp cone with a multi-roll treated cloth surround for responsive output, along with a pure copper voice coil wrapped around a Kapton former for excellent power handling. Sold in pairs (2 each).

Designed for extreme SPL performance and maximum output
Anodized CNC machined aluminum phase plug for sound dispersion and cooling
Durable multi-roll treated cloth surround for high-output performance
Lightweight curvilinear pressed pulp cone with felt ring for responsive output
1.5" dual-layer pure copper voice coil boosts linearity and power handling
Kapton® voice coil former delivers high strength and thermal stability
Corrugated poly cotton spider for linear, stable control
Symmetrical ultra-flexible tinsel leads woven into spider for balanced control
Co-molded tin plated brass terminals for corrosion resistant, quick connections
Grilles sold separately

Specifications:
Speaker Type: Horn Tweeter
Speaker Size (Nominal Diameter): 1" (25.4 mm)
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 3kHz - 20kHz
Fs (Hz): 3.6 kHz
Sensitivity (dB @ 1W/1M): 105 dB
Sensitivity (dB @ 2.83V/1M): 108 dB
Voice Coil Diameter (in/mm): 1" (25.4 mm)
Power Handling (Watts RMS): 75 Watts RMS, 150 Watts Peak
Crossover Frequency (Hz): 12kHz High-Pass
Crossover Slope (Hz): 6dB/Octave
Mounting Depth: Rear Load: 2.95" (75 mm)/Front Load: 2.57" (65.2 mm)
Mounting Flange: Rear Load: 2.52" (64 mm)/Front Load: 3.64" (92.5 mm)
Cutout Diameter: Rear Load: 1.79" (45.5 mm)/Front Load: 2.52" (64.5 mm)
Front Clearance: Rear Load: 0.46" (11.7 mm)/Front Load: 0.47" (12 mm)
Grille/Trim Ring Included: Yes
Removable Motor Cover: No
Mounting Hardware: Yes

Included in the Box
(2) 4Ω 1" Tweeters
(8) #8 Hex Screws, 25 mm long
(8) M3 Hex Screws, 20 mm long
(1) 3 mm Hex Bit
(2) Front Load Trim Ring
(2) Rear Load Trim Ring
(1) Tweeter Cutout Template

Shipping Weight: 3.8 Lbs. (1.72 Kg.)

2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”) (PP4-X)

Rockford Fosgate Punch Pro 4-Ohm Passive Crossover

The PP4-X is designed for use with 4-Ohm Punch Pro midrange drivers and tweeters.
