Rockford PMX-8BB, PMX-8DH Display and MX-CAM Camera System

Shop All: Rockford Fosgate

No reviews yet Write a Review
SKU:
rockfordbdl260807-38
Condition:
New
$1,359.96
Rockford PMX-8BB, PMX-8DH Display and MX-CAM Camera System
$1,359.96

Description

Included in this kit

This bundle includes a Rockford Fosgate PMX-8BB Marine Hide Away Media Receiver, Nmea 2000 Protocol & Remote Compatible, 4 Zone Source Control, a Rockford Fosgate PMX-8DH 5” Wet Bonded Ipx6 Color Display For Pmx-8bb, Ultra-Thin Design, Composite Camera Input, 10ft Ext. Cable Included, a Rockford Fosgate PMX10C 10 Ft Extension Cable For Pmx-8dh, Pmx-1r & Pmx-0r, and a Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility.

1x Rockford Fosgate PMX-8BB Marine Hide Away Media Receiver, Nmea 2000 Protocol & Remote Compatible, 4 Zone Source Control (PMX-8BB)


Rockford Fosgate Punch Marine Hide-Away AM/FM/WP Multi-Zone Digital Media Receiver

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor.

  • Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
  • Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
  • Made for iPhone apple certified
  • Bluetooth, A2DP only, AVRCP 1.4
  • Simple secure pairing bluetooth profile for android & iOS
  • Display album art from connected iPhones on the radios display
  • Folder browsing via BT connected iPhones
  • 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
  • Internal power amplifier 4x50w 2 ohm stable
  • Selectable high pass and low pass crossover points for each independent zone
  • Selectable crossover slopes of 12dB or 24 dB for each independant zone
  • Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
  • Adjustable input gain for each source
  • Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Rear aux-in (L/R)
  • External steering wheel remote control interface compatible
  • External trigger input to activate reverse camera mode
  • Wired illumination control
  • Optional CAN-BUS transceiver ready (PMX-CAN)
  • Rear USB with 1a charging (supports album art on USB connected iPhones)
  • Epoxy coated circuit board
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
  • CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
  • Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
  • *Antenna not included
  • 2-Year Warranty

Specifications

Device Type
Digital-Media Black Box
Frequency Response
20 Hz - 20 kHz
GENERAL
N/A
Display Size
N/A
Operating Voltage
10.5V - 16V
Fuse Rating
15A
Dimensions (HxWxD)
H4.25" x W8.3" x D2.2"
(108mm x 211mm x 56mm)
Remote Capacity
(see Compatibility Chart)
Power Output
CEA-2006 Guidelines CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
≤1.0% THD+N
SPEAKER OUTPUTS
YES
Speaker Impedance
2-Ohms
FEATURES
N/A
Clock
(Yes/No)
No
Speaker Outputs
(Yes/No)
Yes
Bluetooth®
(Yes/No)
Yes
3.0+EDR, A2DP 1.3
SiriusXM-Ready®
(Yes/No)
Yes
Requires SXV300
Pandora® Internet Radio
(Yes/No)
Yes
Steering Wheel Control Ready
(Yes/No)
Yes
Multi-Zone/Multi-Source
(Yes/No)
Yes
Apple®/Android™ Compatible
(Yes/No)
Yes
USB Charging
(Yes/No)
Yes
AUX Input
(Yes/No)
Yes
TUNER
N/A
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
FM TUNER
Frequency Range
87.5 MHz - 107.9 MHz
AM TUNER
Frequency Range
530 kHz - 1710 kHz
WB TUNER
Frequency Range
162.40 - 162.55
(US & Canada)
MEDIA PLAYER
N/A
MEDIA PLAYER
Audio Format Compatibility
MP3
WMA
FLAC
USB Version
2.0
USB Capacity
32Gb max
999 Folders max
999 Songs max
USB Output Current
1A
Android Compatibility
Bluetooth® Only
Made for iPod Models
iPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
Made for iPhone Models
iPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
RCA OUTPUTS
N/A
RCA Output Voltage
4V
RCA Output Impedance
500Ω


1x Rockford Fosgate PMX-8DH 5” Wet Bonded Ipx6 Color Display For Pmx-8bb, Ultra-Thin Design, Composite Camera Input, 10ft Ext. Cable Included (PMX-8DH)


Rockford Fosgate Punch Marine Full Function Wired 5" TFT Display Head

The PMX-8DH, used with the PMX-8BB hide away media receiver is a wired display head controller giving you access to all the receivers capabilities. It features a 5" ultra bright color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination. Additionally it features front panel illumination and sub controls, composite video input as well as a conformal coated PCB for elemental protection.

Designed for use with the PMX-8BB (This is not a stand-alone receiver), the PMX-8DH full function wired display head is the ultimate controller for your digital media system. The unit features a ultra bright 5" TFT display designed and chosen for its viewing ability even in full sunlight. The screen is optically wet bonded to the bezel to prevent any dust or moisture penetration ensuring it stays clean and clear.

Access to the Custom GUI interface is provided through the water resistant rotary encoder knob and white LED back-lit buttons allow you to easily adjust the illumination levels of the panel and provide instant sub level control at your fingertips. The display head also features a composite video input for video or camera systems and easy interconnection to the hide away unit with a multi-pin DIN connector.

The panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.

  • 5" Full color Thin Film Transistor display
  • Wet Bonded Faceplate: An epoxy layer between display and cover glass eliminates air gap to improve visual clarity and preventing dust build-up.
  • Water resistant rotary encoder volume control
  • White LED button illumination
  • Front Panel Sub Control
  • Direct composite video input connection
  • Epoxy coated circuit board for water resistance
  • Two-piece mounting system to secure panel to mounting surface
  • IPX6 Marine Grade for prevention of water intrusion
  • American Society for Testing and Materials (ASTM): B117 Salt Fog Test Standard, D4329 UV Exposure of Plastics Test Standard
  • 2-Year Warranty

Specifications

Speaker Impedance
No
Power Output
No
Dimensions (HxWxD)
H5.1" x W8.3" x D0.8"
(130mm x 211mm x 20mm)
MEDIA PLAYER
Audio Format Compatibility
No
Speaker Outputs
(Yes/No)
No
SPEAKER OUTPUTS
N/A
Device Type
Digital-Media Display Head
Display Size
5” Color TFT
Pandora® Internet Radio
(Yes/No)
No
Bluetooth®
(Yes/No)
No
USB Version
2.0 (Firmware Updating Only)
USB Output Current
1A
AUX Input
(Yes/No)
No
Steering Wheel Control Ready
(Yes/No)
No
FEATURES
N/A
GENERAL
N/A
Apple®/Android™ Compatible
(Yes/No)
No
Multi-Zone/Multi-Source
(Yes/No)
No
Operating Voltage
10.5V - 16V
Clock
(Yes/No)
No
Video Input
(1) Female RCA Jack
SiriusXM-Ready®
(Yes/No)
No
USB Charging
(Yes/No)
No
Included In The Box
(1) PMX-8DH display head
(1) PMX10C

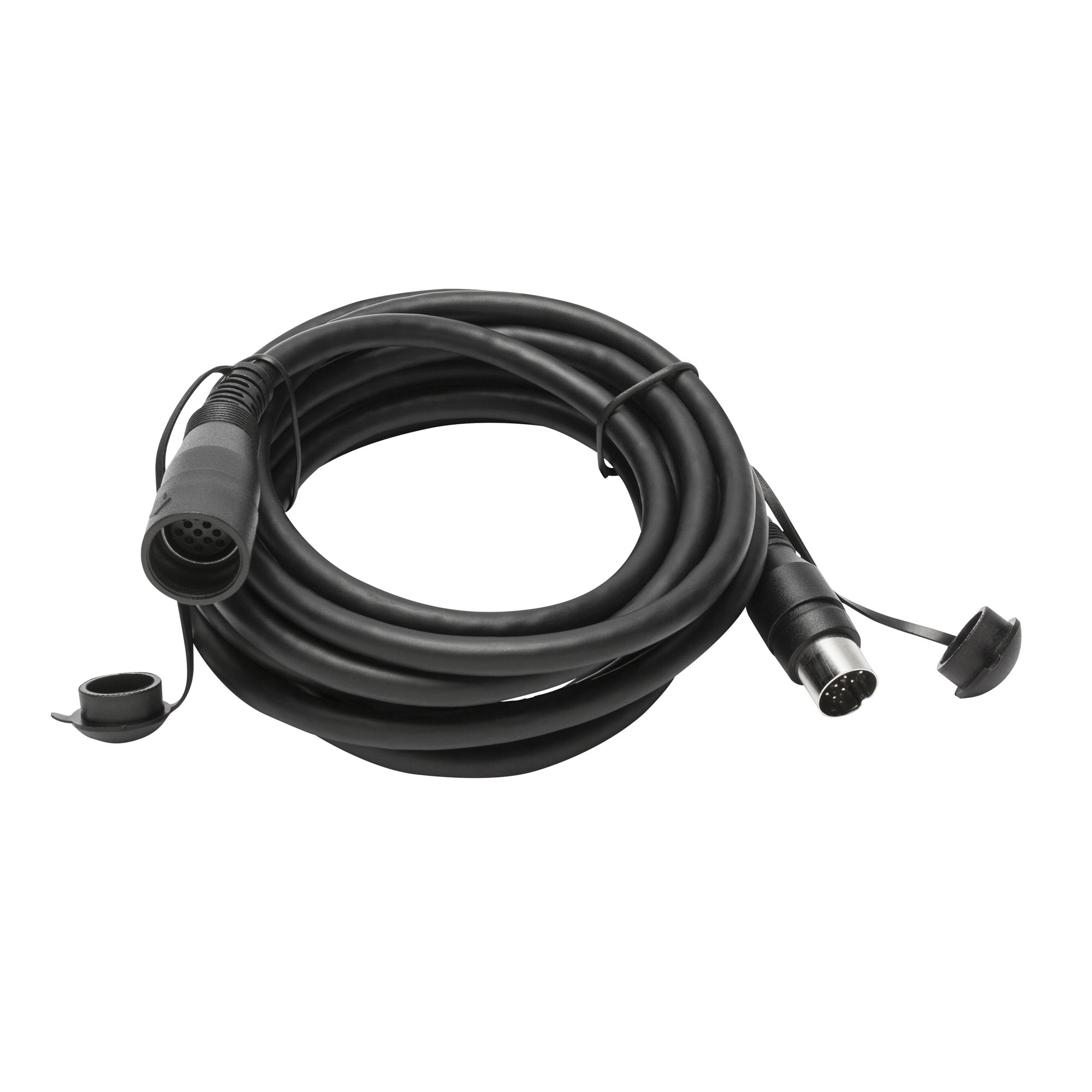

1x Rockford Fosgate PMX10C 10 Ft Extension Cable For Pmx-8dh, Pmx-1r & Pmx-0r (PMX10C)


Rockford Fosgate Punch Marine 10 Foot Extension Cable

The PMX10C is a 10-foot extension cable for the PMX-8DH, PMX-1R, or PMX-0R.

The PMX10C is a 10-foot extension cable for the PMX-8DH, PMX-1R, or PMX-0R.

  • Compatible extension cable for PMX-8DH
  • Compatible extension cable for PMX-1R
  • Compatible extension cable for PMX-0R
  • 2-Year Warranty


1x Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility (MX-CAM)


**Camera requires corresponding vehicle specific mounting kit. Details available under Accessories tab.**
The MX-CAM is a universal camera, purpose-built for motorsports applications, making it a perfect add-on for Stage-5 and Stage-6 Color Optix kits. The high-resolution color camera provides a crystal-clear picture for backing-up or rock-crawling. When paired with a vehicle specific installation kit, the T-harness allows for easy, error proof connections along with mounting brackets for a direct fit on select Polaris® and Can-Am® models. Harness plugs directly into PMX-3 and PMX-8 source units with an included trigger wire adaptor.

It is equipped with several Element Ready technologies that resist UV rays, water, dust, and corrosion. Its durable design also makes it resistant to vibration and thermal shock where true outdoor resilience is a must. Designed to fit select Polaris® and Can-Am® models with corresponding mounting kits with a simple plug-and-play interface for easy, error proof connection. Designed for use with PMX-3 and PMX-8 source units, and compatible with any source unit featuring a composite video input.

• Designed for use with MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
• HD Video Resolution for crystal clear image
• Element Ready to withstand the harsh outdoor environment
• Image display switchable from mirror to normal to accommodate rear or front installation
• 2-Year Warranty

• Image Sensor: 1/4" CMOS
• Resolution: 680 x 488
• Lens: 120(H), 89(V)
• Video Output: 1.0Vpp Composite, 75-Ohms
• Minimum Illumination: 0.1 Lux
• Mirror Image: OFF = cut mirror option wire; ON = connect mirror option wire
• Cutout Diameter: 19mm (0.75")
• Operating Temp: -30 to +70 Celcius
• DC Power: 12V, 70mA
• Operating Voltage: DC 12V (8V-15V)
• In The Box: (1) Eyeball camera with 11" pigtail


Extra Information

Brand:
Rockford Fosgate
Weight:
7.12 LBS
UPC:
199730381074
Bundle:
Yes
Feature 1:
This bundle includes a Rockford Fosgate PMX-8BB Media Receiver, PMX-8DH Display, PMX10C Extension Cable, and MX-CAM Camera.
Feature 2:
Enjoy seamless control with the PMX-8BB's 4-zone source management and NMEA 2000 compatibility for marine use.
Feature 3:
The PMX-8DH offers a 5” IPX6 color display with wet-bonded technology for clear visibility in any weather.
Feature 4:
Extend your connectivity with the PMX10C 10-foot cable, ensuring flexibility in installation and setup.
Feature 5:
Capture every moment with the MX-CAM camera, designed for durability and high-resolution performance in extreme conditions.
