Description
Included in this kit
This bundle includes a Rockford Fosgate T2S2-13 13” Subwoofer- SVC (2-Ohm), 2000 Watts Rms, 4000 Watts Peak, a Rockford Fosgate T2500-1BDCP Mono Amplifier - 1500x1 @ 4-Ohm, 2500x1 @ 2-Ohm , 2500x1 @ 1-Ohm, and a Rockford Fosgate RFK1 Power Only Amp Kit: 17ft 1/0awg Power Wire, 3ft 1/0awg Ground Wire, 20ft Remote Wire, Anl/Maxi Fuse Holder, - 300 Amp Fuse.

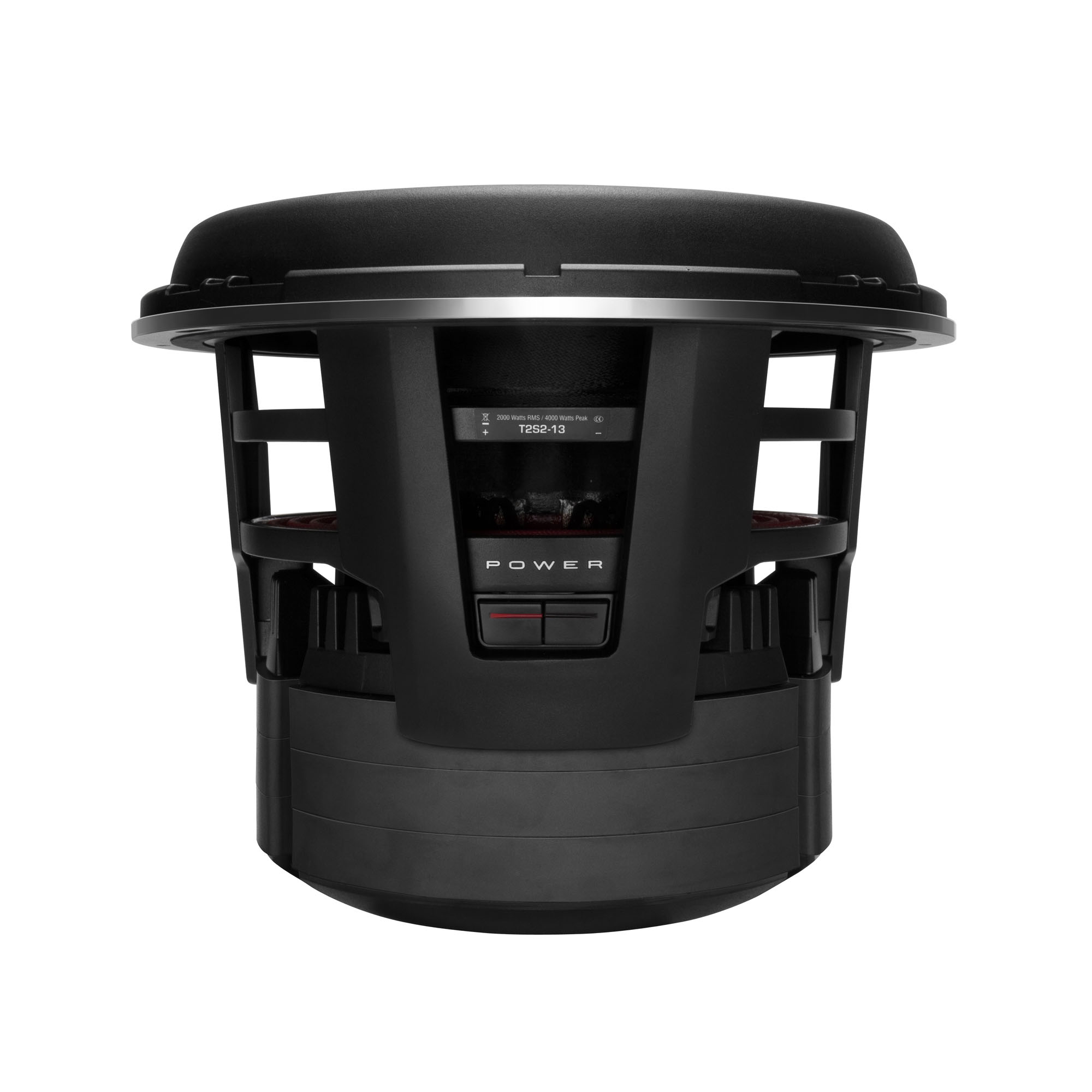

1x Rockford Fosgate T2S2-13 13” Subwoofer- SVC (2-Ohm), 2000 Watts Rms, 4000 Watts Peak (T2S2-13)
Rockford Fosgate Power 13" T2 Single 2-Ohm Subwoofer
The Power T2S2-13 subwoofer features 13-inches of effective radiating cone area and a single 1-ohm voice coil for ease of wiring.
This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.
Why 13-inches? Well, this is a combination of the cone and surround assembly described as the "total effective radiating area". Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!
WARNING: Use caution when installing this subwoofer. It's heavier than Atlas holding a globe on his shoulders.
- Three layer glass fiber/Aramid honeycomb/Glass fiber cone
- Aluminum dustcap
- Injection molded foam surround with VAST™
- Proprietary surround mechanical clamping ring
- Dual Nomex progressive spiders with integrated lead wires
- Aluminum diecast frame with integrated heat sink fins
- Custom push spring insulated 8 AWG terminals
- Single layer edge wound aluminum 4" voice coil
- Detachable die cast aluminum trim ring
- Vented pole piece
- Triple stack segmented ferrite motor structure
- Integrated aluminum heat sinking shorting ring (IDHS)
- 1 Year Warranty
Specifications
4000 Watts Max

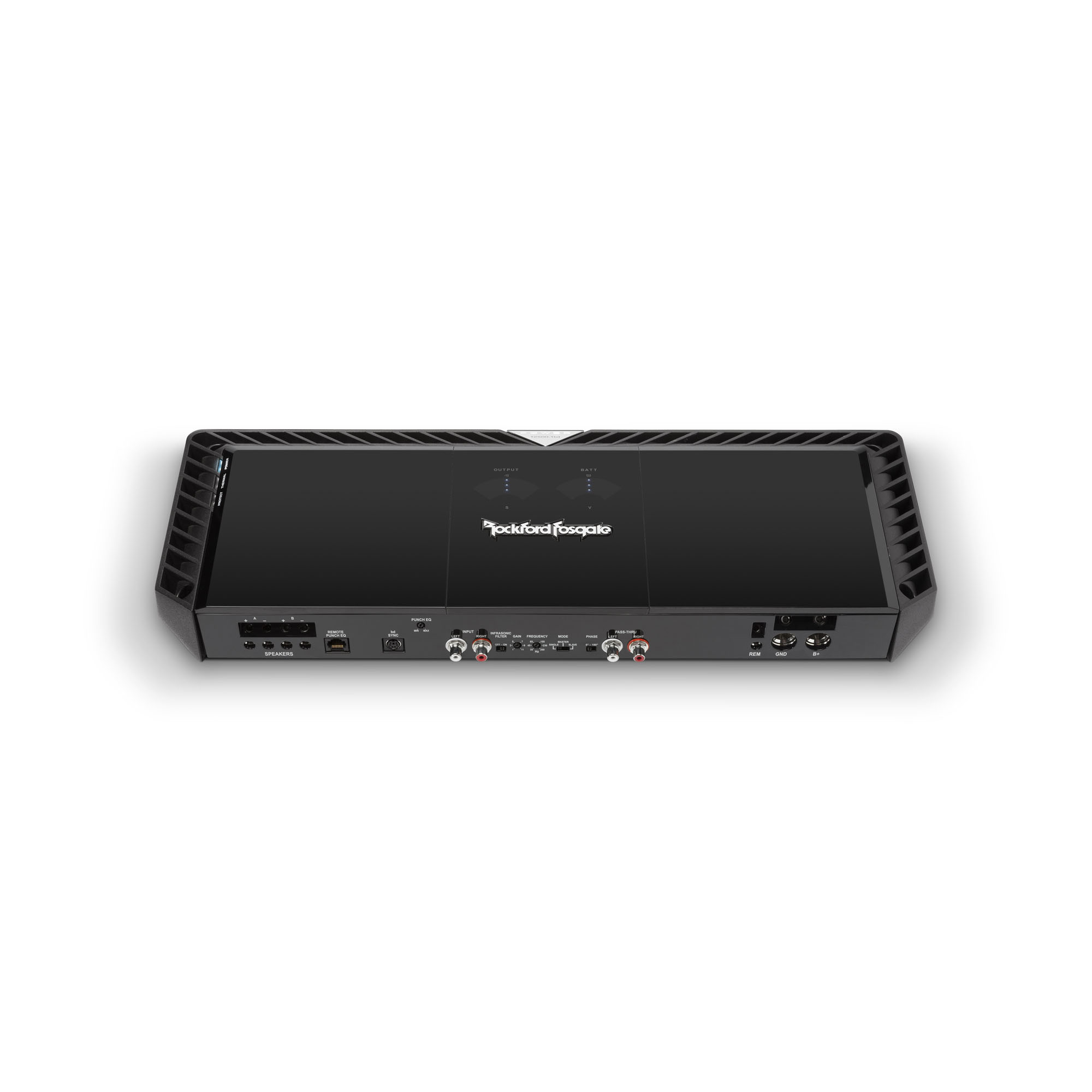

1x Rockford Fosgate T2500-1BDCP Mono Amplifier - 1500x1 @ 4-Ohm, 2500x1 @ 2-Ohm , 2500x1 @ 1-Ohm (T2500-1BDCP)
Rockford Fosgate Power 2500 Watt Class-bd Constant Power Amplifier
The Power T2500-1bdCP is a 2,500 Watt mono amplifier featuring Constant Power. The T2500-1bdCP is so flexible and powerful you can use a pair in bdSYNC mode to create one massive amplifier that can deliver a whopping 5 Kilowatts.
The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary "Constant Power" configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse!
- 24dB/octave crossover
- 1/0 AWG power/ground connectors
- Audiophile grade speaker connections
- Infrasonic filter
- MOSFET power supply
- MOSFET output stage
- RCA pass-thru outputs
- PowerSync - allows 2 amplifiers to be "strapped" together
- MasterSync - allows 1 amplifier to control an array of amplifiers
- 0°/180° Phase Switch
- Blue L.E.D. Simulated VU Signal/Power Meters
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating1500W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
2500 Watts x 1 @ 2-Ohm
2500 Watts x 1 @ 1-Ohm
Two amplifiers in bdSYNC:
5000 Watts x 1 @ 2-Ohm
(PVC/PowerCube®)
2940 Watts x 1 @ 2-Ohm
2980 Watts x 1 @ 1-Ohm
(two amps can be "strapped" together using bd-Sync2 cable to create one monster amplifier)
77.7% @ 2-Ohm
64.5% @ 1-Ohm
2-Ohm: <1.0%
1-Ohm: <1.0%
Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
(overrides built-in Punch Bass)
Thermal (Red LED)
Protect (Yellow LED)
Output -00dB to +2dB @ 11 steps (Blue LEDs)
Battery 9VDC to 16VDC @ 11 steps (Blue LEDs)
(not included)
5.44 x 20.68 x 55.66 (cm)

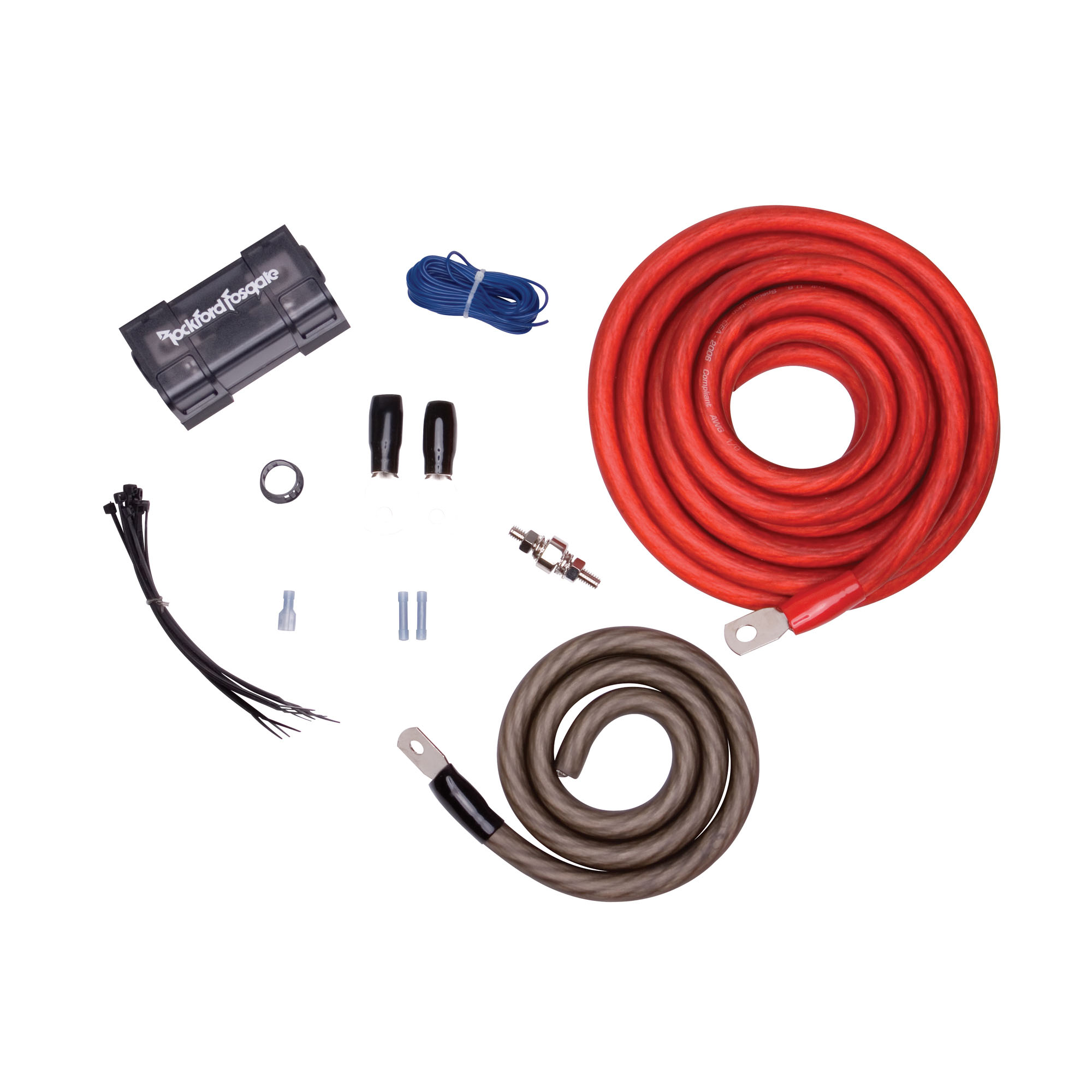

1x Rockford Fosgate RFK1 Power Only Amp Kit: 17ft 1/0awg Power Wire, 3ft 1/0awg Ground Wire, 20ft Remote Wire, Anl/Maxi Fuse Holder, - 300 Amp Fuse (RFK1)
Rockford Fosgate 1/0 Power Installation Kit
1/0 gauge power and ground installation kit for an amplifier.
Kit includes 17 feet of 1/0 AWG power wire, 3 feet of ground wire, ANL/Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 1/0 AWG (53.5mm²) 4,704 strands
- 1 Year WarrantyFULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 1/0 AWG (53.5mm²) 4,704 strands
- 1 Year Warranty
Specifications
