This bundle includes a Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility, and a Rockford Fosgate MX-CAM-RNGR18 Camera Plug and Play Harness and Mounting Kit Compatible with Select Ranger Models.
1x Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility (MX-CAM)
**Camera requires corresponding vehicle specific mounting kit. Details available under Accessories tab.**
The MX-CAM is a universal camera, purpose-built for motorsports applications, making it a perfect add-on for Stage-5 and Stage-6 Color Optix kits. The high-resolution color camera provides a crystal-clear picture for backing-up or rock-crawling. When paired with a vehicle specific installation kit, the T-harness allows for easy, error proof connections along with mounting brackets for a direct fit on select Polaris® and Can-Am® models. Harness plugs directly into PMX-3 and PMX-8 source units with an included trigger wire adaptor.
It is equipped with several Element Ready technologies that resist UV rays, water, dust, and corrosion. Its durable design also makes it resistant to vibration and thermal shock where true outdoor resilience is a must. Designed to fit select Polaris® and Can-Am® models with corresponding mounting kits with a simple plug-and-play interface for easy, error proof connection. Designed for use with PMX-3 and PMX-8 source units, and compatible with any source unit featuring a composite video input.
• Designed for use with MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
• HD Video Resolution for crystal clear image
• Element Ready to withstand the harsh outdoor environment
• Image display switchable from mirror to normal to accommodate rear or front installation
• 2-Year Warranty
• Image Sensor: 1/4" CMOS
• Resolution: 680 x 488
• Lens: 120(H), 89(V)
• Video Output: 1.0Vpp Composite, 75-Ohms
• Minimum Illumination: 0.1 Lux
• Mirror Image: OFF = cut mirror option wire; ON = connect mirror option wire
• Cutout Diameter: 19mm (0.75")
• Operating Temp: -30 to +70 Celcius
• DC Power: 12V, 70mA
• Operating Voltage: DC 12V (8V-15V)
• In The Box: (1) Eyeball camera with 11" pigtail
1x Rockford Fosgate MX-CAM-RNGR18 Camera Plug and Play Harness and Mounting Kit Compatible with Select Ranger Models (MX-CAM-RNGR18)
The MX-CAM-RNGR18 harness provides everything needed to install the MX-CAM on select Polaris® RANGER® models. The included large upper bracket and small lower bracket secures to factory attachment points and allows the camera to snap-in to place. Bracket usage depends on Ranger model. A vehicle specific T-harness plugs directly in the taillight to supply power for the camera. Composite video is accessible through an industry standard male RCA for connection to any source unit with a video line input. PMX-3 and PMX-8 compatibility is ensured with an additional remote trigger, turning the camera on/off when shifting the UTV into reverse. The panel mount rocker switch features a blue backlit “rear camera” logo for easy identification and a red backlit camera icon to indicate the on/off status.
• Kit requires MX-CAM motorsports backup camera
• Includes upper and lower bracket for mounting depending on Polaris® Ranger model
• Prewired and included camera switch for quick access
• Vehicle specific T-harness allows for quick no mistake wire connections

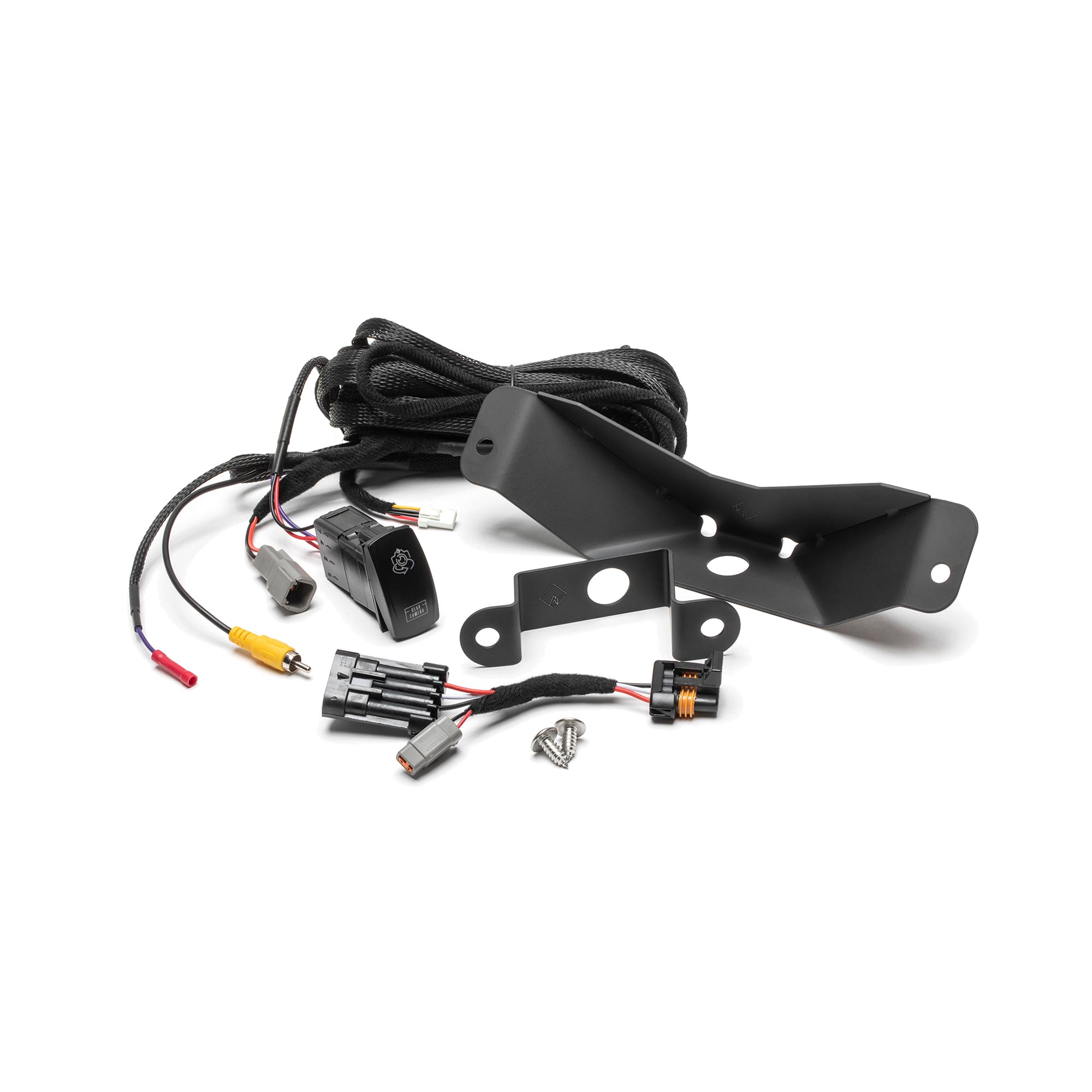

In The Box:
• (1) Ranger Model year 18-current rear bracket upper
• (2) Screws (hardware for upper camera bracket)
• (1) Lower camera bracket
• (1) Main harness with carling switch
• (1) Ranger Tail-light T-Harness adapter
Compatibility:
• PMX-3 - Compact Digital Media Receiver w/ 2.7" Display
• PMX-8DH - Punch Marine Full Function Wired 5" TFT Display Head for PMX-8BB
