Rockford Fosgate P3SD4-12 12in Subwoofer + P3SG-12 Grille

Description

Included in this kit

1x P3SD4-12

1x P3SG-12

---

This bundle includes a Rockford Fosgate P3SD4-12 12” Slim Subwoofer, DVC, 400W Rms, and a Rockford Fosgate P3SG-12 12” Stamped Mesh Grille Insert.

1x Rockford Fosgate P3SD4-12 12” Slim Subwoofer, DVC, 400W Rms (P3SD4-12)

Rockford Fosgate Punch 12" P3S Shallow 4-Ohm DVC Subwoofer

Rockford Fosgate P3S 12" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-12 features Dual 4-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

• M-Roll Santoprene™ surround
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• 1 Year Warranty

Specifications

Nominal Impedance

Dual 4-Ohm

Magnet Weight (oz)

51 oz. (1.45 kg.)

Voice Coil Diameter

2.5" (65.5 mm)

Speaker Connector

Dual 10 AWG Compression

Mounting Depth

3.65 in. (92.5 mm)

Qms

5.70

Vas (Liters)

35.3

Re (Ohms)

6.80

Size

12"

Shipping Weight

13.25 Lbs. (6.01 kg.)

Fs (Hz)

35.4

Qts

0.72

Qes

0.83

Cutout Diameter

11.22 in. (285.0 mm)

Woofer Displacement

0.086 cu. ft. (2.45 Liters)

CEA-2031 Compliant

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Le (mH)

4.4

Sd (cm²)

500

SPL (dB @ 1w/1m)

85

Xmax (mm)

8.1

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.0 cu. ft. (28.3 Liters)

Vented Box Volume (Vb)

1.25 cu. ft. (35.3 Liters)

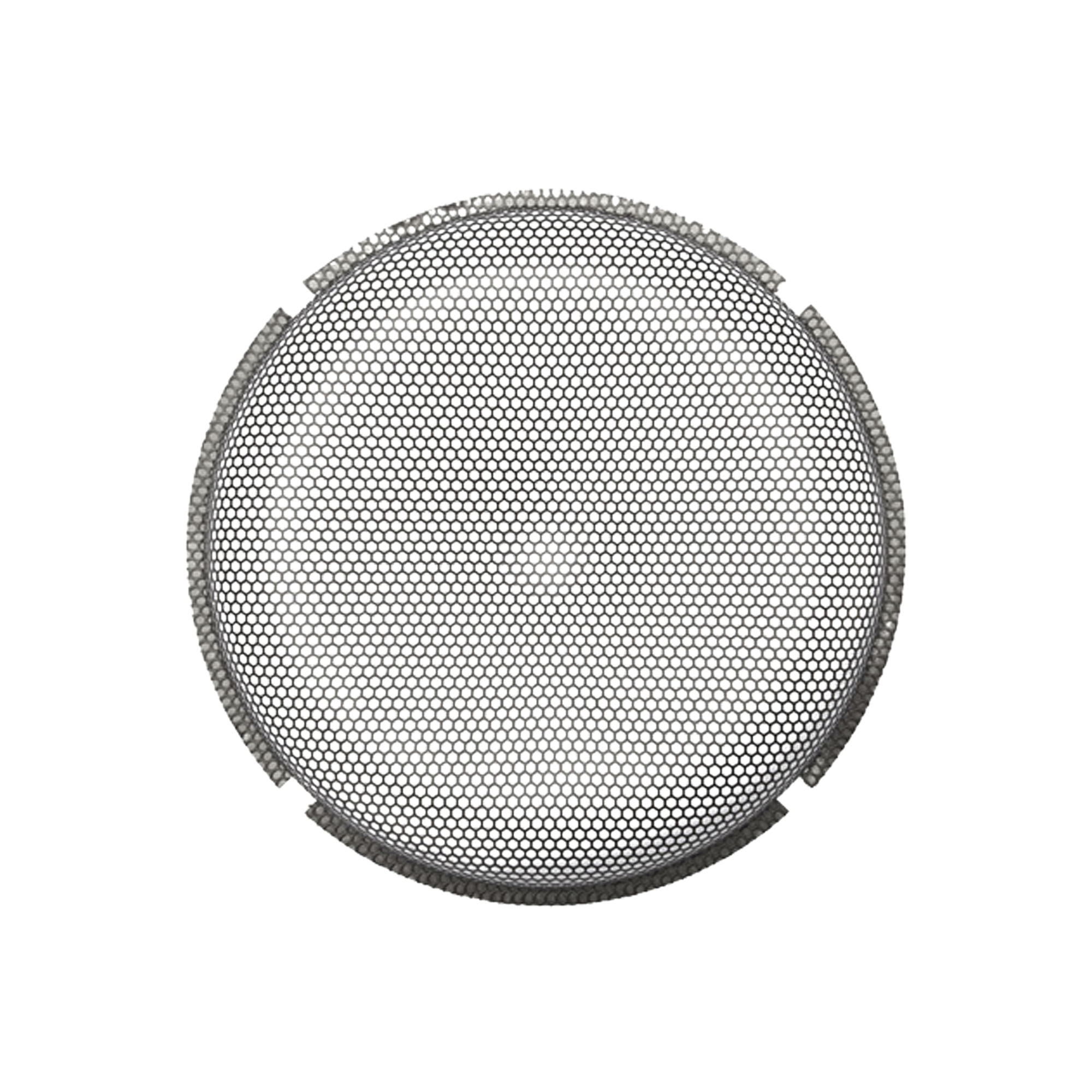

1x Rockford Fosgate P3SG-12 12” Stamped Mesh Grille Insert (P3SG-12)

Made from stamped metal, this black grille will protect your 12" P3S shallow subwoofers from the brutal environment of your trunk. Keeps your golf clubs, softball bats, hockey sticks or even baby strollers away from your prized Rockford Fosgate subwoofers. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re-secure the trim ring. Compatible with select models.

Features:
Inserts snugly into Gen-2 P3S trim rings.
Protects against surround and cone damage.
Sized to fit Gen-2 P3S woofers.
Stamped mesh grille insert.
1 Year Warranty

Extra Information

Brand:

Rockford Fosgate

Weight:

14.25 LBS

RMS Wattage Per Speaker:

400

UPC:

199730948116

Bundle:

Yes

Feature 1:

This bundle includes a Rockford Fosgate P3SD4-12 12” Slim Subwoofer, DVC, 400W Rms, and a Rockford Fosgate P3SG-12 12” Stamped Mesh Grille Insert.

Feature 2:

The Rockford Fosgate P3SD4-12 subwoofer delivers powerful bass with its 400 Watts RMS power handling, perfect for depth-limited spaces.

Feature 3:

Dual 4-Ohm voice coils offer wiring flexibility, ensuring compatibility with various configurations and enhancing sound quality.

Feature 4:

The subwoofer features a shallow mount design, making it ideal for vehicles with limited space without sacrificing audio performance.

Feature 5:

The included stamped mesh grille insert protects your subwoofer from damage, ensuring longevity and maintaining sound integrity.

Condition:

NEW

Weight:

14.2500 lbs

Shipping:

Free 2-Day Shipping!
