Rockford Fosgate P3SD4-10 10in Subwoofer + P3SG-10 Grille

Description

Included in this kit

1x P3SD4-10

1x P3SG-10

---

This bundle includes a Rockford Fosgate P3SD4-10 10" Slim Subwoofer - Dual 4-Ohm, 300W RMS, 600W Peak, and a Rockford Fosgate P3SG-10 10” Stamped Mesh Grille Insert.

1x Rockford Fosgate P3SD4-10 10" Slim Subwoofer - Dual 4-Ohm, 300W RMS, 600W Peak (P3SD4-10)

Rockford Fosgate Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

• M-Roll Santoprene™ surround
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• 1 Year Warranty

Specifications

Magnet Weight (kg) NOT USED

1.32 oz. (47 kg.)

Nominal Impedance

Dual 4-Ohm

Magnet Weight (oz)

47 oz. (1.32 Kg)

Voice Coil Diameter

2.5" (65.5 mm)

SPL (dB @ 1w/1m)

83

Fs (Hz)

42

Qms

6.00

Vas (Liters)

14.3

Cutout Diameter

9.06 in. (230.0 mm)

Woofer Displacement

0.074 cu. ft. (2.1 Liters)

Sd (cm²)

333

Size

10"

Speaker Connector

Dual 10 AWG Compression

Mounting Depth

3.50 in. (89.0 mm)

Shipping Weight

11.9 Lbs. (5.39 kg.)

Qts

0.78

Qes

0.90

Xmax (mm)

8.1

CEA-2031 Compliant

Power Handling (Watts RMS)

300 Watts RMS
600 Watts Max

Re (Ohms)

6.80

Le (mH)

4.3

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.5 cu. ft. (14.1 Liters)

Vented Box Volume (Vb)

1.0 cu. ft. (28.3 Liters)

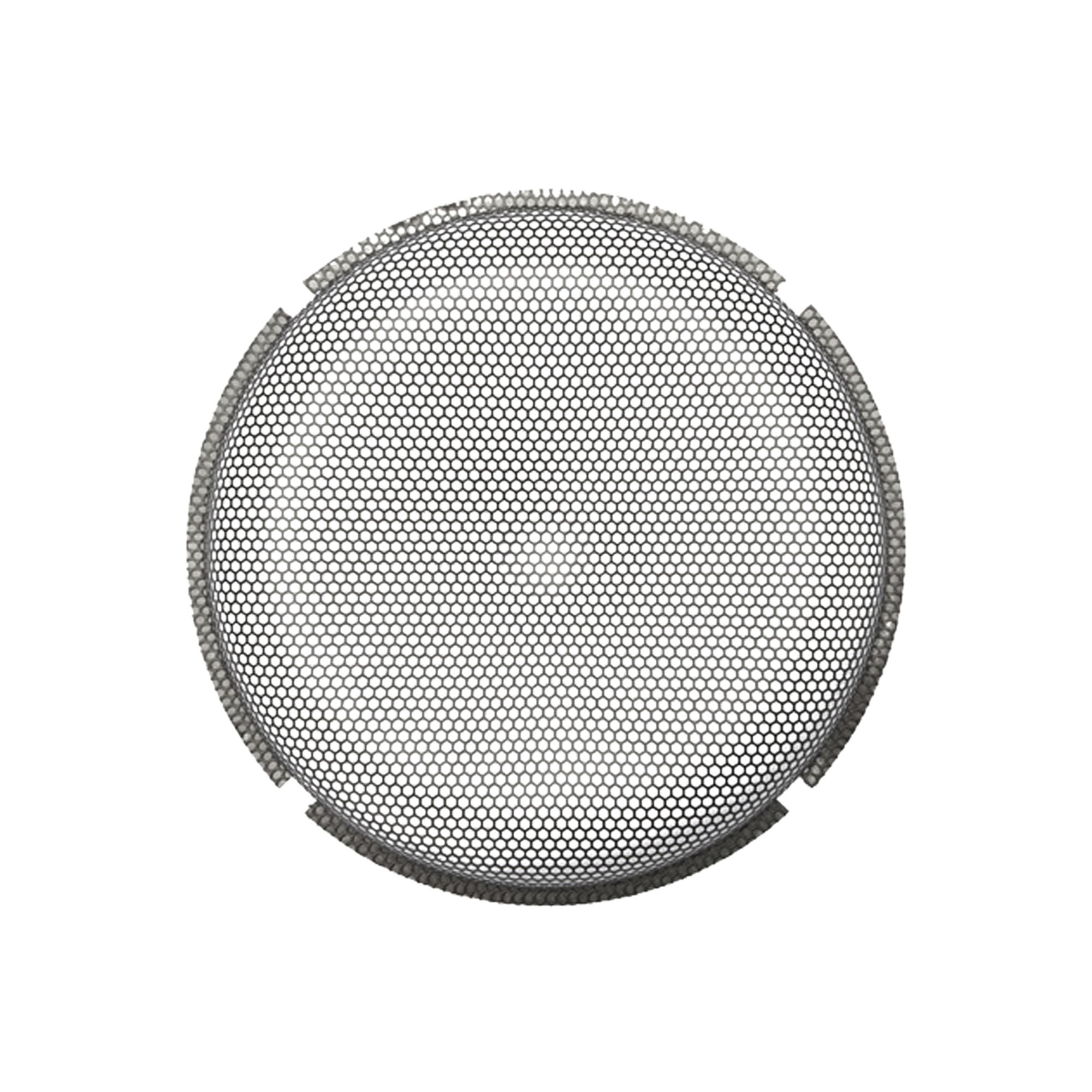

1x Rockford Fosgate P3SG-10 10” Stamped Mesh Grille Insert (P3SG-10)

Made from stamped metal, this black grille will protect your 10" P3S shallow subwoofers from the brutal environment of your trunk. Keeps your golf clubs, softball bats, hockey sticks or even baby strollers away from your prized Rockford Fosgate subwoofers. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re-secure the trim ring. Compatible with select models.

Features:
Inserts snugly into Gen-2 P3S trim rings.
Protects against surround and cone damage.
Sized to fit Gen-2 P3S woofers.
Stamped mesh grille insert.
1 Year Warranty

Extra Information

Brand:

Rockford Fosgate

Weight:

12.60 LBS

RMS Wattage Per Speaker:

300

UPC:

199730948161

Bundle:

Yes

Feature 1:

This bundle includes a Rockford Fosgate P3SD4-10 10" Slim Subwoofer with Dual 4-Ohm configuration and a P3SG-10 10” Stamped Mesh Grille Insert.

Feature 2:

Experience powerful bass with the P3SD4-10 subwoofer, delivering 300W RMS and 600W peak power, perfect for any music enthusiast.

Feature 3:

The shallow mount design of the P3SD4-10 allows for installation in tight spaces without compromising on sound quality.

Feature 4:

The P3SG-10 grille insert protects your subwoofer from damage, ensuring longevity and performance in any environment.

Feature 5:

Enjoy flexible wiring options with the dual 4-Ohm voice coils, making it easy to integrate into your existing audio setup.
