Rockford Fosgate P3D2-15 15in Subwoofer + P2P3G-15 Grille

Description

Included in this kit

1x P3D2-15

1x P2P3G-15

---

This bundle includes a Rockford Fosgate P3D2-15 15” Subwoofer- DVC (dual 2-Ohm), 600 Watts Rms, 1200 Watts Peak, and a Rockford Fosgate P2P3G-15 15” Stamped Mesh Grille Insert.

1x Rockford Fosgate P3D2-15 15” Subwoofer- DVC (dual 2-Ohm), 600 Watts Rms, 1200 Watts Peak (P3D2-15)

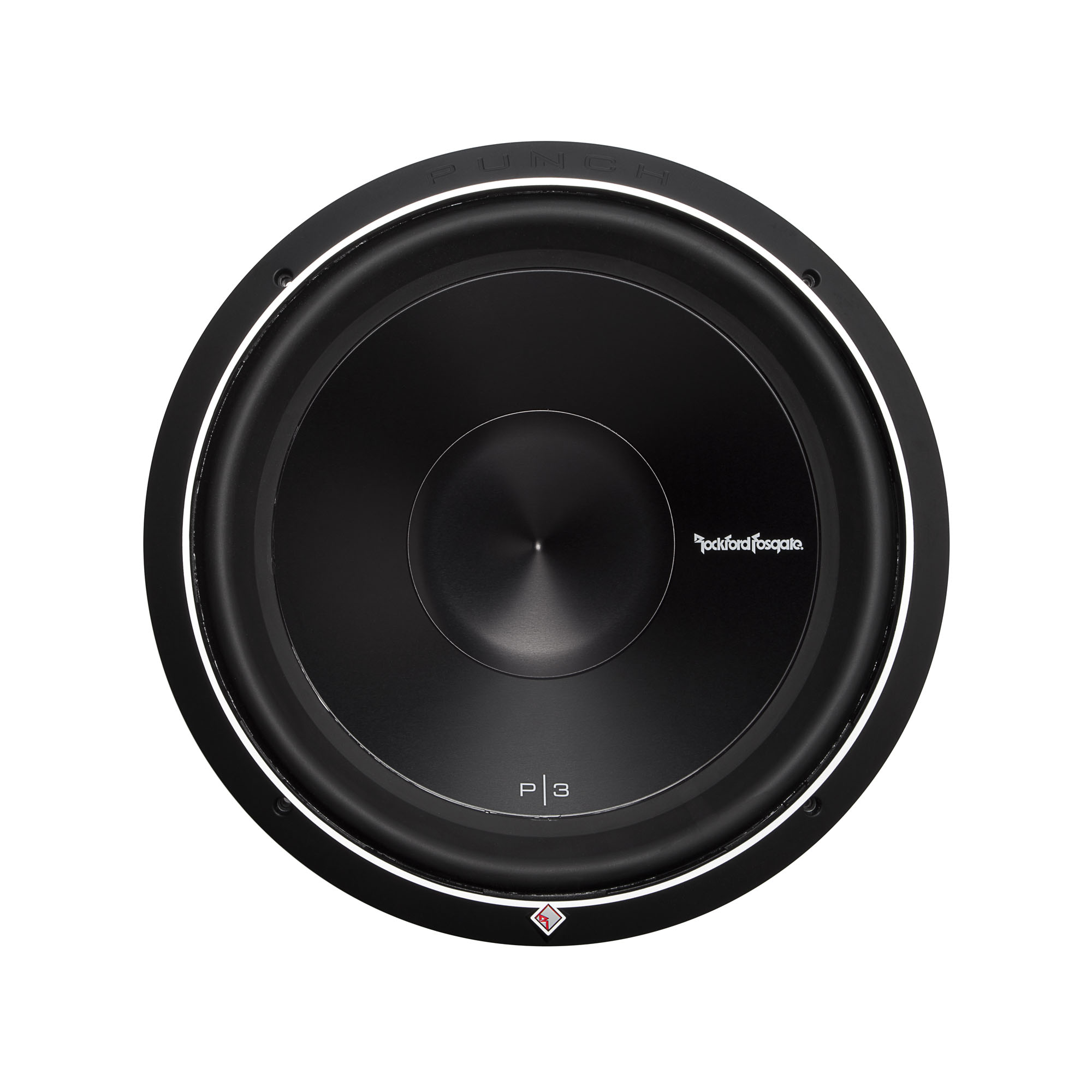

Rockford Fosgate Punch 15" P3 2-Ohm DVC Subwoofer

The P3D2-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15” features Dual 2-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

The P3D2-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

• Custom 10-AWG nickel plated push terminals
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Anodized aluminum cone and dustcap
• Protective PVC textured magnet cover
• Diamond cut cast aluminum trim ring with optional grille
• StampCast basket with integrated spider venting
• 1 Year Warranty

Specifications

Nominal Impedance

Dual 2-Ohm

Power Handling (Watts RMS)

600 Watts RMS
1200 Watts Max

Magnet Weight (oz)

96 oz. (2.73 kg.)

Voice Coil Diameter

2.5" (65.5 mm)

Mounting Depth

7.58 in. (192.5 mm)

Qts

0.54

Vas (Liters)

155.8

Cutout Diameter

13.94 in. (353 mm)

Woofer Displacement

0.148 cu. ft. (4.2 Liters)

Size

15"

Speaker Connector

Dual 10 AWG compression

Shipping Weight

23.3 Lbs. (10.56 kg)

Fs (Hz)

21.7

Qes

0.58

Qms

7.20

Le (mH)

4.06

SPL (dB @ 1w/1m)

86

CEA-2031 Compliant

Xmax (mm)

15.2

Re (Ohms)

3.20

Sd (cm²)

894

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Vented Box Volume (Vb)

2.66 cu. ft. (75.3 Liters)

Sealed Box Volume (Vb)

1.58 cu. ft. (44.7 Liters)

1x Rockford Fosgate P2P3G-15 15” Stamped Mesh Grille Insert (P2P3G-15)

Stamped steel grille insert for select Rockford Fosgate 15" Punch P2 and P3 subwoofers. Requires trim ring originally included with subwoofer to hold grille in place. Made from stamped metal, this black grille will protect your 15" P2 & P3 subwoofers from the brutal environment of your trunk. Keeps your golf clubs, softball bats, hockey sticks or even baby strollers away from your prized Rockford Fosgate subwoofers. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re-secure the trim ring. Compatible with select models.

Features:
Protects against surround and cone damage.
Sized to fit Gen-3 P2 & P3 woofers.
Stamped mesh grille insert.
Inserts snugly into Gen-3 P2 & P3 trim rings.
1 Year Warranty

Extra Information

Brand:

Rockford Fosgate

Weight:

24.32 LBS

RMS Wattage Per Speaker:

600

UPC:

199730948840

Bundle:

Yes

Feature 1:

This bundle includes a Rockford Fosgate P3D2-15 15” Subwoofer and a P2P3G-15 15” Stamped Mesh Grille Insert.

Feature 2:

Experience powerful bass with the P3D2-15 subwoofer, offering 600 Watts RMS and 1200 Watts Peak power handling.

Feature 3:

The subwoofer features Dual 2-Ohm voice coils and VAST technology for increased surface cone area.

Feature 4:

Enjoy enhanced durability with anodized aluminum cones and unique spider venting for cooler motor operation.

Feature 5:

The stamped mesh grille provides robust protection, fitting snugly into Gen-3 P2 & P3 trim rings.

Condition:

NEW

Weight:

24.3200 lbs

Shipping:

Free 2-Day Shipping!
