Description
Included in this kit
This bundle includes a Sony XS-163ES Mobile ES™ 6.1/2" (16cm) 3-Way Component Speakers, and a XS-690ES Mobile ES Series 6x9 2-way Car Speakers.

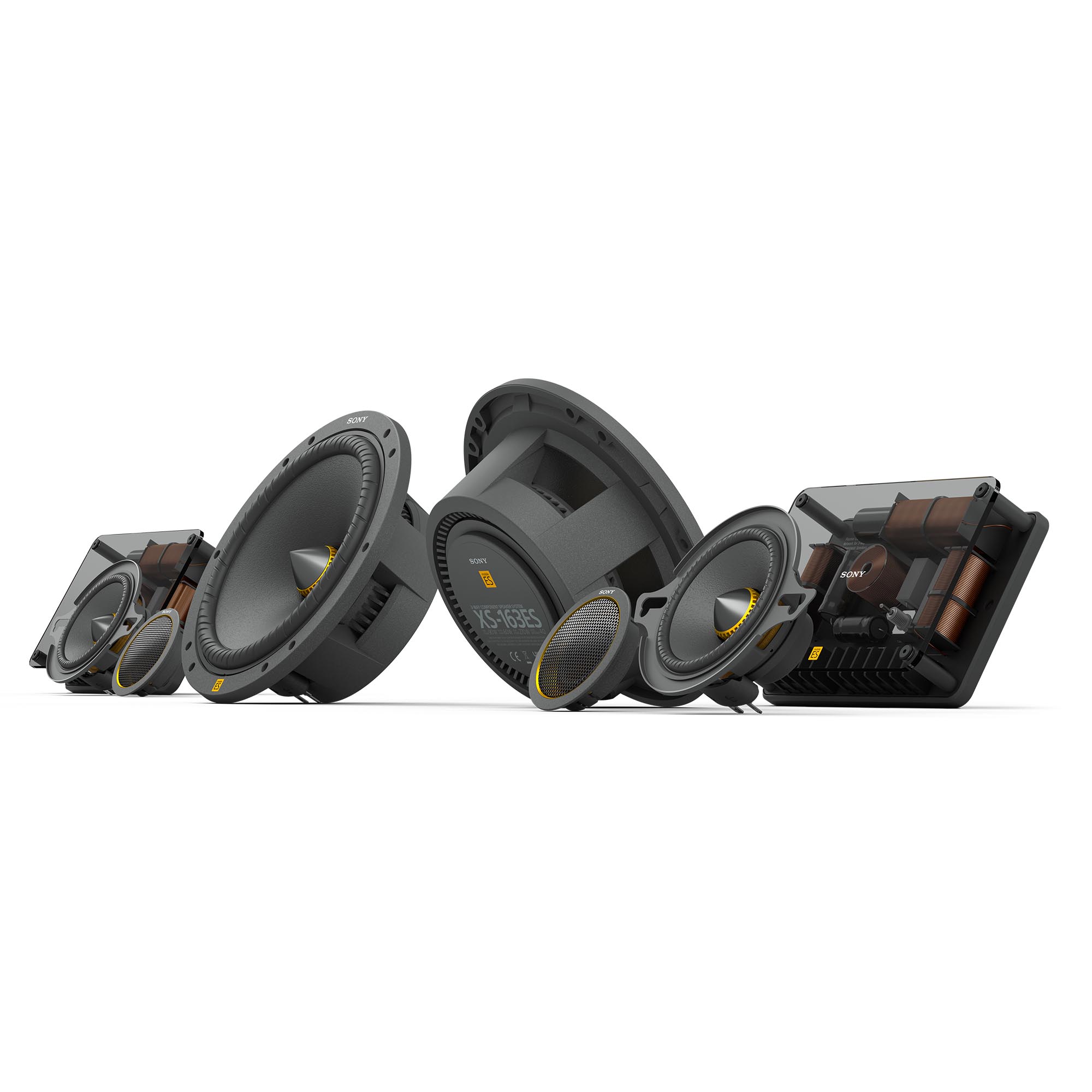

1x Sony XS-163ES Mobile ES™ 6.1/2" (16cm) 3-Way Component Speakers (XS-163ES)
Bring new life to your in-car listening with the Mobile ES 3-way component speakers. Featuring a new 3 ½" (8cm) mid-range driver with Lightweight Rigid Cellular aramid fiber matrix diaphragm, they will give you wider sound stage and more depth to your music, for full-bodied vocals, detailed instrument textures.
Lightweight Rigid Cellular Aramid Fibre Matrix Diaphragm
The diaphragms for the woofer and mid-range driver are crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as mica reinforced cellular. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Shallow mid-range driver
The newly-developed mid-range driver is driven via a compact but incredibly powerful neodymium magnet. The result is a shallower basket, designed to perform even in confined spaces and challenging installations.
Optimal formulation
Embedding in a unique matrix with aramid fibres suppresses diaphragm resonance and minimizes distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
Specifications:
General Features
Effective Frequency Range: 40–40,000 Hz
Impedance (ohms): 4
Output Sound Pressure: 89 dB ±2 dB SPL (1 W, 1 m)
Peak Power: 270 W
RMS Power: 90 W
Rated power: 60 W
Mid-range
Diameter: 3.5" (8 cm)
Mid-range Magnet Material: Neodymium
type: Cone
Size & Weight
Weight (Mid-Range): 7.05 oz
Weight (network box): 1.08 lb
Weight (tweeter): 2.12 oz
Weight (woofer): 33.51 oz
Speaker System
Configuration: Component, 2way
Size: 6.5" (16 cm)
Tweeter
Diameter: 1" (2.5 cm)
type: Soft Dome
Tweeter Diaphragm Material: Synthetic Fiber
Tweeter Magnet Material: Neodymium
Woofer
Surround Material: Rubber (Separated Notch)
Type: Cone
Woofer Magnet Material: Ferrite

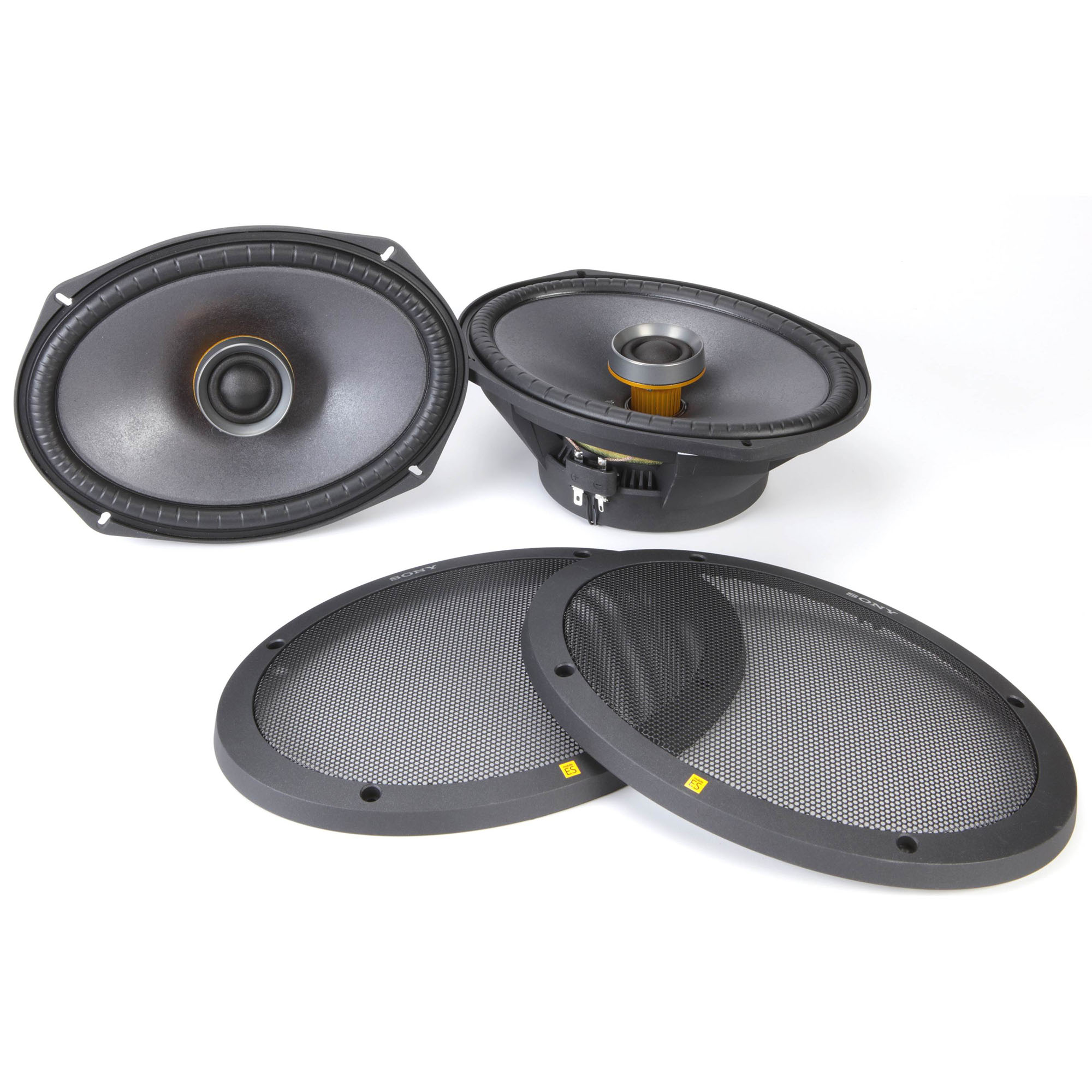

1x XS-690ES Mobile ES Series 6x9 2-way Car Speakers (XS-690ES)
Elevater Your Sound -
Add new levels of dynamic power and depth to your system with XS-690ES 2-way speakers. With the clarity of Mobile ES and wide frequency response, it will change the way you listen in your car forever.
MRC Aramid Fiber Matrix Woofer -
The main speaker diaphragm on the XS-690ES is crafted from Sony's unique Mica Reinforced Cellular (MRC) material. This rigid but lightweight driver allows for a much more precise response than conventional driver materials, for smoother and more natural sound characteristics.
Optimal Formulation -
Embedding MRC in a unique matrix with aramid fibers supresses diaphragm resonance and minimises distortion - not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean - even at high volume.
Separated Notch Edge Surround -
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced disortion and enhanced clarity.
Fiver Beam Frame Structure & Dynamic Air Diffuser -
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
General Features -
• Effective Frequency Range: 35-40,000 Hz
• Impedance (Ohms): 4
• Output Sound Pressure: 90 dB ±2 dB SPL (1 W, 1 m)
• Peak Power: 330W
• RMS Power: 110W
• Rated Power: 90W
Tweeter -
• Diameter: 1" (2.5cm)
• Type: Soft Dome
• Tweeter Diaphragm Material: Synthetic Fiber
• Tweeter Magnet Material: Neodymium
Woofer -
• Surround Material: Rubber (Separated Notch)
• Type: Cone
• Woofer Diaphragm Material: MRC Aramid Fiber Matrix
• Woofer Magnet Material: Ferrite
