Description
Included in this kit
This bundle includes a Sony XM-1ES Mobile ES Mono Power Amplifier, and 2x Sony XS-W124ES Mobile ES Series 12" 4-ohm Component Subwoofer.

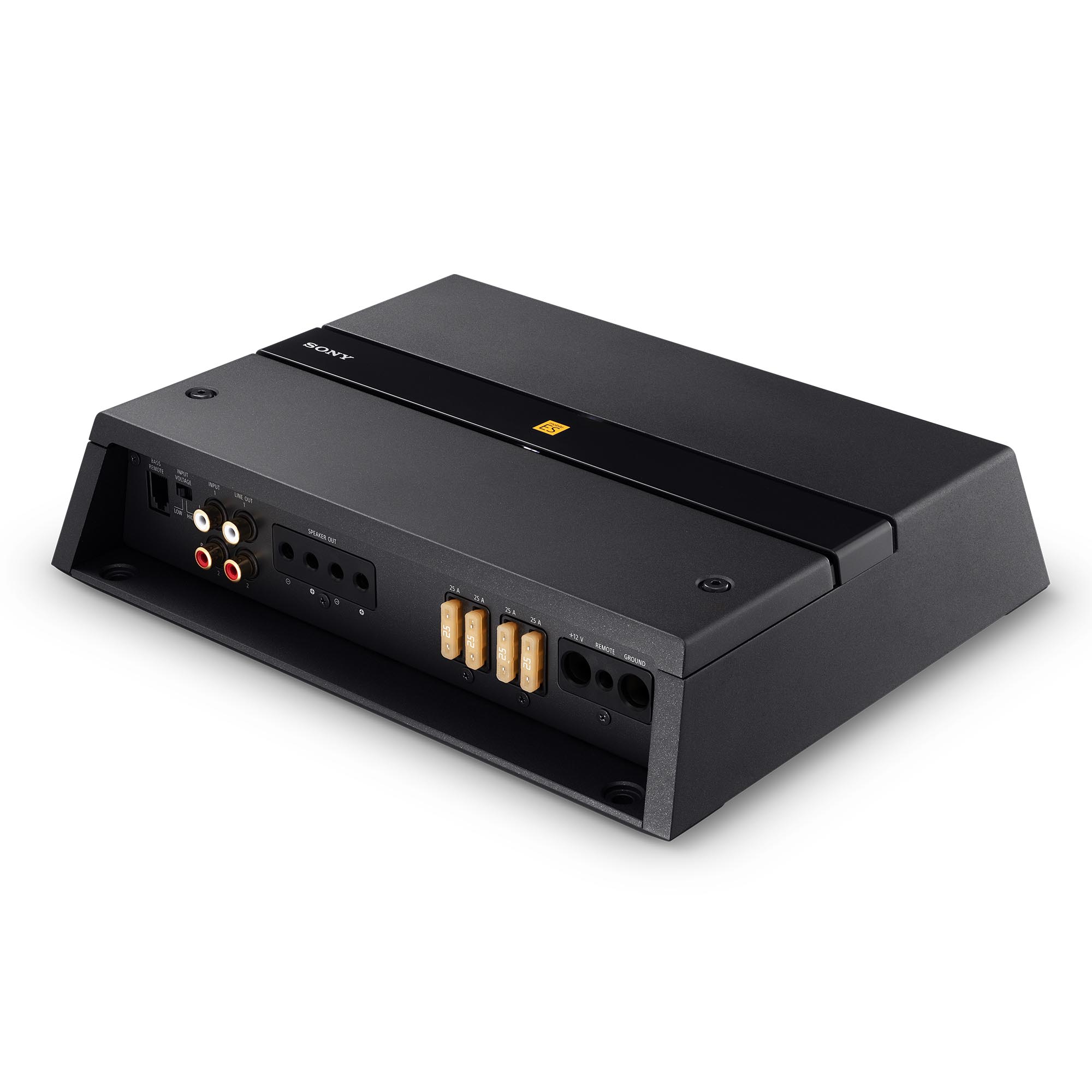

1x Sony XM-1ES Mobile ES Mono Power Amplifier (XM-1ES)
600W x 1 RMS output power
Enjoy dynamic sound with an output power of 600W x 1 RMS at 4 ohms / 1000W x 1 RMS at 2 ohms. The highly efficient class-D amplifier boosts your in-car music, adding a powerful and clear low-end to your favorite tunes.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimising any signal interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
Amplifier
Channel Configuration: 1-ch (Mono)
Low Pass Filter: Variable (50–500 Hz)
Low-Pass Filter Slope: 24 dB/oct
CTA S/N: 77dB
Signal to Noise Ratio: 100dB
CTA Rated Output Power
4 ohms: 600 W x1
Details
Gold Plated Connectors: Yes
MOSFET: Yes (Power Supply)
Speaker Level Input: Yes
Subsonic High Pass Filter : Yes
CTA Power output: 600 W x1
General Features
Frequency Response: 10–500 Hz
Tolerance: +0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%): Less than 0.05%
Maximum Output Power (1 kHz)
Max. Channel Output Power Configuration at 4 ohm: 1,000 W
Max. Channel Power Configuration at 2 ohms: 1,550 W
Rated Output Power (14.4 V)
2 ohms: 1,000 W x1 at 100 Hz, 1% THD
4 ohms: 600 W x1 at 100 Hz, 1% THD

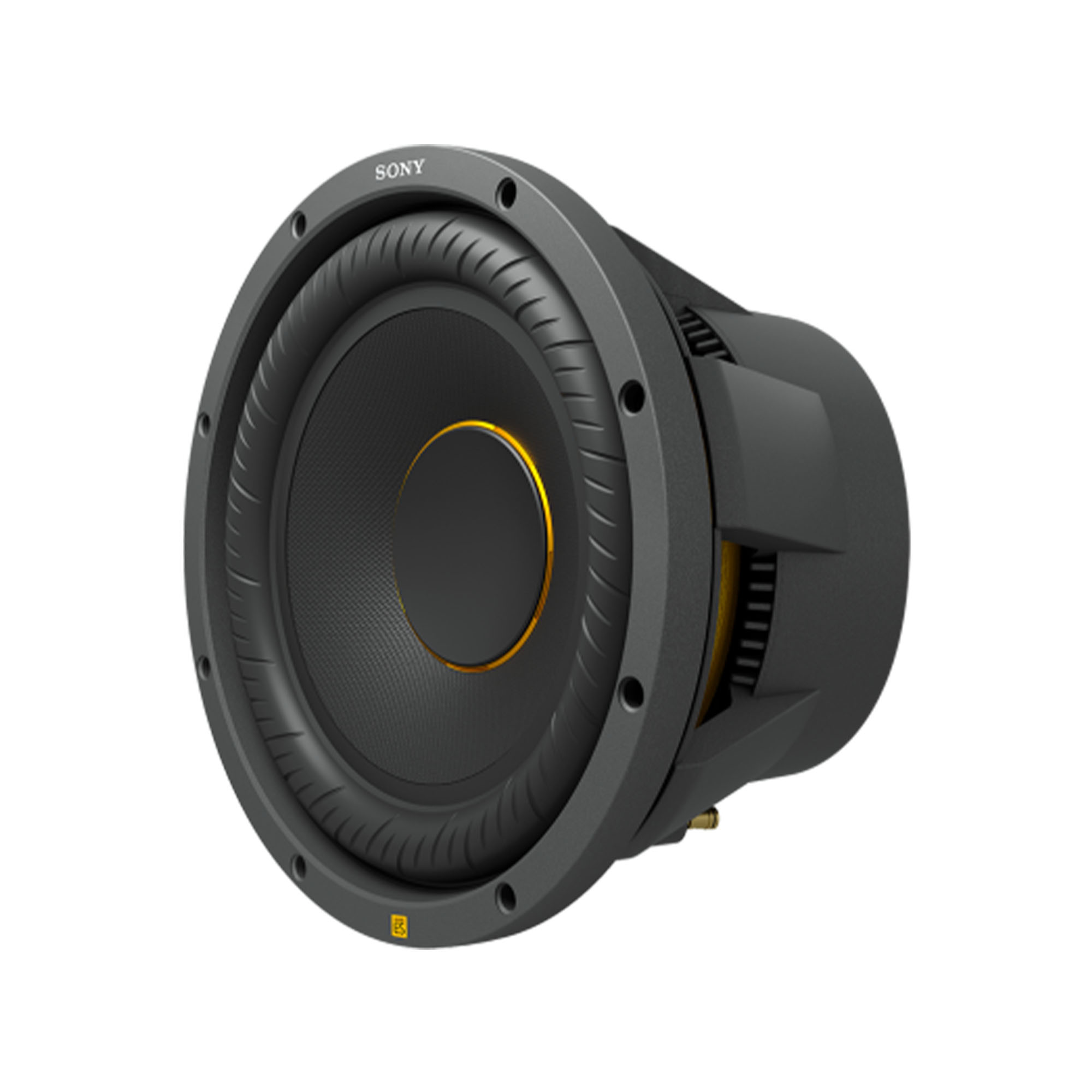

2x Sony XS-W124ES Mobile ES Series 12" 4-ohm Component Subwoofer (XS-W124ES)
Elevate Your Sound -
Enjoy deep and rich bass sound with this Mobile ES 12-inch 4-ohm subwoofer. With unique mechanical driver improvements and a rigid but impressively light-weight diaphragm, you will enjoy clear powerful low end, for a great in-car listening experience.
Separated Notch Edge Surround -
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.
Five-beam Frame Structure and Dynamic Air Diffuser -
The Five-beam Frame design disperses resonance, while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
Progressive Height Rate Spider -
The acoustically-optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference, the lead wire from the voice coil is also sewn to the spider, reducing wire movement.
Gold-plated Input Terminals -
Gold-plated spring terminals allow up to AWG#10 speaker cables.
Speaker System -
• Configuration: Single Voice Coil
• Size: 12" (30cm)
General Features -
• Peak Power: 2000W
• RMS Power: 500W
• Rated Power: 400W
• Effective Frequency Range: 25-700 Hz
• Output Sound Pressure: 83 dB ±2 dB SPL (1 W, 1 m)
• Impedance (ohms): 4
• Magnet Material: Ferrite
• Surround Material: Rubber (Separated Notch)
