Description
Included in this kit
This bundle includes a Sony XS-692ES Mobile ES 6 x 9" (16 x 24 cm) 2-Way Component Speakers, a XS-690ES Mobile ES Series 6x9 2-way Car Speakers, and a Sony XM-4ES Mobile ES 4-Channel Amplifier.

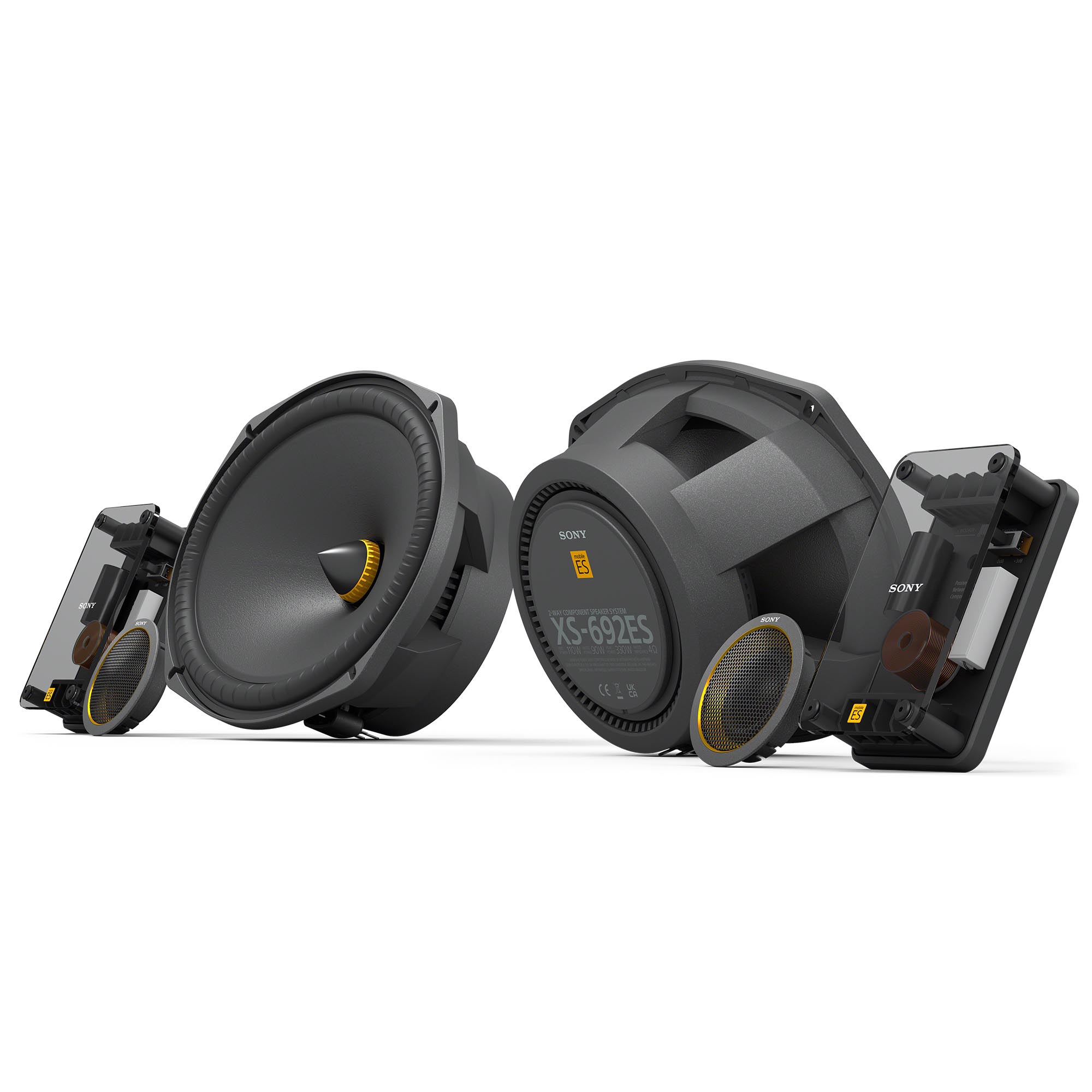

1x Sony XS-692ES Mobile ES 6 x 9" (16 x 24 cm) 2-Way Component Speakers (XS-692ES)
Elevate your sound
Experience dynamic sound with astonishing clarity. The woofer with Lightweight Rigid Cellular diaphragm provides power and depth, while the component soft dome tweeter gives the best stereo sound staging in your vehicle.
Lightweight Rigid Cellular Aramid Fibre Matrix Diaphragm
The diaphragms for the woofer and mid-range driver are crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as mica reinforced cellular. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Bi-amp capable crossover with gain selector
The audiophile-grade crossover features an optimal, lower-resistance film capacitor for smooth high-end. Its bi-amp capable design mitigates current distortion to the tweeter when running the woofer with high input levels. A dedicated gain selector helps keep balance of woofer and tweeter signal levels, and enables tweeter level adjustment even when driving the components from a single amplifier.
Optimal formulation
Embedding in a unique matrix with aramid fibres suppresses diaphragm resonance and minimizes distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
Specifications:
General Features
Effective Frequency Range: 35–40,000 Hz
Impedance (ohms): 4
Output Sound Pressure: 90 dB ±2 dB SPL (1 W, 1 m)
Peak Power: 330 W
RMS Power: 110 W
Rated power: 90 W
Size & Weight
Weight: 3.09 lb
Speaker System
Configuration: Component, 2 way
Size: 6 x 9" (16 x 24 cm)
Tweeter
Diameter: 1" (2.5 cm)
type: Soft Dome
Tweeter Diaphragm Material: Synthetic Fiber
Tweeter Magnet Material: Neodymium
Woofer
Surround Material: Rubber (Separated Notch)
type: Cone
Woofer Magnet Material: Ferrite
1x XS-690ES Mobile ES Series 6x9 2-way Car Speakers (XS-690ES)
Elevater Your Sound -
Add new levels of dynamic power and depth to your system with XS-690ES 2-way speakers. With the clarity of Mobile ES and wide frequency response, it will change the way you listen in your car forever.
MRC Aramid Fiber Matrix Woofer -
The main speaker diaphragm on the XS-690ES is crafted from Sony's unique Mica Reinforced Cellular (MRC) material. This rigid but lightweight driver allows for a much more precise response than conventional driver materials, for smoother and more natural sound characteristics.
Optimal Formulation -
Embedding MRC in a unique matrix with aramid fibers supresses diaphragm resonance and minimises distortion - not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean - even at high volume.
Separated Notch Edge Surround -
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced disortion and enhanced clarity.
Fiver Beam Frame Structure & Dynamic Air Diffuser -
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
General Features -
• Effective Frequency Range: 35-40,000 Hz
• Impedance (Ohms): 4
• Output Sound Pressure: 90 dB ±2 dB SPL (1 W, 1 m)
• Peak Power: 330W
• RMS Power: 110W
• Rated Power: 90W
Tweeter -
• Diameter: 1" (2.5cm)
• Type: Soft Dome
• Tweeter Diaphragm Material: Synthetic Fiber
• Tweeter Magnet Material: Neodymium
Woofer -
• Surround Material: Rubber (Separated Notch)
• Type: Cone
• Woofer Diaphragm Material: MRC Aramid Fiber Matrix
• Woofer Magnet Material: Ferrite
1x Sony XM-4ES Mobile ES 4-Channel Amplifier (XM-4ES)
100W x 4 RMS output power
Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) RMS at 4 ohms / 165W x 4 RMS at 2 ohms. The highly efficient class-D amplifier provides a variety of speaker configurations to suit any car and impress any audio enthusiast.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimising any signal interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
Specifications: Amplifier
Channel Configuration: 4-ch/3-ch/2-ch
High Pass Filter: Variable (500–5 kHz)
Low Pass Filter: Variable (50–500 Hz)
Low-Pass Filter Slope: 12 dB/oct
High Pass Filter Slope: 12 dB/oct
CTA S/N: 77dB
Signal to Noise Ratio: 100dB
CTA Rated Output Power
4 ohms: 100 W x4
Details
Gold Plated Connectors: Yes
MOSFET: Yes (Power Supply)
Speaker Level Input: Yes
CTA Power output: 100 W x4
General Features
Frequency Response: 10 Hz–40 kHz
Tolerance: +0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%): Less than 0.05%
Rated Output Power (14.4 V)
2 ohms: 165 W x4 at 1 kHz, 1% THD
4 ohms: 100 W x4 at 1 kHz, 1% THD
4 ohms — BTL (Bridge-Tied Load): 330 W x2 BTL at 1 kHz, 1% THD
Size & Weight
Dimensions (W x H x D): 10.63" x 2.36" x 8.46"
Weight: 6.39 lb
